MIMOmesh Series Dual-band simultaneous operation (2T2Rx2) wireless broadband ad hoc network Performance
● Supports selection of two frequency bands: UHF, S Band, L Band and C Band. Two sets of two-transmit-two-receive operate simultaneously.

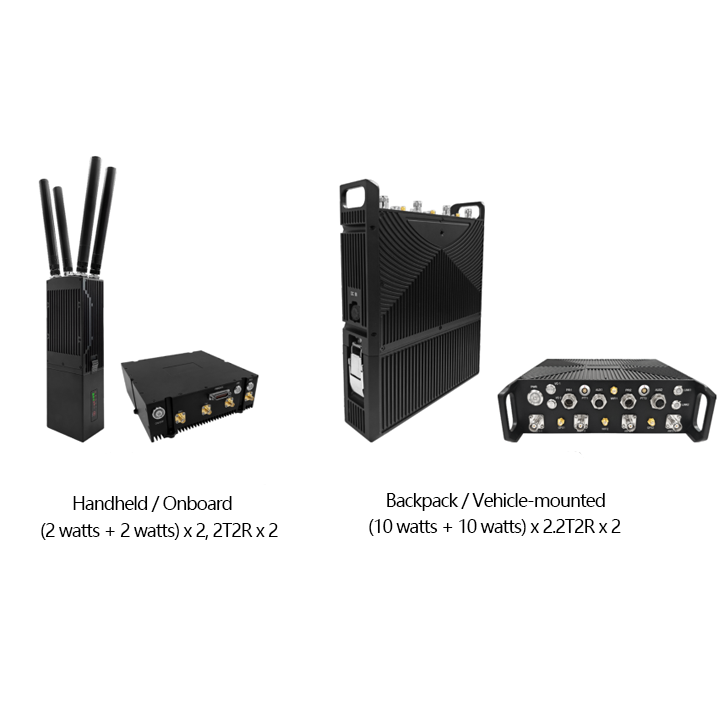

● Transmit power (2 watts + 2 watts) x 2 for handheld/airborne or (10 watts + 10 watts) x 2 for backpack/car-mounted, high-efficiency linear silicon-based gallium arsenide power amplifier, two sets of four transmit/receive antennas, -103 dBm @ 5 MHz with high sensitivity. In urban areas, 1 – 30 kilometers, open line-of-sight 50 – 300 kilometers.
● Space-time coding, 130/252 x 2 Mbps or higher high-speed throughput; spatial frequency multiplexing, no rate drop for more than three hops.
● Classic SDR platform, software and hardware independently controllable.
● HTDMA, large-scale networking with more than 256 nodes
● Inter-frequency intelligent channel selection networking, and the powerful anti-interference capability of dynamic adaptive frequency hopping e
● Supports software encryption such as DES/AES, as well as hardware encryption for TF cards.
● Compatible and interoperable with the SMARTmesh/ULSCmesh/BEAMmesh series
● PDT/DMR digital walkie-talkie, and 4G/5G router are expandable
● IP67 waterproof, military-grade for harsh environments
MIMOmesh Series Dual-band simultaneous operation (2T2Rx2) wireless broadband ad hoc network Technical Indicators
| Overall | |
| SDR platform, waveform | Dual9361 + Dual7Z030/7Z035 or 7Z100, Mobile Network MANET + MIMO |
| MIMO technology | Space-time coding, receive diversity, TX/RX beamforming, spatial multiplexing |
| Receiving sensitivity | -103dBm@5MHz BW |
| Working channel bandwidth | 1.25/2.5/5/10/20 MHz, 30/40 MHz configurable; |
| Transmission rate | 1 – 130 Mbps (20 MHz bandwidth) / 252 Mbps (40 MHz bandwidth) x 2 Adaptive, QoS |
| Modulation method | TD-COFDM,BPSK/QPSK/16QAM/64QAM/256QAM/1024QAM Adaptive (fixed settings optional) |
| RF output power(Supports TPC power self-adaptation, 1dBm adjustable> | (2 watts + 2 watts) x 2, handheld/airborne radios (10 watts + 10 watts) x 2, backpack/cab radios |
| Single-hop communication distance | 100-300 kilometers (full view), 1-30 kilometers (urban area) |
| Communication method | Distributed non-centralized point-to-point/point-to-multipoint/multipoint-to-multipoint, two-layer or three-layer dynamic routing, multi-hop |
| Single-hop delay | Average 10ms (20 MHz bandwidth) |
| Security encryption | DES, AES128/256, SM4, SNOW3G/ZUC optional, custom chip/TF card encryption Or external secure device |
| Anti-interference working mode | Manual channel selection for spectrum scanning, full-band enhanced intelligent frequency selection (spectrum sensing)/full-band Adaptive frequency hopping FHSS/ roaming mode, multi-level anti-interference |
| Local/Remote management | Setting of working frequency, channel bandwidth, network ID, transmission power and other parameters, spectrum scanning, network topology, link field strength signal-to-noise ratio, upload/download traffic, node distance and other real-time display and statistical recording, GPS/BD/GLONASS positioning electronic map, temperature/voltage/interference monitoring Software upgrade. Remote silent and wake-up optional |
| Others | Boot-up time less than 28 seconds, network entry/update/switching time less than 1 second Single system user capacity unlimited (more than 256)> Self-organizing network jump times unlimited (data 15+ jumps) Voice 10+ jumps, video 8+ jumps), total bandwidth loss of more than 3 jumps is less than 70% Automatic carrier tracking, adapt to ±6kHz frequency offset Doppler shift, support mobile communication at speeds above 7200 kilometers per hour (6 Mach, 2000 meters/second) |
| Working frequency band selection (70M – 6GHz, adjustable ∠UperCXKu). Supports TDD with either the same frequency for transmission and reception or different frequencies. Single-band 2T2R or dual-band 1T2R. | |
| Frequency band | Frequency range |
| UHF ( | 430-550/570-700/800- 950, 225-400/320-470* |
| L Band (GHz) | 1000-1200/1300-1500/ 1600-1800/1800-2000, 1200-1700* |
| S Band (GHz) | 2.0-2.2/2.2-2.5/2.5-2.7/2.7- 2.9/3.4-3.6, 1.6-2.3/1.9-2.7* |
| C Band (GHz) | 4.4-5.0/5.25-5.85, 4.2-5.2/ 5.5-6.0* |
| (Note*: Power varies with volume, size and weight) | |
| China Ministry of Industry and Information Technology (MHz) 336-344/512-592/566-626/606-678/1420-1520/1430-144 | |
| Whole structure | |
| Size/Weight | 21.0×6.8×5.2cm / 0.972kg (including 11.1V/77.7Wh handheld radio) |
| 16.1×15.5×5.1cm / 1.30kg [2 x 10W / 2 x 20W airborne radios – black] | |
| 29.5×23.0x6.5cm / 5.26kg (including 22.2V/213Wh backpack radio) | |
| 19.0×23.0x6.5cm / 3kg (2 x 10W / 2 x 20W vehicle radios) | |
| Installation / Color | 4 mounting holes, earpiece / black, iron gray, military green optional |
| Power supply | |
| Supply voltage | 12-36VDC, 2 watts x 2 / 4 watts x 2 handheld |
| 18-36VDC, 10 watts x 2 / 20 watts x 2 backpack | |
| Power consumption | Working 3A / Standby 1.2A @ 12V, 2 watts x 2 / 4 watts x 2 handheld |
| Working 8A / Standby 1.4A @ 24V, 10 watts x 2 / 20 watts x 2 backpack | |
| Power Supply Selection | Powered by rotating snap-in battery or main cable |
| Battery | 4-5/3-4 hours of 114/77.7Wh (handheld radio >, |
| 5-6/3-4 hours of 427/213Wh (backpack radio > Polymer lithium battery | |
| Interface | |
| Basic interface | 4xTNC RF, 1-3xRJ45 Ethernet 100/1000BaseT, WIFI AP, GPS/BDS, RS232/TTL (UART), Sbus/BT, 1.2 – 230.4Kbps, DC input |
| Voice intercom / auxiliary interface | MIC, SP, PTT, GND, RS485/422, USB2.0 OTG |
| Network expansion options | Public network routing/4G LTE private network, wide and narrow integration, satellite, fiber |
| Video expansion option | Low latency HDMI/SDI/CVBS, 4K/2K/1080P/720P/D1 |
| Link status indicator ligh | Red light always on – not connected to network; Red light flashing – booting / not connected to network |
| Green light always on – connected to network; Green light flashing – voice PTT has been pressed | |
| RSSI Link Indicator Light | Green light always on – excellent link quality; Blue light always on – good link quality |
| Yellow light always on – average link quality; Purple light always on – slightly poor link quality | |
| Red light always on – poor link quality; Light off – link interruption | |
| Management interface / control interface | Web-based network management/GUI, provides API secondary development interface /SNMP (or customized) |
| OEM module | |
| Size/Weight | 10.1×5.4×1.9cm/123.5g |
| RF | SMP |
| Environment | |
| Working temperature | -40°C ~+80°C |
| Protection level | IP66, IP67/IP68 Customization |
MMHH-(2+2)x2-LS-1-1-HDMI-4G/5G-00 indicates: (2 watts + 2 watts > x2, L&S band. With WIFIAP, with positioning module, built-in HDMI encoding, built-in 4G/5G public network module, without display screen, without optical MODEM handheld radio.
MMBP-(10+10)x2-US-1-1-SDI-4G LTE-0-0 indicates: (10 watts + 10 watts > x2, UHF&S band, with WIFIAP, with positioning module, built-in SDI encoding, built-in 4G LTE private network module, without display screen, without optical MODEM backpack radio.
Product Model Approval Certificate of the Radio Management Bureau of the Ministry of Industry and Information Technology of China
2018FP5238、2018FP6081、2021FP0114、2021DP10060、2022FP15779
MIMOmesh Series Dual-band simultaneous operation (2T2Rx2) wireless broadband ad hoc network Specifications and Models
| Product type | Channel power (Wat) | Working frequency band (MHz) | Built-in WIFI AP | Built-in Positioning module | Built-in video encoding | Built-in Public network/Private network | Display screen | Built-in Optical MODEM |
| HandHeld | 2 | 600, U | 0 (None) | 0 (None) | 0 (None) | 0 (None) | 0 (None) | 0 (None) |
| BackPack | 4,5 | 1400, L | 1 (There is) | 1 (There is) | HDMI | 4G/5G Module | 2 (2 inches) | 1 (There is) |
| VehiCle | 10 | 2300, S | SDI/AV | 4G LTE CPE | 3 (3.2 inches) | |||
| AirBome | 20,40 | 4500,C | 4 (4 inches) |
MMHH-2×2-1400-1-1-HDMI-4G/5G-0-0 indicates: 2 watts x2, 1400 MHz, with WIFI AP, with positioning module, built-in HDMI encoding, built-in 4G/5G public network module, without display screen, without optical MODEM handheld radio.
MMBP-10×2-600-1-1-SDI-4G LTE-0-0 indicates: 10 watts x2, 600 MHz, with WIFI AP, with positioning module, built-in SDI encoding, built-in 4G LTE private network module, without display screen, without optical MODEM backpack radio.

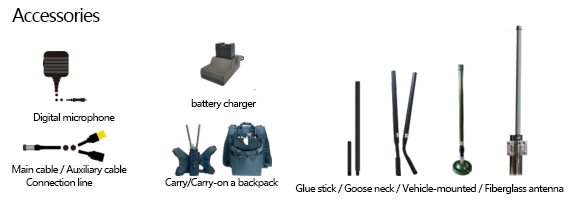

MIMOmesh Series Dual-band simultaneous operation (2T2Rx2) wireless broadband ad hoc network Accessories

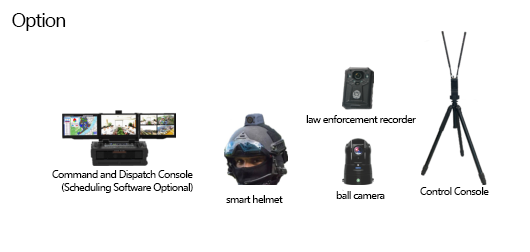

MIMOmesh Series Dual-band simultaneous operation (2T2Rx2) wireless broadband ad hoc network Option
