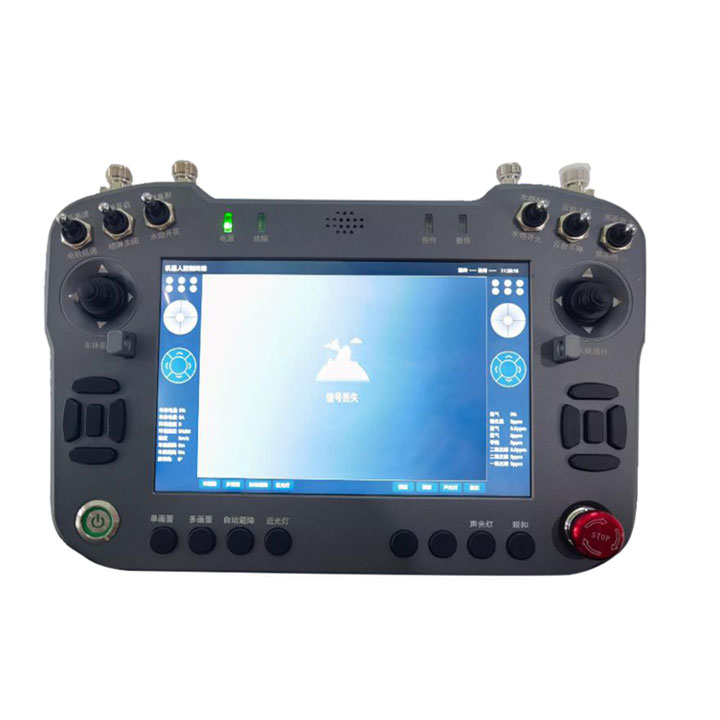

MO33A Hand-held Remote Features
- COFDM video transmission and reception.
- FSK frequency-hopping telemetry data bidirectional transmission.
- 4G telecommunication
- support two-way voice intercom function.
- With TF card storage function, can store all kinds of data.
- An extended HDMI interface can attach big screen display.
- The 10.1-inch high-definition screen displays real-time video and car body data.
- It has 6 dial bars, 2 two-axis rocker bars, 18 buttons. The function can be customized.
- Removable battery design, it can extend battery life.
MO33A Hand-held Remote Parameters
Video transfer part
Parameters
- Working frequency
- 902~928MHz
- Signal BW
- 2~8MHz
- Modulation
- FSK hopping
- Receiving sensitivity
- -112dBm@115.2kbps
Data transfer part
- TX power
- <30dBm
Interface index
- Highlight screen
- 10.1inch LCD,Brightness:900cd/m2
- Video interface
- HDMI ,up to 1080P
- Storage
- TF card，up to 256G
- Audio interface
- Loudspeaker, 3.5mm earphones
- Antenna interface
- SMA
Electrical specifications
- Voltage range
- DC12V
- System power consumption
- <15W
- Removable Battery
- 6000mAH(removable)
Physical specifications
- Dimensions(L*W*H)
- 360mm*235m*43mm
- Weight
- 2.8kg( without antenna)
- Working temperature
- -20℃ ~+55℃
- Transmission Distance
- 1-3 km (different environment and antenna height will affect)
- Other means of communication
- 4G wifi (customized)
