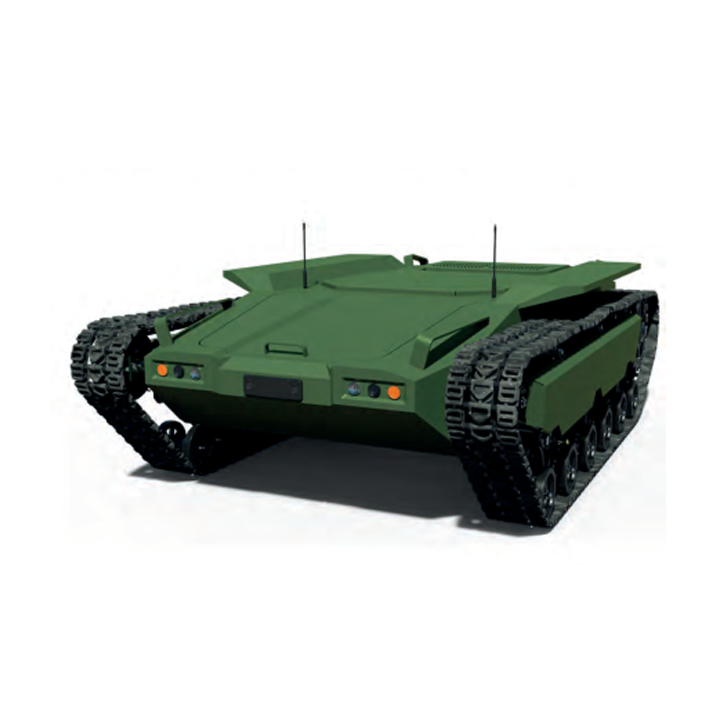

Mountain Ant SY-100 General Mobile Platform

This product is a remote-controlled crawler-type mobile platform, featuring high maneuverability, long endurance, high speed, strong adaptability to various scenarios, and excellent shock absorption performance. It can be used for target strikes, urban or outdoor exploration, disposal of suspicious objects, monitoring of target areas and sampling, etc.

Categories: ,
Description

Mountain Ant SY-100 General Mobile Platform Technical Indicators

(1) Dimensions (length × width × height): < 1700mm × 1000mm × 500mm;
(2) Self-weight: < 180kg;
(3) Load capacity: 100kg;
(4) Maximum traveling speed: 21km/h;
(5) Maximum climbing angle: 38°;
(6) Maximum descending angle: 25°;
(8) Maximum width for crossing ditches: 550mm;
(7) Maximum vertical obstacle clearance height: 350mm;
(9) Maximum water crossing depth: 280mm;
(10) Maximum range of travel: 50km;
(11) Remote control range: 2km in clear view conditions;
