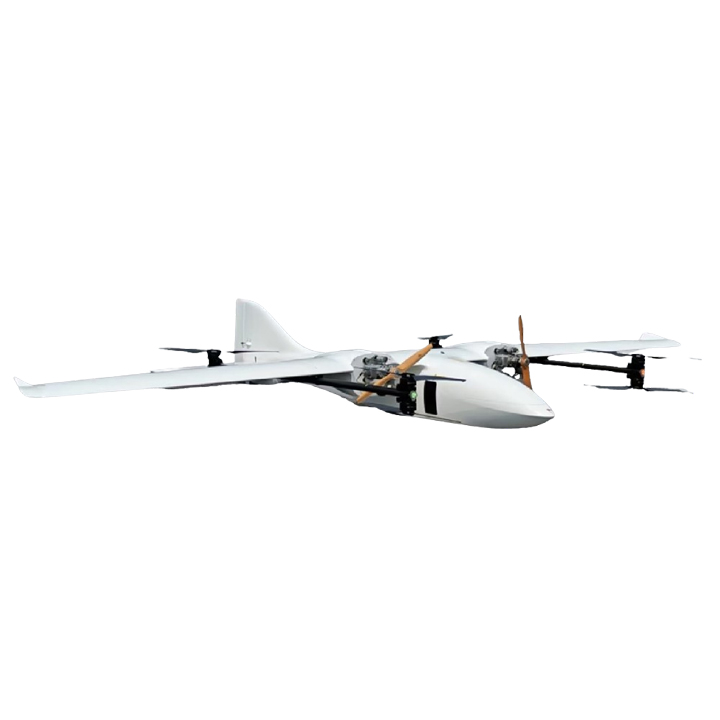

MQ-600 Vertical Takeoff And Landing Composite Wing Unmanned Aerial Vehicle

The MQ-600 Vertical Takeoff And Landing Composite Wing Unmanned Aerial Vehicle is a remarkable innovation in the field of UAVs. Combining the advantages of fixed – wing and rotorcraft, it features a composite wing design that enables both vertical takeoff and landing, eliminating the need for a runway. This makes it highly adaptable to various terrains, from mountainous regions to urban areas. Equipped with advanced avionics and a reliable power system, the MQ – 600 can achieve long – range flights with high endurance. Its payload capacity is substantial, allowing it to carry out diverse tasks such as surveillance, reconnaissance, and even light cargo transportation. Whether for military operations, like delivering supplies to remote outposts, or civilian applications such as disaster relief and infrastructure inspection, the MQ – 600’s versatility and performance make it a top choice.

Categories: , ,
Description

Parameter Details

  • Aircraft length: 4.08m
  • Wingspan: 6.235m
  • Maximum takeoff weight: 155kg
  • Maximum payload: ≥35kg
  • Stall speed: 70km/h
  • Maximum speed: 190km/h
  • Maximum flight time: 12h
  • Maximum control distance: ≥50km
  • Maximum flight time: 12h
  • Maximum fuel capacity: 50L (expandable to 70L)
  • Maximum range: ≥100km
  • Maximum flight altitude: 6000m
  • Maximum wind resistance: 12m/s (Force 6 wind)
  • Operating environment: -10°C to 45°C; light rain-proof
  • Takeoff and landing: Vertical takeoff

MQ-600 Vertical Takeoff And Landing Composite Wing Unmanned Aerial Vehicle
