Home » Unmanned System Products » MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose
China Moneypro M613 Mini 3-Aixs Stabilizer Prime Lens EO/IR AI Tracking Thermal Imager Gimbal Camera
Back to products
China Moneypro Trace-M1 Antenna Tracker Gimbal For Data and Image Transmission Linkage Antenna

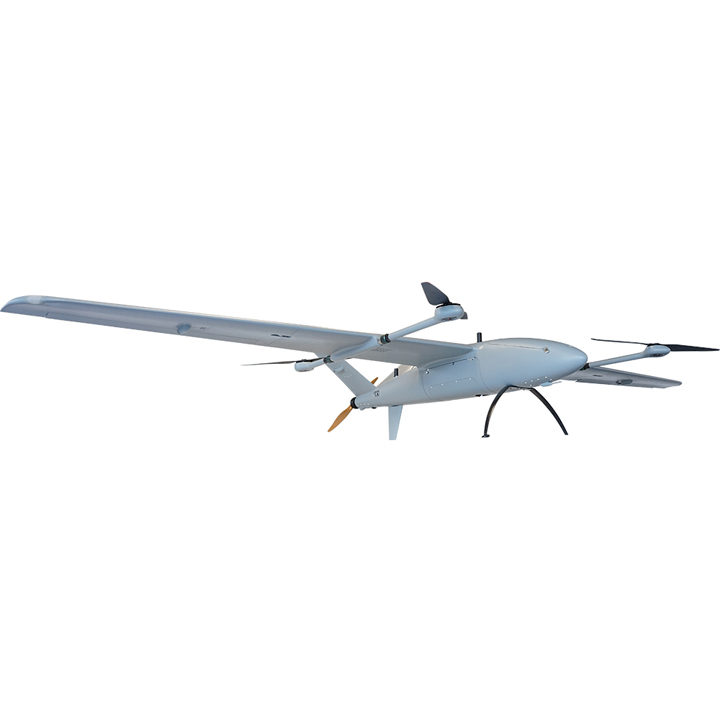

MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose

The MVT390 stands as a flagship UAV platform, establishing a new standard for the VTOL UAV sector. It boasts an innovative modular design, superior aerodynamic configuration, high-performance flight capabilities, and strong payload and expansion potential—all combining to deliver robust support for injecting innovation into long-range aerial operations.

Categories: Composite Wing Flight Platform, Tether Box, Tethered Drones
Share:
  • Description
Description

Product Detail

MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose MVT390 E-Vtol Fixed Wings Long Endurance Modular Design For Multipurpose

Specification

Model No. eVT390
Type VTOL Fixed Wing
Color Gry as default (Support customization)
Wingspan 3914mm
Length 1899mm
Belly to Ground 750mm
Material Carbon fiber + fiberglass
MTOW 35kg
Max Payload 10kg
Flight Time 3.5hrs no load, 1.5hrs @10kgs payload
Max Flight Speed 37m/s (130km/h)
Cruising speed 23m/s (83km/h)
Max climbing / decent speed 4m/s, 5m/s
Max Flight Altitude 4500m
Max Wind Resistance 12m/s
Battery (Recommended) 4pc * 6S*30000mAH HED Li-Ion battery
Working Temperature -20℃~60℃
IP Grade IP54
Packing Chargeable Size Flight case 1 for fuselage: 158*66*76cm
Flight case 2 for tail: 96*55*65cm
