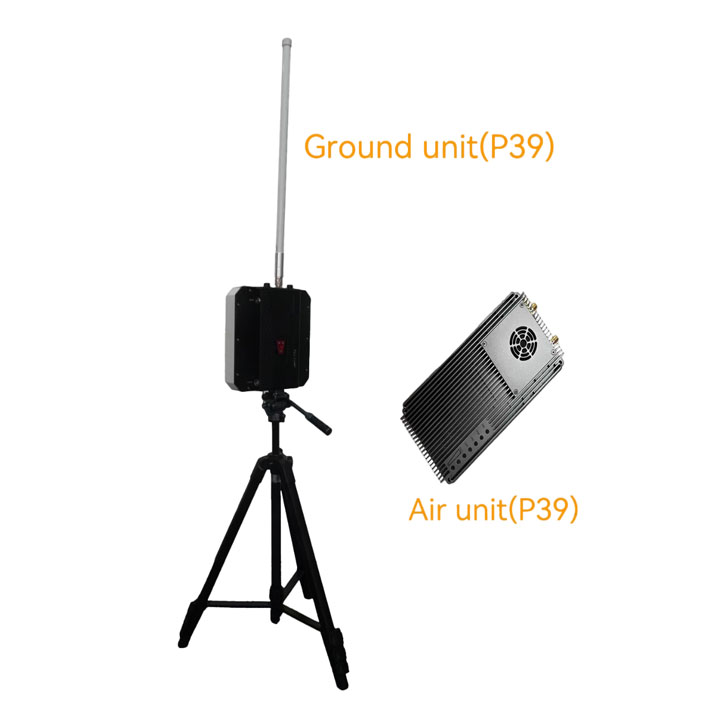

MYD-AirLink-II@P39 Ground Base Station-II Features
- Support long-distance transmission:Â Â Air to ground 100km(LOS).
- Supports large bandwidth transmission:Â Up to 17Mbps@10MHz
- Supports automatic relay transmission:Â Supports automatic repeater addition.
- Supports multi-interface design:Â Â Â Ethernet;WI-FI;RS232;TTL;RS422;SBUS.
- Supports automatic frequency selection:Â Â Automatic detection of interference signals, real-time selection of the optimal frequency point.
- Supports automatic retransmission:Â Automatic retransmission of sudden error data to improve data reliability.
- Supports adaptive stream:Â The channel modulation mode is automatically adjusted according to the signal quality in real time.
- Supports automatic power control:Â Â Close range automatic adjustment of transmission power, reduce power consumption.
- Supports automatic antenna selection:Â According to the occlusion situation, the optimal antenna transmission is selected in real time.
- Supports upstream and downstream dynamic allocation:Â The upstream and downstream bandwidth ratio can be automatically allocated based on the data volume in real time.
- Supports the coexistence of multiple sets:Â Supports simultaneous operation of multiple devices.
- Supports the frequency matching function : It can be used by software and hardware for frequency pairing.
- Supports IP53 level protection:Â Rainwater and dust proof design.
MYD-AirLink-II@P39 Ground Base Station-II Parameters
Parameters
- Working frequency
- 1350~1470MHz
- Radio frequency channel
- 2T2R
- Output power
- 39dBm(8W)
- Channel bandwidth
- 10MHz
- Modulation mode
- QPSK,16QAM
- Maximum rate
- 17Mbps@16QAM3/4
- Communication encryption
- AES256
- Transmission delay
- ≤10ms
Interface index
- Radio frequency interface
- SMA *2
- Device interface
- Ethernet*1 , WIFI*1, TTL/RS232*2 , RS422*1, SBUS/TTL*1
Electrical specifications
- Power consumption
- Air unit≤40W; Ground unit≤12W
- Level of Protection
- Ground unit: IP53ï¼› Air unit: IP20
Physical specifications
- Dimension(L*W*H)
- 259mm*259mm*76mm
- Weight
- Ground unit: 1.5kgï¼› Air unit: 340g
- Working voltage
- DC 9~36V，Typical: 24V
- Working temperature
- -40~+65℃
