Home » Unmanned System Products » MYD-AirLink-@P39 Ground Base Station-I
MIZ100T 100KM Ultra Long DistanceImage Link HD Signal Transmission
Back to products
MYD-AirLink-II@P37 Ground Base Station-II

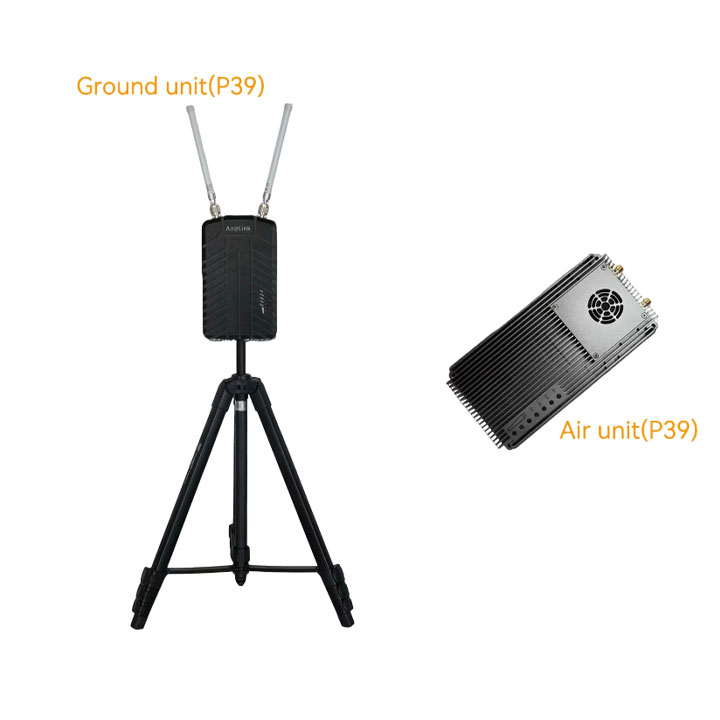

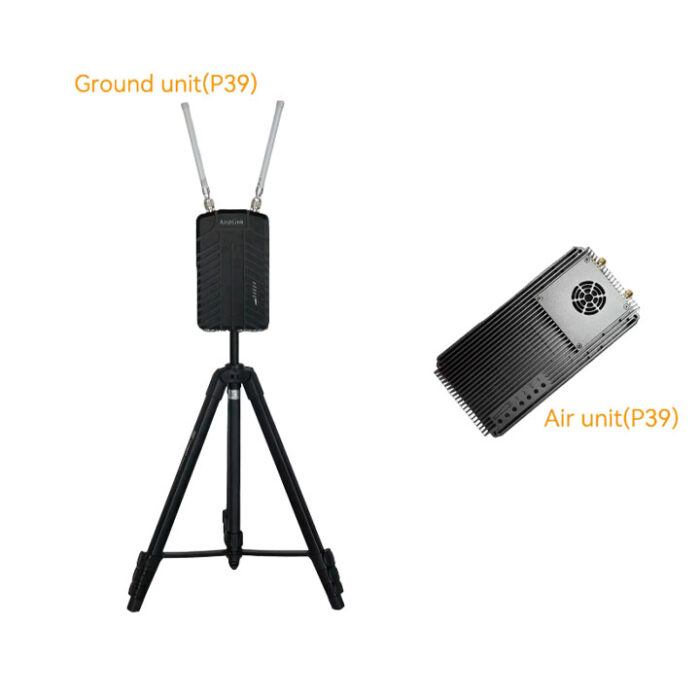

MYD-AirLink-@P39 Ground Base Station-I

The Airlink microbase station is a rugged, all-in-one wireless ground station built for demanding environments. Its compact, integrated design is waterproof, dustproof, and corrosion-resistant, supporting battery operation for rapid deployment. Offering versatile connectivity—including Wi-Fi, network, serial, SBUS, and RS422 ports—it ensures reliable communication through intelligent features like adaptive streaming, auto frequency selection, and power control. With up to 8W transmit power, it delivers robust links over distances up to 100 km in air-to-ground scenarios.

Categories: Data Radio & Image Link, UAV Ground Base Station
Share:
  • Description
Description

MYD-AirLink-@P39 Ground Base Station-I Features

  • One solution for video,command and control,and telemetry
  • Air-to-ground visibility 60km+ when using omni antennas
  • Air-to-ground visibility 100km+ when using directional antennas
  • Adaptive channel selection(ACS)
  • Real-time interference detection and anti-interference algorithm processing
  • Automatic power control(APC)
  • Adaptive modulation mode based on Shannon limit(Auto MCS)
  • High reliability, good stability, and low delay
  • Dual network ports, four serial ports
  • IP65 protection

MYD-AirLink-@P39 Ground Base Station-I Parameters

Parameters

  • Working frequency
  • 1350~1470MHz
  • Radio frequency channel
  • 2T2R
  • Output power
  • 39dBm(8W)
  • Channel bandwidth
  • 10MHz
  • Modulation mode
  • QPSK,16QAM
  • Maximum rate
  • 17Mbps@16QAM3/4
  • Communication encryption
  • AES256
  • Transmission delay
  • ≤10ms

Interface index

  • Radio frequency interface
  • SMA *2
  • Device interface
  • Ethernet*1 , WIFI*1, TTL/RS232*2 , RS422*1, SBUS/TTL*1

Electrical specifications

  • Power consumption
  • Air unit≤48W; Ground unit≤12W
  • Level of Protection
  • Ground unit: IP53; Air unit: IP20

Physical specifications

  • Dimension(L*W*H)
  • 250mm*150mm*34.5mm
  • Weight
  • Ground unit: 1.5kg; Air unit: 340g
  • Working voltage
  • DC 9~36V,Typical: 24V
  • Working temperature
  • -40~+65℃
