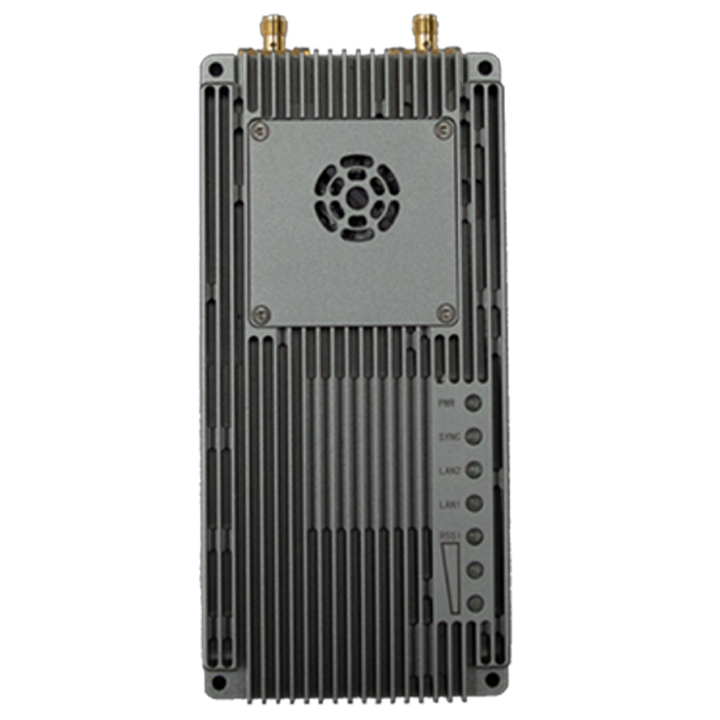

MYD P33 High Performance Unmanned Vehicle Map Data Remote Integrated Radio Features
- One solution for video,command and control,and telemetry
- Ground-to-ground visibility 2km when using directional antennas
- Adaptive channel selection(ACS)
- Real-time interference detection and anti-interference algorithm processing
- Automatic power control(APC)
- Adaptive modulation mode based on Shannon limit(Auto MCS)
- High reliability, good stability, and low delay
- Dual network ports, four serial ports
MYD P33 High Performance Unmanned Vehicle Map Data Remote Integrated Radio Parameters
- Model
- MYD1400-P33
- Working frequency
- 1350~1470MHz (2.4GHz and Others can be customized)
- Wireless channel
- 2T2R
- Transmission power
- 33dBm (2W)
- Transmission distance
- Ground-to-ground 2km ( using omni antennas )
- Channel bandwidth
- 10MHz
- Modulation mode
- QPSK/16QAM
- Receiving sensitivity
- -99dBm@10MHz@QPSK1/3
- Data rate
- Up to 17Mbps@16QAM3/4
- Transmission delay
- 10ms
- Radio frequency interface
- SMA*2
- Equipment interface
- Network port *2 + TTL/RS232 *2 + 422 + SBUS
- Overall power consumption
- Far-end ≤ 24W Near-end ≤ 10W
- Working voltage
- DC 9~26V Typical value:12V
- Dimension(L*W*H)
- 148mm * 65mm * 17mm
- Weight
- 208g
- Working temperature
- -40℃~+75℃
