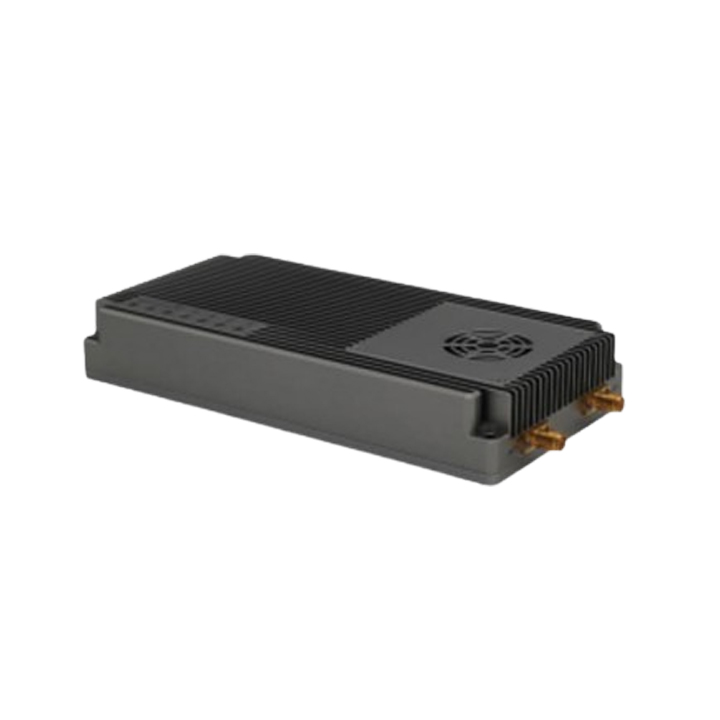

MYD-SwiftLink 5W/8W

The MYD-SwiftLink 5W/8W series represents the pinnacle of long-range wireless connectivity for professional IoT and M2M applications.
With an extraordinary transmit power of up to 8W (39dBm) and exceptional receiver sensitivity, these modules establish ultra-reliable communication links over distances exceeding 50km line-of-sight, ensuring unmatched performance in the most demanding environments.
Featuring dual-band capability (1.4GHz and 5.8GHz), AES-256 encryption, and multiple interfaces (Ethernet, TTL/RS232/RS422/SBUS), the 5W/8W series delivers robust, secure, and flexible connectivity for mission-critical applications such as long-range UAV operations, industrial telemetry, and secure SCADA networks.
Category:
Description

Transmission Distance

  • 100KM

Product Feature

  • Uplink and downlink bandwidth dynamic allocation
  • Automatic repeater function
  • Support retransmission mechanism

Product Parameter

System parameter Technical index
Equipment type P37/P39
Working frequency 1350 – 1470MHz (customizable)
Radio frequency channel 2T2R
Output power 37dBm (5W) / 39dBm (8W)
Channel bandwidth 10MHz/20 MHz
Modulation mode QPSK, 16QAM
Maximum rate 16.4Mbps@10MHz (P2P); 26.4Mbps@20MHz (P2MP)
Communication encryption AES256
Transmission delay ≤10ms
Radio frequency interface SMA*2
Power interface XT30PW-M
Device interface Ethernet*2; TTL/RS232*2; RS422*1; SBUS*2/TTL*1
Power consumption Air unit≤40W; Ground unit≤12W (P37)
Air unit≤48W; Ground unit≤12W (P39)
Dimension(L*W*H) 163mm*77mm*25mm
Weight 340g
Working voltage DC 22 – 30V; Typical: 24V@2A
Working temperature -40 – +75°C
