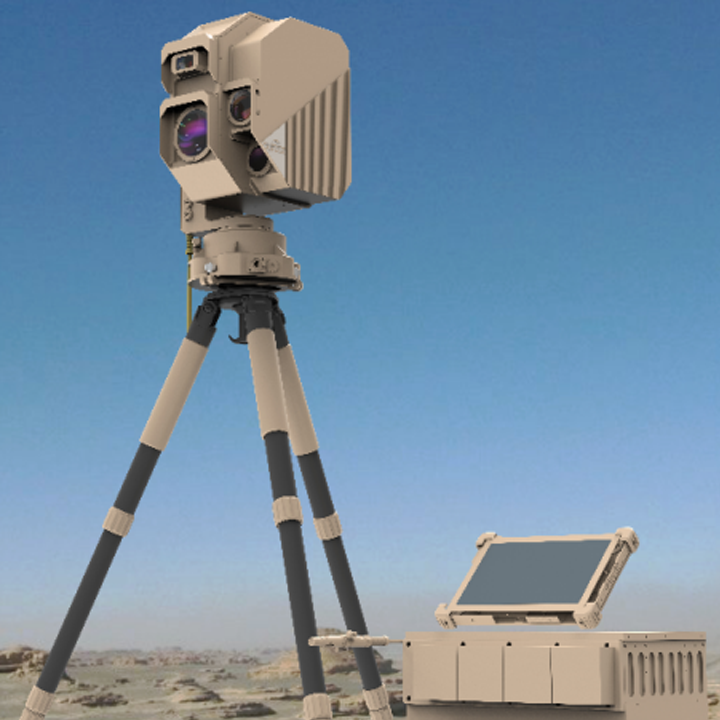

MZL20 series anti-drone laser strike system Functional Parameters
(1) Have the ability of target detection and identification;
(2) Have the ability to track the target closed loop;
(3) Active lighting capability;
(4) Data recording and storage function;
(5) Multiple network sets can be used (optional);
(6) Can be quickly withdrawn, transported and deployed;
(7) It can be operated remotely by a single person.
MZL20 series anti-drone laser strike system Performance Index
(1) Photoelectric detection distance: ≥1.5km (@10km visibility, DJI Mavic);
(2) Photoelectric tracking distance: ≥1.0km (@10km visibility, DJI Mavic);
(3) Photoelectric tracking accuracy: ≤15μrad (@10km visibility, DJI Mavic);
(4) Range measurement capability: ≥1.0km (@10km visibility, DJI Mavic);
(5) Strike capability: ≥0.8km (@10km visibility, DJI Mavic);
(6) Pitch Angle: -10 ~ +60;
(7) Direction Angle: ±175;
(8) Peak power consumption: ≤9.7kW;
(9) Light output power: ≥3KW
(10) Total weight of the system: ≤85kg.
MZL20 series anti-drone laser strike system Environmental adaptability index
(1) Working environment temperature: -20℃~50℃;
(2) Working relative humidity: ≤ 80%RH@25℃;
(3) Storage environment temperature: -20℃~55℃;
(4) Storage relative humidity: ≤ 95%RH@25℃;
(5) Protection class: IP65.
MZL20 series anti-drone laser strike system Specific Requirements
As MZL20 multi-band security monitoring equipment is photoelectric detection monitoring equipment, the support tripod should be installed on a relatively stable plane to prevent the tripod from loosening or tilting, and the installation surface of the tripod equipment should be kept basically level. The equipment installation on a plane with large vibration, swing or tilt will affect the normal use of the product.
Add a cooling module in hot areas.
