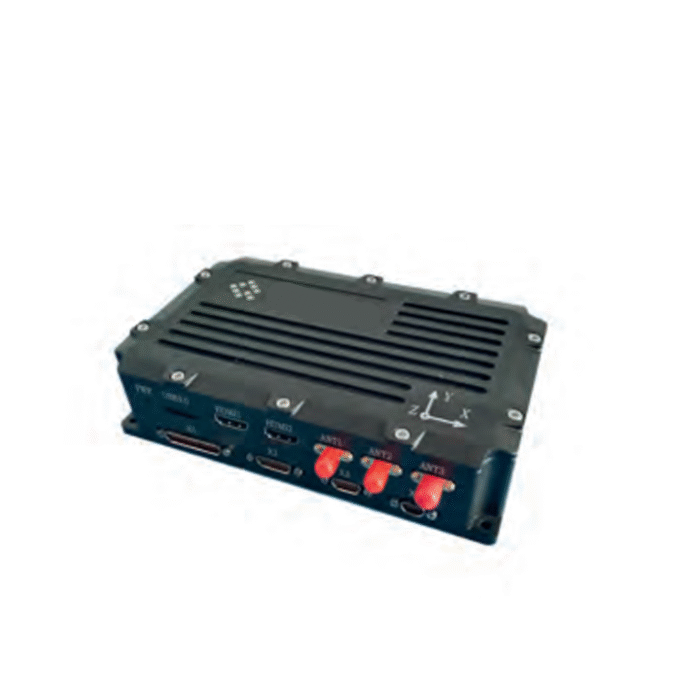

Navigation Industrial Control Computer

The navigation industrial control computer can process data from various sensors of vehicles, such as radars, laser radars (LIDAR), cameras, etc. It can achieve functions such as environmental perception, analysis and decision-making planning, and vehicle control.

Categories: ,
Description

Navigation Industrial Control Computer Parameter

CPU 2 x RK3588 octa-core 64-bit (4 x Cortex-A76 + 4 x Cortex-A55) with a maximum clock speed of 2.2 GHz
GPU ARMMali-G610MP4 quad-core GPU, supporting OpenGLES3.2/OpenCL2.2/Vulkan1.1, with 450 GFLOPS performance.
NPU The computing power reaches 6TOPs + 6TOPs (INT8), supporting mixed operations of INT4/INT8/1NT16, capable of converting network models based on series frameworks such as TensorFlow/MXNet/PyTorch/Caffe to the ARMMali-G610MP4 quad-core GPU, supporting OpenGLES3.2/OpenCL2.2/Vulkan1.1, with 450 GFLOPS.
RAM 8GB (optional 16GB) 64-bit LPDDR4/LPDDR4X/LPDDR5
ROM 64GB (optional 128GB) eMMC
Interface 2 CAN2.0 ports / 3 RS232 and RS422 / 485 / 2 gigabit network ports / 2 HDMI interfaces
2 USB2.0 interfaces / 1 USB3.0 interface / 1 audio input/output interface
Power consumption Maximum 45W
Size and dimensions L170mm*105mm*40mm
Working temperature 40°C~85°℃
Relative humidity 10% to 90% (no condensation)
