OEM/ODM M20PRO Lightweight Drone Video Transmission Radio 10-20km Range for Uav Drone Data Link Missions

The OEM/ODM M20PRO Lightweight Drone Video Transmission Radio is a specialized, customizable communication solution engineered for UAV drone data link missions, combining long-range performance (10–20km) with ultra-lightweight design. Tailored to support flexible OEM/ODM requirements, it allows seamless integration with diverse drone platforms—from consumer-grade UAVs to industrial inspection drones—adapting to specific hardware, software, or branding needs of partners.

Optimized for portability without sacrificing reliability, its lightweight build minimizes payload burden on drones while delivering stable, high-quality video and data transmission over extended distances. Ideal for applications like aerial surveillance, agricultural mapping, infrastructure inspection, and search-and-rescue missions, it ensures ground operators receive real-time video feeds, telemetry data, and control signals with low latency, even in open or semi-obstructed environments.

Overview

Basic Info.

Model NO.	M20Pro
Usage	Radio, Satellite, Plane, Ship, Car
Frequency	1428-1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply	DC12V-24V
Dimension	≤ 94.5 × 77 × 32mm (Air)
Interfaces	1 Ttl + 1 RS232 + 1 S.Bus
Security Protection	AES128
Specification	330Grams Weight
Origin	China
Production Capacity	5000PCS/Month

Work Mode	TDD
Information Content	Text, Picture, Video, Audio
RF Power	25dBm ± 2
Data Rate	24Mbps @ 10MHZ (Peak)
Weight	≤ 330g (Air)
Transmission Distance	20km Air-to-Ground
Transport Package	Carton/Wooden/Flight Case
Trademark	China Moneypro
HS Code	8517799000

Packaging & Delivery

Package Size	9.45cm * 7.70cm * 3.20cm
Package Gross Weight	0.330kg

Product Description

M20Pro Drone Video Transmission Radio

330 Grams Weight
Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance

Specification

Wireless	TDD-OFDM / MIMO / 1T2R
Technology	QPSK / 16QAM / 64QAM
Modulation	24Mbps @ 10MHz (Peak)
Data Rate	24Mbps @ 10MHz (Peak)
Frequency Range	1428-1448MHz (Standard) 2401-2481MHz (Optional) 806-826MHz (Optional)
Bandwidth	5MHz / 10MHz / 20MHz
Tx Power	25dBm ± 2
Rx Sensitivity	-99dBm @ 5MHz
System
Serial Port	1 TTL + 1 RS232 + 1 S.BUS
Video Port	2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
Security	AES128 Encryption
Power	DC12V-24V Power Supply ≤ 6W @ DC12V Power Consumption (Air)

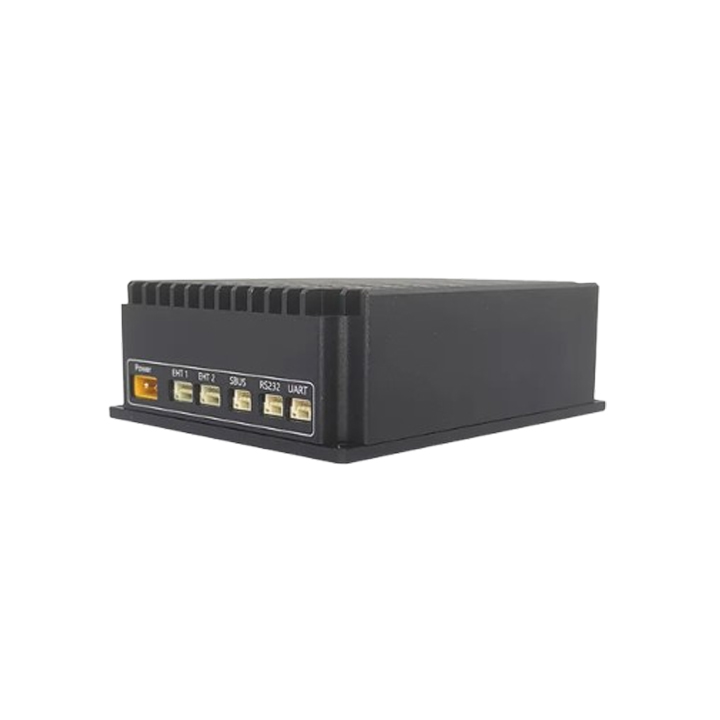

Interfaces

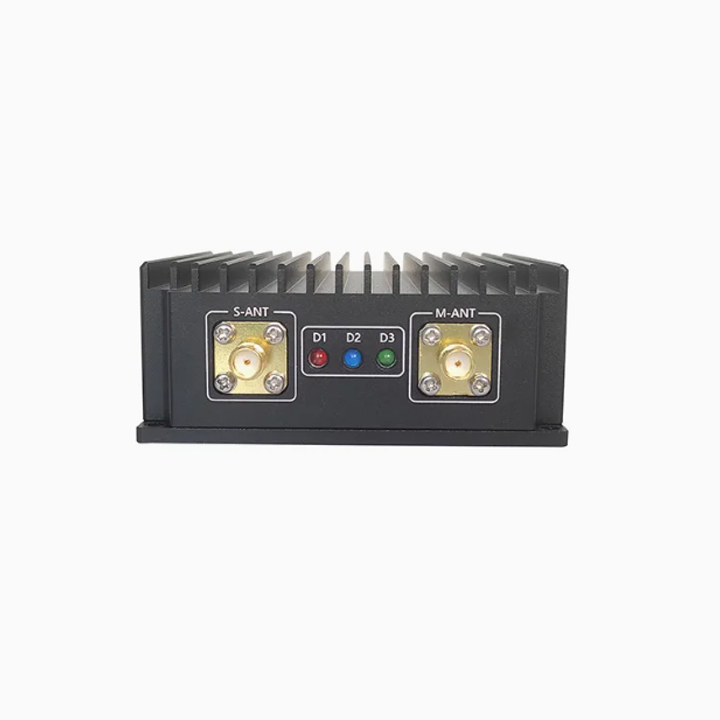

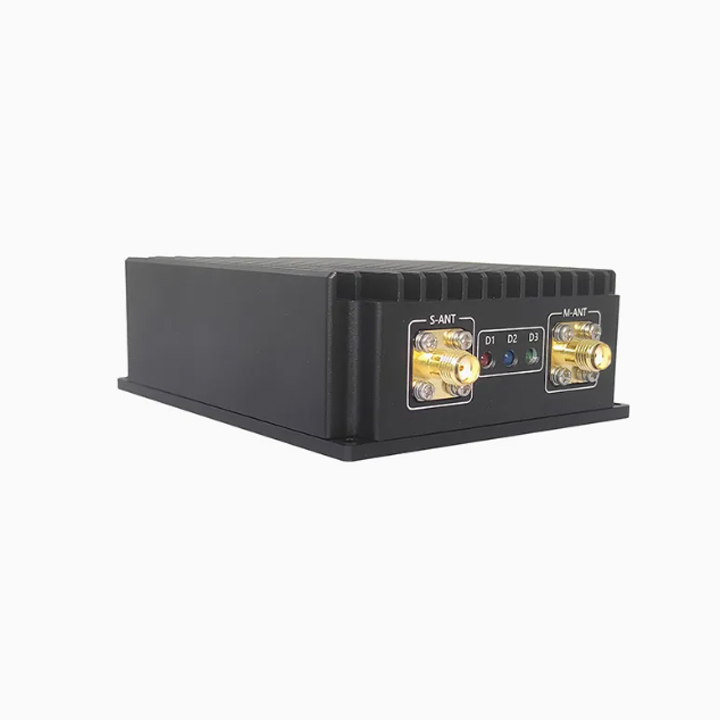

RF Antenna	SMA × 2
Serial Port Interface	JST × 2
S.BUS Interface	JST × 1
Video Port Interface	JST(ETH) × 2 or JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input	XT30
Physical
Dimension	≤ 94.5 × 77 × 32mm (Air)
Weight	≤ 330g (Air)
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2	Serial Cable × 2;S.BUS Cable × 1;XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)
