Unmanned Navigation Control System

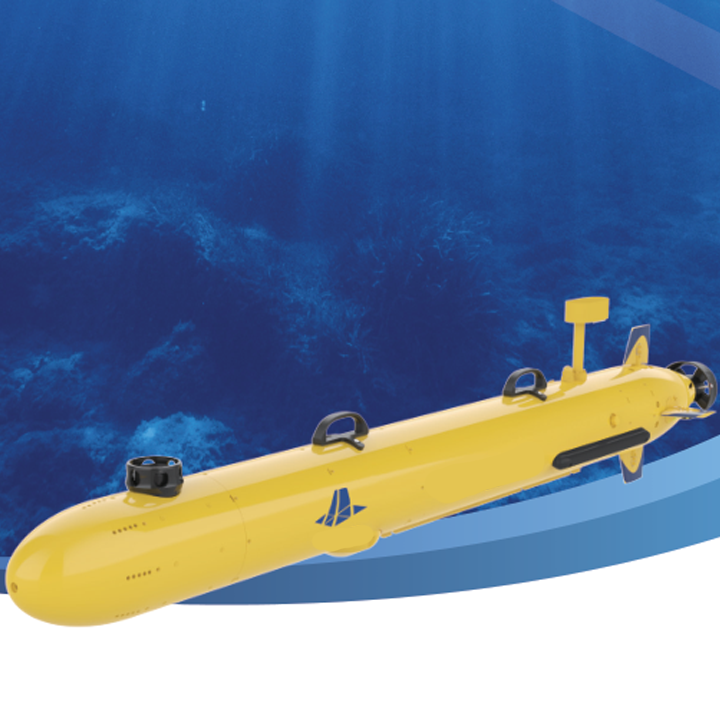

Orange Shark I-C

Orange Shark I-C is a modularly designed micro-sized AUV that can flexibly configure various sensors. It features a compact design, being small, lightweight, and is suitable for applications such as research, teaching, and underwater search.

Categories: ,
Description

Orange Shark I-C Product Advantages

1-2 people can operate it. It is convenient for storage and transportation.
The design is compact and it features miniaturized sensors.
It has durable and corrosion-resistant packaging.

It has multiple reserved interfaces to accommodate various scientific research projects.
It has hardware/software networking communication interfaces and supports clustering.
It is equipped with navigation, side-scan, sonar communication, and is suitable for searching underwater targets.

User-friendly and simple operation
Visual operation interface with intuitive layout

Modular design, allowing for secondary expansion
Each module is designed with zero buoyancy, enabling quick combination and configuration,
Reserve interfaces to accommodate various typical loads

Support for remote upgrades, providing efficient follow-up services
Built-in 4G module, supporting 4G remote firmware upgrade,
No need for on-site modification

Orange Shark I-C Application Scenarios

Underwater search
Scientific research and exploration
Cluster demonstration
Seabed topography exploration

Orange Shark I-C Parameter

Size W280×H358×L | 150mm, p150mm (maximum length after expansion 1900mm)
Weight 16kg (maximum weight after expansion 25kg)
Speed of navigation 2-5kn
Battery life 8 hours (44.5 kilometers) @ 3 knots
Maximum working depth 100m
Navigation MEMS/fiber optic IMU, GPS, depth sensor
Energy 1kWh secondary lithium battery pack
Power Shaft propeller, cross rudder
Communication WiFi, 4G, expandable radio, satellite communication
Packing box Aircraft box
