Home » Unmanned System Products » Professional Drone Data Link with IP Mesh Radio for Small Drone Tactical Uav Operations
OEM/ODM M20PRO Lightweight Drone Video Transmission Radio 10-20km Range for Uav Drone Data Link Missions
Back to products
IP Mesh Radio Uav Data Link for Multi-Platform Drone and Swarm Communications

Professional Drone Data Link with IP Mesh Radio for Small Drone Tactical Uav Operations

The Professional Drone Data Link with IP Mesh Radio is a purpose-built communication solution engineered to elevate small drone and tactical UAV operations—delivering reliable, secure, and low-latency data transmission for mission-critical scenarios. At its core, it integrates advanced IP Mesh technology, which enables the formation of a self-healing, decentralized network: this eliminates single points of failure, ensuring uninterrupted connectivity even in dynamic tactical environments (e.g., urban canyons, remote terrain, or electromagnetic interference zones) where traditional data links may falter.

Categories: Data Radio & Image Link, OEM Customized, RF Module, Robot Video and Data Transceiver Radio, UAV Data link/Video transmission, UAV Ground Base Station, Wireless Data Transceiver Radio, Wireless Networks Mesh Radio Systems
Share:
  • Description
Description

Overview

Basic Info.

Model NO. M20Pro-J30J
Usage Radio, Satellite, Plane, Ship, Car
Frequency 1428-1448MHz(Std), 2.4GHz(Op.), 800MHz(Op.)
Power Supply DC12V-24V
Dimension ≤ 94.5 × 77 × 32mm (Air)
Interfaces 1 Ttl + 1 RS232 + 1 S.Bus
Security Protection AES128
Specification 330Grams Weight
Origin China
Production Capacity 5000PCS/Month
Work Mode TDD
Information Content Text, Picture, Video, Audio
RF Power 25dBm ± 2
Data Rate 24Mbps @ 10MHZ (Peak)
Weight ≤ 330g (Air)
Transmission Distance 20km Air-to-Ground
Transport Package Carton/Wooden/Flight Case
Trademark China Moneypro
HS Code 8517799000

Packaging & Delivery

Package Size 9.45cm * 7.70cm * 3.20cm
Package Gross Weight 0.330kg

Product Description

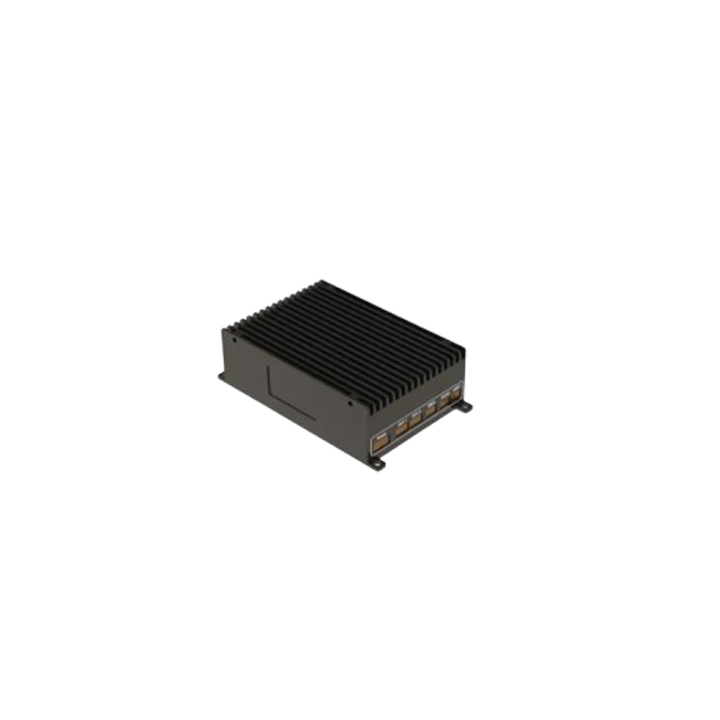

M20Pro Drone Video Transmission Radio

330 Grams Weight

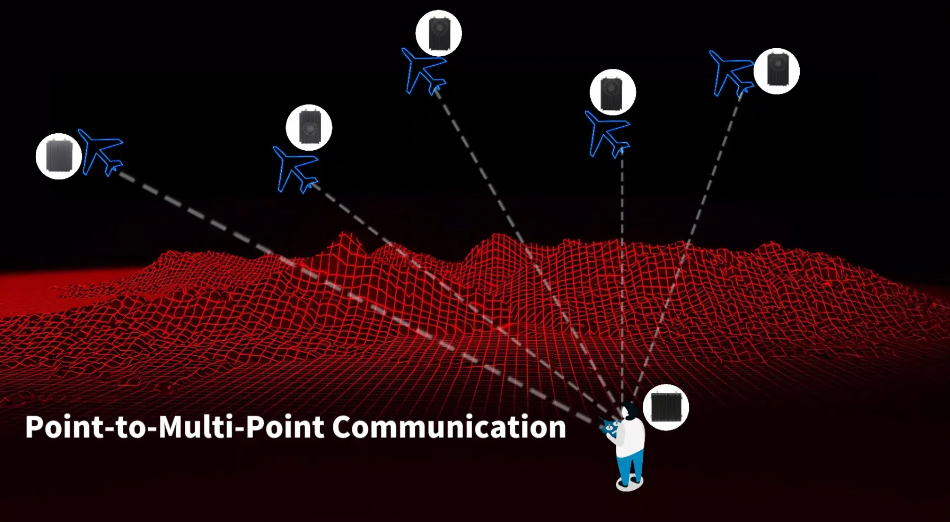

Point to Multi-Point Mode
Dual Antenna MIMO Design
Up to 24Mbps Data Rate
1.4G / 2.4GHz Frequency Range Optional
AES128 Security Protection
20KM Air-to-Ground Transmission Distance

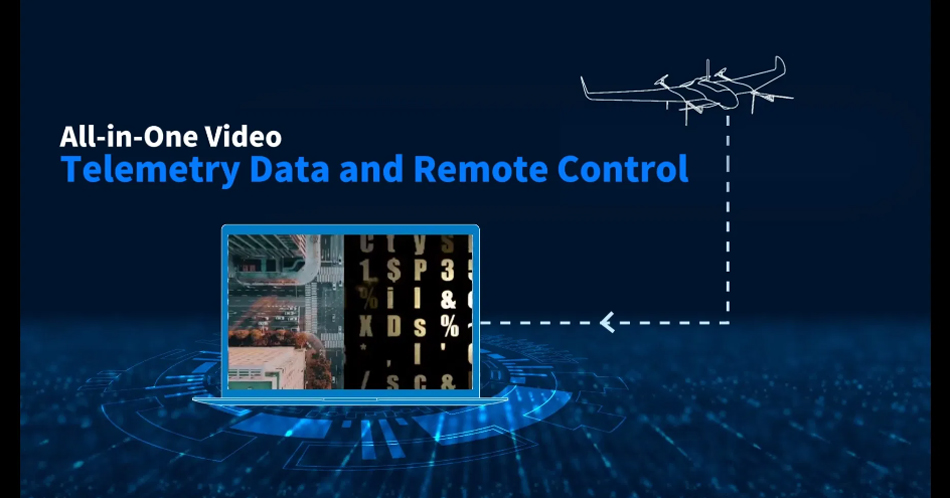

M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms

Specification

Wireless TDD-OFDM / MIMO / 1T2R
Technology QPSK / 16QAM / 64QAM
Modulation 24Mbps @ 10MHz (Peak)
Data Rate 24Mbps @ 10MHz (Peak)
Frequency Range 1428-1448MHz (Standard)
2401-2481MHz (Optional)
806-826MHz (Optional)
Bandwidth 5MHz / 10MHz / 20MHz
Tx Power 25dBm ± 2
Rx Sensitivity -99dBm @ 5MHz
System
Serial Port 1 TTL + 1 RS232 + 1 S.BUS
Video Port 2 ETH or 1 ETH + 1 SDI/HDMI(Customized)
Security AES128 Encryption
Power DC12V-24V Power Supply
≤ 6W @ DC12V Power Consumption (Air)

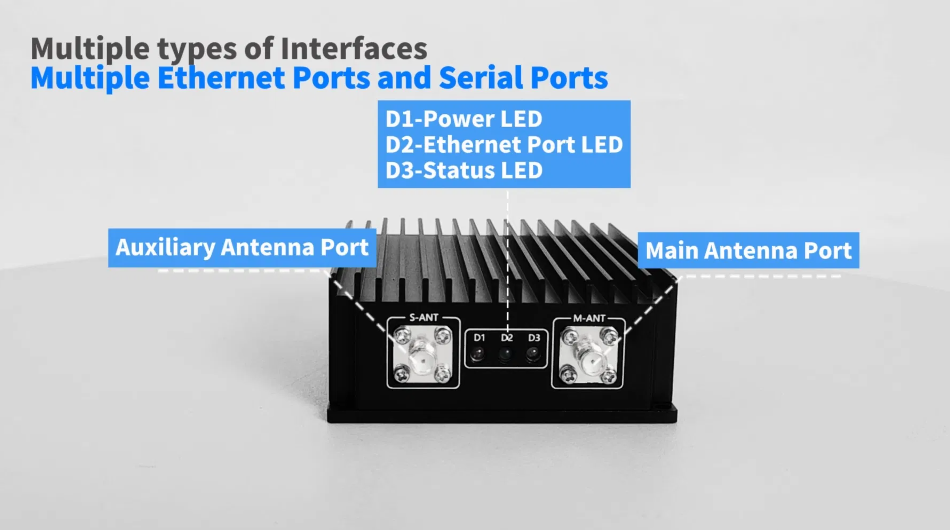

Interfaces

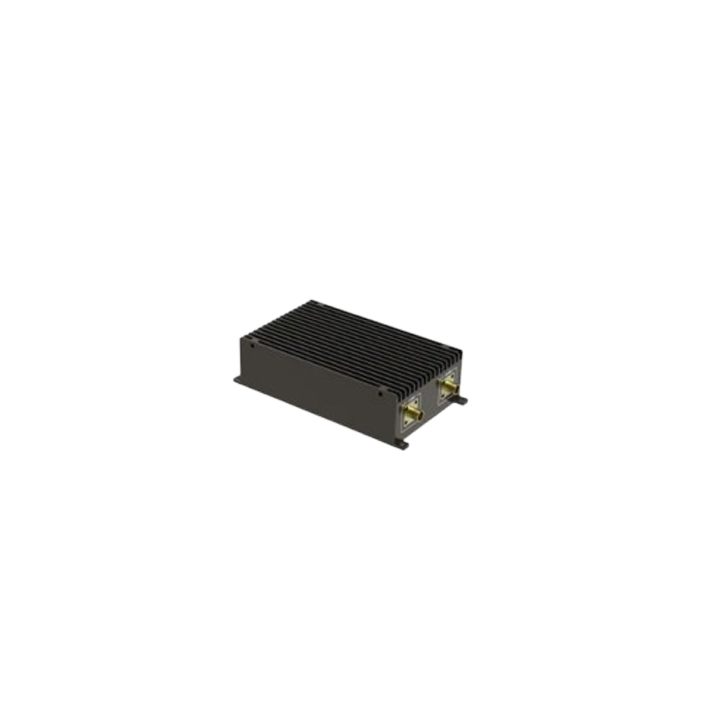

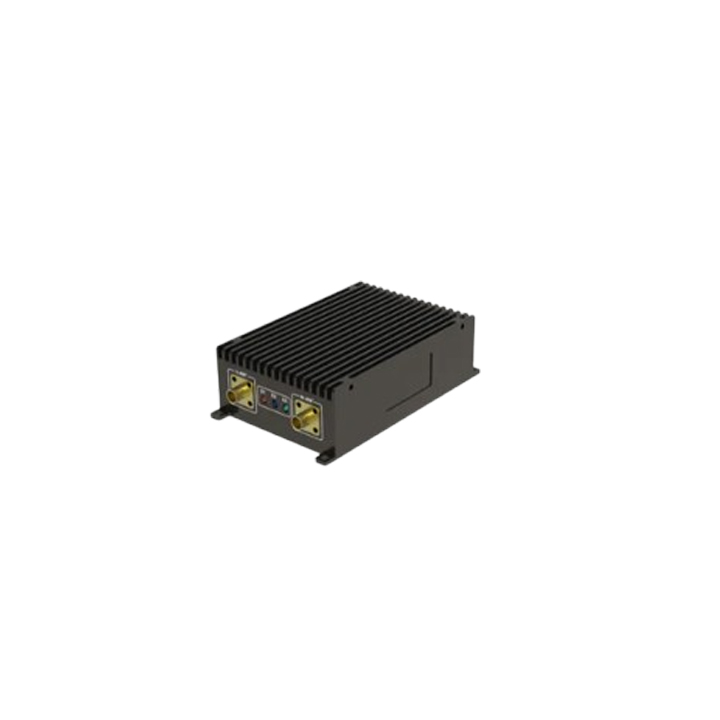

RF Antenna SMA × 2
Serial Port Interface JST × 2
S.BUS Interface JST × 1
Video Port Interface JST(ETH) × 2 or
JST(ETH) × 1 + SDI/HDMI × 1(Cus.)
Power Input XT30
Physical
Dimension ≤ 94.5 × 77 × 32mm (Air)
Weight ≤ 330g (Air)
ACCESSORIES
OMNI Antenna for Air Unit × 2; OMNI Antenna for Ground Unit × 2 Serial Cable × 2;S.BUS Cable × 1;XT30 Power Cable × 1
ETH Cable × 2 or ETH Cable × 1 + SDI/HDMI Cable × 1 (Customized)

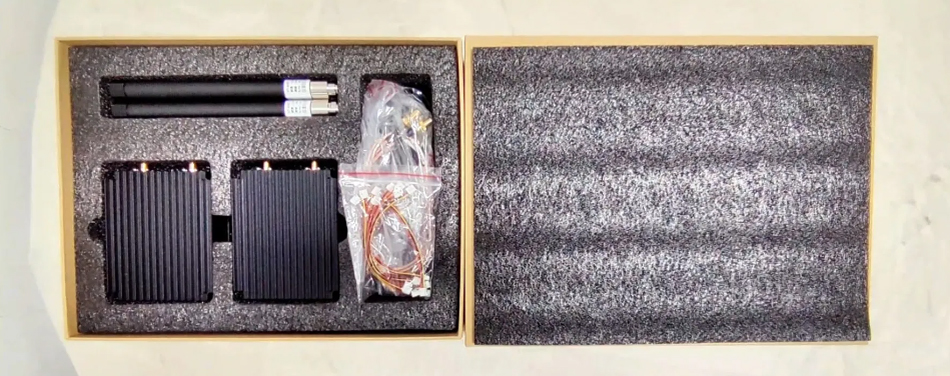

Packing & Delivery

M20PRO Air to Ground Video Data Link Transmission Radio for Small Uavs Mini-Uavs and Robotic Swarms
