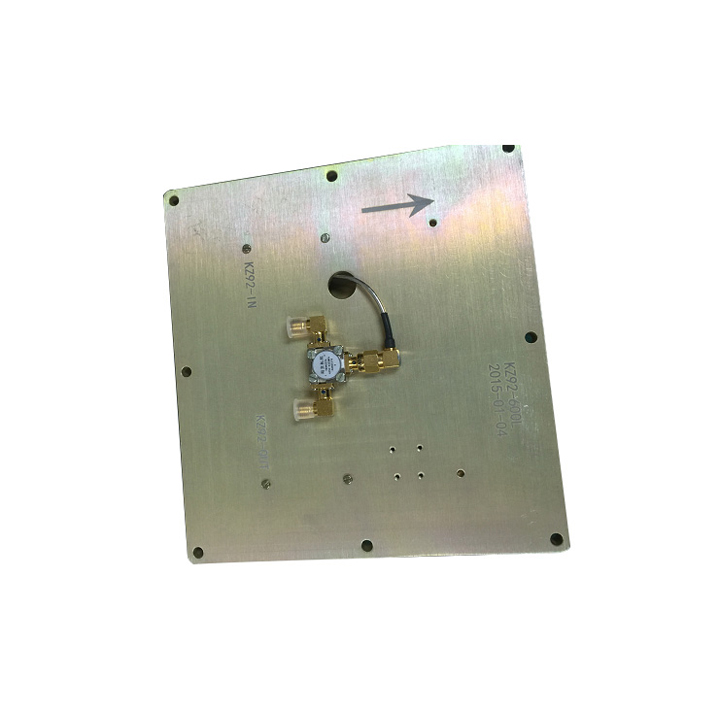

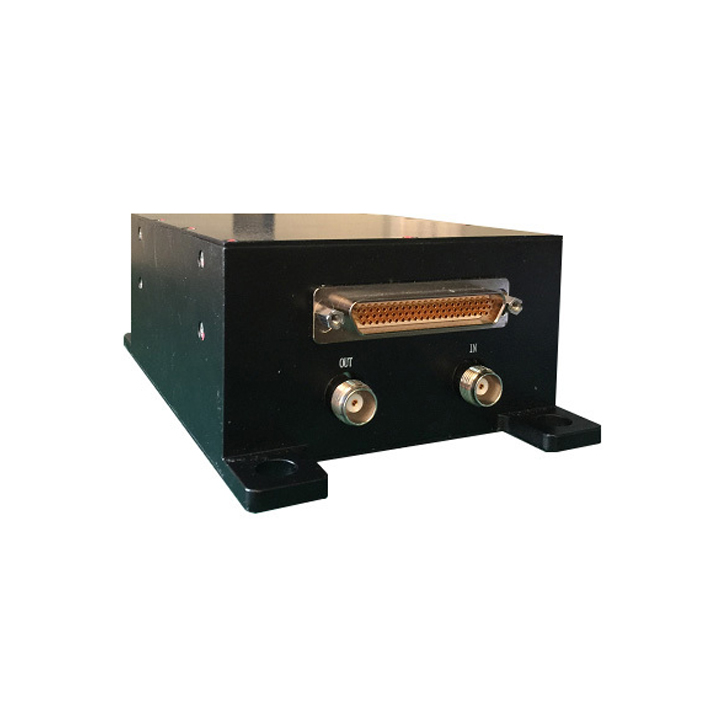

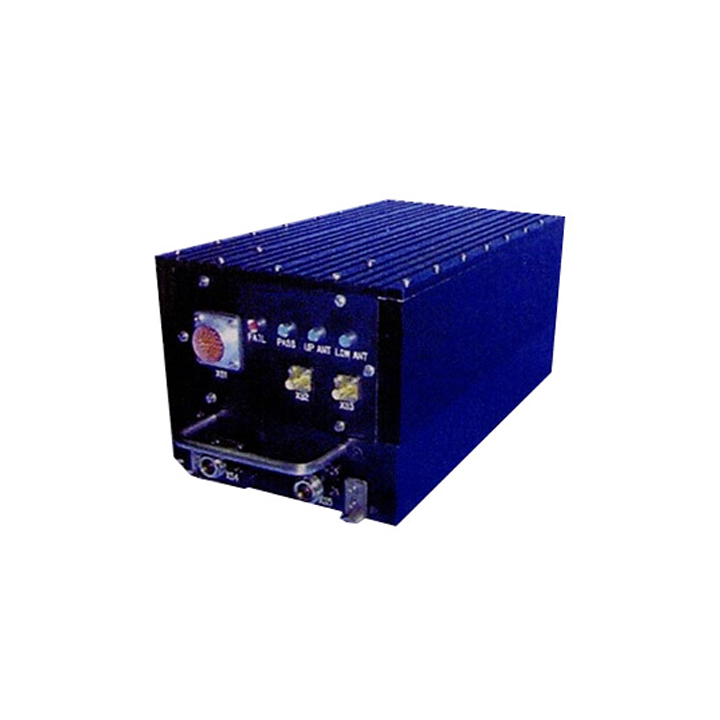

Pulse Radar Altimeter MY-600L、MY-800L

The MY-600L altimeter is a fixed-frequency pulse radar altimeter developed for a specific type of aircraft, while the MY-800L altimeter is a frequency-agile pulse radar altimeter designed for another particular aircraft model. Both altimeters find wide application in cruise missiles and aircraft, serving to measure the relative height above the sea or ground. Notably, the MY-600L features a design approach centered on serialization, standardization, and modularization, which endows it with favorable product inheritance, high maturity, and reliable performance.

Categories: , , , ,
Description

Main Electrical Performance

HY-600L Main electrical performance

  • Working frequency: C-band;
  • Radiation power: 40~43dBmW;
  • Receiving sensitivity: better than – 90dBmW;
  • Height measurement capacity: not less than 10000m;
  • Altimetry accuracy: ±2m, 0.5m﹤H≤100m; ±(1+0.01×H)m, 100m﹤H≤10000m;
  • Adaptive flight attitude: ± 30° in pitch and ± 30° in roll;
  • Horizontal velocity: 0-3 mach;
  • The power supply DC is 18 ~ 36V, and the consumption current is not more than 1.0A;

Pulse Radar Altimeter MY-600L、MY-800L



HY-800L Main electrical performance

  • Working frequency: C-band, frequency agility;
  • Radiation power: 40 ~ 43dBmW;
  • Receiving sensitivity: better than – 90dBmW;
  • Height measurement capacity: no less than 15000m;
  • Altimetry accuracy: ±2m, 0.5m﹤H≤100m; ±(1+0.01×H)m, 100m﹤H≤15000m;
  • Adaptive flight attitude: ± 30° in pitch and ± 30° in roll;
  • Adaptive carrier speed: unlimited;
  • The power supply DC is 18 ~ 36V, and the consumption current is not more than 1.5A;

Pulse Radar Altimeter MY-600L、MY-800L
