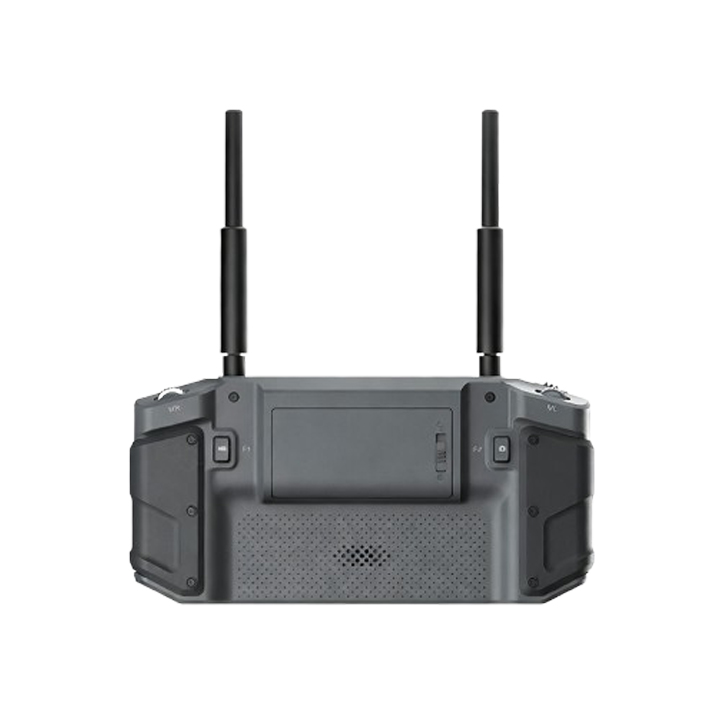

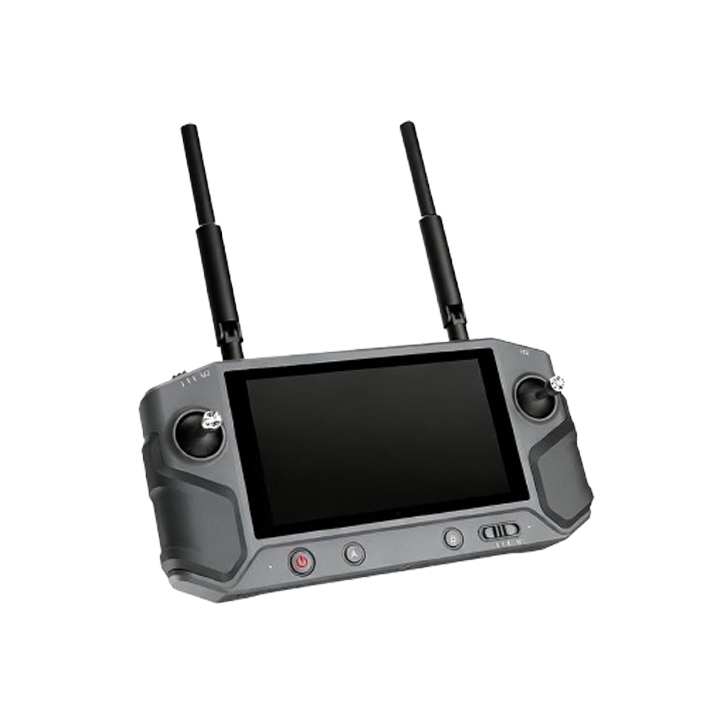

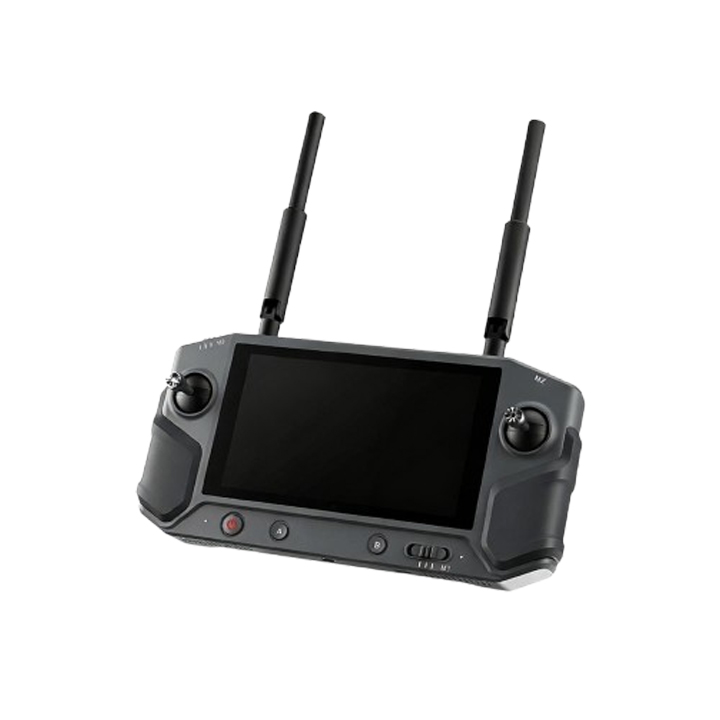

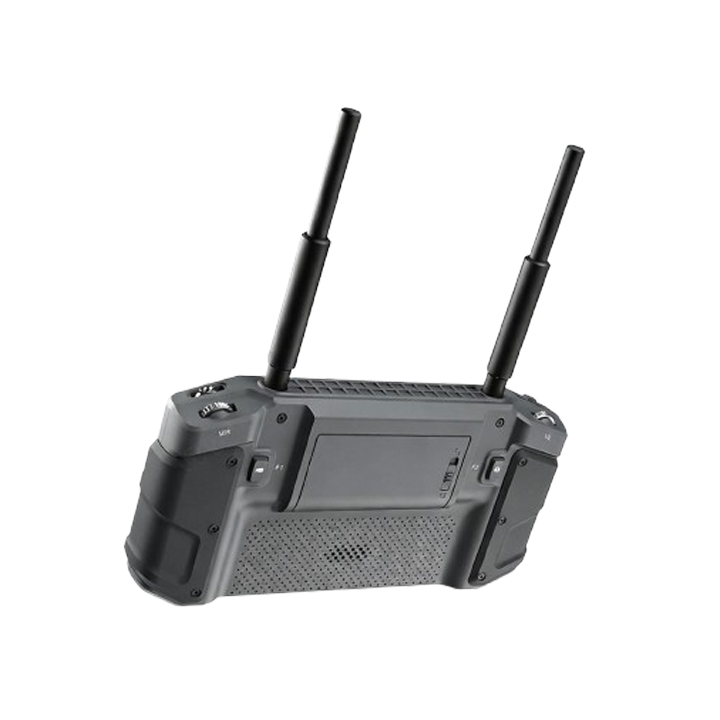

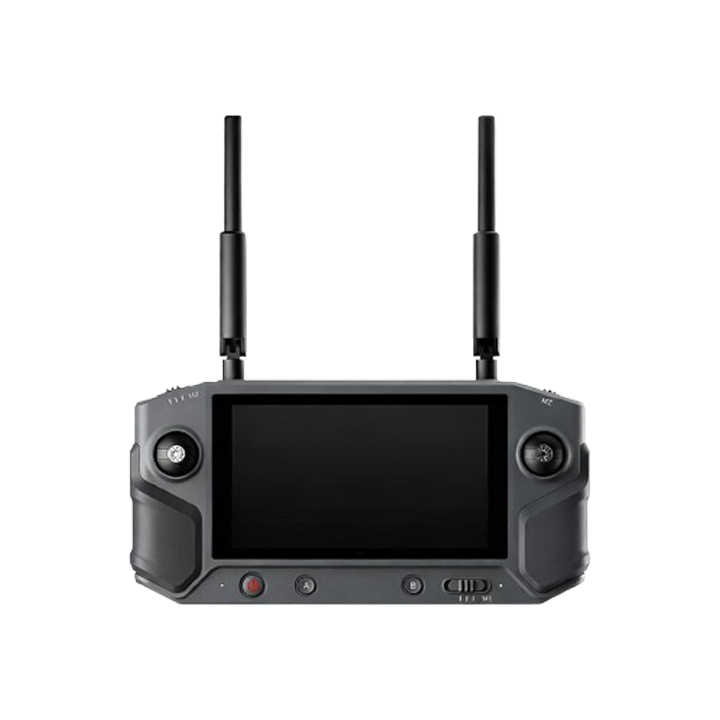

Queen Bee II UAV Smart Remote Control

Designed as a dedicated command center for UAV operations, the Queen Bee II UAV Smart Remote Control integrates intuitive usability with robust functionality to elevate flight management. It features a responsive interface—equipped with clear, high-visibility displays and ergonomic controls—that enables operators to monitor real-time UAV data (such as altitude, battery life, and camera feeds) and execute precise flight commands with minimal effort.
Built to adapt to diverse scenarios, from professional aerial surveys to tactical monitoring, the remote control supports stable, long-range signal transmission to ensure reliable connectivity even in complex environments. Its smart capabilities also include one-touch flight modes and quick-access settings, streamlining operations for both seasoned pilots and new users while maintaining the accuracy needed for critical UAV missions.
Categories: ,
Description

Specification

Product Parameters
RF Parameters Storage Air Unit LPDDR31GB
Ground Side LPDDR32GB
Image Transmission Distance FCC 20km
Image Transmission Delay Minmum 11ms
Transmission Frequency Band 2.4Hz ISM
Receive Sensitivity -99dBm@20MHzBW
Interference Recovery ＜1s
Remote Control
Parameters		 Screen 5.5-inch High-definition LCD Touch Screen 1000nit Brightness, 1080p
Weight 530g
Size 218×106×32mm
（The whole machine does not include external antenna and joystick)
WIFI 5.8FHzWIFI Frequency Band
Aisle With 13 Channels; Two Rockers, Three Pulsators,
Two Third Gears Switch and 4 Buttons
4G and Bluetooth Built-in GSM 4G Module and Bluetooth Module
Extwrnal Interface Type-C Interface for Charging Debugging, Copy Files,
Output HDMI Externally(An external USB to HDMI device is required)
Battery External Battedry, Equipped with Two 18650 Batteries;
Specification INR18650-35E/3450mA/42V/Positive Tip/Samsung
Antenna 1 Omnidirectional Antenna, 1 Directional Antenna;
MINIBNC Connector, Removable
