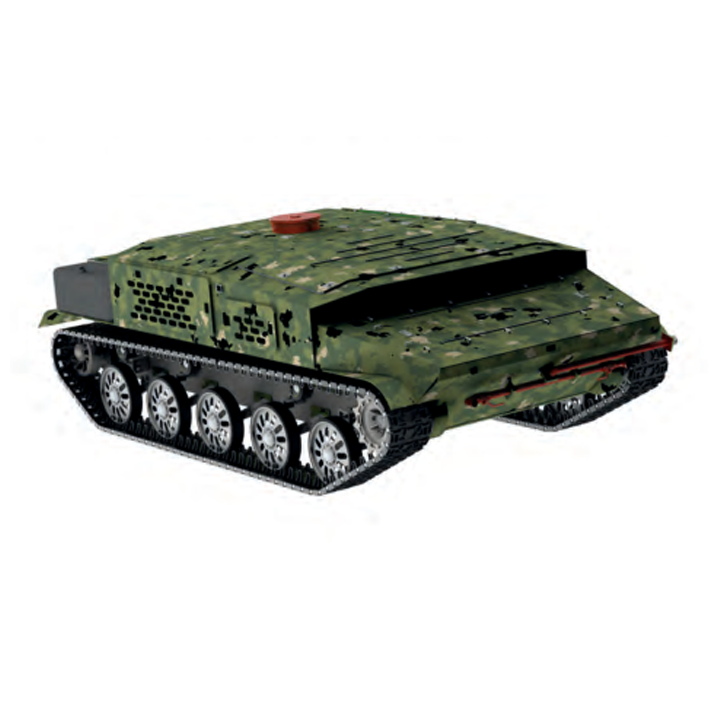

QZHP4T Universal Mobile Platform of QianZhi

This product is a 4-ton high-speed crawler-type unmanned platform, featuring electric drive with two gears and independent dual-side propulsion. It adopts a hybrid power architecture and can be applied in emergency rescue, disaster relief, and fire-fighting fields. It has the characteristics of strong power, excellent off-road and driving performance, high maneuverability, large load capacity, and good shock absorption performance. It also has strong obstacle-breaking capabilities and provides safety protection for personnel, equipment, and materials.

Categories: ,
Description

QZHP4T Universal Mobile Platform of QianZhi Technical Indicators

(1) Dimensions (length × width × height): < 5500 × 2850 × 1400 mm;
(2) Self-weight: 6T;
(3) Maximum load capacity: 4T;
(4) Maximum driving speed: 70 km/h;
(5) Maximum downhill slope: 32°;
(6) Maximum uphill slope: 20°;
(7) Maximum vertical obstacle clearance: 700 mm;
(8) Maximum crossing ditch width: 1650 mm;
(9) Maximum water crossing depth: 900 mm;
(10) Range: Hybrid, 300 km;
(11) Remote control range: 5 km in clear view conditions.

Related products

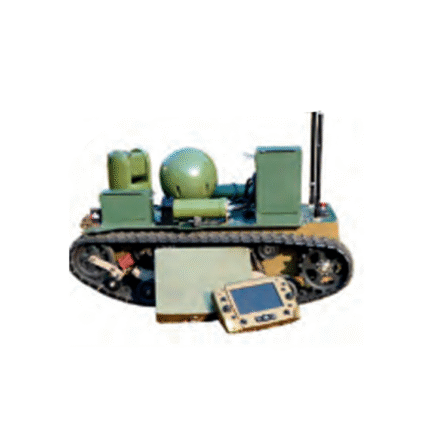

Nuclear detection sampling robot
