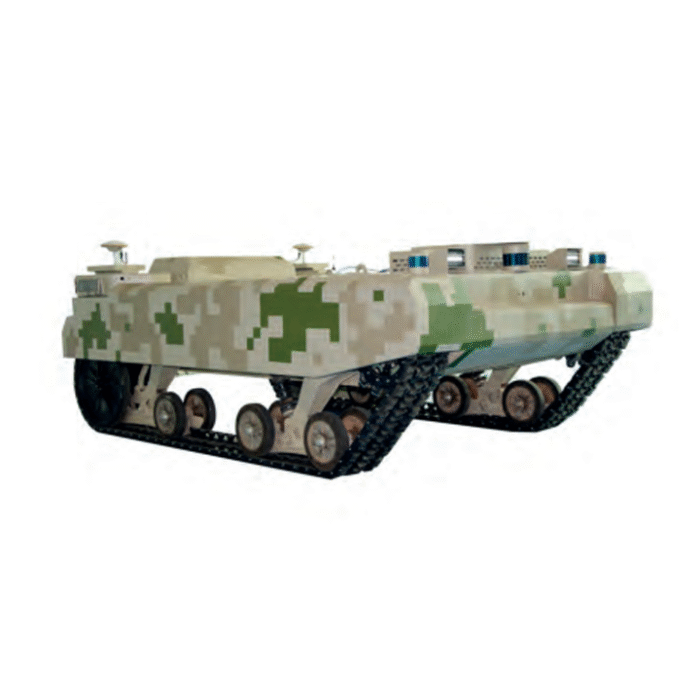

QZHP500 Universal Mobile Platform of QianZhi

This product is a remote-controlled crawler-type mobile platform, featuring high load capacity, long endurance, and strong maneuverability. It can perform tasks such as autonomous navigation, obstacle avoidance, and autonomous path planning. It can be used for fire rescue, handling suspicious objects, firepower strikes, reconnaissance and sample collection, etc.

Categories: ,
Description

QZHP500 Universal Mobile Platform of QianZhi Technical Indicators

(1) Dimensions (length × width × height): < 2700mm × × 1700mm × 1100mm;
(2) Self-weight: < 1200kg;
(3) Maximum load capacity: 500kg;
(4) Maximum driving speed: 40km/h;
(5) Maximum climbing angle: 32°;
(6) Maximum descending angle: 20°;
(7) Maximum vertical obstacle clearance height: 450mm;
(8) Maximum crossing ditch width: 800mm;
(9) Maximum water crossing depth: 500mm;
(10) Range: Electric, 120km;
(11) Remote control range: 5km in clear view conditions.
