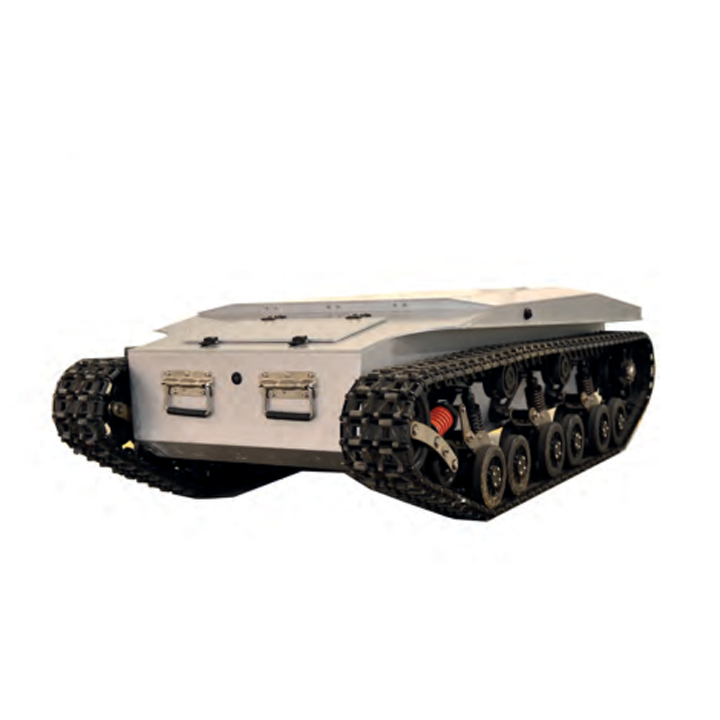

QZLP050 Universal Mobile Platform of Qianzhi

This product is a remote-controlled crawler-type mobile platform, featuring lightweight design, high load capacity ratio, and long flight duration. It can be equipped with different mission systems as per requirements, meeting the unmanned operation needs in various scenarios. It can be used for target strikes, urban or field exploration, suspicious object disposal, public area disinfection, etc.

Categories: ,
Description

QZLP050 Universal Mobile Platform of Qianzhi Technical Indicators

(1) Dimensions (length × width × height): < 1300mm × 700mm × 400mm;
(2) Self-weight: < 80kg;
(3) Load capacity: 50kg;
(4) Maximum traveling speed: 12km/h;
(5) Maximum climbing angle: 37°;
(6) Maximum descending angle: 25°;
(7) Maximum vertical obstacle clearance height: 300mm;
(8) Maximum crossing ditch width: 500mm;
(9) Maximum water crossing depth: 200mm;
(10) Maximum range: 40km;
(11) Remote control range: 2km in clear view conditions.
