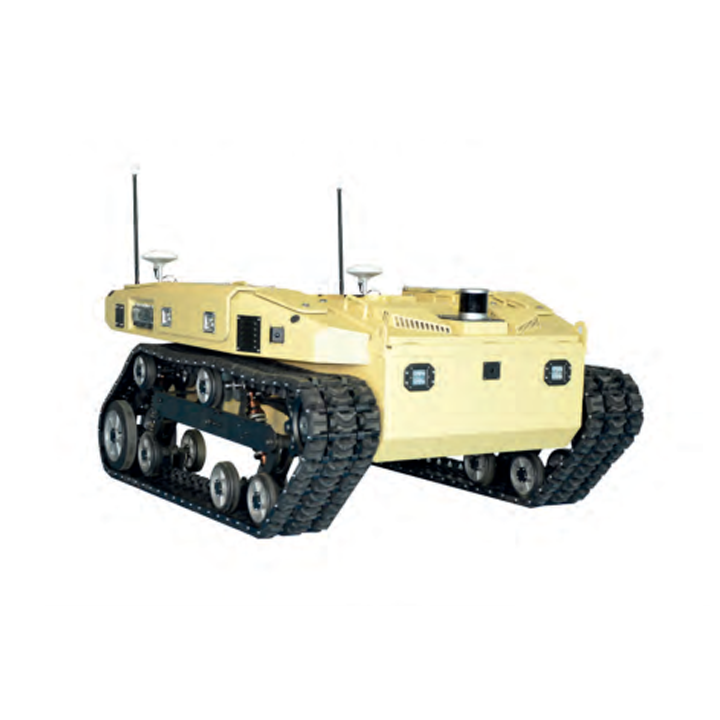

QZMP300 Universal Mobile Platform of QianZhi

This product is a remote-controlled crawler-type mobile platform, featuring powerful engine, excellent off-road and traversing capabilities, high maneuverability, and large carrying capacity. It can be used for fire-fighting rescue, handling suspicious objects, firepower strikes, reconnaissance and sample collection, etc.

Categories: ,
Description

QZMP300 Universal Mobile Platform of QianZhi Technical Indicators

(1) Dimensions (length × width × height): < 2000mm × 1400mm × 850mm;
(2) Self-weight: < 900kg;
(3) Load capacity: 400kg;
(4) Maximum driving speed: 30km/h;
(5) Maximum climbing angle: 32°;
(6) Maximum descending angle: 20°;
(7) Maximum vertical obstacle clearance height: 300mm;
(8) Maximum crossing ditch width: 500mm;
(9) Maximum water crossing depth: 500mm;
(10) Range: Electric, 100km;
(11) Remote control range: 5km in clear view environment.
