Radar Target Echo and Altimeter Target Echo and Jamming Scene Simulation System

The Radar Target Echo & Radio Altimeter Target Echo and Jamming Simulation Simulator is a specialized device designed to generate RF/IF radar target echo signals, radio altimeter target echo signals, and jamming signals. It serves as dedicated equipment for hardware-in-the-loop (HIL) simulation testing and verification of radar systems and radio altimeters. Adopting a universal modular architecture, this simulator features high-performance indicators, excellent consistency, and superior interchangeability—ensuring reliable adaptability and stable operation in relevant test scenarios.

Categories: , , , ,
Description

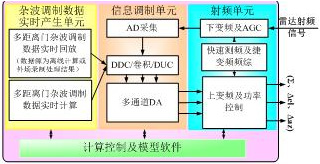

Product Composition

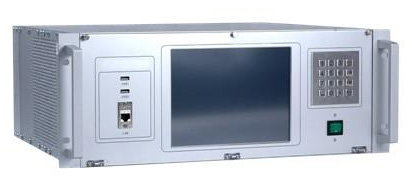

  • Repeater radar target and jamming simulator: realize the simulation of target echo and jamming signal based on DRFM technology;

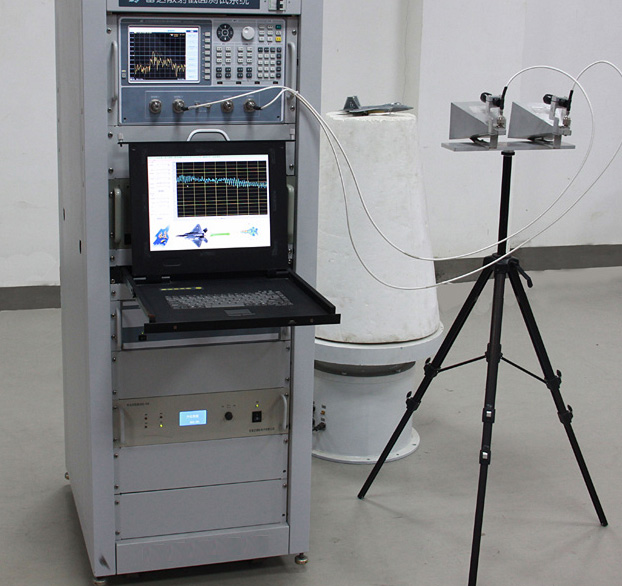

  • Injection radar target simulator: it can simulate the target echo of sum and difference channel and be received by radar through baseband, if or RF injection;

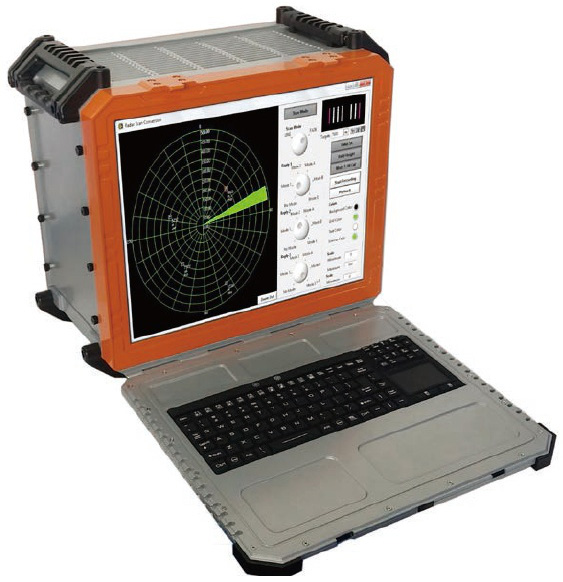

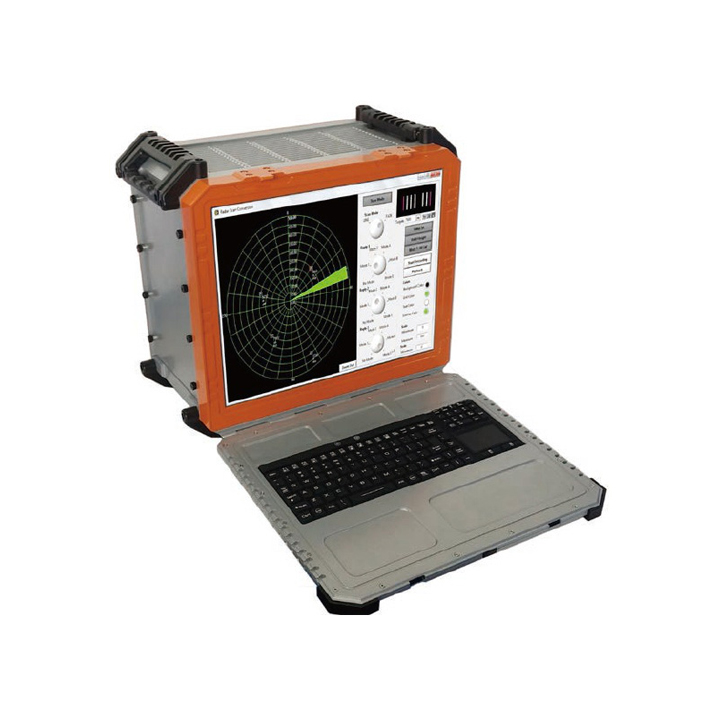

  • Outdoor portable radar target simulator: it is easy to operate and carry.

Radar Target Echo and Altimeter Target Echo and Jamming Scene Simulation System



Product Function

  • It can truly simulate the echo signal characteristics of radar target and radio altimeter target, including amplitude, range delay, Doppler frequency, etc;
  • It can simulate various jamming signals, including noise jamming (aiming noise jamming, blocking noise jamming, frequency sweeping noise jamming, pulse jamming, convolution noise jamming), deception jamming (range towing, velocity towing, range velocity joint towing, etc.), false target (multiple uniform false targets or multiple independent false targets), scintillation jamming, comb spectrum jamming, chaff jamming, and drag jamming;
  • It can simulate the amplitude and phase of target echo signal in sum and difference channel, and realize the simulation of target angle information;
  • Provide RS232, RS485, LVDS, Ethernet and other communication interfaces.

Radar Target Echo and Altimeter Target Echo and Jamming Scene Simulation System



Product Features

  • Suitable radar types: fire control radar, early warning radar, active / semi-active seeker, radio altimeter, ground command radar, etc;
  • Adaptive Radar System: PD, PC, frequency agility, stepped frequency, phased array, monopulse, coherent / incoherent, etc;
  • Based on modular design, different modules can be configured according to different requirements;
  • The hardware platform of the system is reconfigurable, and different simulation functions can be realized by configuring different software.

Radar Target Echo and Altimeter Target Echo and Jamming Scene Simulation System



Application Area

  • Single machine simulation test verification;
  • Field maintenance test;
  • Extension test;
  • Anti interference test;

Radar Target Echo and Altimeter Target Echo and Jamming Scene Simulation System
