RTK GNSS Antenna MT-104/L2/L5

Product Description

The MT-104 GNSS Antenna is a multi-constellation, single-frequency active helical antenna. Leveraging multi-arm helical technology in its design, it supports L1-band satellite navigation signal reception for the BDS-2 (Beidou-2), GPS, GLONASS, and GALILEO systems. This antenna meets the requirements for multi-system compatibility and high-precision measurement, making it widely applicable in scenarios such as portable devices, UAVs, navigation calibration, and other high-precision navigation and positioning use cases. Additionally, user customization is available for this product.

Product Application

It is well-suited for scenarios where volume and weight are critical considerations, such as unmanned aerial vehicles (UAVs), micro-RTK devices, Ami handsets/tablets, and other portable equipment. User customization is also available for this product.

Technical Characteristics

1. The eight-arm coupled quadruple-feed zero-phase center technology guarantees right-hand circular polarization and stable phase center performance.
2. Boasting high passive gain and a wide beamwidth, the antenna unit ensures reliable reception of low-elevation signals.
3. It features delicate low-noise characteristics, high-gain amplification, and outstanding out-of-band suppression capabilities.
4. With its compact size and lightweight design, the antenna is easy to carry and install.

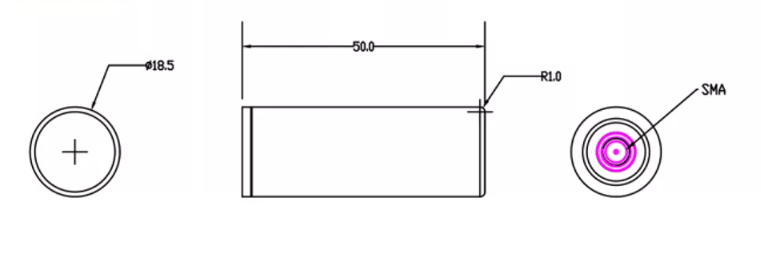

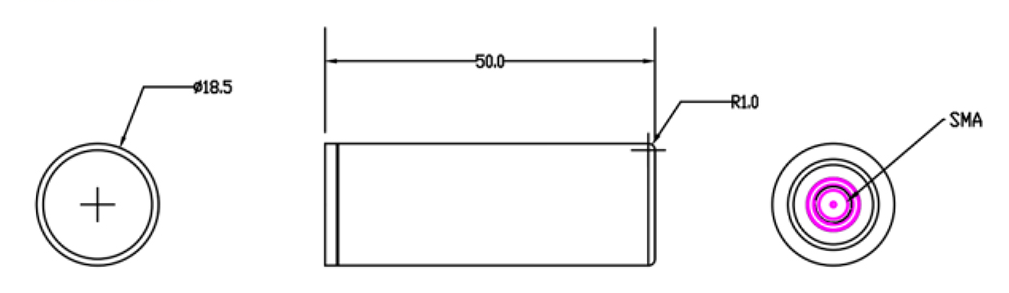

Dimension

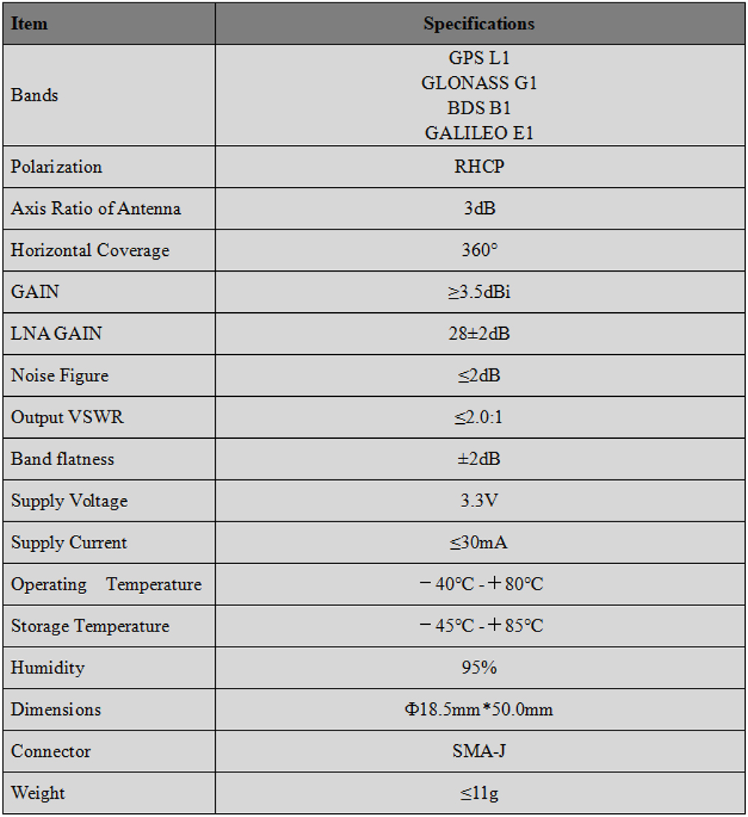

Main Parameter

Product Description

The MT-104L2 GNSS Antenna is an active helical antenna supporting dual bands (L1 + L5). Engineered with multi-arm helical technology, it enables reception of L1-band satellite navigation signals from the BDS-3 (Beidou-3), GPS, GLONASS, and GALILEO systems. It addresses the current demands for multi-system compatibility and high-precision measurement, making it widely applicable in high-precision navigation and positioning scenarios—including portable devices, unmanned aerial vehicles (UAVs), and navigation scheduling systems. User customization is also available for this antenna.

Product Application

It is ideal for scenarios where strict requirements on size and weight apply, such as unmanned aerial vehicles (UAVs), micro RTK devices, Ami handsets/tablets, and other portable equipment. User customization is also available.

Technical Characteristics

1. Adopting eight-arm coupled quadruple-feed zero-phase center technology, the antenna ensures right-hand circular polarization and stable phase center performance.
2. The antenna unit features high passive gain and a wide beamwidth, which effectively guarantees the reception quality of low-elevation signals.
3. It is equipped with delicate low-noise characteristics, high-gain amplification functions, and excellent out-of-band suppression capabilities.
4. With its compact size and lightweight design, the antenna is convenient to carry and easy to install.

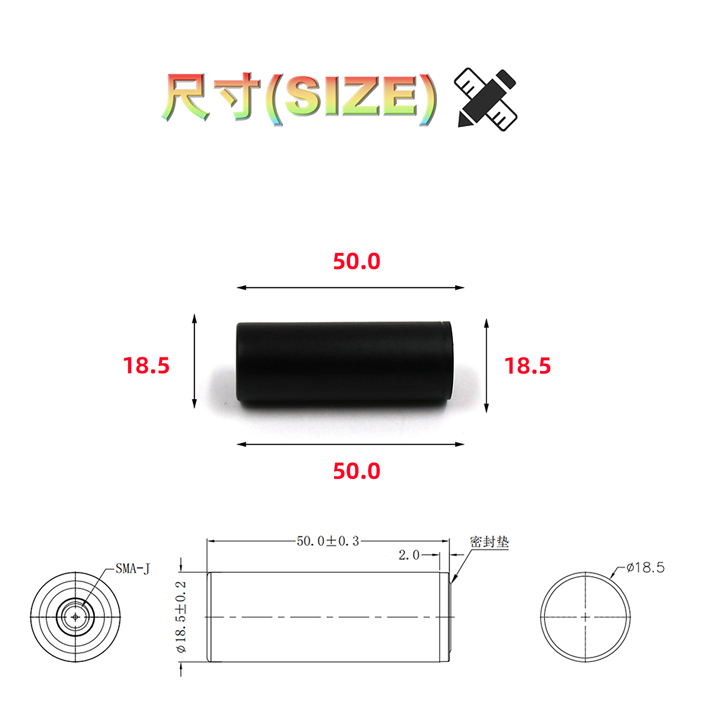

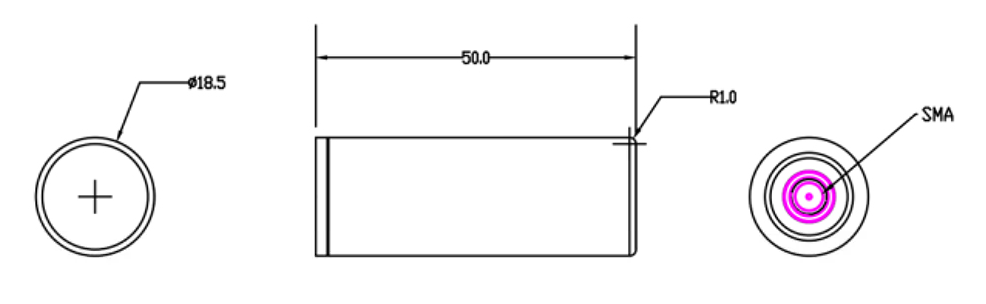

Dimension

Main Parameter

Product Description

The MT-104L5 GNSS Antenna is an L1+L5 active helical antenna, designed with multi-arm helical technology. It supports L1-band satellite navigation signal reception for the Beidou, GPS, GLONASS, and GALILEO systems, meeting current requirements for multi-system compatibility and high-precision measurement. This antenna is widely applicable in high-precision navigation and positioning scenarios such as portable devices, unmanned aerial vehicles, and navigation scheduling systems. User customization is available.

Product Application

It is ideal for scenarios demanding specific volume and weight specifications, including unmanned aerial vehicles (UAVs), micro RTK systems, Ami handsets/tablets, and other portable devices. User customization is also available.

Technical Characteristics

1. The eight-arm coupled quadruple-fed zero-phase center technology guarantees right-handed circular polarization and stable phase center performance.
2. Boasting high passive gain and a wide beamwidth, the antenna unit effectively secures the reception of low-elevation signals.
3. It features delicate low-noise characteristics, high-gain amplification, and outstanding out-of-band suppression capabilities.
4. With its compact size and lightweight design, the product is easy to carry and install.

Dimension

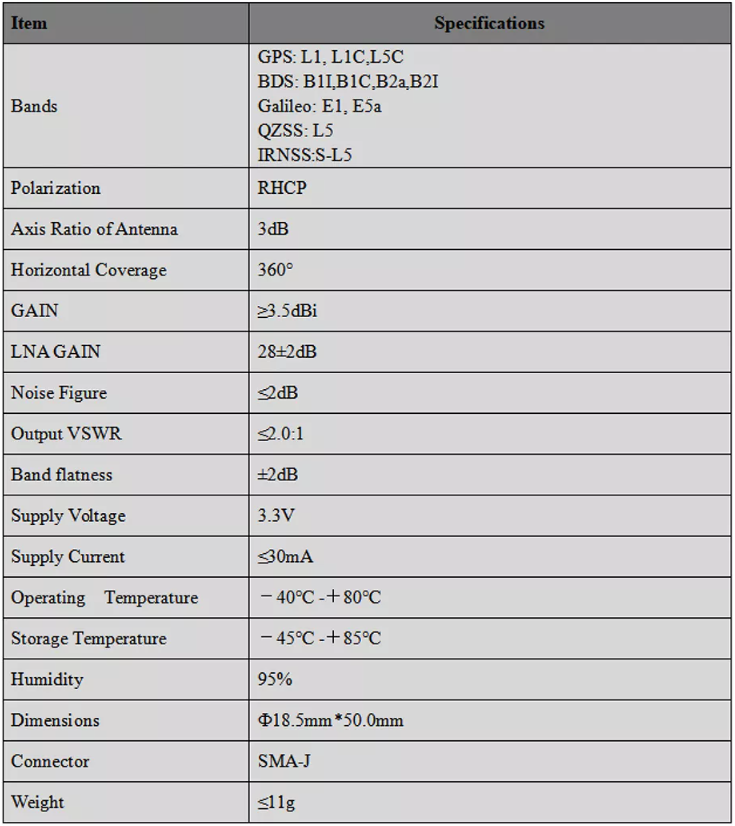

Main Parameter
