Product Description

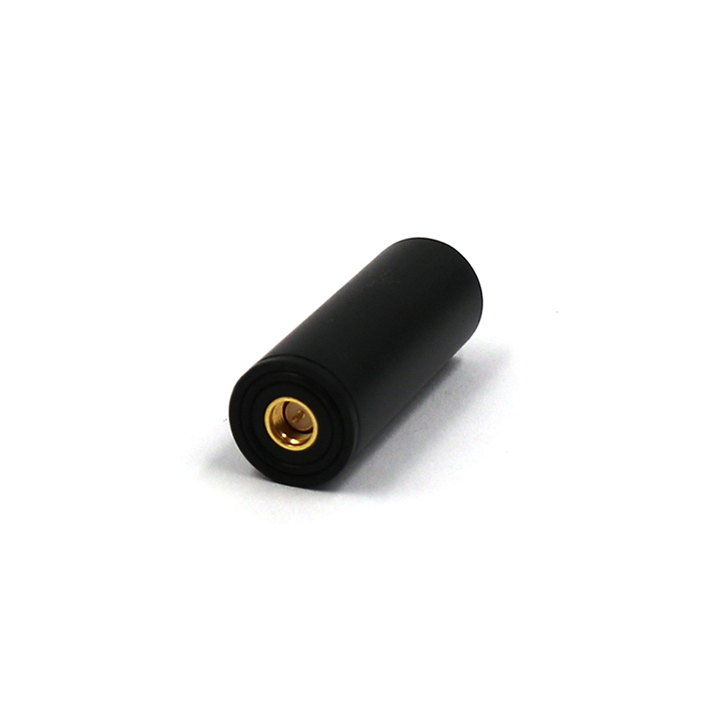

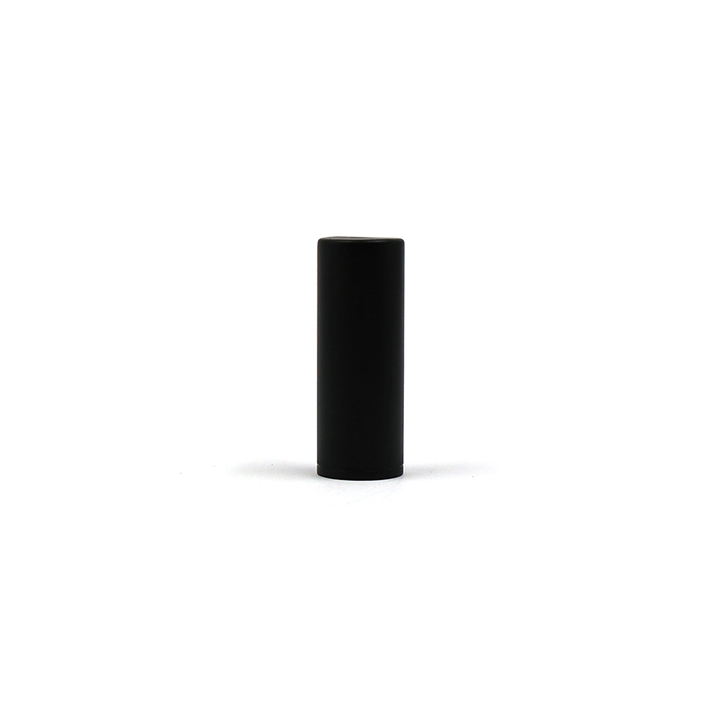

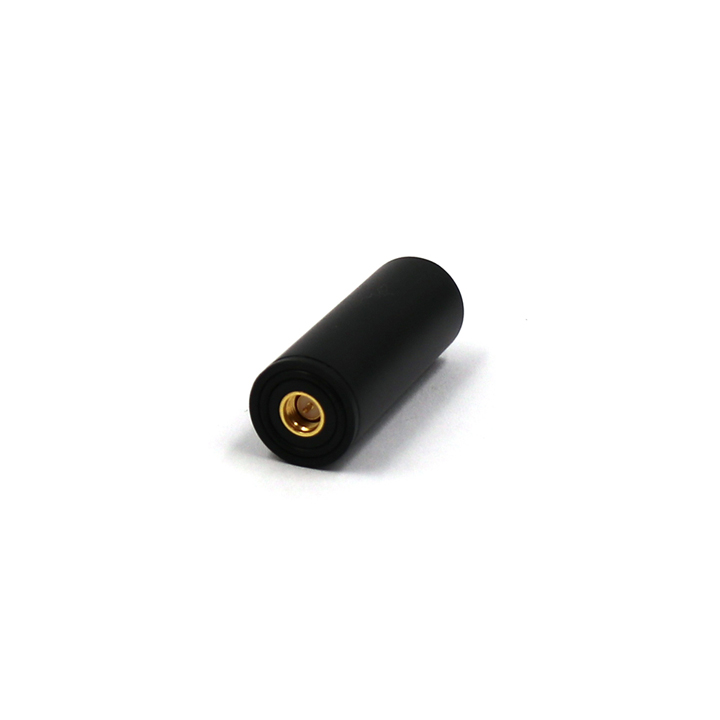

The MT-104L2 GNSS Antenna is an active spiral antenna operating on the L1 and L5 frequency bands, integrated with multi-arm spiral technology. It is specifically designed to receive L1-band satellite navigation signals from the BeiDou HI, GPS, GLONASS, and Galileo systems, effectively meeting the current demands for multi-system compatibility and high-precision measurement. This antenna finds wide application in high-precision navigation and positioning scenarios, including portable devices, unmanned aerial vehicles (UAVs), and navigation & scheduling systems. Furthermore, customization services are available to cater to specific user requirements.​
Product Application
The MT-104L2 GNSS Antenna is ideal for occasions where volume and weight constraints are critical—including unmanned aerial vehicles (UAVs), micro RTK devices, Ami handsets/flat panels, and other portable equipment. Moreover, it accepts user-specific customization to match unique application needs.
Technical Characteristics
1. The MT-104L2 GNSS Antenna adopts eight-arm coupled quadruple-fed zero phase center technology, which ensures right-handed circular polarization and stable phase center performance.​
2. The antenna unit features high passive gain and a wide beamwidth, effectively guaranteeing reliable reception of low-elevation signals.​
3. Additionally, it is equipped with a sophisticated low-noise, high-gain amplification module, along with excellent out-of-band suppression capabilities.​
4. With its compact size and lightweight design, the antenna is easy to carry and install in various application scenarios.

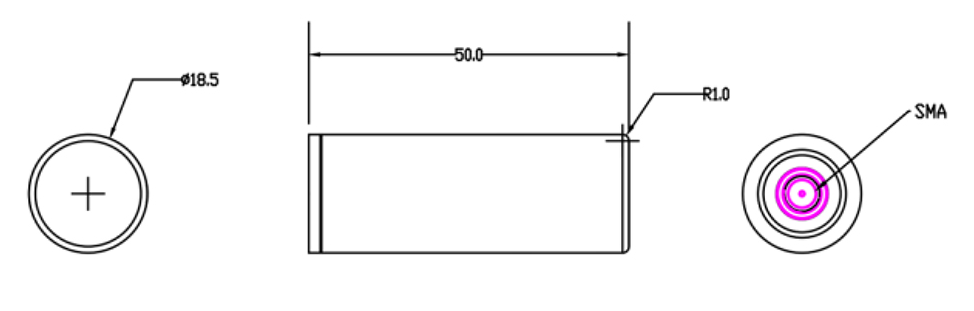

Dimension
Main Parameter
