Product Description

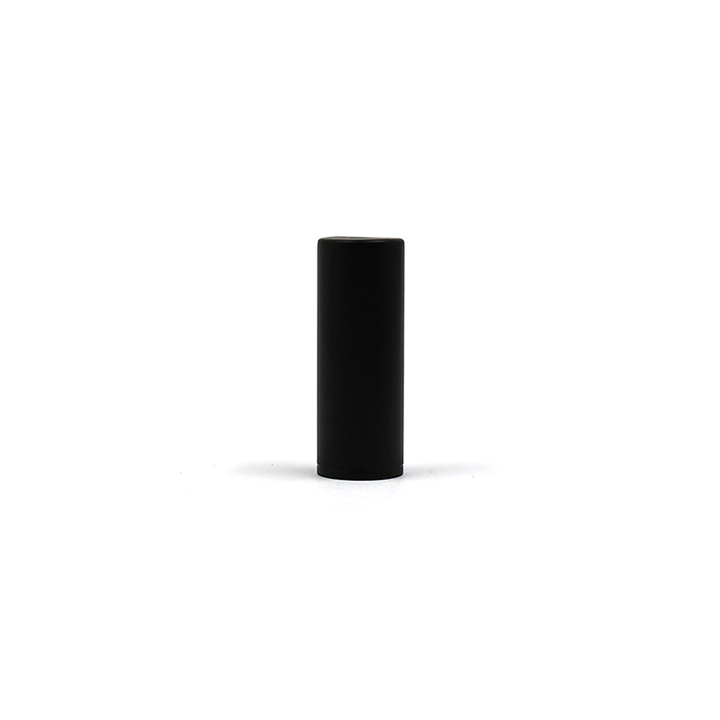

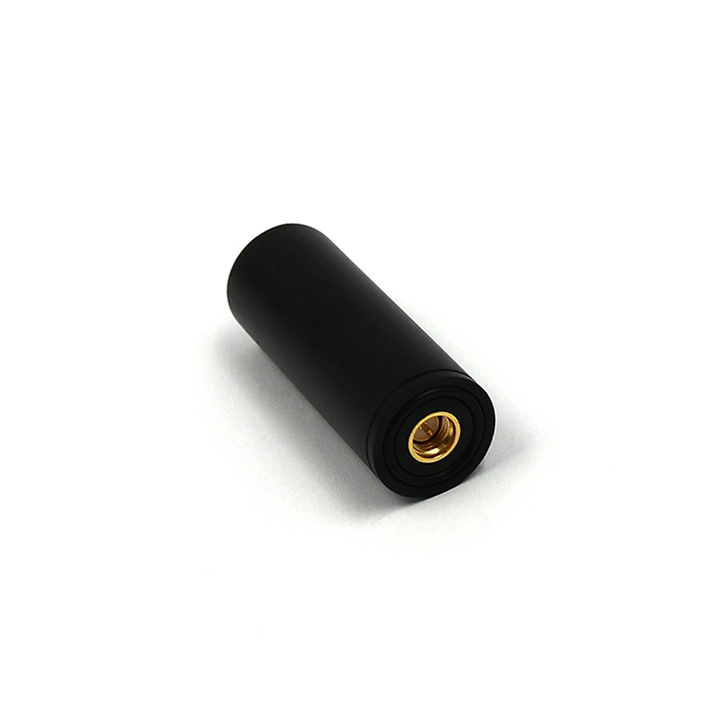

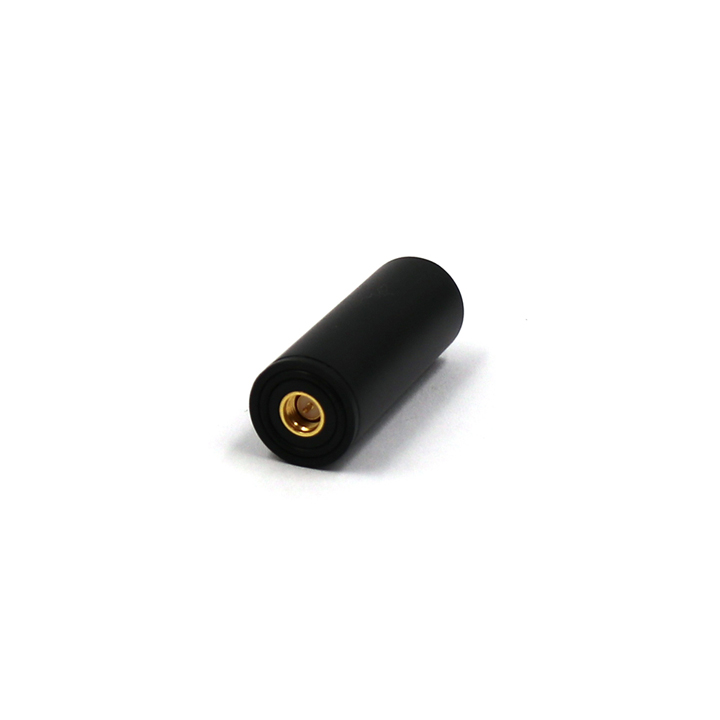

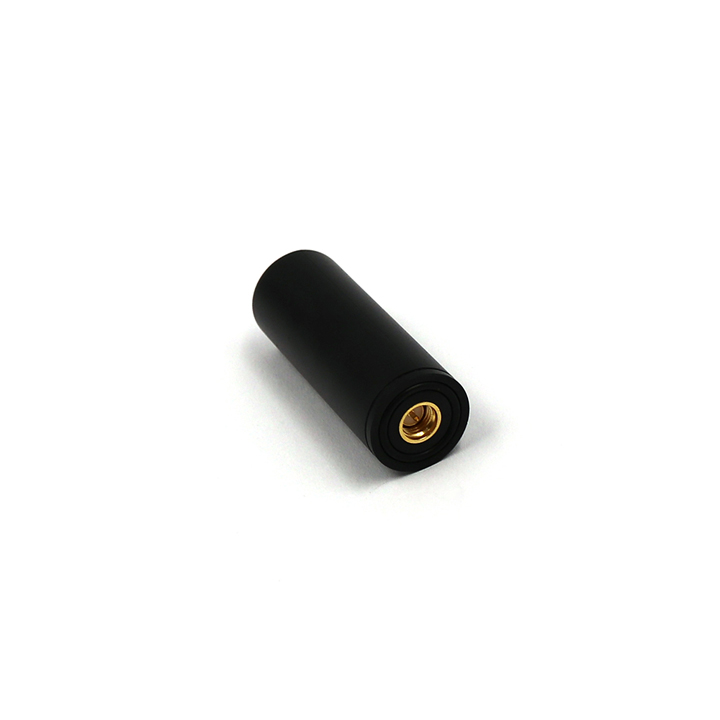

The MT-104L5 GNSS Antenna is an L1+L5 active spiral antenna, developed with multi-arm spiral technology. It supports the reception of L1-band satellite navigation signals from the BeiDou I, GPS, GLONASS, and Galileo systems, effectively meeting the current requirements for multi-system compatibility and high-precision measurement. This antenna is widely applicable to high-precision navigation and positioning scenarios, including portable equipment, unmanned aerial vehicles (UAVs), and navigation & scheduling systems. Furthermore, it accepts user-specific customization to align with unique application needs.
Product Application
The MT-104L5 GNSS Antenna is well-suited for scenarios where volume and weight optimization is critical—including unmanned aerial vehicles (UAVs), micro RTK devices, Ami handsets/flat panels, and other portable equipment. Additionally, it accepts user-specific customization to meet unique application requirements.
Technical Characteristics
1. The MT-104L5 GNSS Antenna adopts eight-arm coupled quadruple-fed zero phase center technology, which ensures right-handed circular polarization and stable phase center performance.
2. Its antenna unit boasts high passive gain and a wide beamwidth, effectively guaranteeing reliable reception of low-elevation signals.
3. Additionally, the antenna is equipped with delicate low-noise, high-gain amplification functions, along with excellent out-of-band suppression capabilities.
4. Featuring a compact size and lightweight design, it is easy to carry and install in various application scenarios.

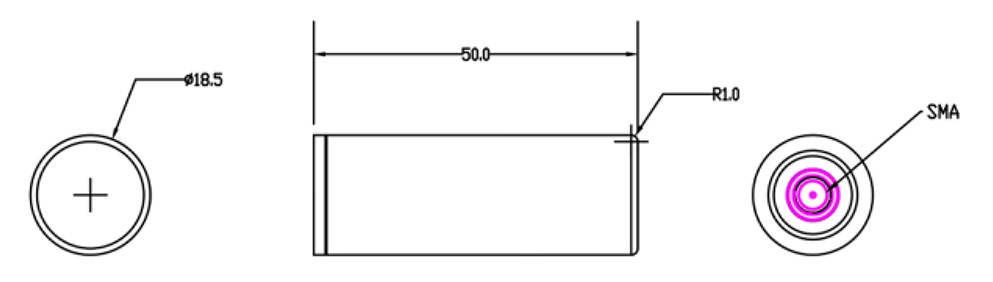

Dimension

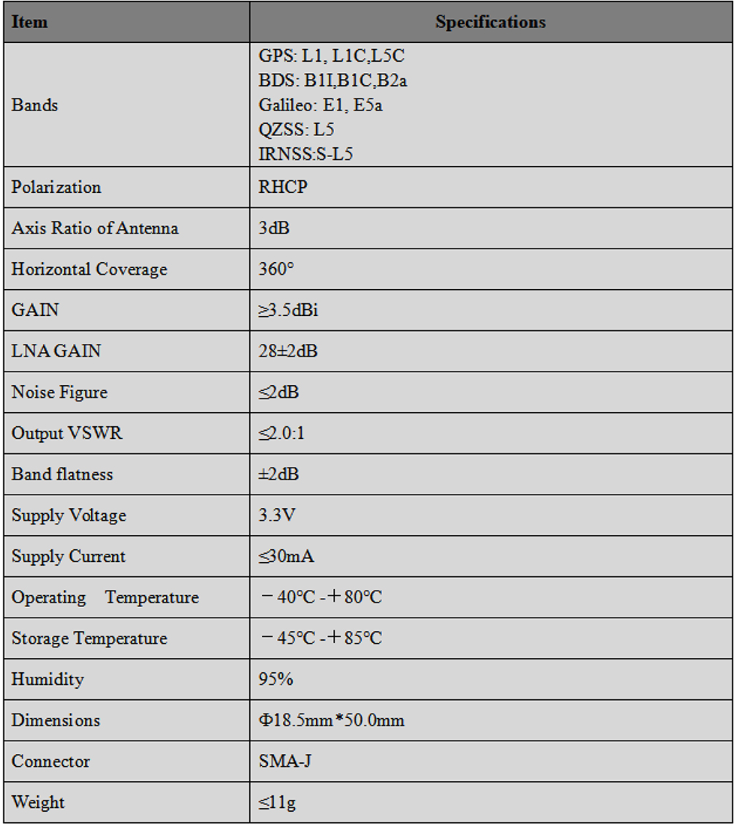

Main Parameter
