Product Description
Capable of transmitting signals in GPS, GLONASS, and BDS frequency bands, the MT-200S antenna offers characteristics like high gain, good low-elevation gain, wide-angle circular polarization, and a stable phase center—it is suitable for multi-system, high-precision surveying and mapping fields, and can be matched with satellite signal forwarding equipment for signal transmission.
Technical Features
- The antenna section employs a multi-feed-point design scheme to ensure the phase center aligns with the geometric center.
- The antenna unit boasts high gain, a wide pattern beam, and excellent beam coverage across the hemisphere.
- It is resistant to high and low temperature impacts, features waterproof functionality, and is equipped with an anti-ultraviolet cover—all of which provide reliable protection for the antenna during long-term field operations.

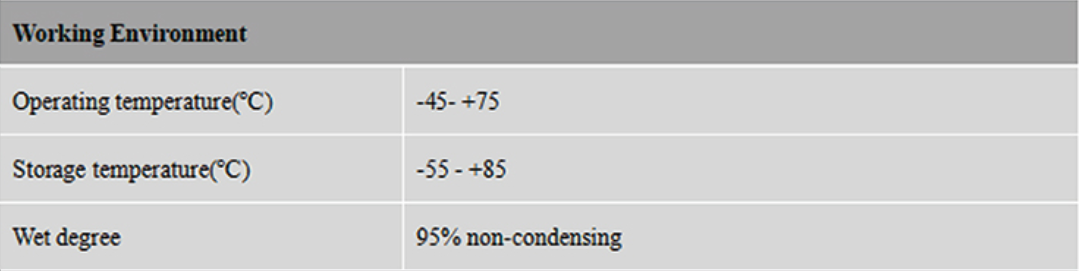

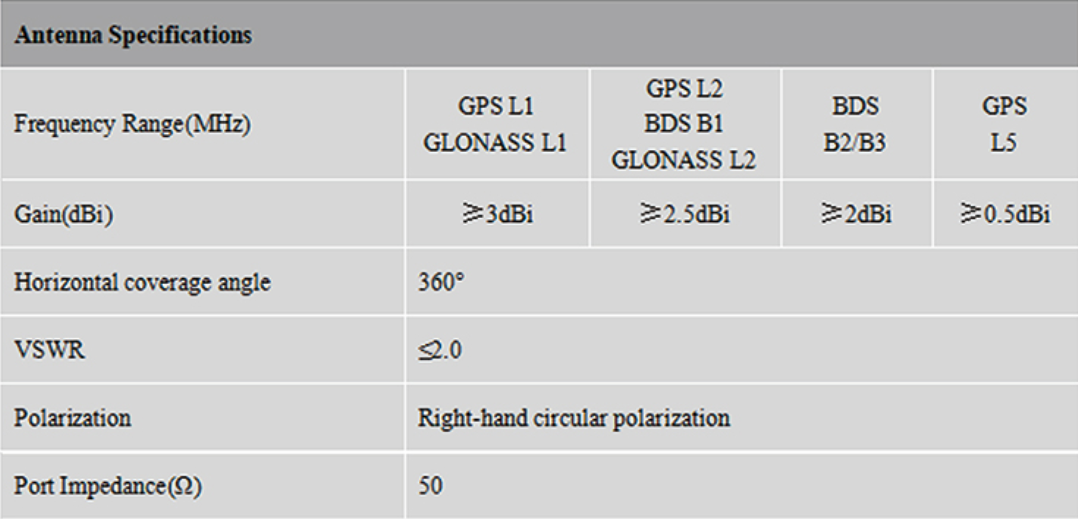

Technical Parameter
Product Size Chart
