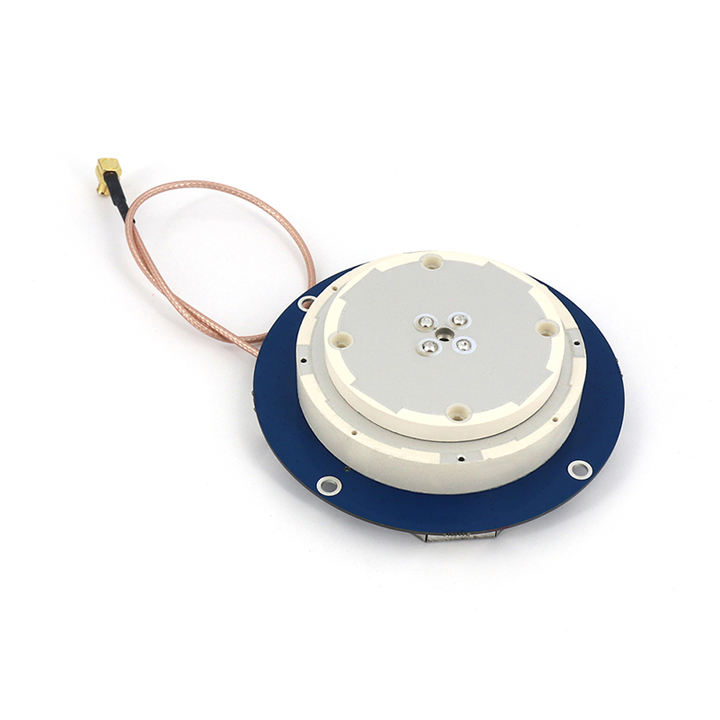

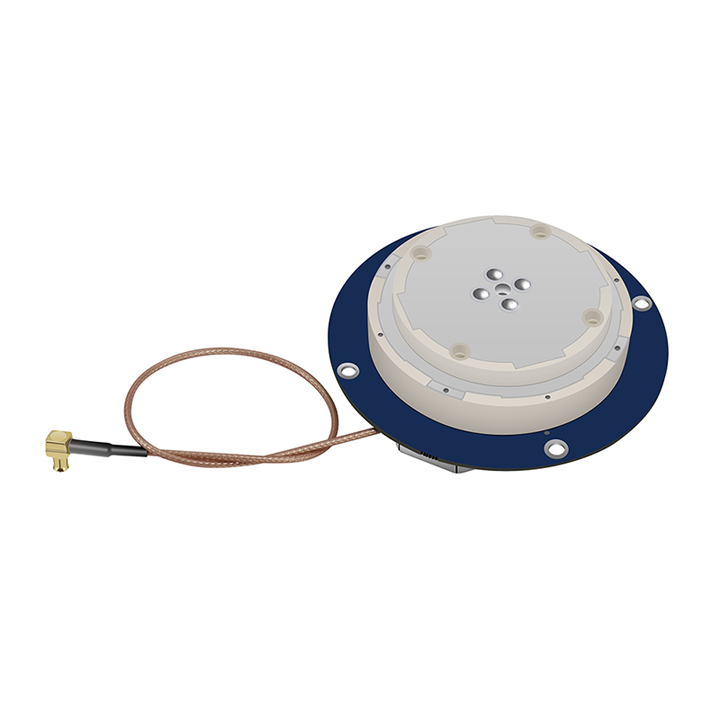

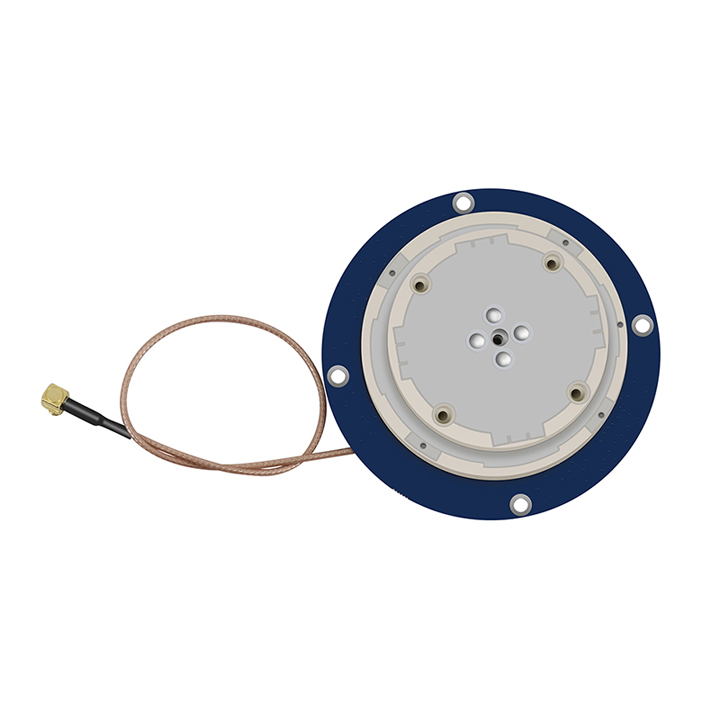

Product Introduction
The MT-208D01 is a four-constellation full-frequency satellite navigation antenna, featuring high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability—all of which enable it to effectively meet users’ practical application requirements.
- It adopts a multi-feed-point design and a fully symmetrical antenna structure, which gives it an extremely stable phase center. This design plays a key role in reducing measurement errors caused by the antenna itself, laying a solid foundation for high-precision positioning.
- With high gain and a low Voltage Standing Wave Ratio (VSWR), the antenna delivers a remarkable performance in receiving low-elevation-angle signals. Even in scenarios where signal blocking is severe, it can still receive satellite signals normally, ensuring the continuity of positioning operations.
- Equipped with an anti-multipath choke ring and an anti-surge design, the antenna is capable of effectively suppressing strong out-of-band interference signals. This not only enhances the purity and stability of the received signals but also further guarantees the long-term reliable operation of the antenna in complex electromagnetic environments.
Field of Application

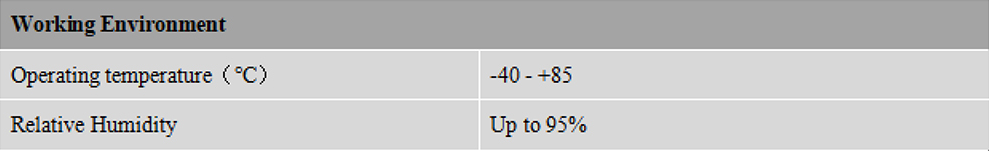

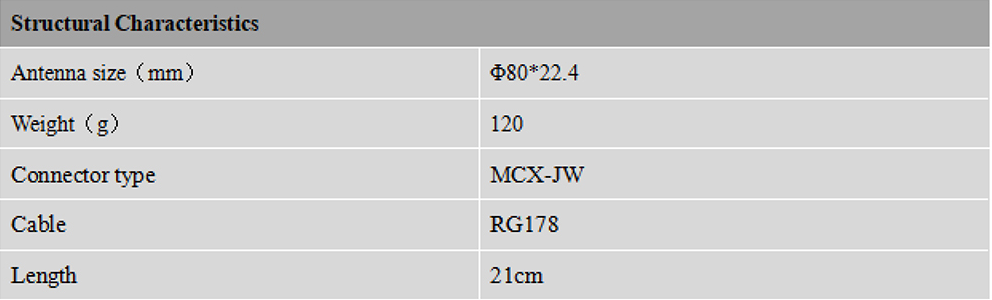

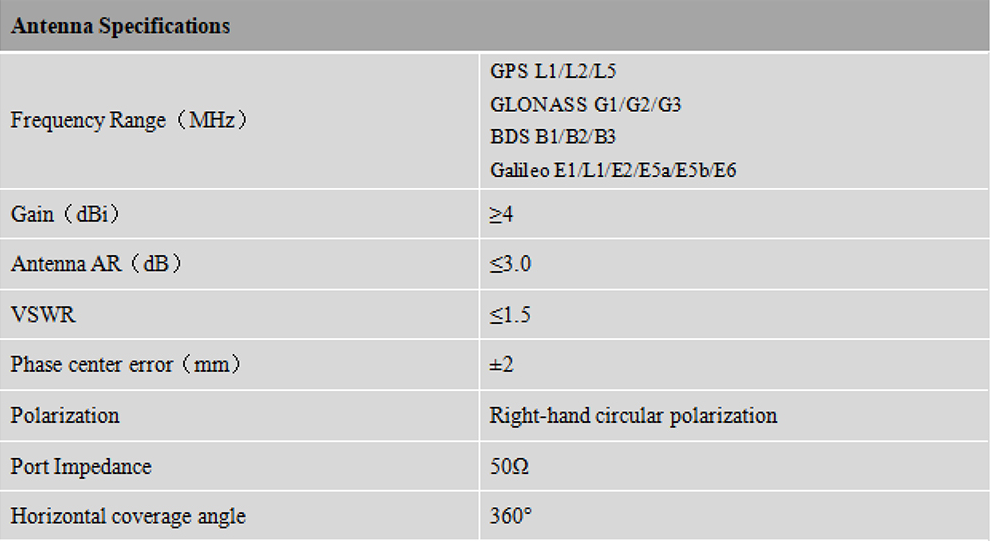

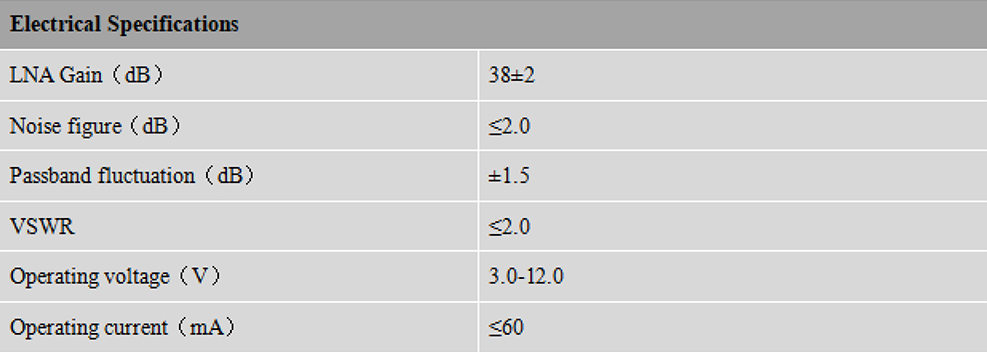

Main Technical Parameters

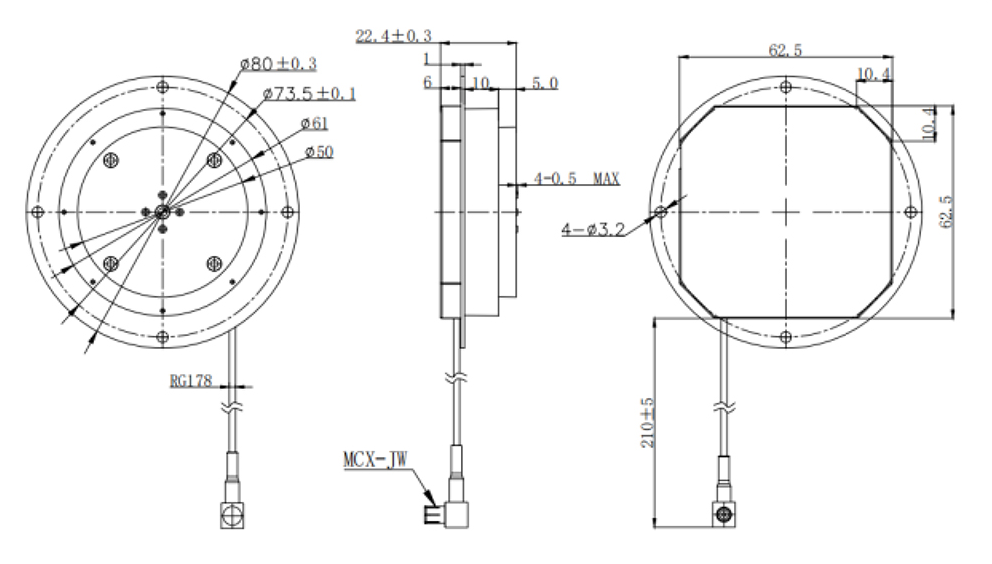

Product Dimension
