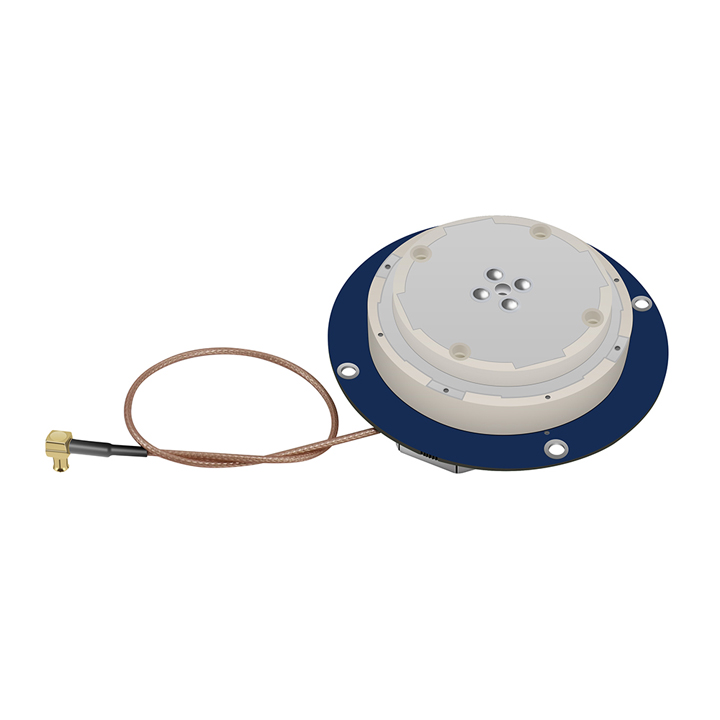

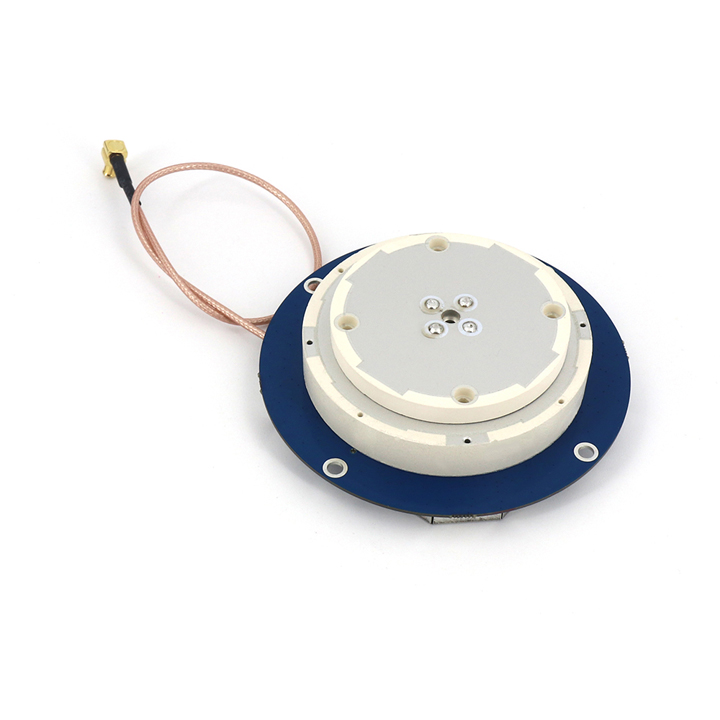

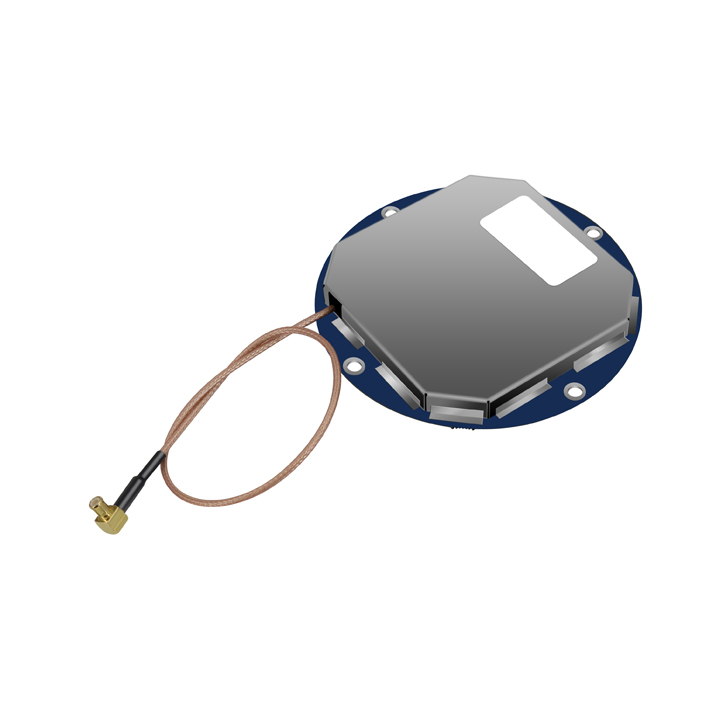

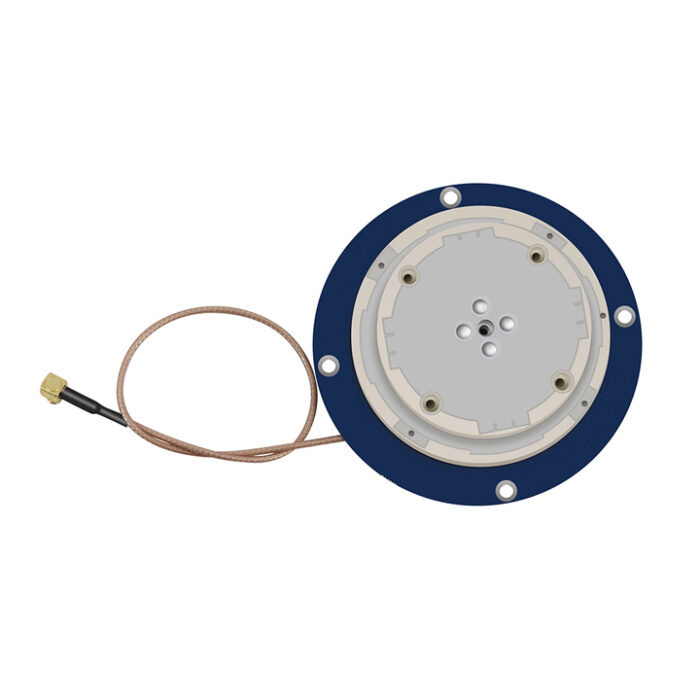

RTK GNSS Antenna MT-208E

The RTK GNSS Antenna MT-208E is a high-performance, dedicated positioning antenna engineered for real-time kinematic (RTK) applications, delivering centimeter-level precision critical for demanding GNSS-dependent tasks. It supports multi-system compatibility, covering key frequency bands of major global navigation systems—including GPS (L1/L2/L5), BDS (B1/B2/B3), GLONASS (G1/G2/G3), and Galileo (E1/E5a/E5b/E6)—ensuring stable signal reception even in complex environments.

With its rugged, compact design, the MT-208E excels in outdoor and industrial settings, resisting interference and environmental factors like moisture, vibration, and temperature fluctuations. It seamlessly integrates with most RTK-enabled satellite navigation receivers, making it an ideal choice for fields such as geodetic surveying, precision agriculture, infrastructure construction, and aerial mapping, where reliable, high-accuracy positioning is non-negotiable.
Categories: , , , , , , , ,
Description

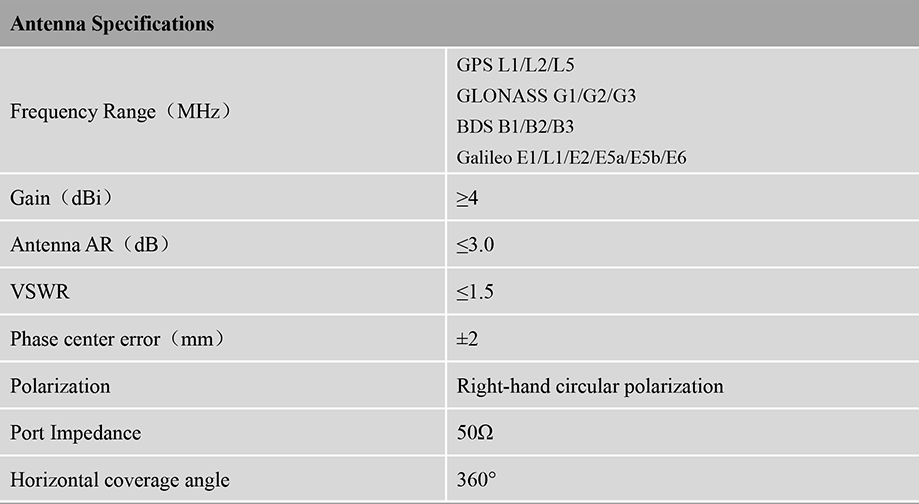

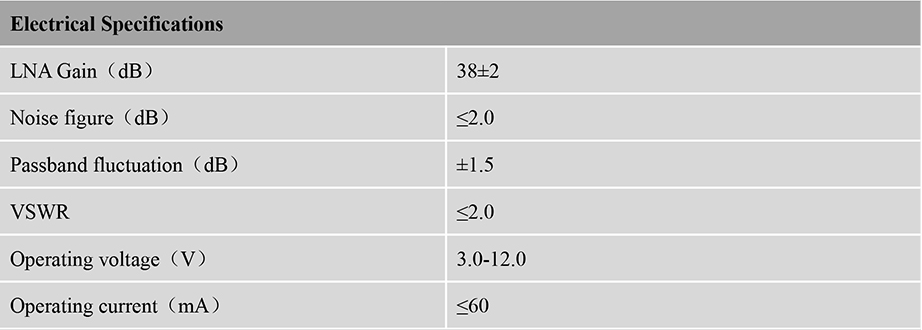

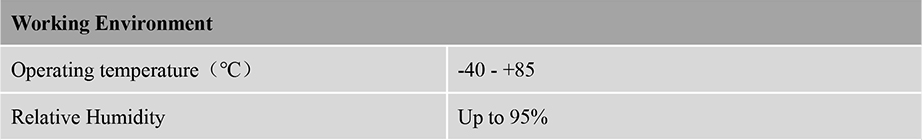

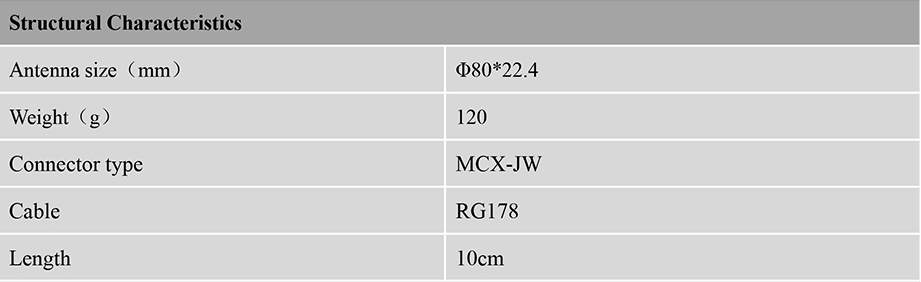

Main Technical Parameters

RTK GNSS Antenna MT-208E RTK GNSS Antenna MT-208E RTK GNSS Antenna MT-208E RTK GNSS Antenna MT-208E

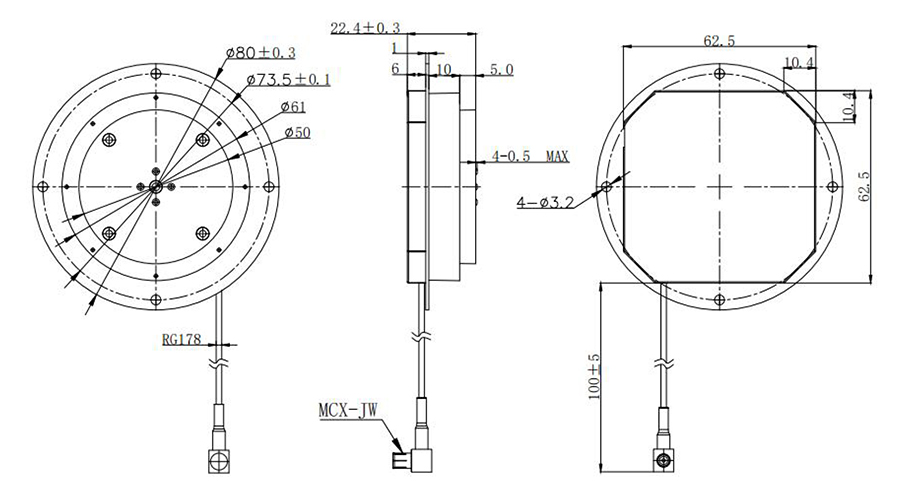

Product Dimension Drawing

RTK GNSS Antenna MT-208E
