Product Introduction
The MT-246 is a satellite navigation antenna boasting key features including high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability. These attributes enable it to effectively cater to users’ diverse needs.
Equipped with a magnetic base, the antenna allows for easy and secure installation. Its construction incorporates UV-resistant PC material and adopts ultrasonic technology, endowing it with excellent sun resistance and heat resistance capabilities.
Application Area
This satellite navigation antenna is compatible with a wide range of satellite navigation receivers, making it widely applicable across multiple fields. These include geodetic surveying, hydrographic surveying, precision agriculture, maritime operations, oceanography, and other related domains. Additionally, it can be selected for military applications when deemed suitable based on specific operational requirements.
Specifications
| Antenna Specifications | |
| Frequency Range(MHz) | GPS L1/L2; GLONASS L1/L2; BDS B1I/B2I/B2b; GALILEO E/E5b. |
| Gain(dBi) | 2 |
| Antenna AR(dB) | ≤3.0 |
| Phase center error(mm) | ±2 |
| Polarization | Right-handed circular polarization |
| Port Impedance(Ω) | 50 |
| Electrical Specifications | |
| Gain(dB) | 28±2 |
| Noise figure(dB) | ≤2 |
| VSWR | ≤2.0 |
| Operating voltage(V) | 3~5 |
| Operating current(mA) | <20 |
| Structural Characteristics | |
| Connector type | SMA-J |
| Antenna size(mm) | 50*50*19.1 |
| Cable | RG174 |
| Length | 3m |
| Mounting | Magnet/adhesive |
| Working Environment | |
| Operating temperature(℃) | -125 |
| Storage temperature(℃) | -140 |

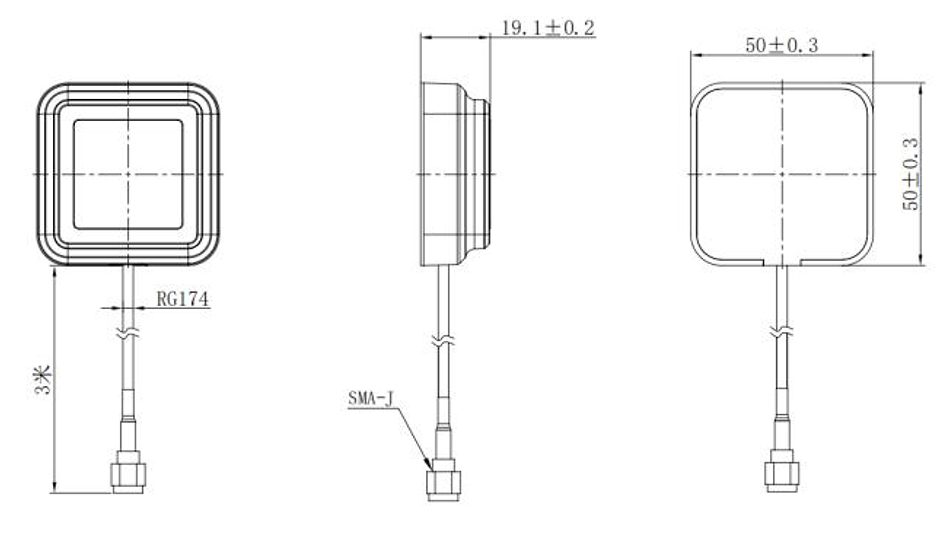

Product Dimension

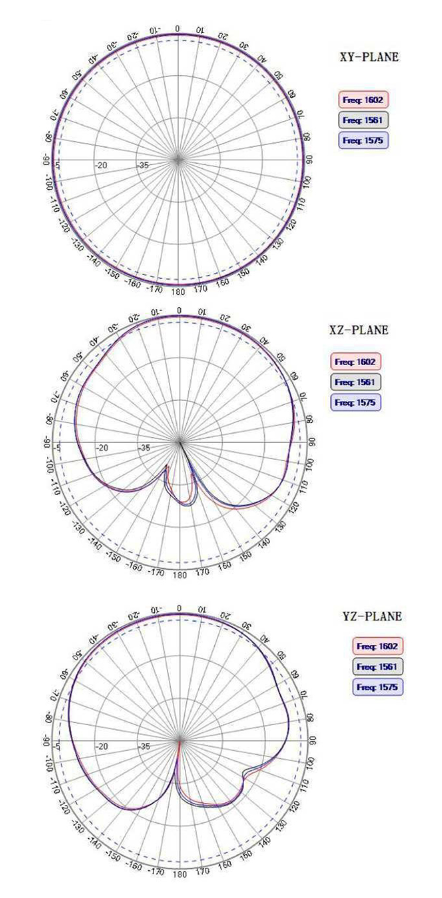

Radiation Mode
