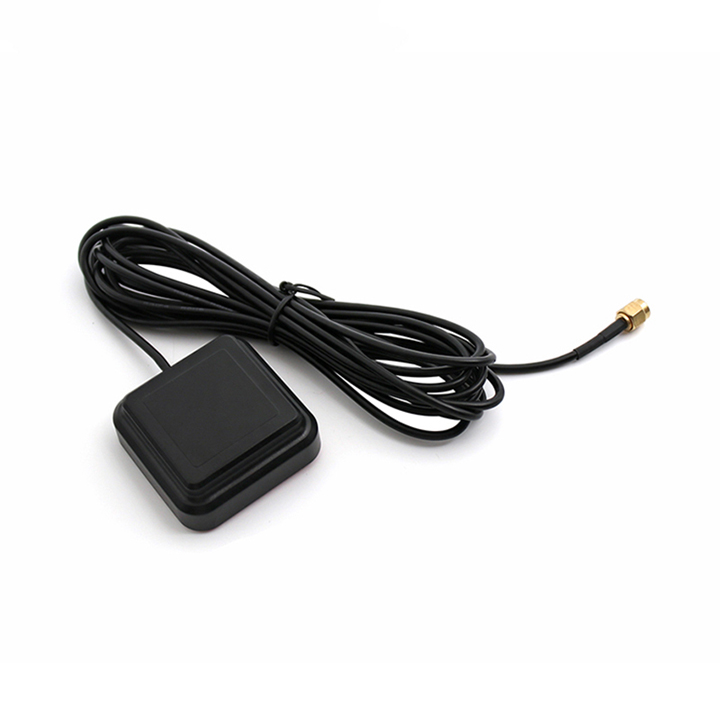

Product Introduction

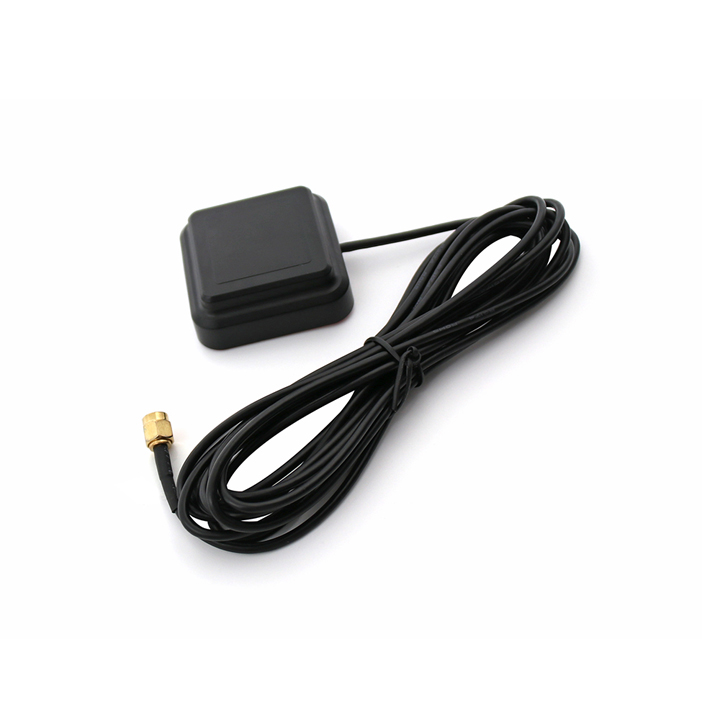

The MT-246B is an L1+L5 satellite navigation antenna that boasts a suite of key characteristics: high gain, miniaturization, high sensitivity, multi-system compatibility, and strong reliability. These features enable it to effectively fulfill users’ diverse operational needs.

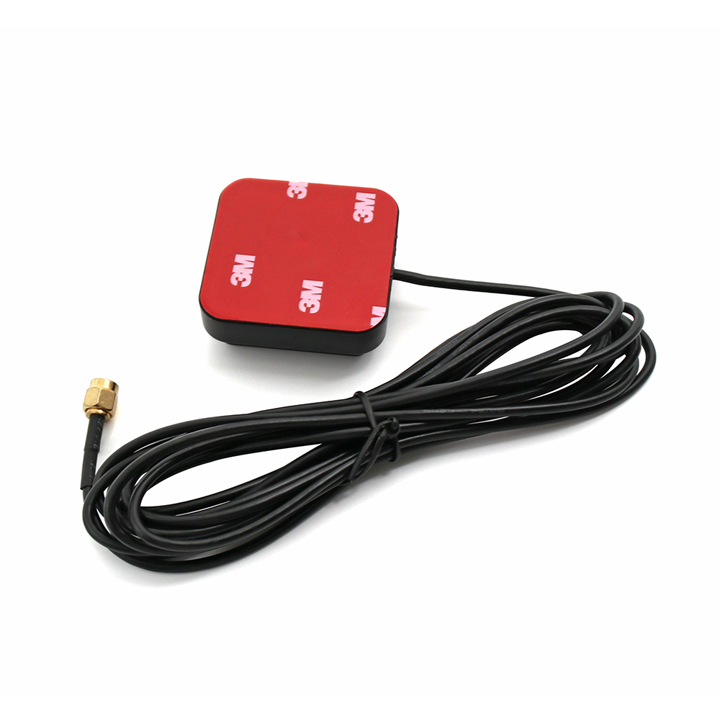

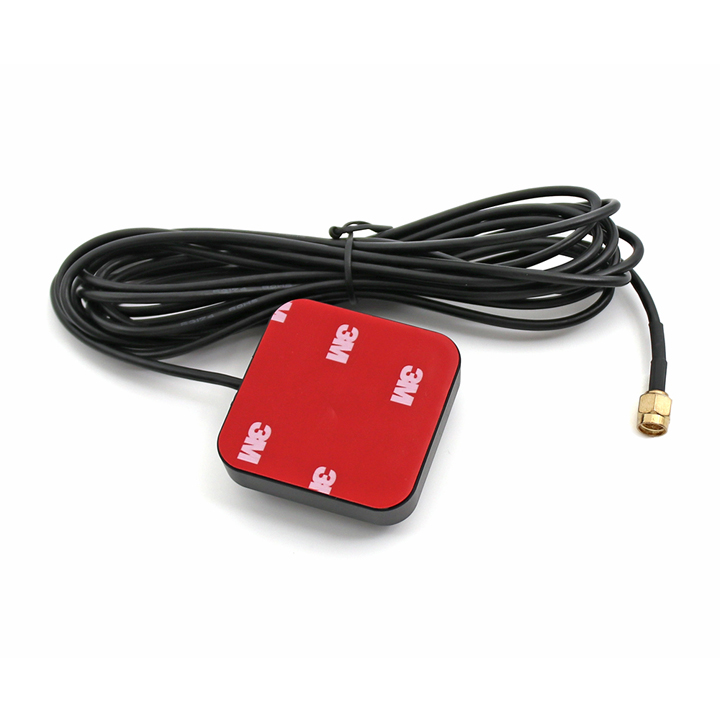

A magnet is attached to the bottom of the antenna, allowing for easy and secure fixation on applicable surfaces. Additionally, the antenna is constructed using UV-resistant PC material and manufactured with ultrasonic technology—design elements that equip it with excellent sun protection and high-temperature resistance, ensuring stable performance even in harsh environmental conditions.
Application Area
The MT-246B antenna is compatible with a wide range of satellite navigation receivers, making it a versatile choice across multiple professional fields. It finds extensive application in geodetic surveying and mapping, channel surveying and mapping, precision agriculture, and marine surveying. Furthermore, it can also be selected for deployment in the military sector, provided it aligns with specific application requirements and operational conditions.

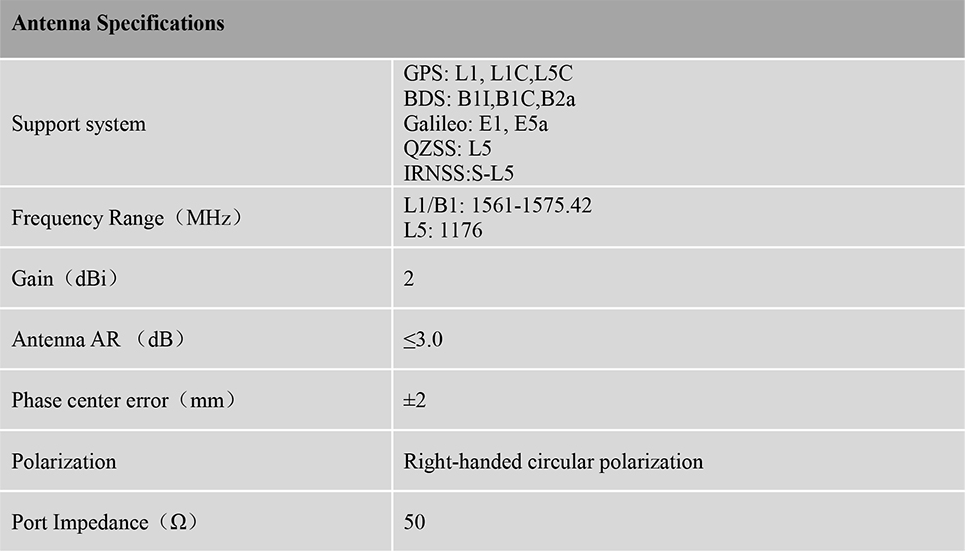

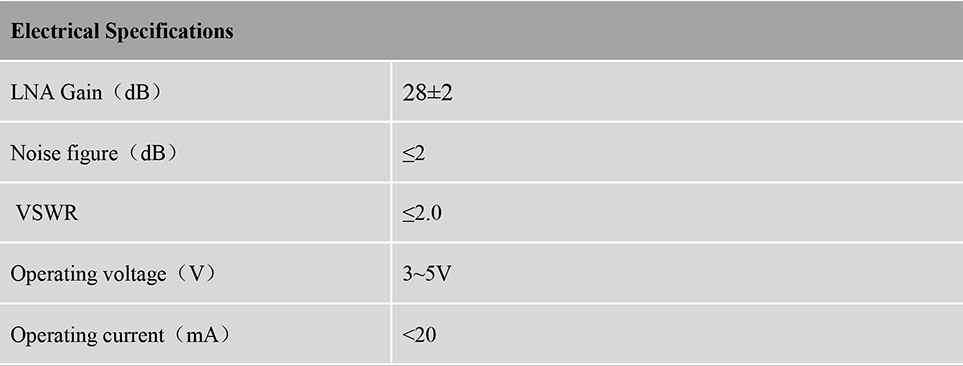

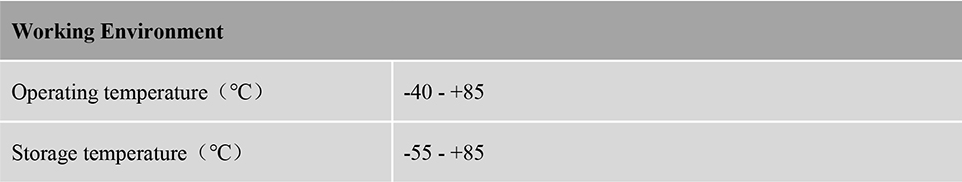

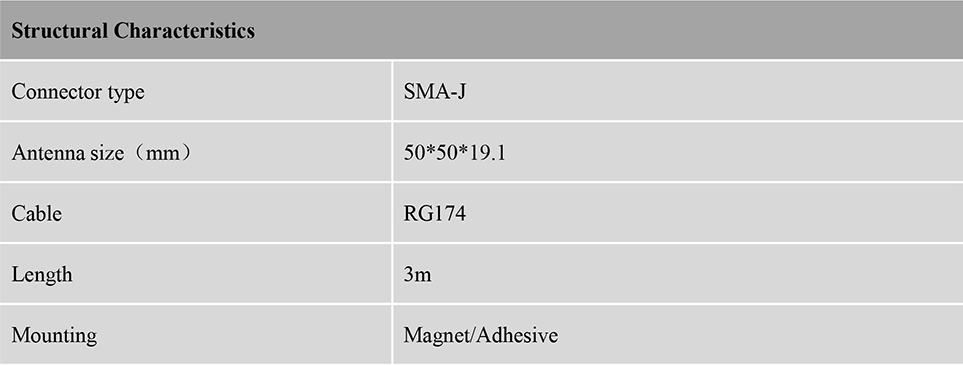

Specifications

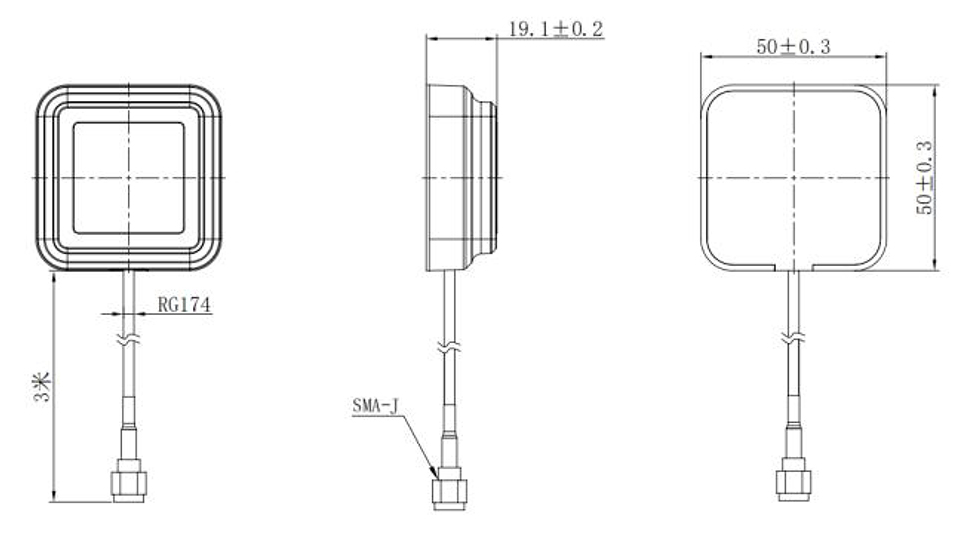

Product Size Chart

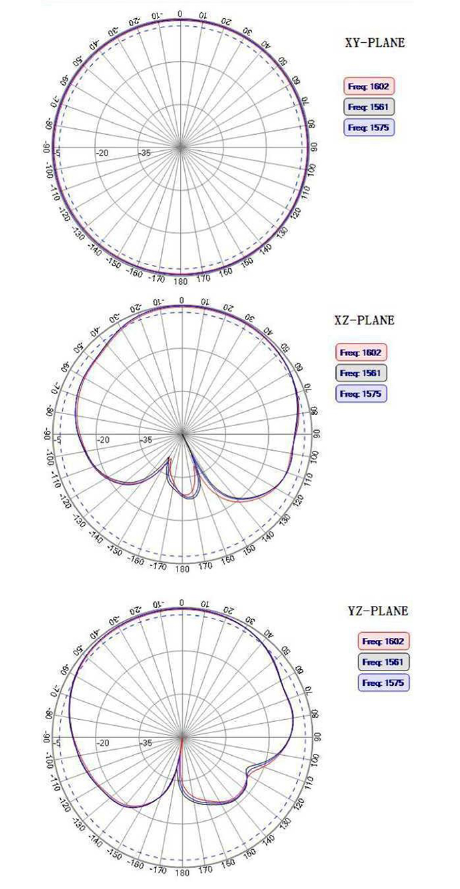

Radiation Pattern
