Home » Unmanned System Products » RTK GNSS Antenna MT-256
RTK GNSS Antenna MT-246B
Back to products
RTK GNSS Antenna MT-256/256B/256C

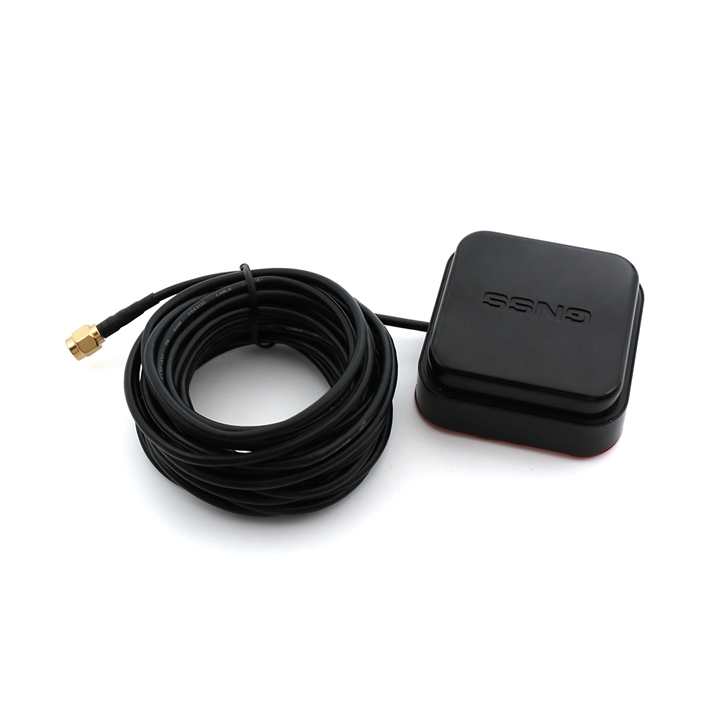

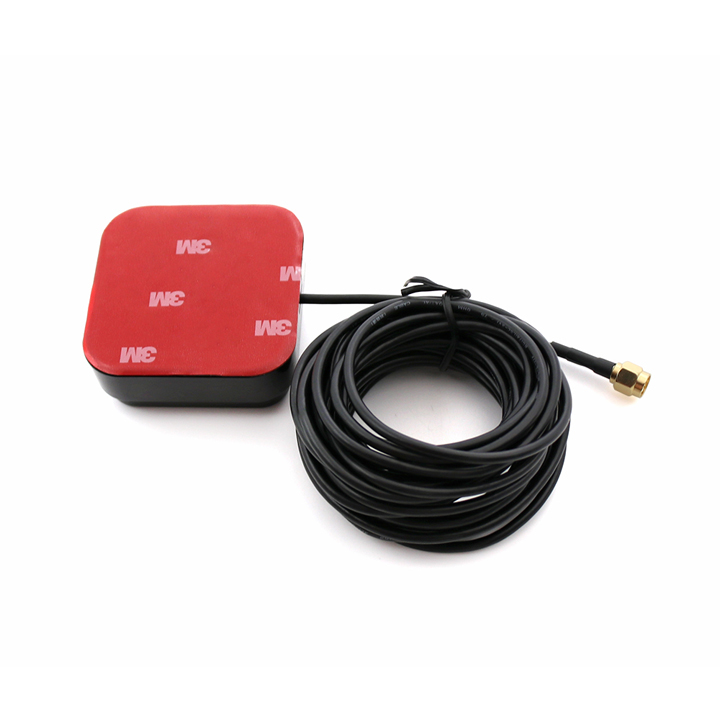

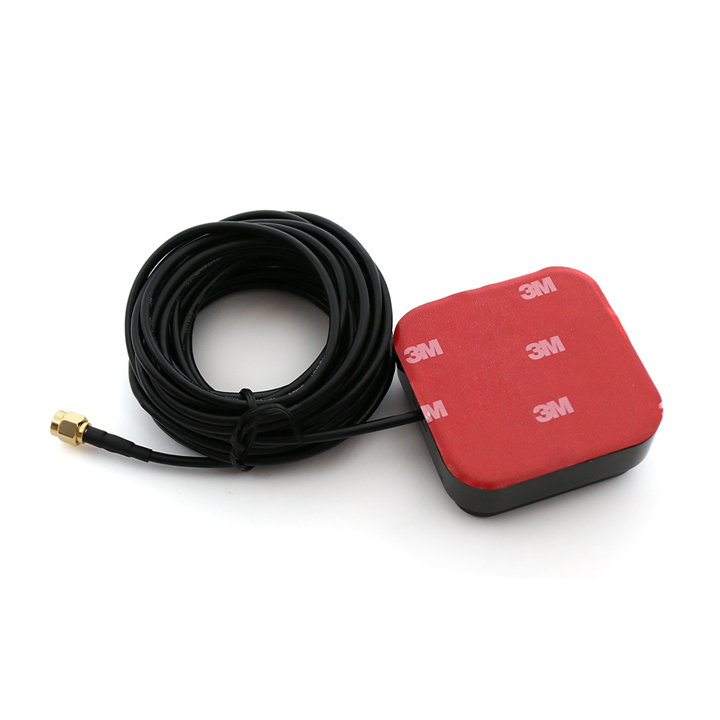

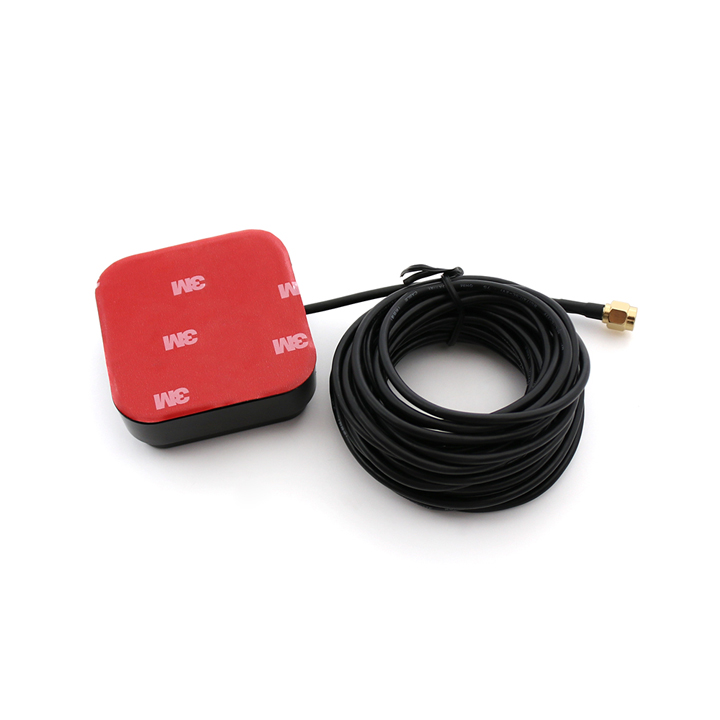

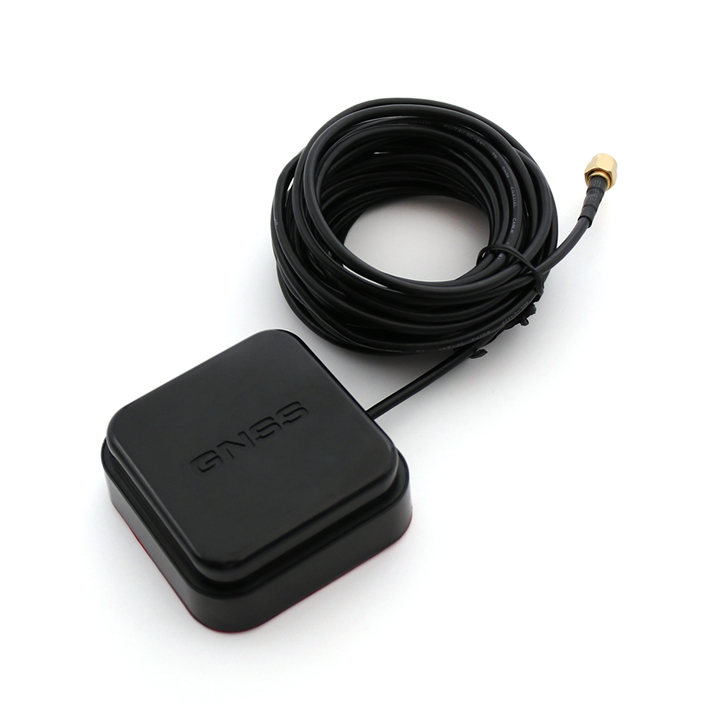

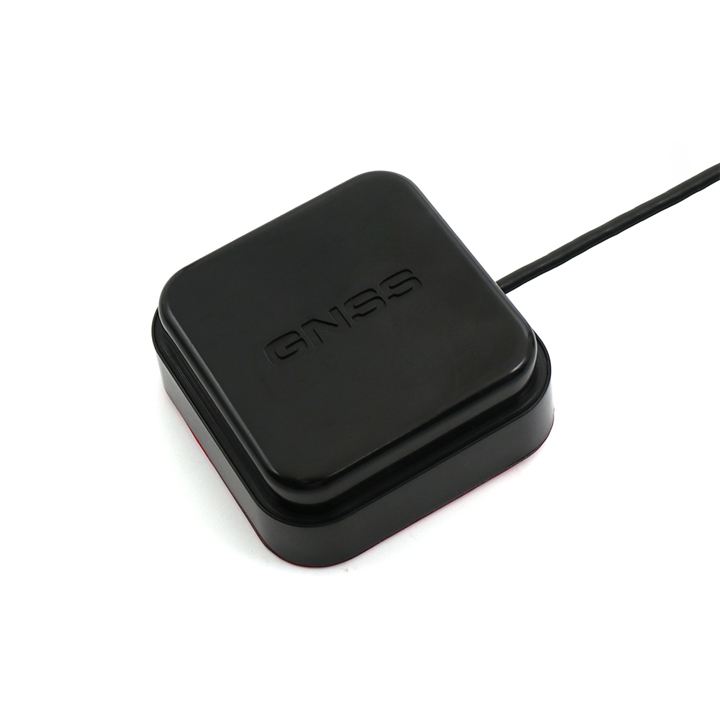

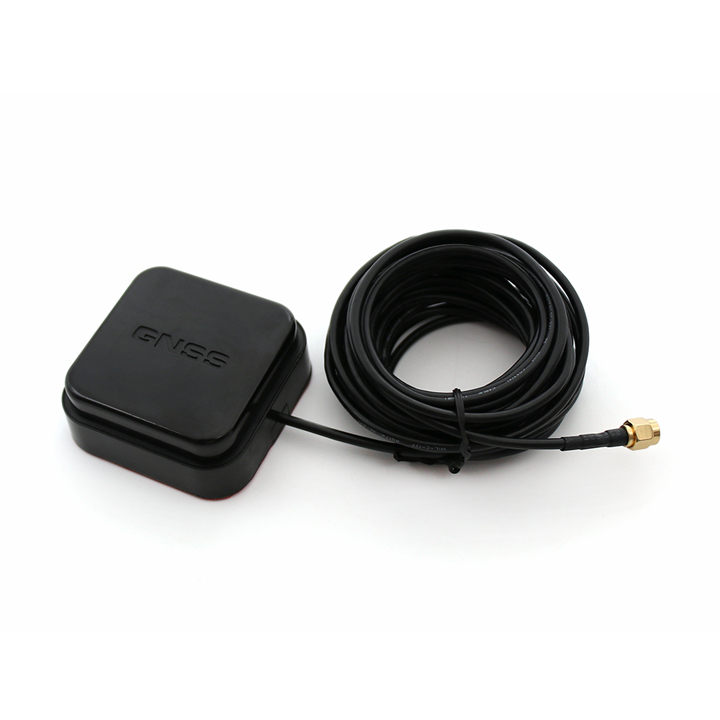

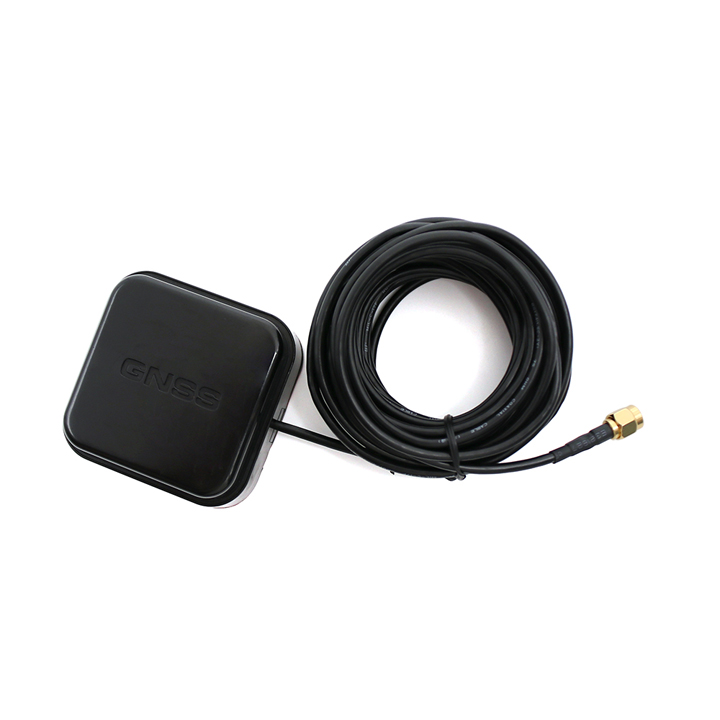

RTK GNSS Antenna MT-256

The RTK GNSS Antenna MT-256 is a high-performance precision positioning antenna engineered to deliver reliable, real-time kinematic (RTK) capabilities for professional navigation and surveying needs. Designed to support full GNSS multi-system compatibility, it ensures stable signal reception across major satellite constellations, complemented by key attributes including high gain, exceptional sensitivity, and robust reliability—all packaged in a compact, miniaturized form factor that suits space-constrained installation scenarios.​

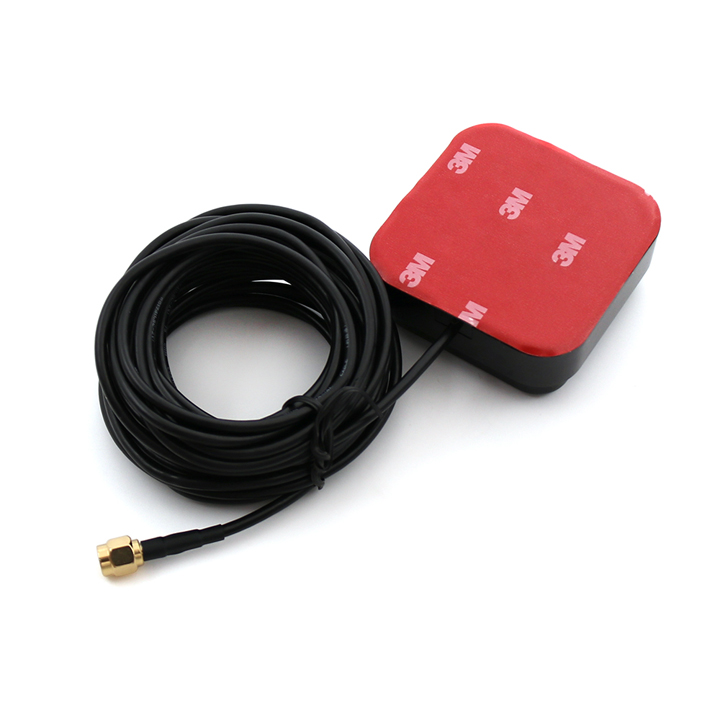

Built for durability, the MT-256 adopts UV-resistant PC material and ultrasonic sealing technology, equipping it with strong resistance to sunlight exposure, high temperatures, and harsh environmental elements. A integrated magnetic base at the antenna’s bottom enables quick, secure attachment to metal surfaces, simplifying setup and enhancing flexibility across different work sites.
Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Introduction

The MT-256 is a multi-constellation, multi-frequency satellite navigation antenna boasting high gain, miniaturization, high sensitivity, multi-system compatibility, and exceptional reliability—all of which enable it to effectively fulfill users’ requirements. For convenient installation, the antenna features a magnetized base that allows for easy attachment. Constructed from UV-resistant PC material and assembled using ultrasonic technology, it exhibits excellent resistance to sunlight and high temperatures.

Application Area

The MT-256 antenna is compatible with a wide range of satellite navigation receivers, making it highly versatile across multiple application scenarios. It finds extensive use in civilian fields such as geodetic surveying, channel surveying, precision agriculture, and marine surveying. Additionally, it can be deployed in military applications, provided that the specific operational conditions and requirements are met.

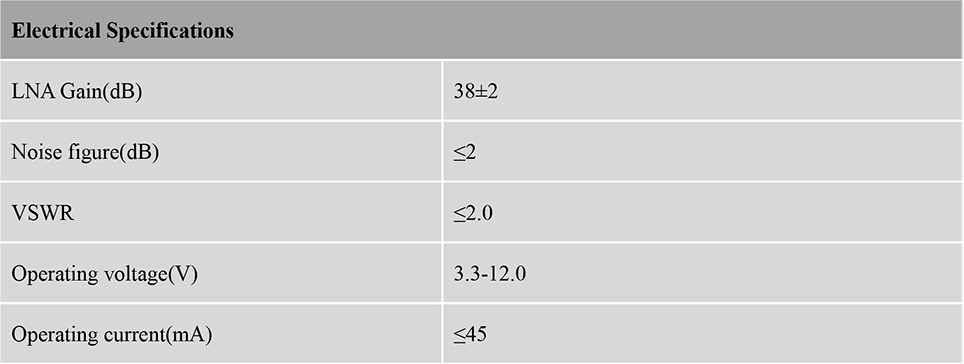

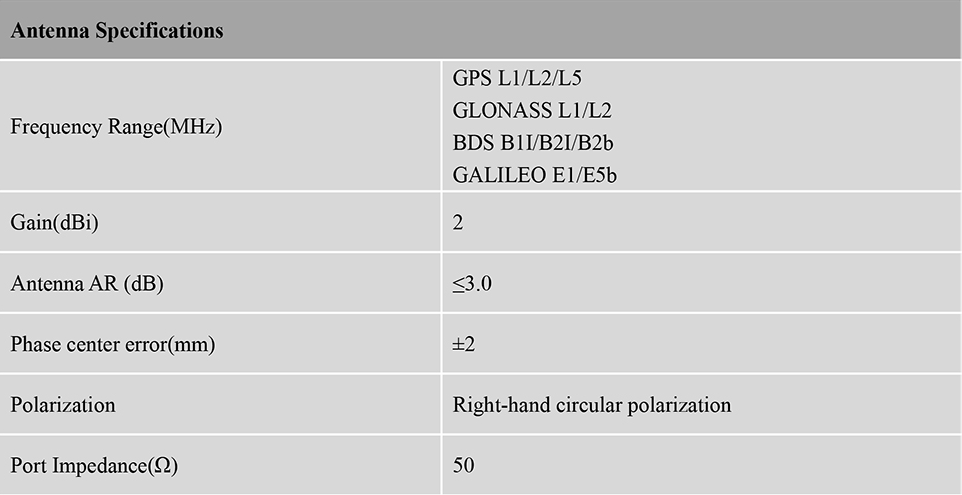

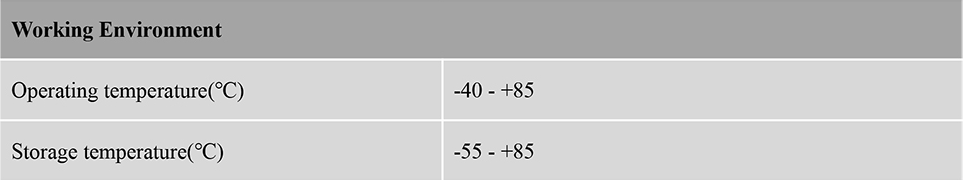

Specifications

RTK GNSS Antenna MT-256 RTK GNSS Antenna MT-256 RTK GNSS Antenna MT-256 RTK GNSS Antenna MT-256

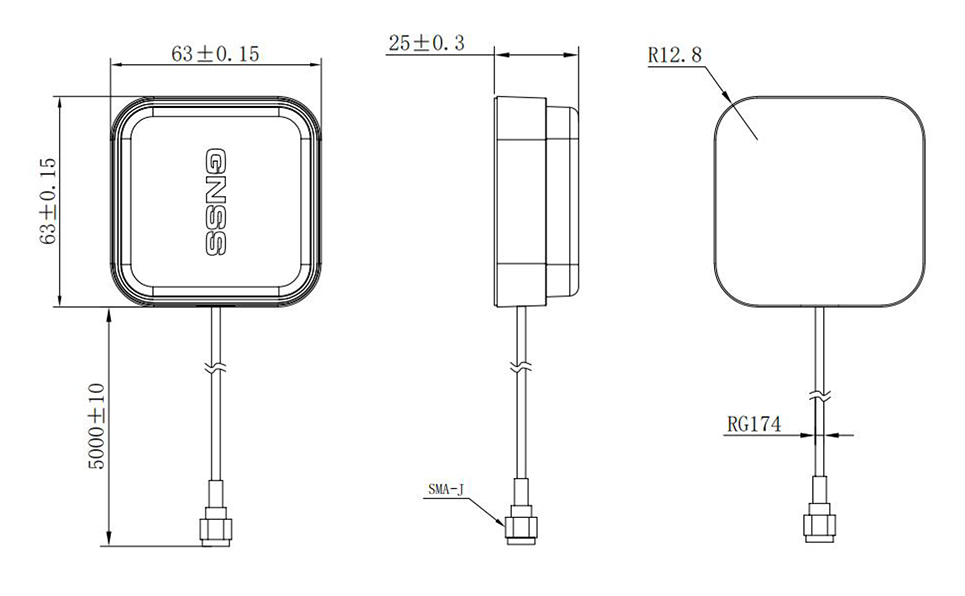

Product Dimension

RTK GNSS Antenna MT-256
