RTK GNSS Antenna MT-266
Back to products
RTK GNSS Antenna MT-266B

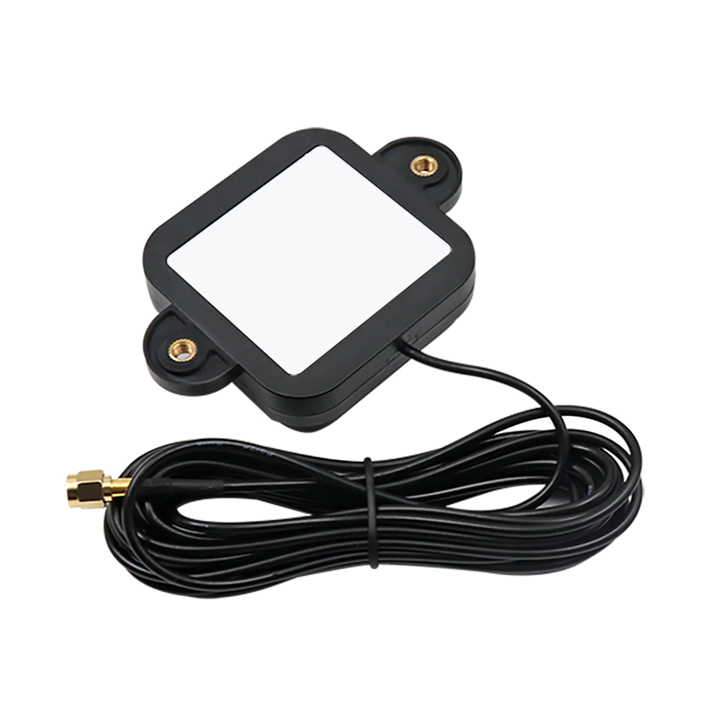

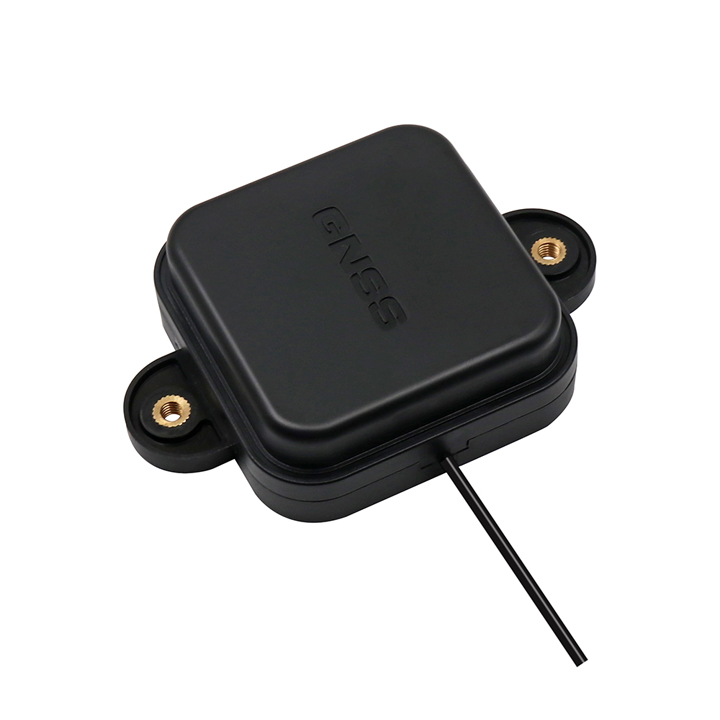

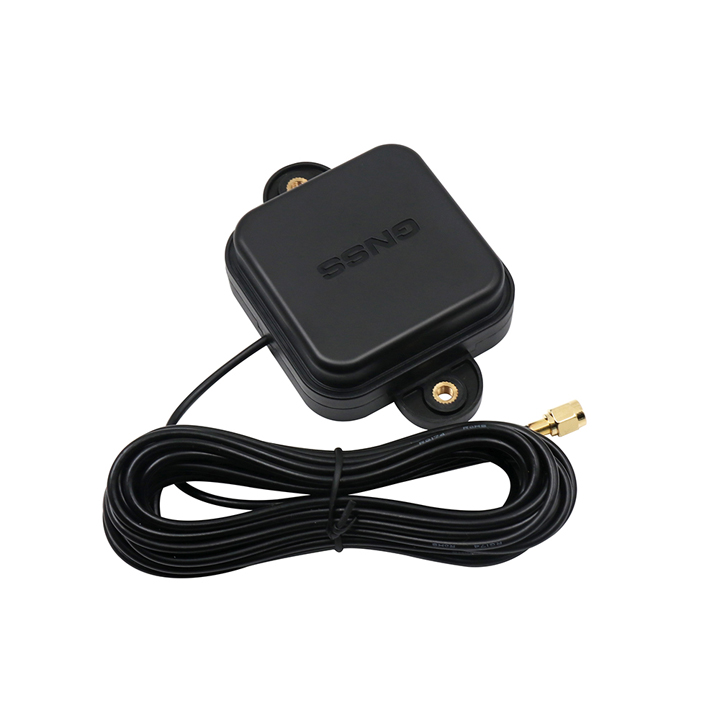

RTK GNSS Antenna MT-266/266B/266C

The RTK GNSS Antenna MT-266/266B/266C series represents a versatile lineup of high-performance satellite navigation solutions, unified by their multi-constellation (GPS, BeiDou, Galileo, GLONASS) and multi-frequency capabilities. All models deliver reliable centimeter-level positioning accuracy, boast broad compatibility with various satellite navigation receivers, and feature user-friendly designs—including magnetized bases for easy attachment and UV-resistant PC construction (enhanced via ultrasonic technology) for sun-proof, high-temperature tolerance in harsh outdoor conditions.

Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Introduction

The MT-266C is a multi-constellation, multi-frequency satellite navigation antenna that integrates high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability—all engineered to effectively fulfill user requirements.

For enhanced convenience, the antenna is equipped with a magnetized base, enabling easy and quick attachment to suitable surfaces. Crafted from UV-resistant PC material and assembled using ultrasonic technology, it offers excellent durability with sun-proof and high-temperature-resistant properties, ensuring stable performance even in harsh outdoor environments.

Application Area

The antenna is compatible with a wide range of satellite navigation receivers, ensuring versatile integration into various systems. It finds extensive use in fields such as geodetic surveying, channel surveying, precision agriculture, and marine surveying. Additionally, it is suitable for military applications when specific operational conditions are met.

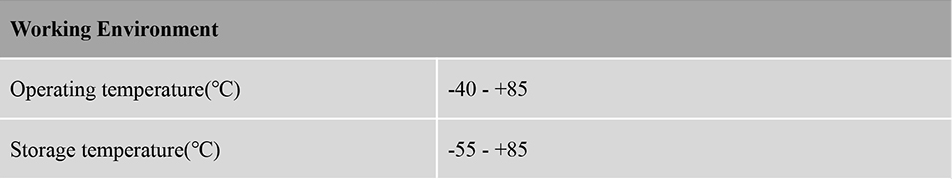

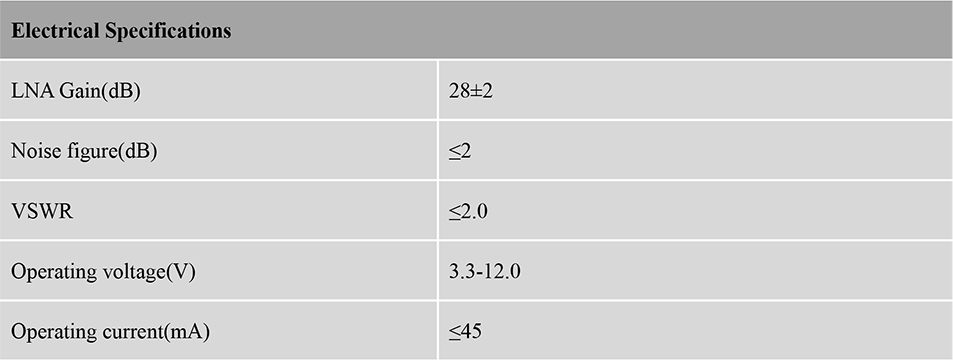

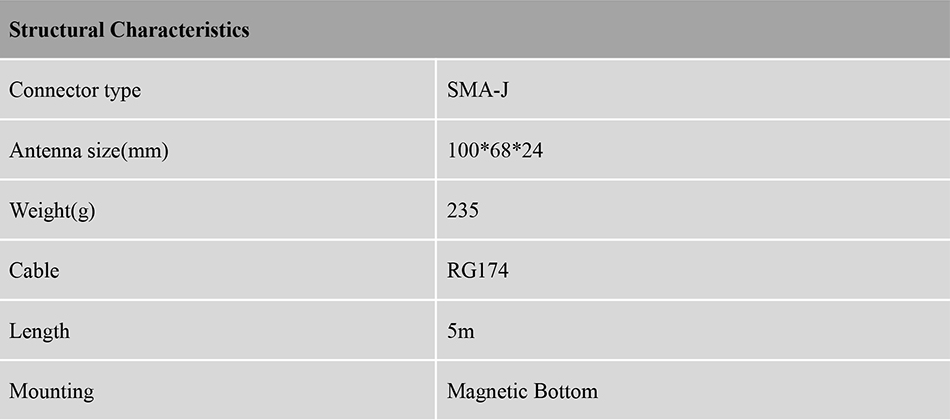

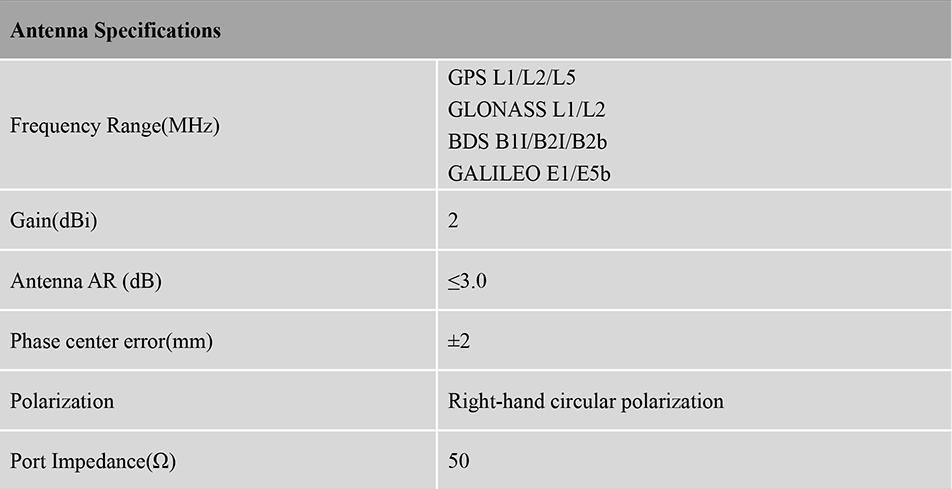

Specifications

RTK GNSS Antenna MT-266/266B/266C RTK GNSS Antenna MT-266/266B/266C RTK GNSS Antenna MT-266/266B/266C RTK GNSS Antenna MT-266/266B/266C

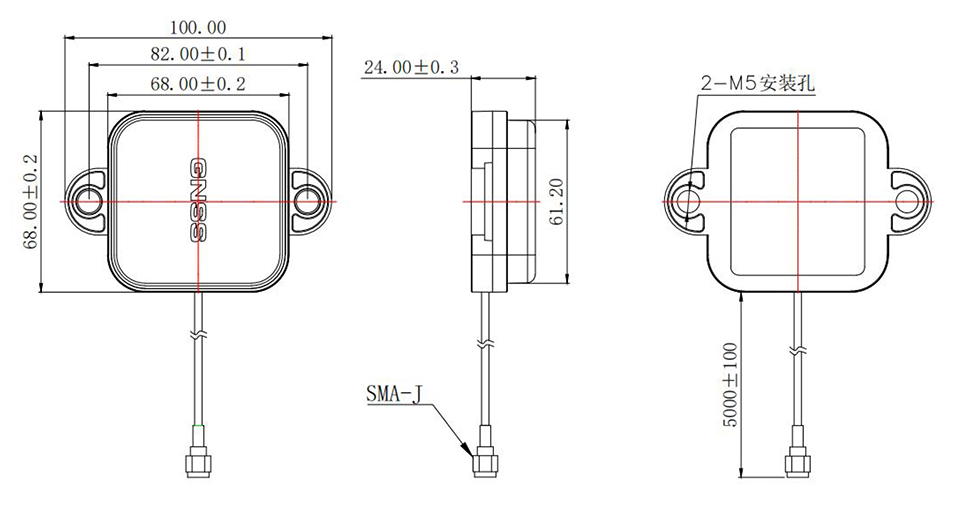

Product Dimension

RTK GNSS Antenna MT-266/266B/266C
