Product Introduction

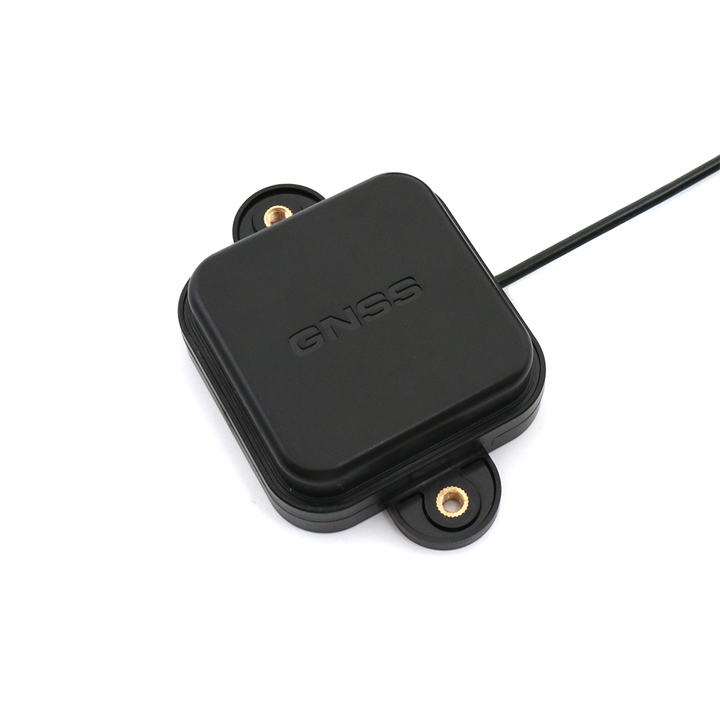

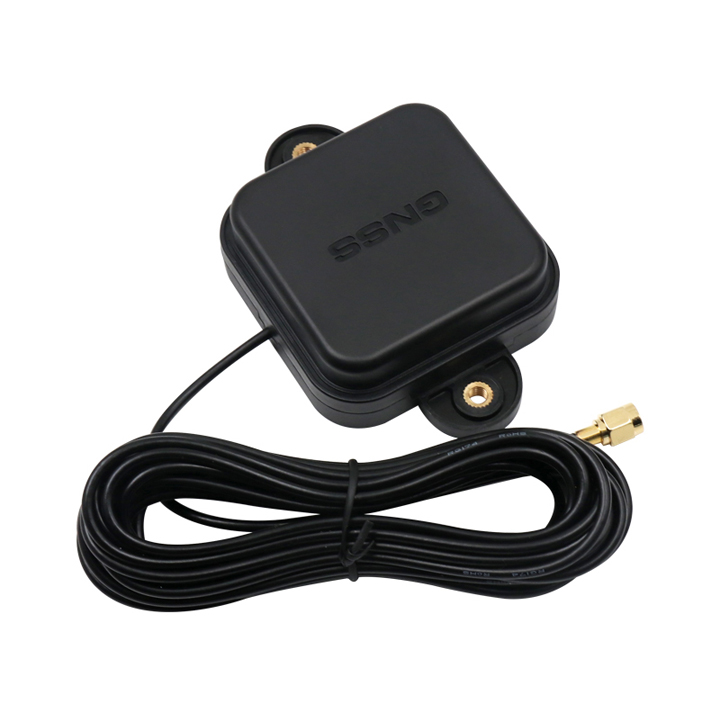

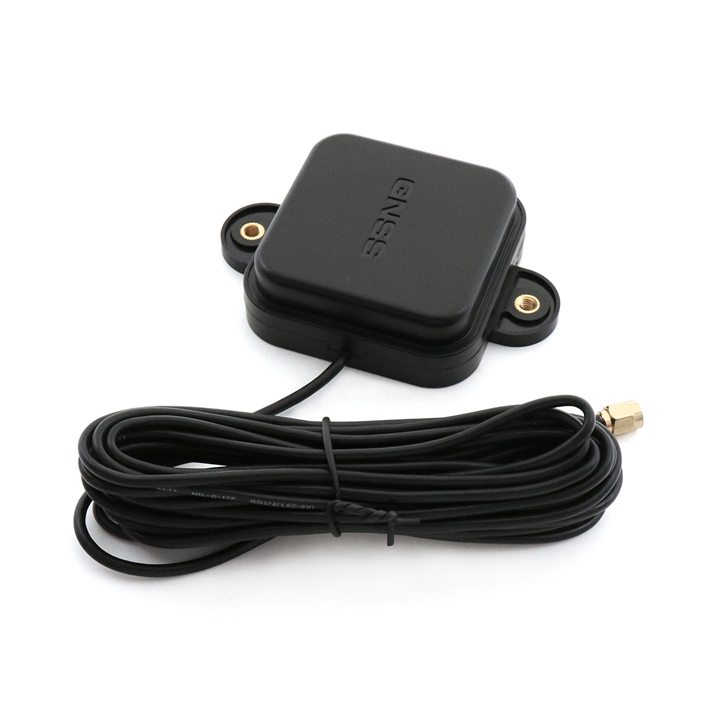

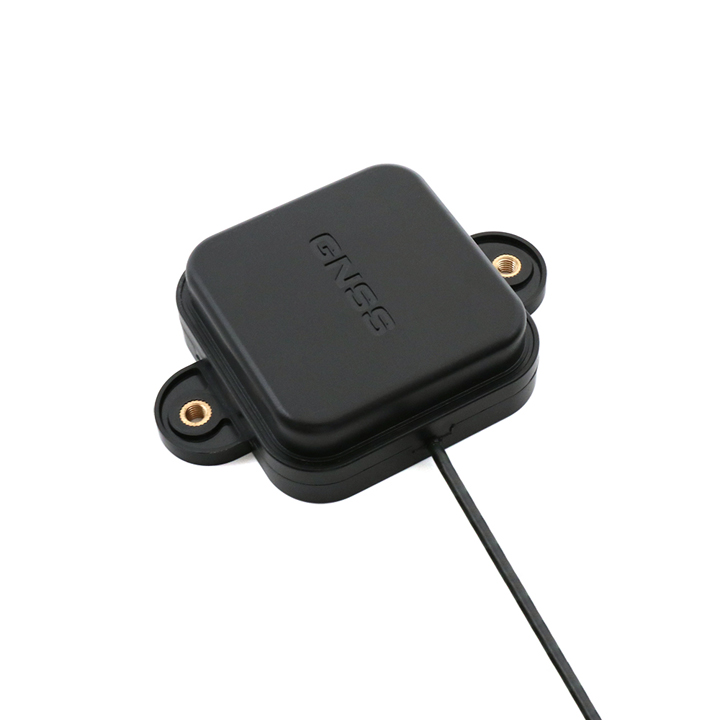

The MT-266B is a dedicated L1/L5 satellite navigation antenna, engineered with a suite of performance-driven features to deliver reliable positioning capabilities. It stands out for its high gain, compact miniaturized design, exceptional sensitivity, broad multi-system compatibility, and robust reliability—all of which combine to effectively address the diverse operational needs of users across various scenarios.
For hassle-free installation, the antenna is equipped with a magnetic adsorption base, allowing for quick and secure attachment to compatible surfaces without the need for complex mounting tools. Constructed from UV-resistant PC material and assembled using ultrasonic welding technology, it offers strong resistance to sunlight exposure and high temperatures, ensuring stable performance even in prolonged outdoor or harsh environmental conditions.
Application Area
The MT-266B satellite navigation antenna boasts broad compatibility, seamlessly pairing with a wide range of satellite navigation receivers to adapt to diverse hardware setups. Its versatile performance makes it a go-to solution across multiple professional sectors: it is extensively applied in geodetic surveying, channel surveying, precision agriculture, and marine surveying, where reliable positioning is critical to operational accuracy.
Beyond civilian and industrial use cases, the antenna also supports deployment in military fields—provided its application aligns with specific operational requirements and conditions, further expanding its utility across both commercial and defense-related scenarios.

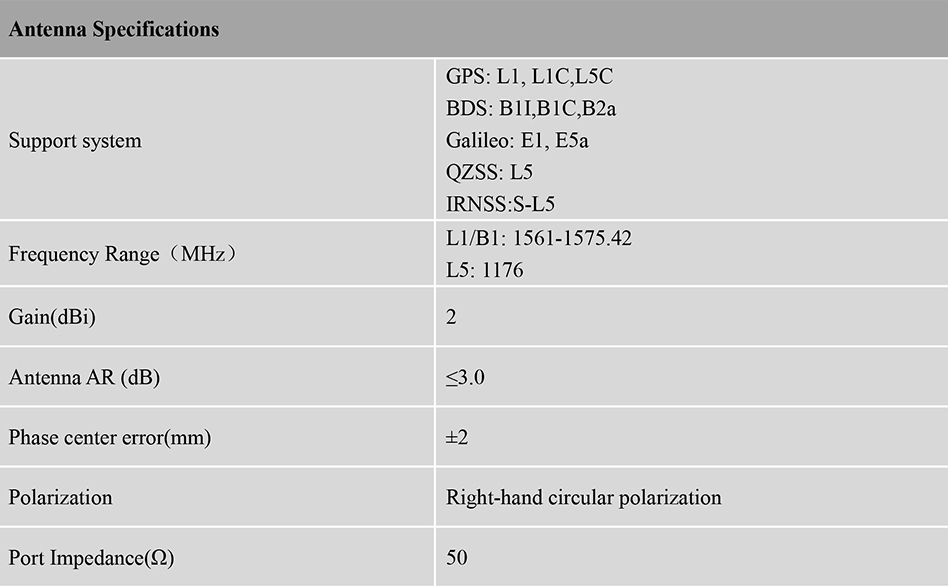

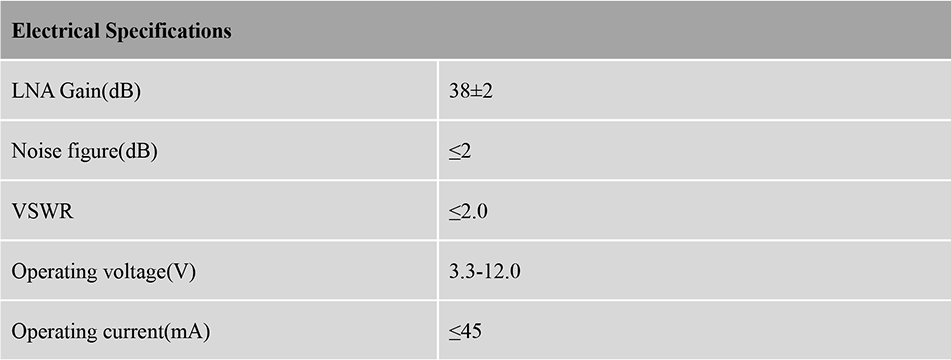

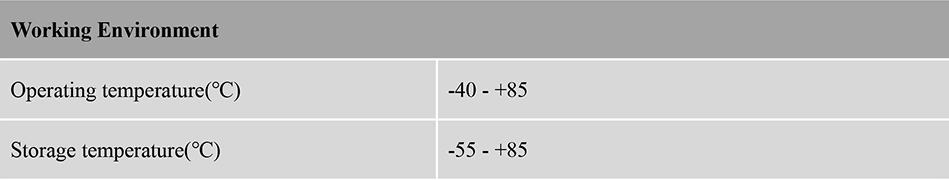

Specifications

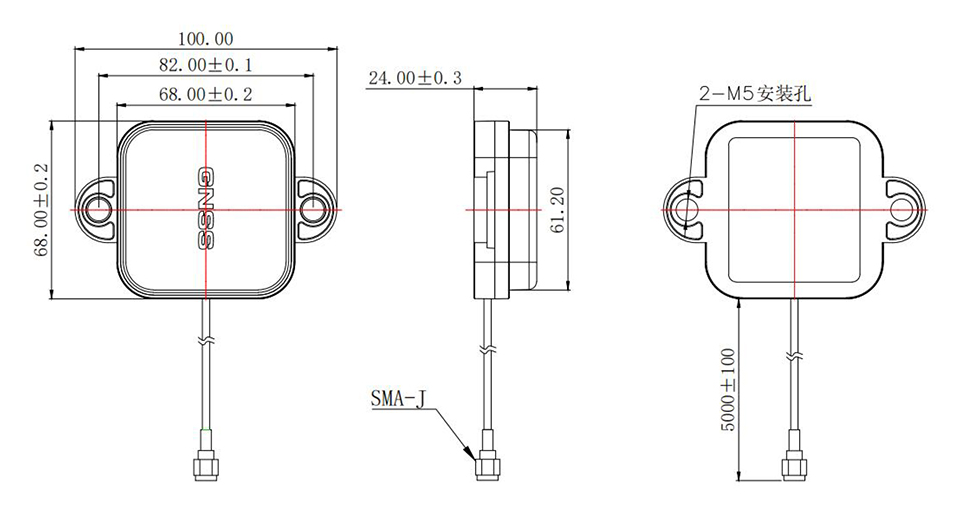

Product Dimension
