Product Introduction

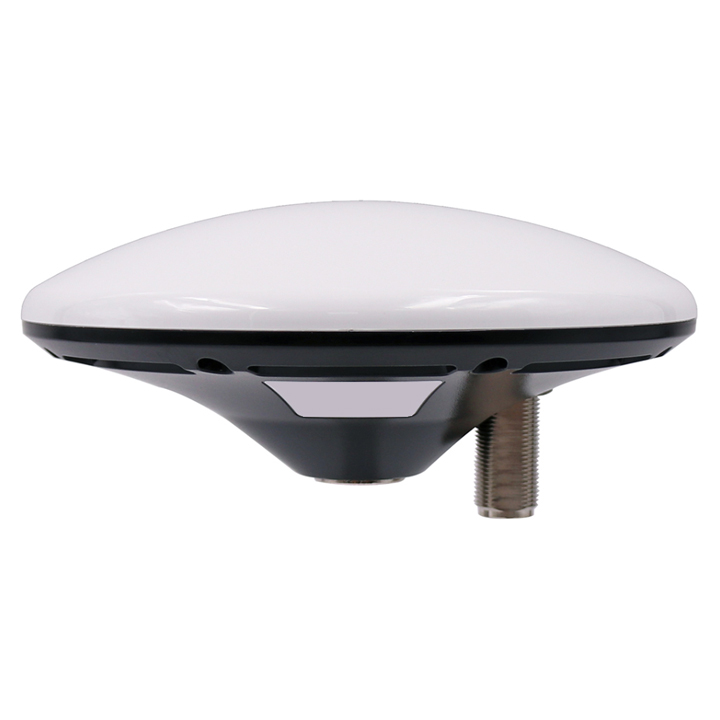

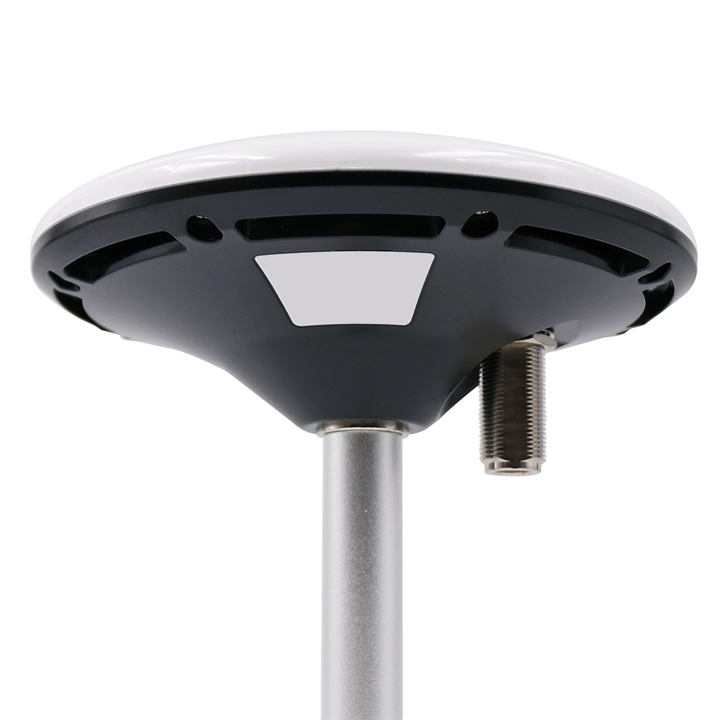

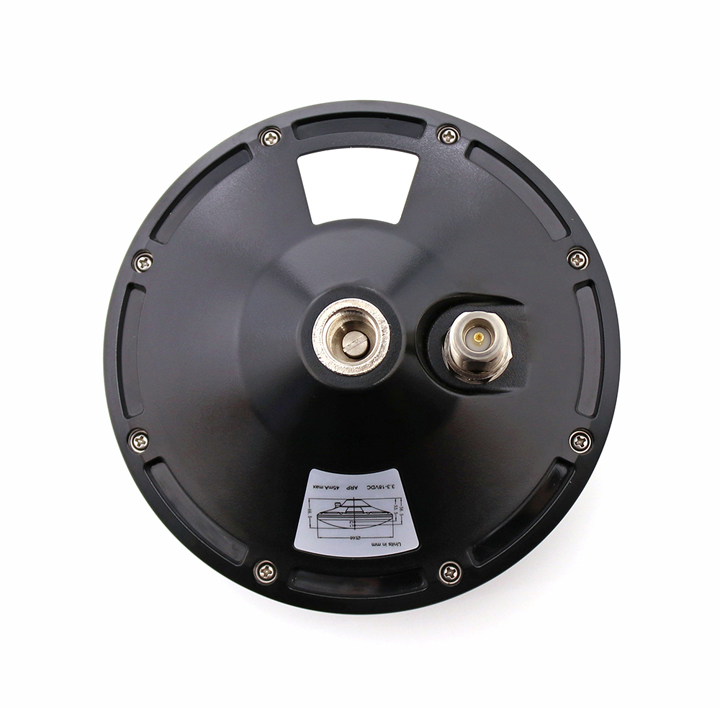

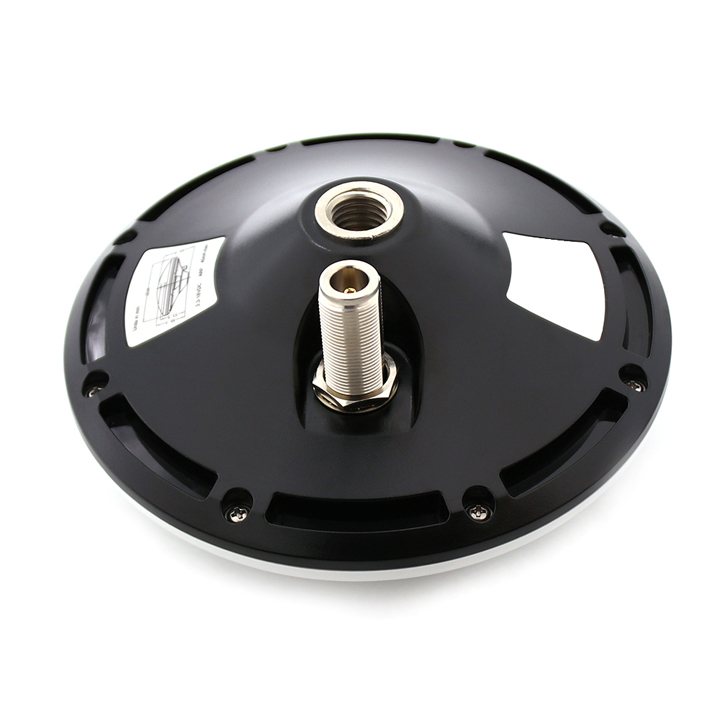

The MT-300N is a four-constellation multi-frequency satellite navigation antenna, boasting high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability. These attributes enable it to effectively fulfill the diverse needs of professional users across various high-precision positioning scenarios.
- It adopts a multi-feed-point design and a fully symmetrical antenna structure, which ensures an extremely stable phase center. This design plays a crucial role in reducing measurement errors caused by antenna pairing, laying a solid foundation for accurate positioning results.
- With high gain and a low standing wave ratio, the antenna delivers remarkable reception performance for low-elevation-angle signals. Even in scenarios with severe signal blockage—such as dense urban areas, complex terrain, or areas with heavy vegetation—it can still collect satellite signals normally, maintaining continuous and reliable positioning capability.
- Equipped with an anti-multipath choke plate and an anti-surge design, the MT-300N can effectively suppress strong out-of-band interference signals. This enhances the antenna’s anti-interference ability, ensuring its stable and reliable operation even in electromagnetic environments with high levels of interference.

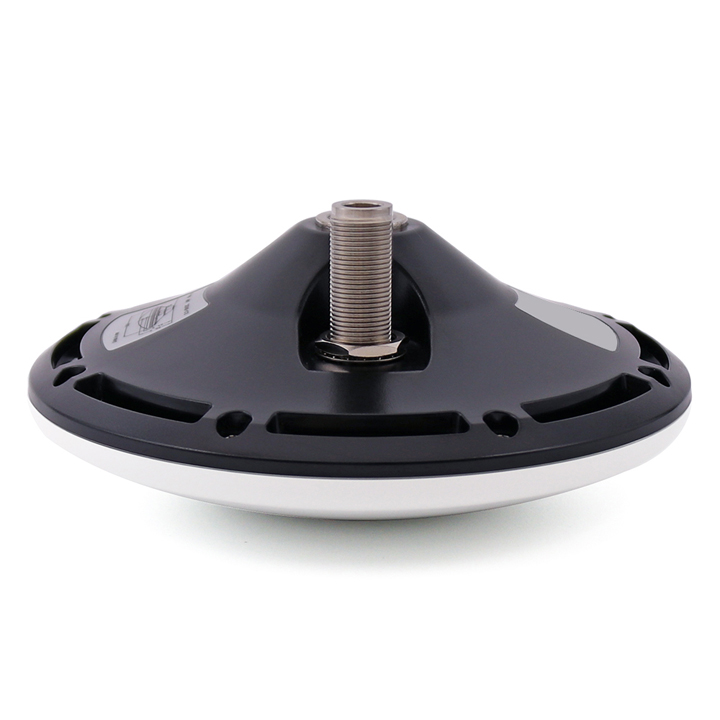

- The antenna features a housing made of anti-UV PC material, which not only gives it an elegant appearance but also ensures the shell does not fade or discolor during long-term outdoor use. Additionally, it holds an IP67 waterproof rating and offers high-temperature resistance, sun protection, and UV protection—making it well-suited for long-term stable operation in harsh outdoor conditions.
