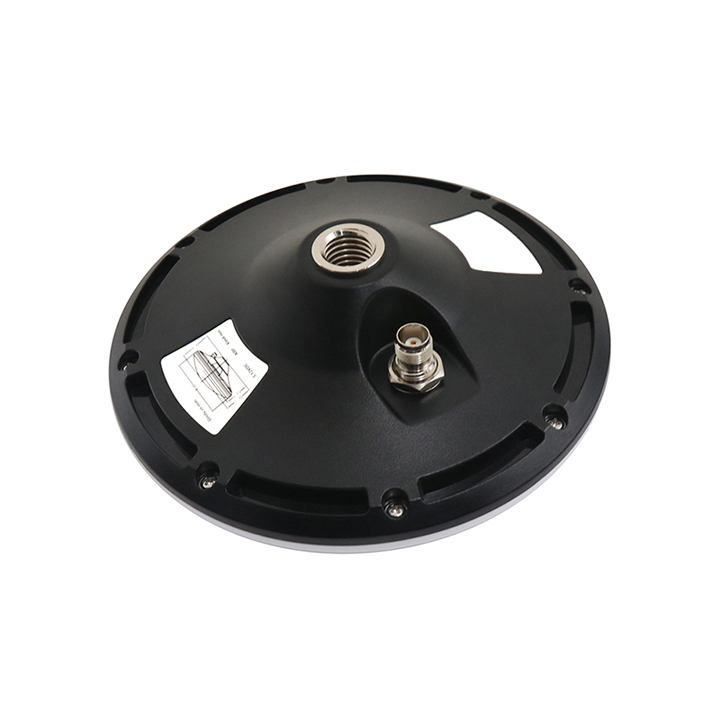

Product Introduction

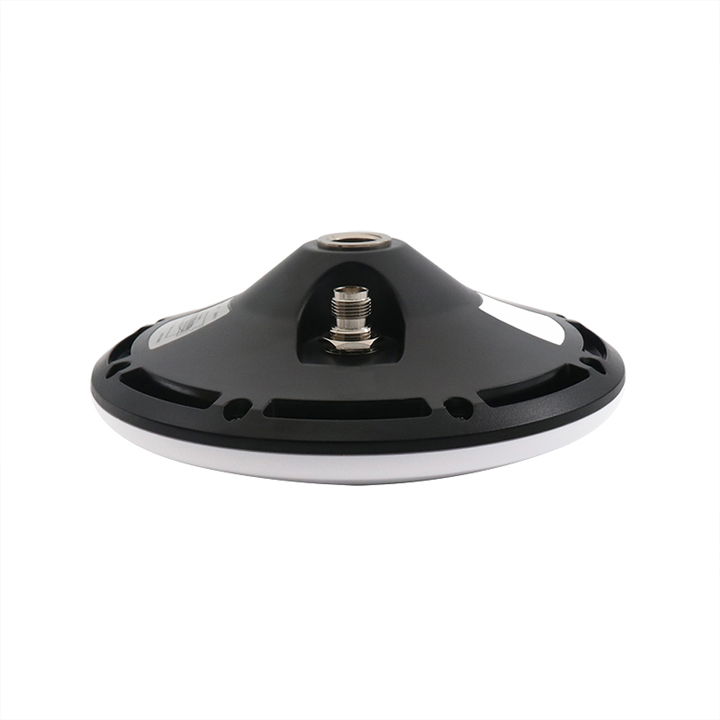

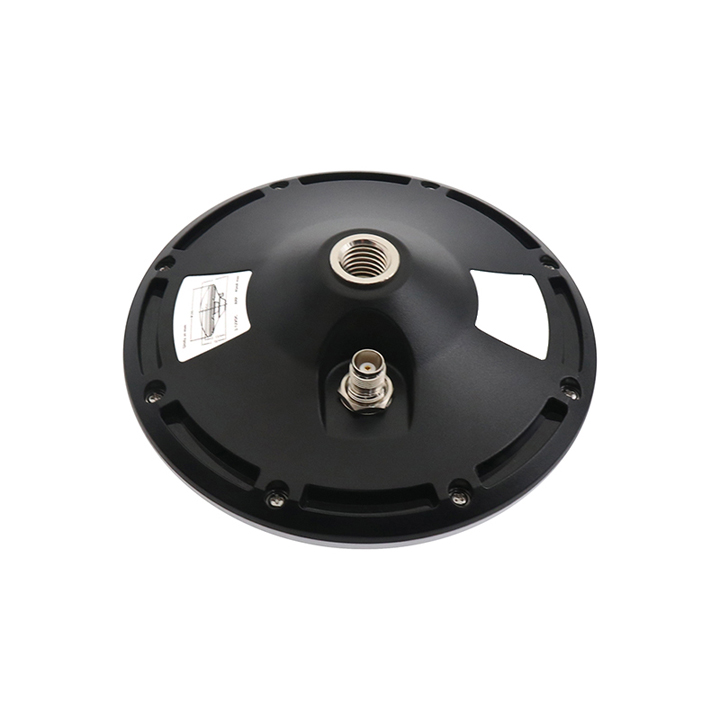

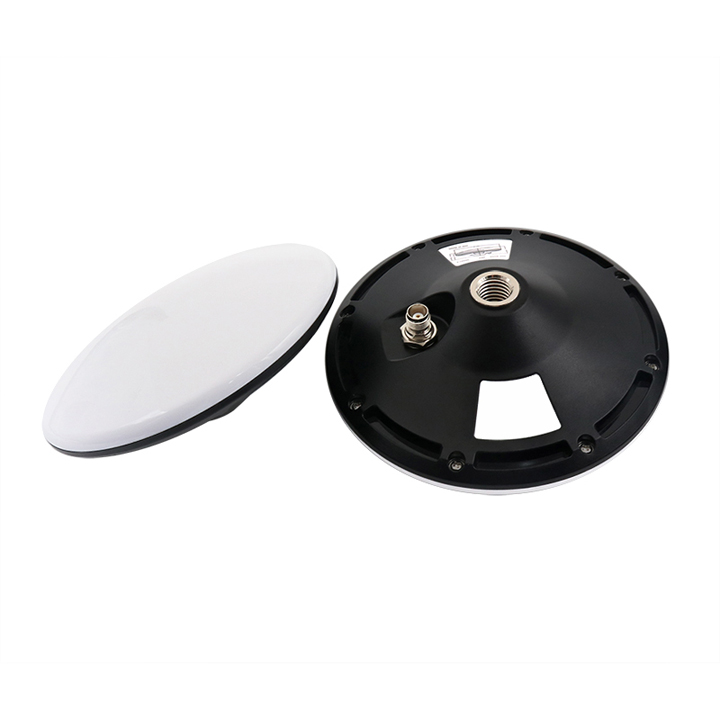

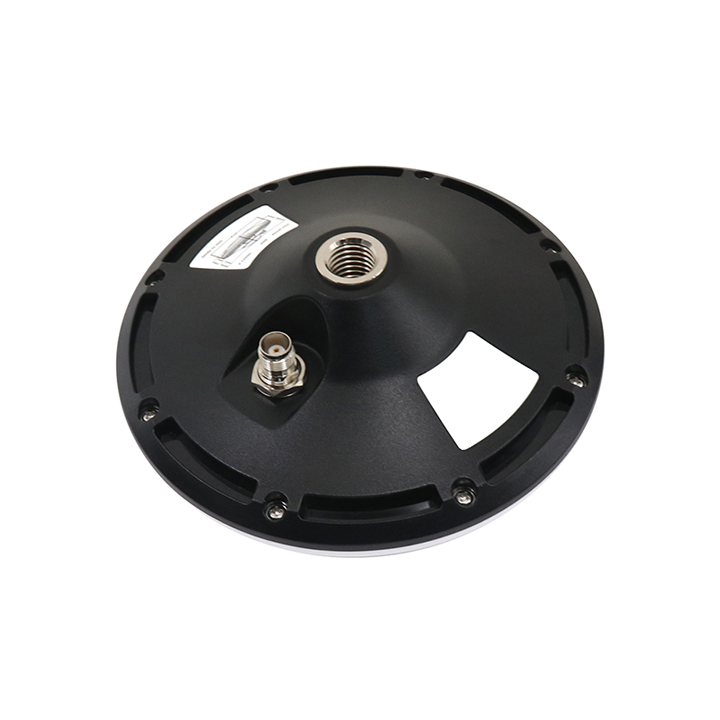

The MT-300S is a four-star full-band satellite navigation antenna. It boasts high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, all of which enable it to effectively meet user requirements.
- Adopting a multi-feedpoint design and a fully symmetrical antenna structure, it features an extremely stable phase center, which helps reduce the measurement error of antenna pairs.
- It delivers high gain and a low standing wave ratio, resulting in remarkable performance in receiving low-elevation signals. This allows for normal satellite acquisition even in scenarios with severe signal blockage.
- Equipped with an anti-multipath choke ring and integrated with an anti-surge design, it can effectively suppress strong out-of-band interference signals, thus guaranteeing the antenna’s reliability.
- Constructed with UV-resistant PC material, it not only has an attractive appearance but also prevents the antenna housing from discoloring during long-term outdoor use. Additionally, it holds an IP67 waterproof rating and offers resistance to high temperatures, sunlight and ultraviolet rays.
Application Area

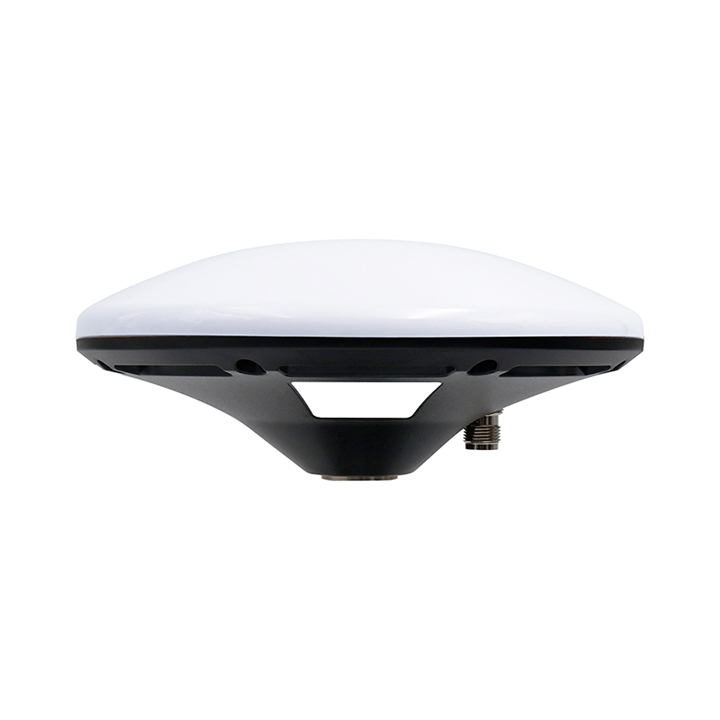

This antenna is a four-star full-frequency external “flying saucer”-type antenna that covers multiple GNSS bands, including GPS (L1/L2/L5), BDS (B1I/B2I/B3I/B1C/B2a/B2b), GLONASS (L1/L2/L3), GALILEO (E1/E5a/E5b/E6), SBAS (L1/L5), QZSS (L1/L2/L5/L6), IRNSS (L5), and L-Band. It meets the current requirements of GNSS measurement equipment for multi-system compatibility, as well as the needs of high-precision users.
It is compatible with a wide range of satellite navigation receivers and finds extensive application in fields such as land surveying and mapping, channel surveying and mapping, precision agriculture, and marine surveying. Additionally, it can be selected for use in military fields based on specific application conditions.

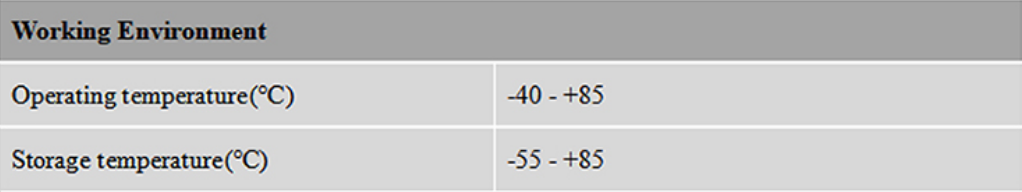

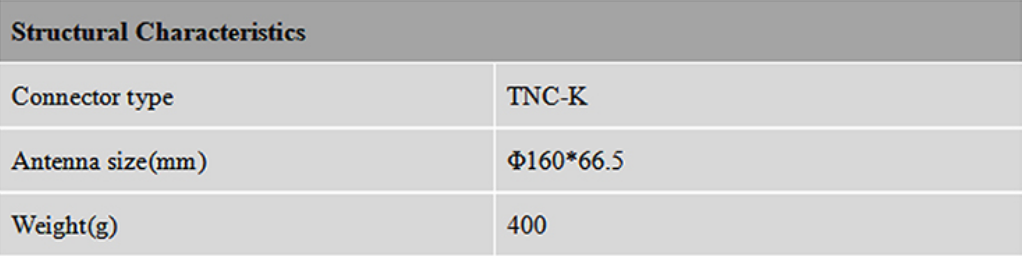

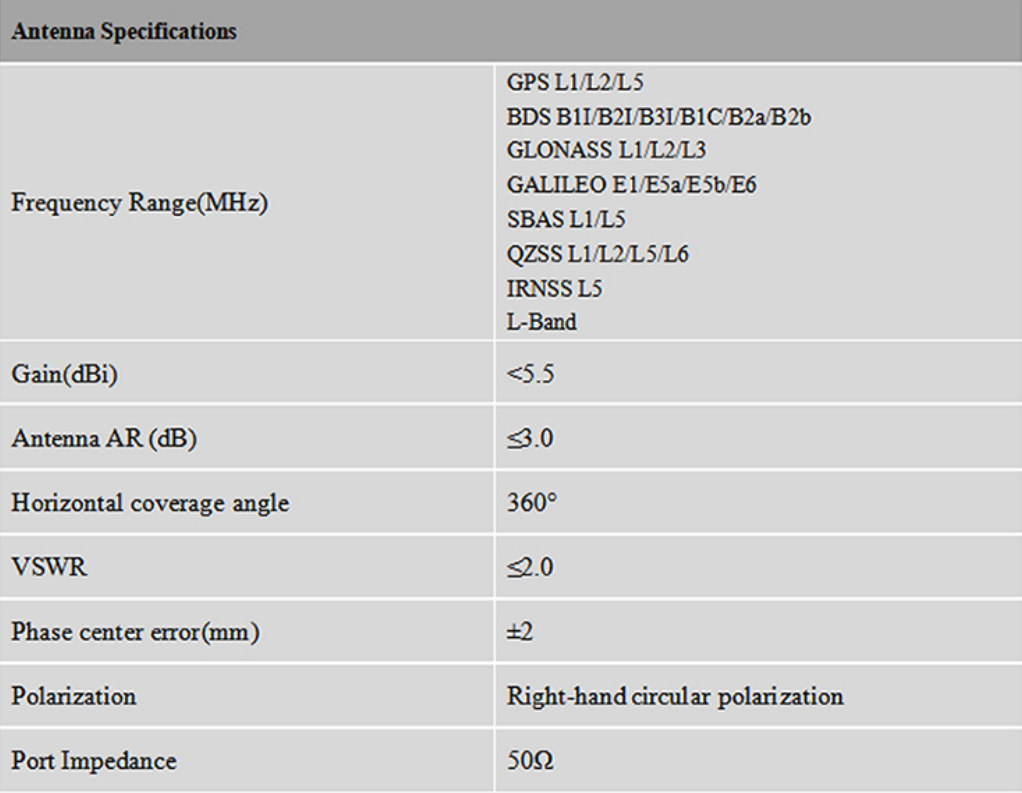

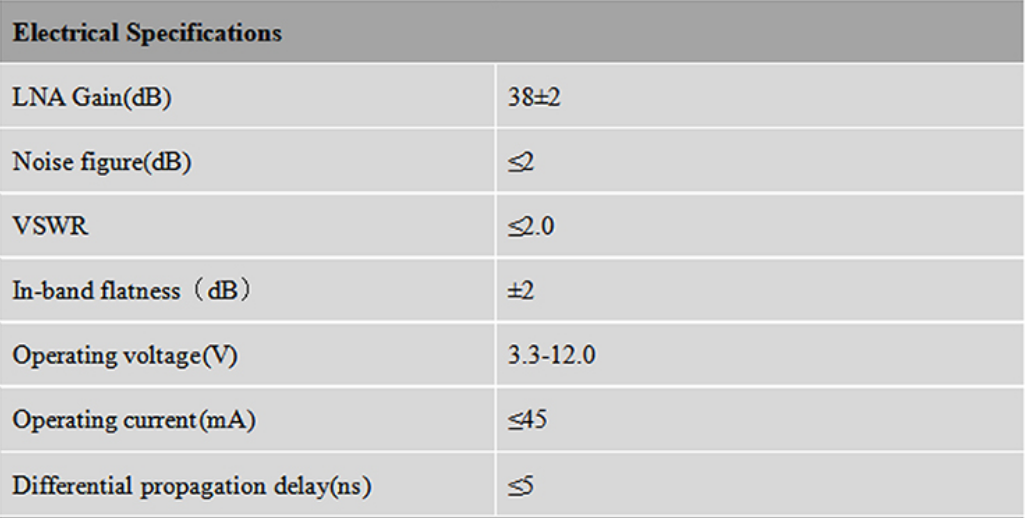

Specifications

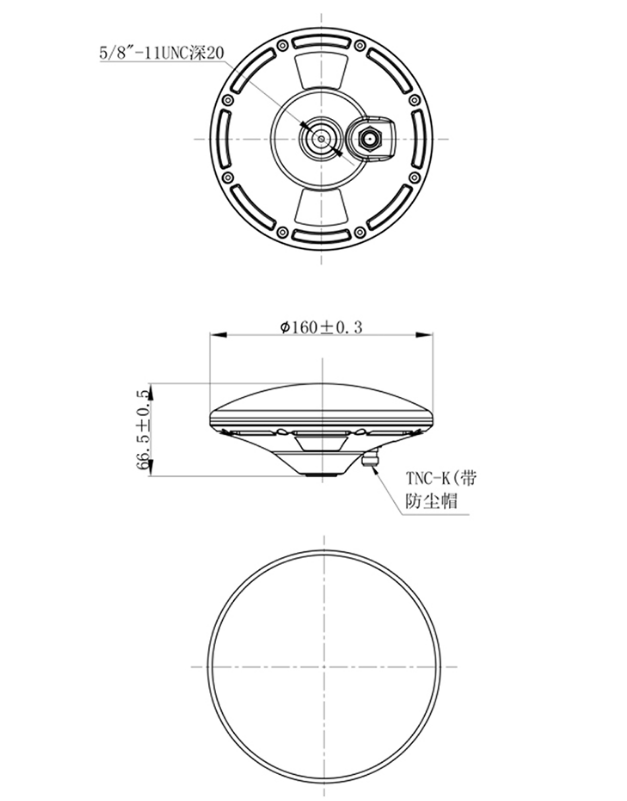

Product Dimension
