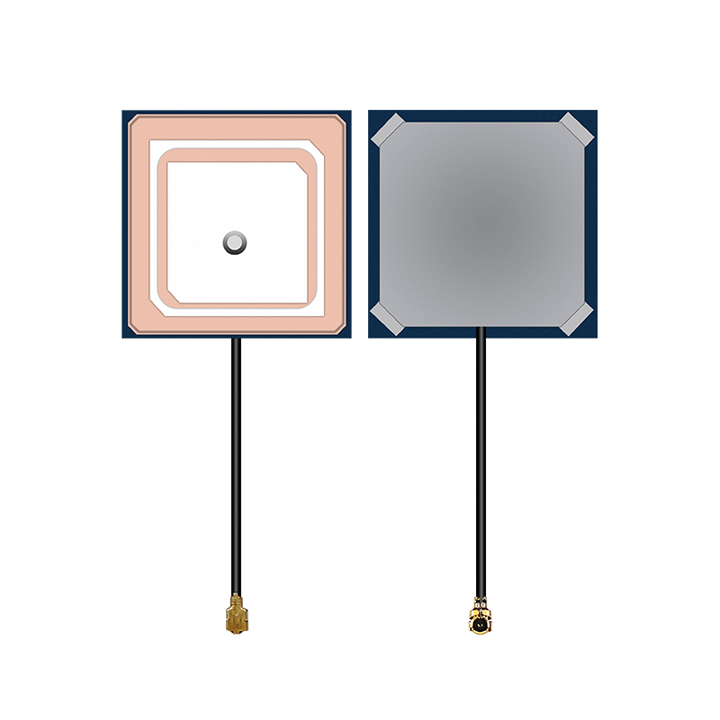

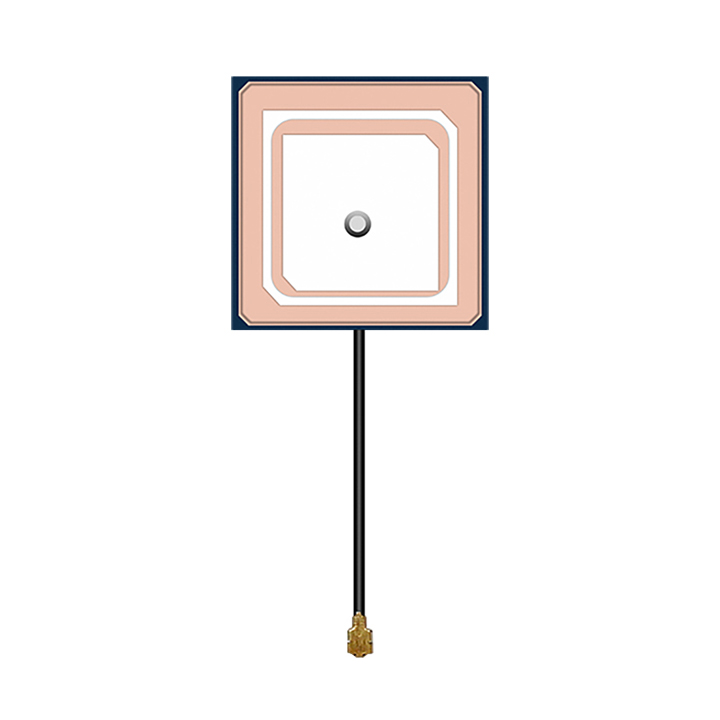

Product Introduction

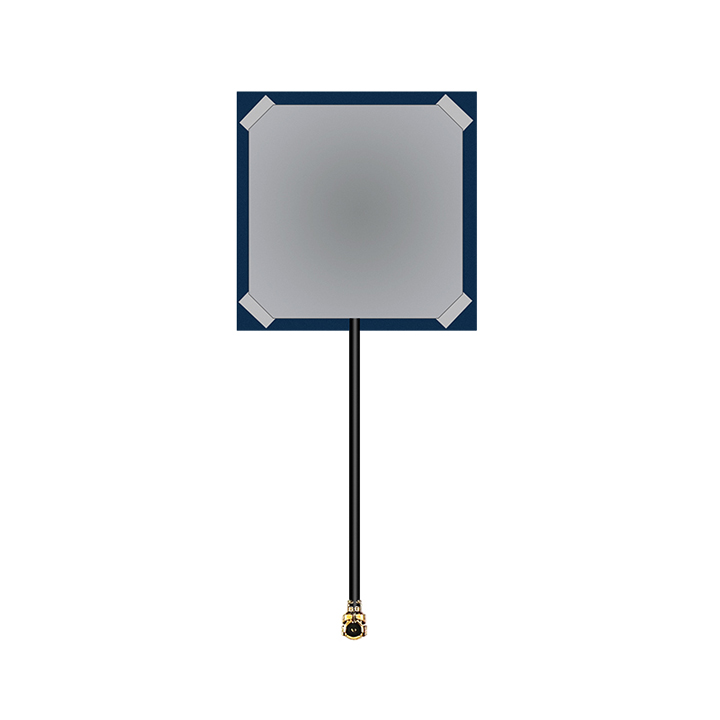

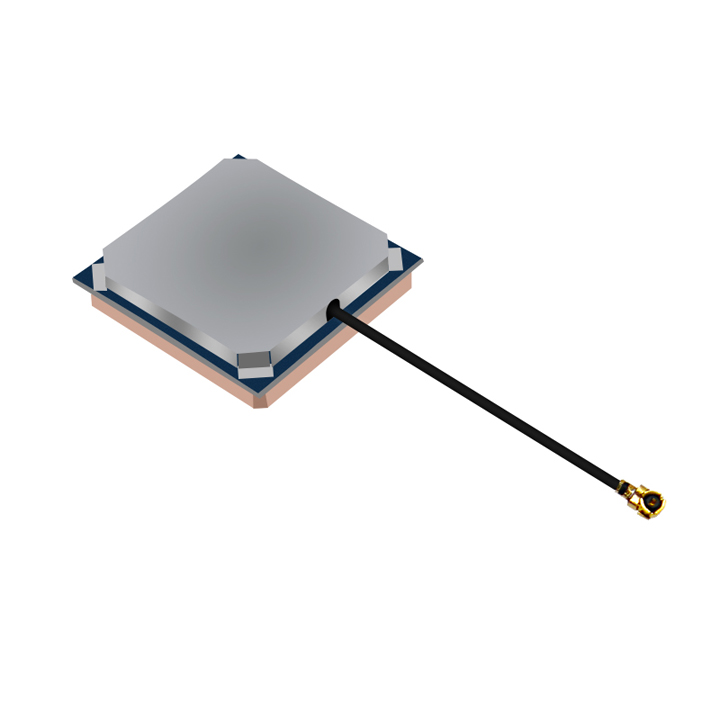

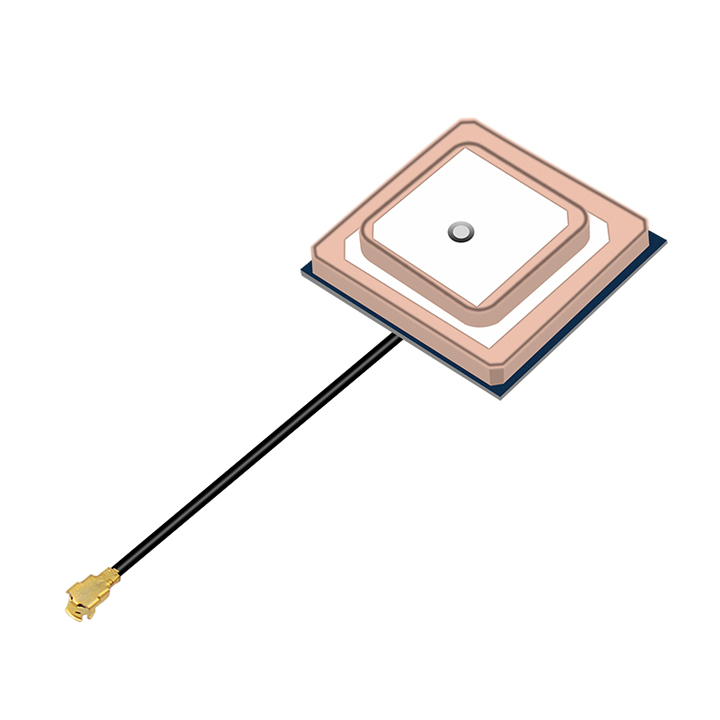

The MT-3320A is a GNSS active antenna characterized by high gain, miniaturization, high sensitivity, multi-system compatibility, and strong reliability—all of which enable it to effectively meet users’ professional needs.
Key technical highlights of the antenna include:
- It adopts a single-feed-point design and a fully symmetrical antenna structure, resulting in an extremely stable phase center that helps reduce measurement errors when used in antenna pairs.
- With its high gain and low standing wave ratio, the antenna delivers a distinct reception effect for low-elevation-angle signals, allowing it to normally acquire satellite signals even in scenarios with severe signal occlusion.
- Equipped with an anti-multipath choke board and integrated with an anti-surge design, it can effectively suppress strong out-of-band interference signals, thereby ensuring the antenna’s stable and reliable operation.
Application Area
This antenna supports the active antenna bands of BDS B1, GPS L1/L5, and GLONASS L1. It satisfies the requirements of current GNSS measurement devices for multi-system compatibility and active functionality, and is compatible with a range of satellite navigation receivers. It finds wide application in land mapping, waterway mapping, precision agriculture, and marine surveying, while also allowing for deployment in other fields based on specific application conditions.

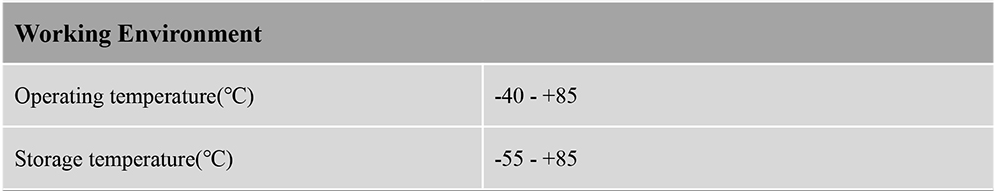

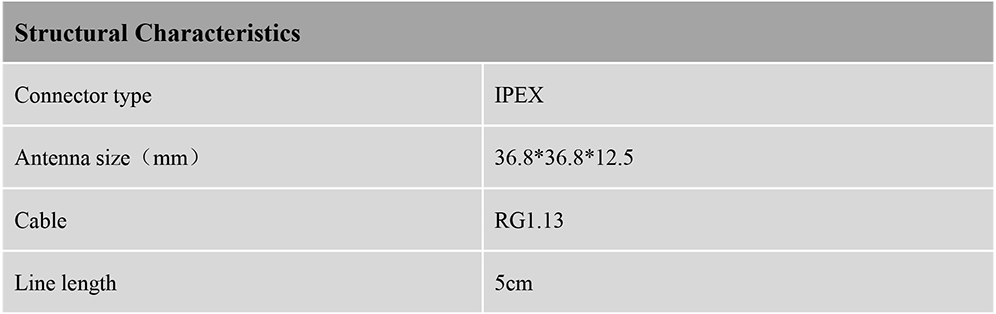

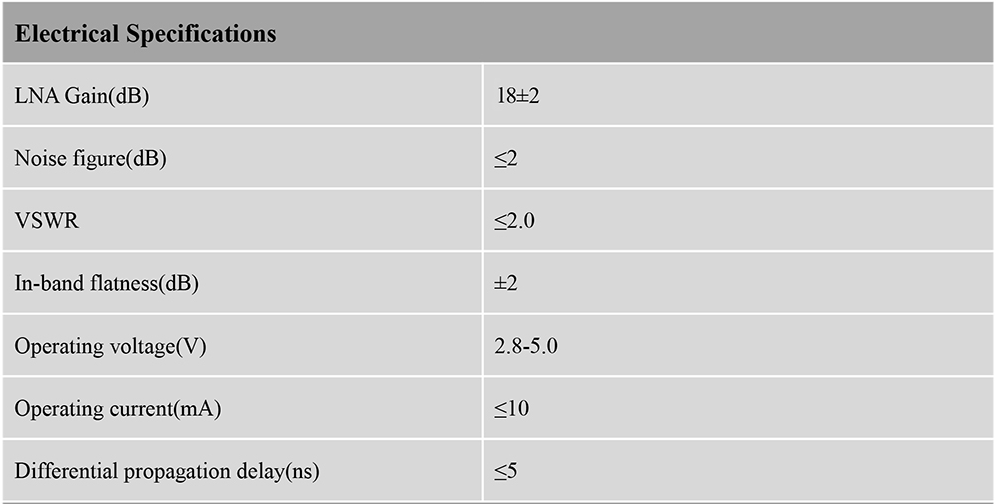

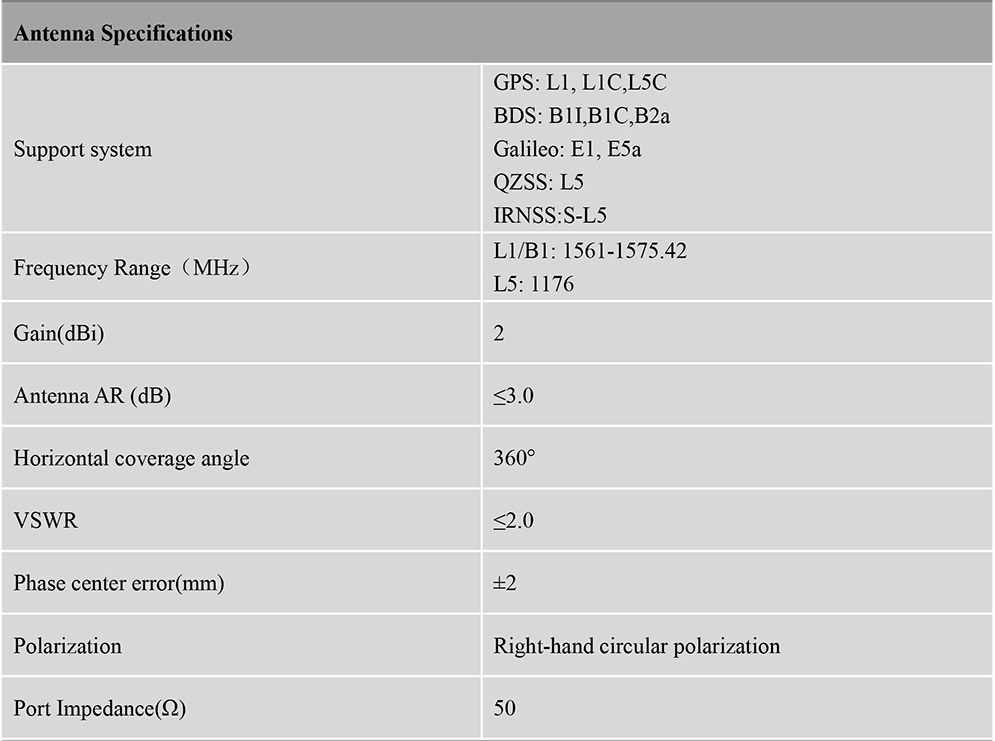

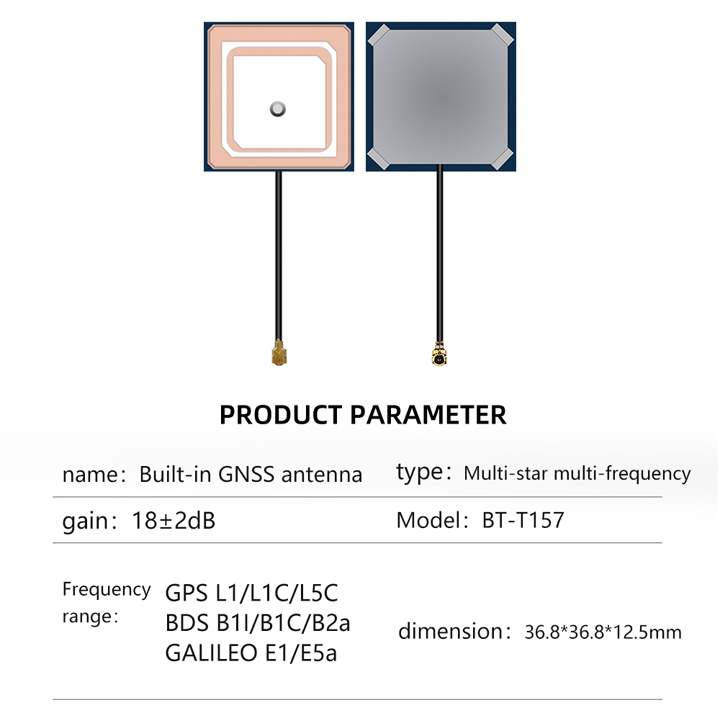

Specifications

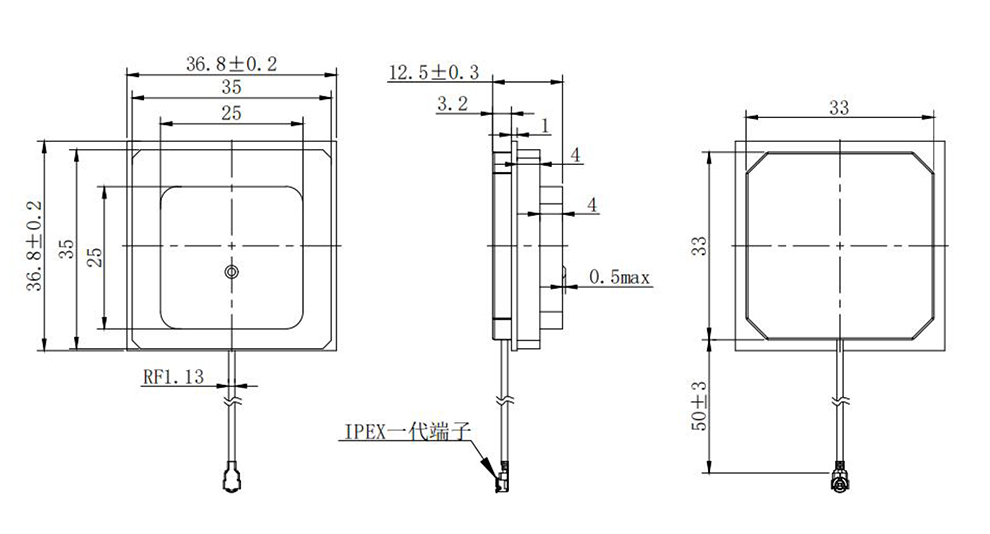

Product Dimension
