Product Introduction

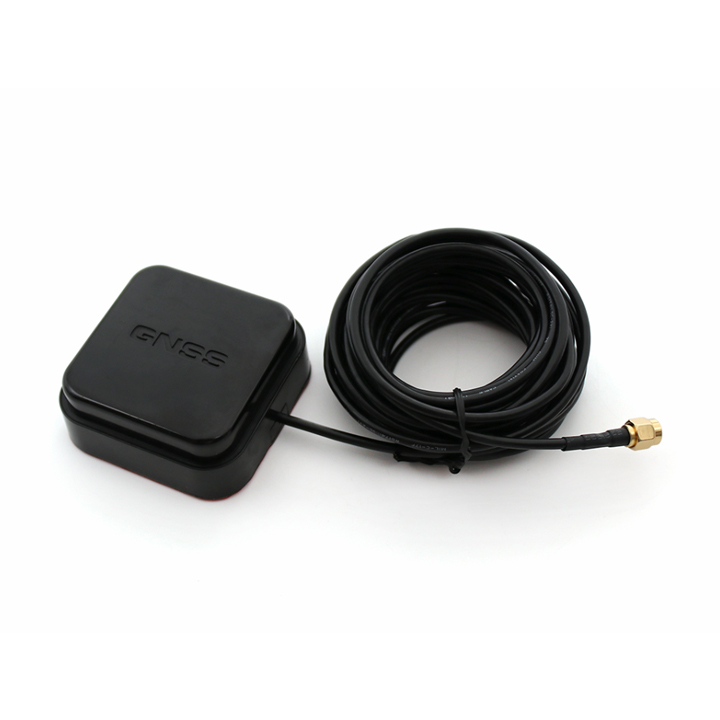

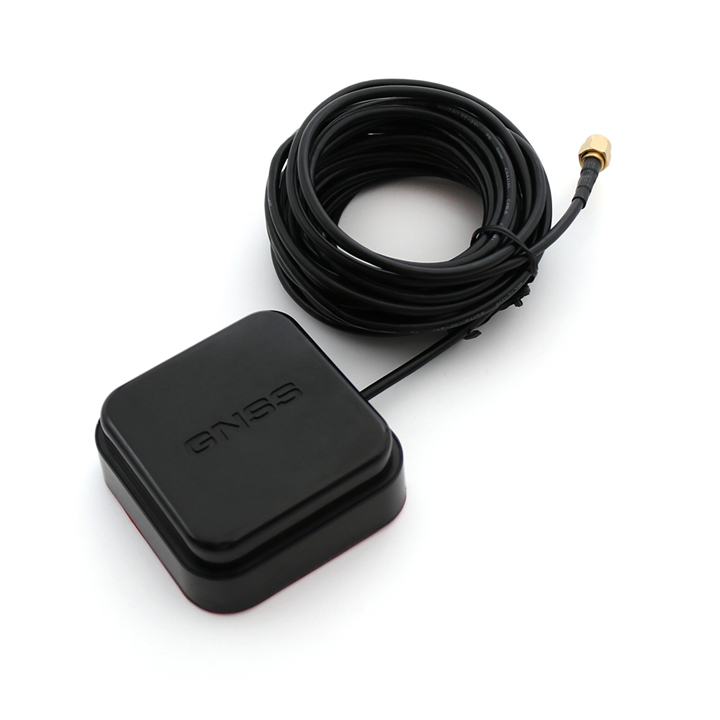

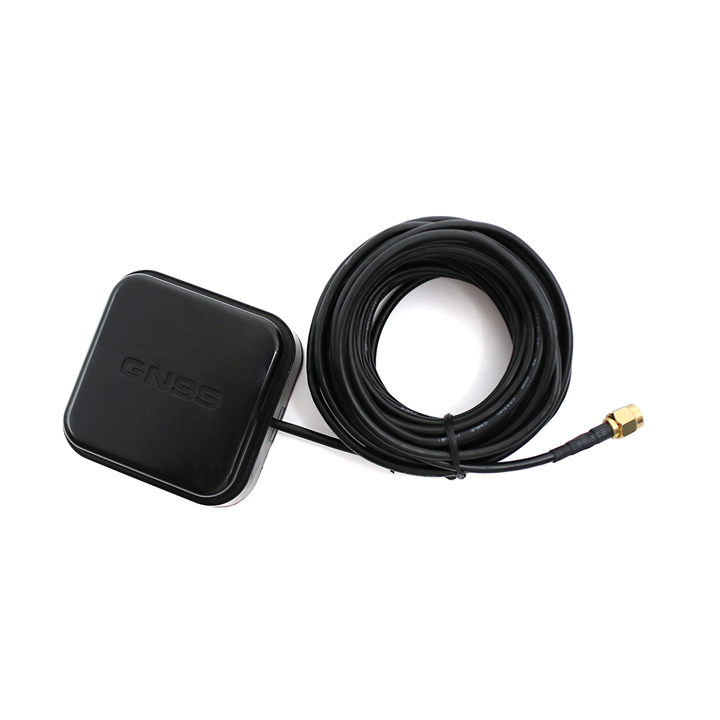

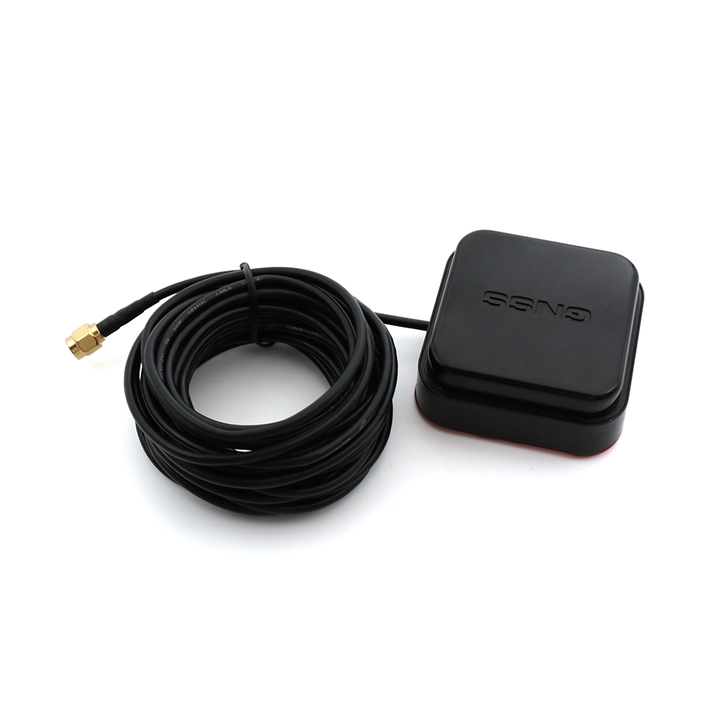

The MT-345AJL5 is a satellite navigation antenna operating on L1 and L5 frequencies. It boasts key characteristics including high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability—all of which enable it to effectively meet user needs.

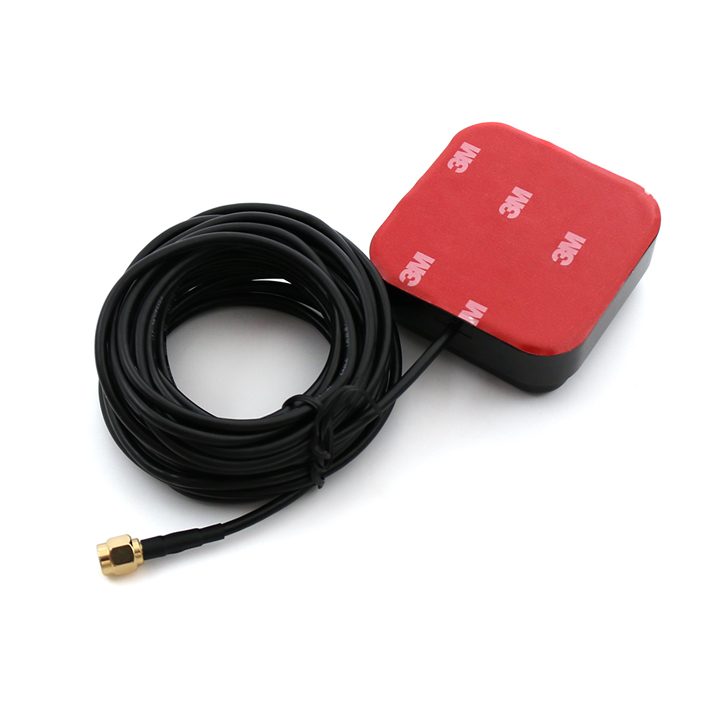

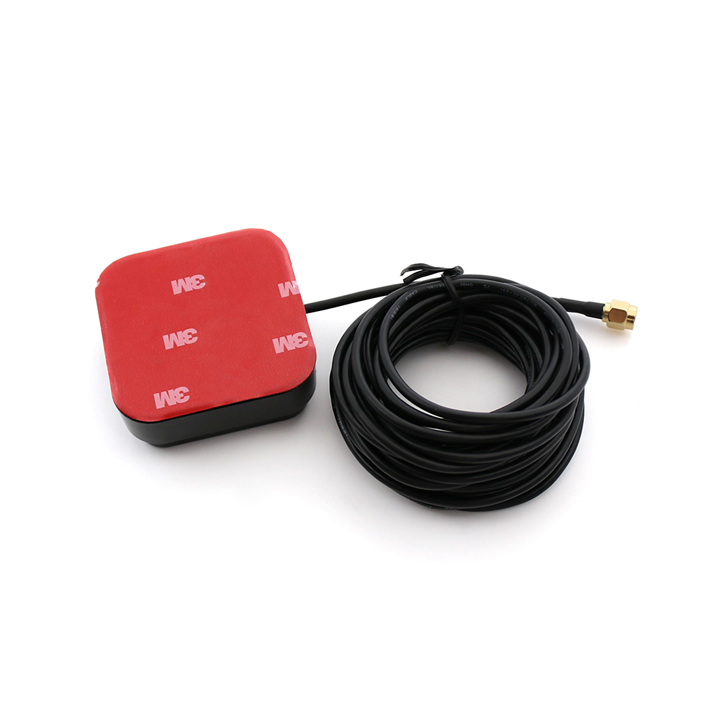

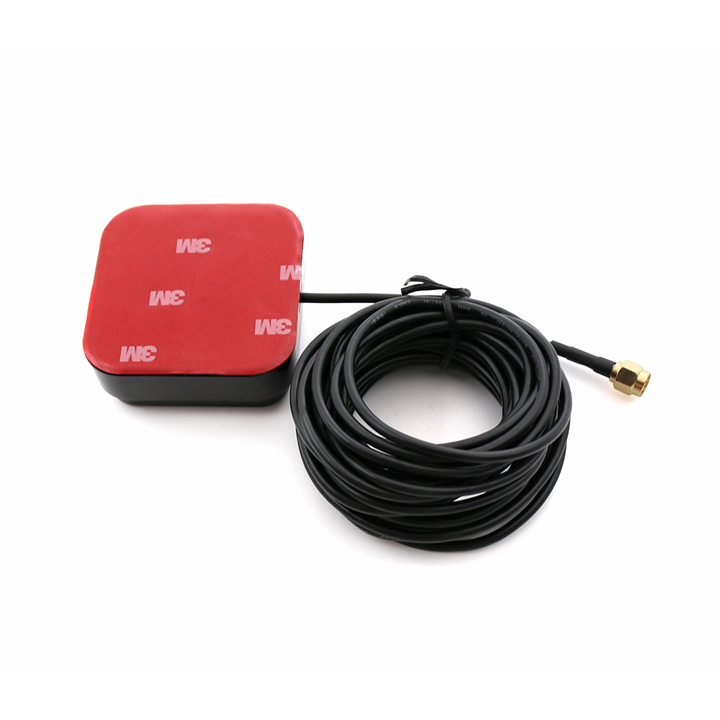

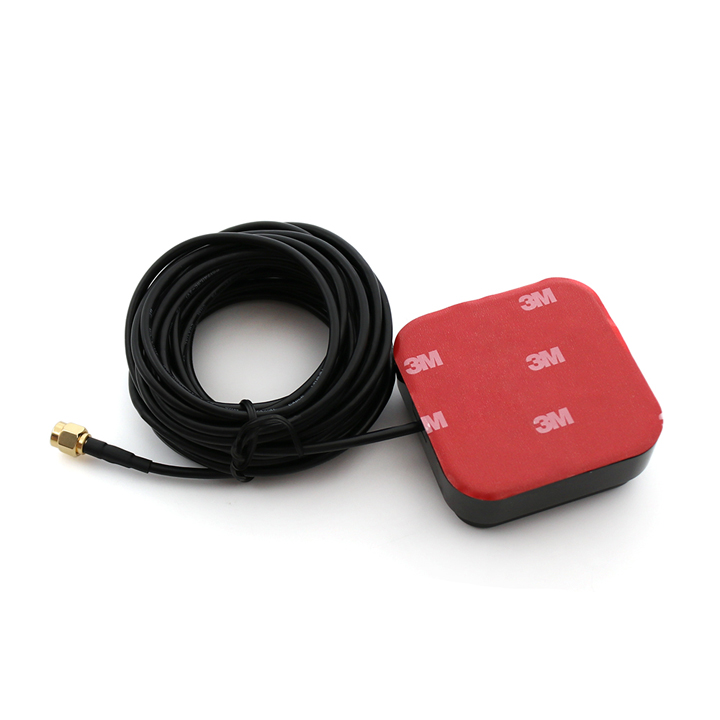

For convenient installation, a magnet is attached to the antenna’s base to allow easy fixation. Constructed with UV-resistant PC material and assembled via ultrasonic technology, the antenna offers excellent sun protection and high-temperature resistance, ensuring stable performance in harsh outdoor conditions.
Application Area
The antenna is compatible with a variety of satellite navigation receivers, and finds wide application in fields like geodetic surveying and mapping, channel surveying and mapping, precision agriculture, and marine surveying. Additionally, it can be selected for use in the military field based on specific application conditions.

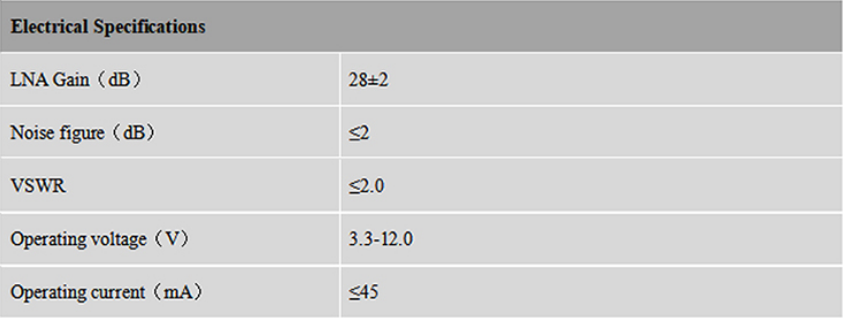

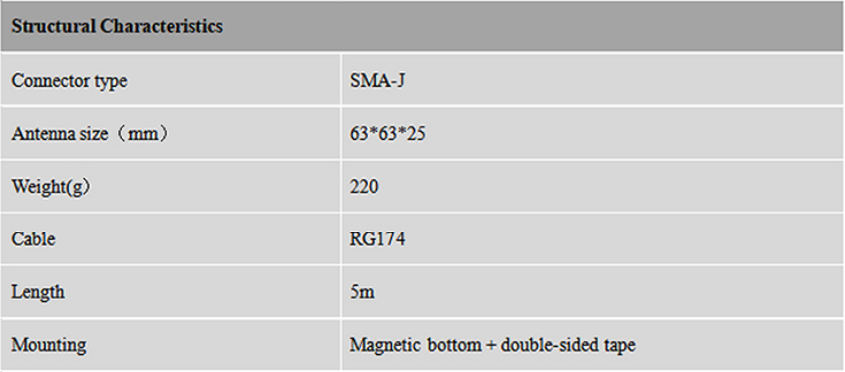

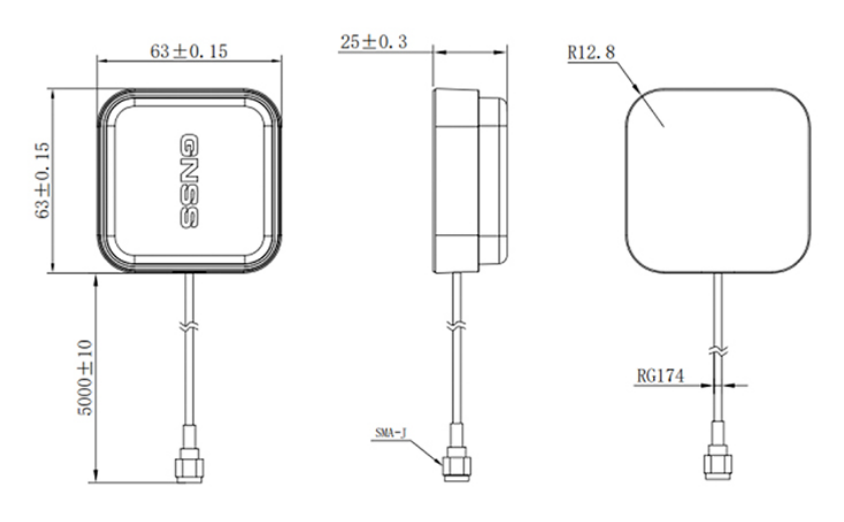

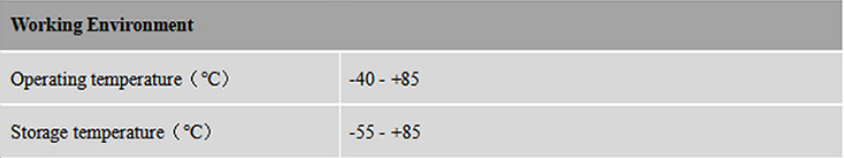

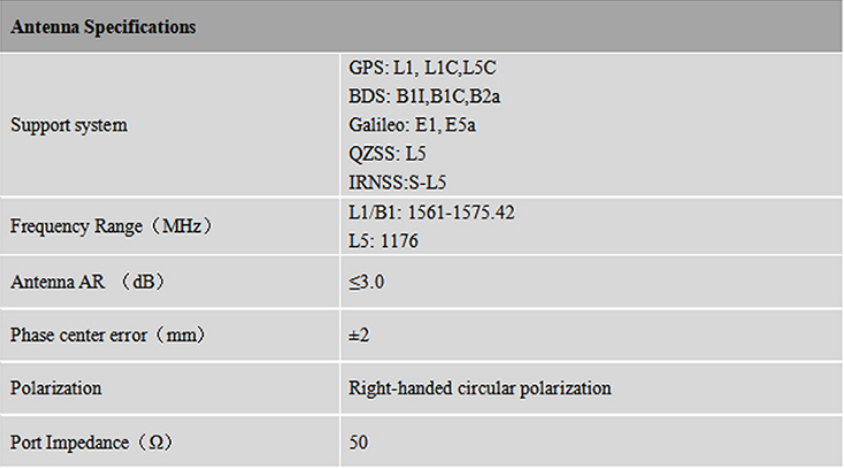

Specifications
