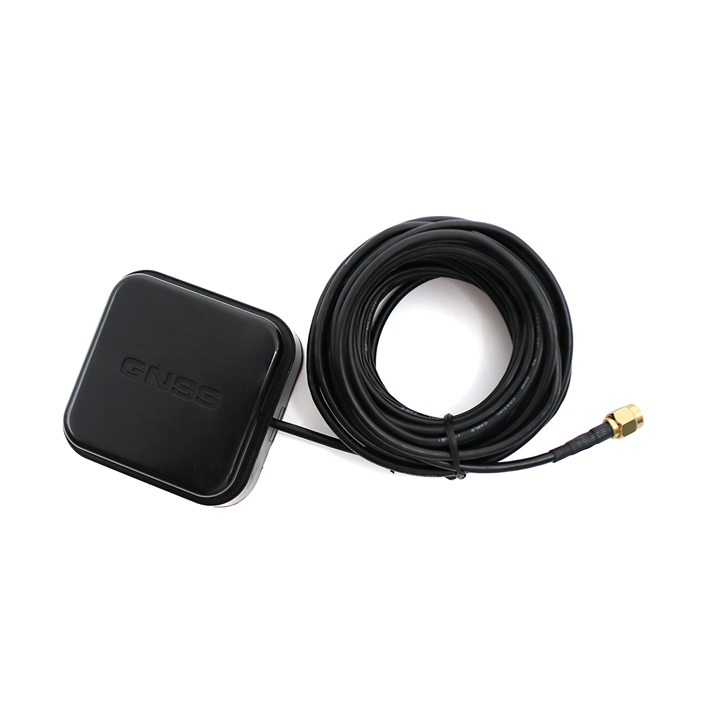

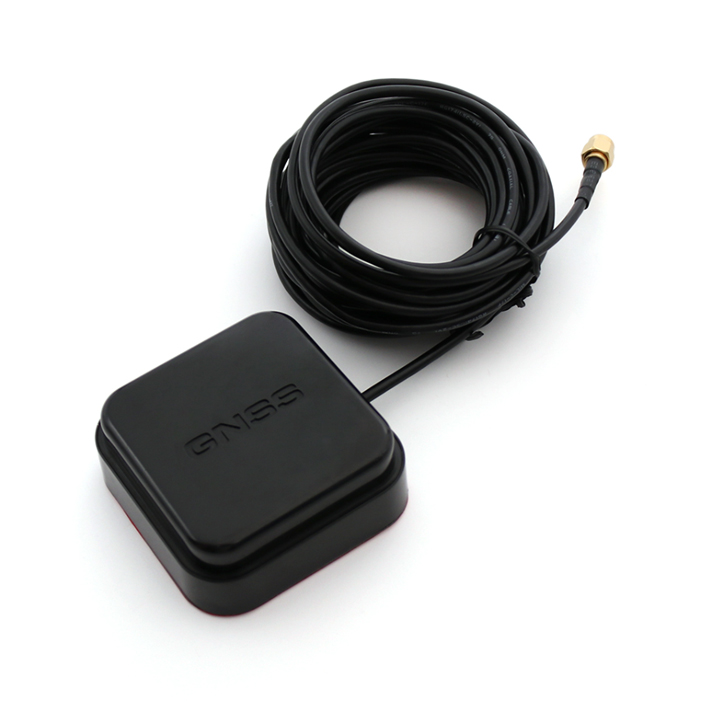

Product Introduction

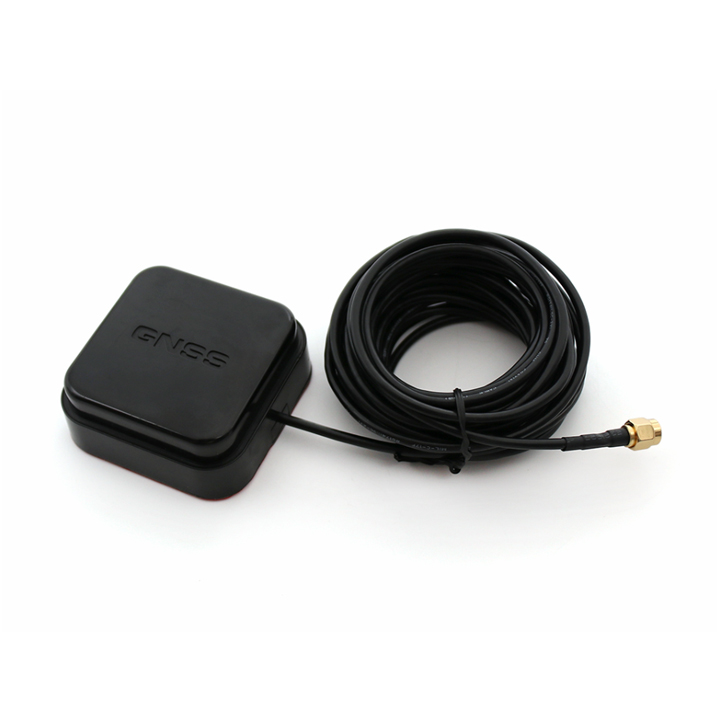

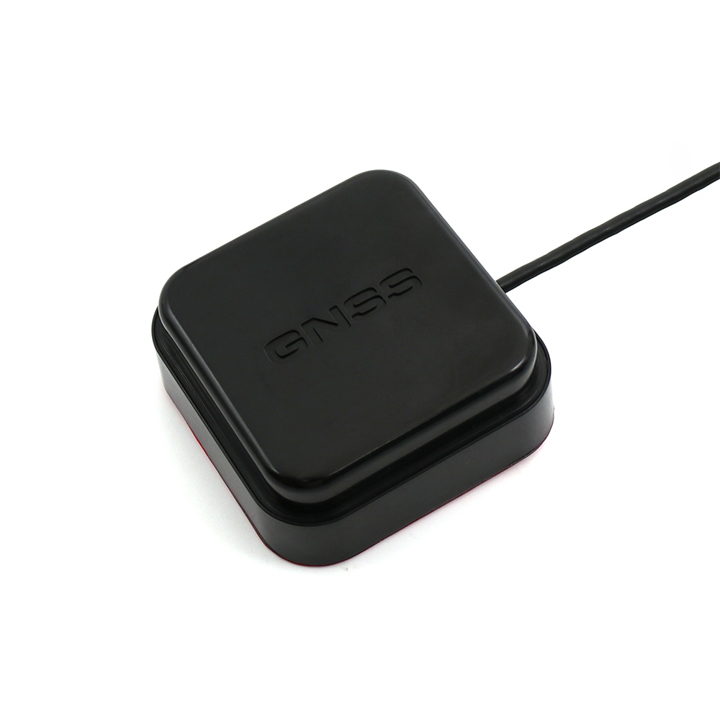

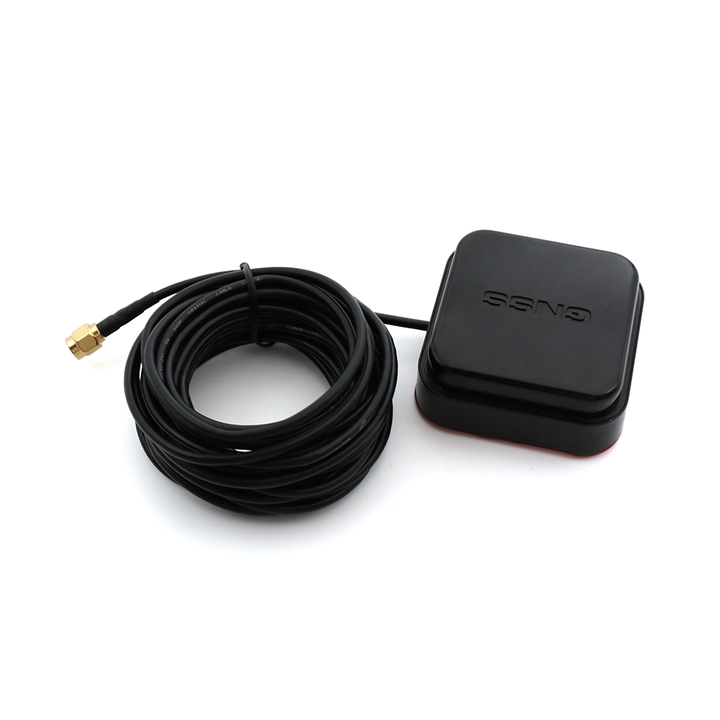

The MT-345AJL5 is a satellite navigation antenna operating on the L1 and L5 frequency bands. It encompasses key characteristics including high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability—all of which enable it to effectively fulfill user requirements.

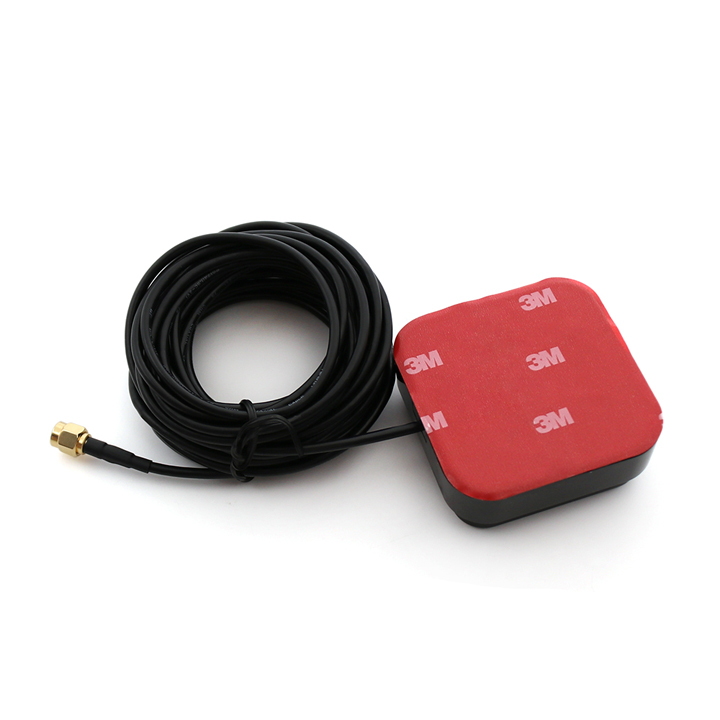

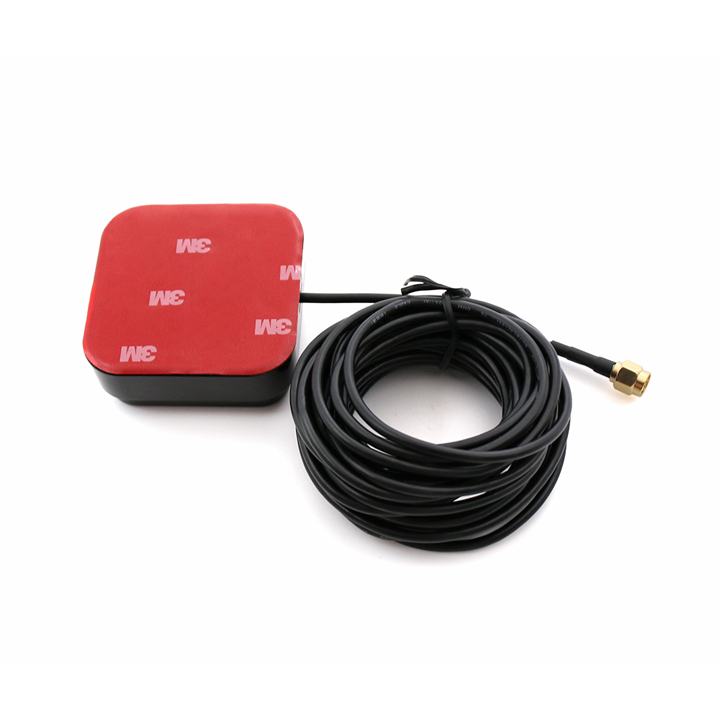

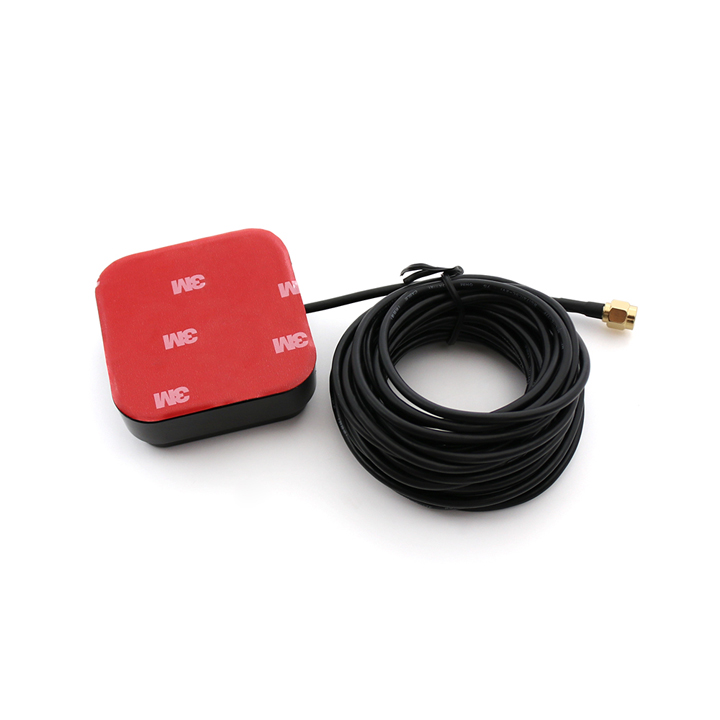

For convenient installation, a magnet is attached to the antenna’s base, allowing for easy and secure fixation. Constructed with anti-ultraviolet (UV-resistant) PC material and assembled using ultrasonic technology, the antenna delivers strong resistance to sunlight and high temperatures, ensuring stable performance even in harsh outdoor conditions.
Application Area
This antenna is compatible with numerous satellite navigation receivers, finding broad application across sectors like geodetic surveying and mapping, channel surveying and mapping, precision agriculture, and marine surveying. It can also be adopted for military use based on specific application requirements.

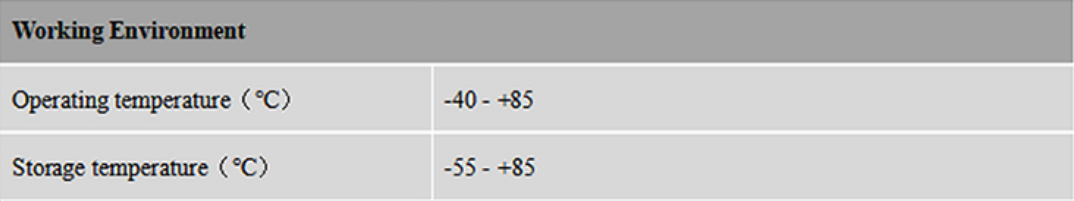

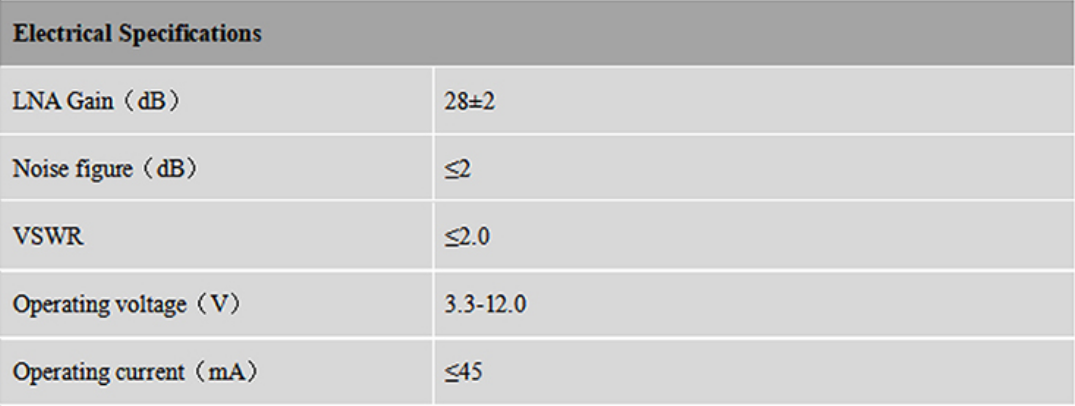

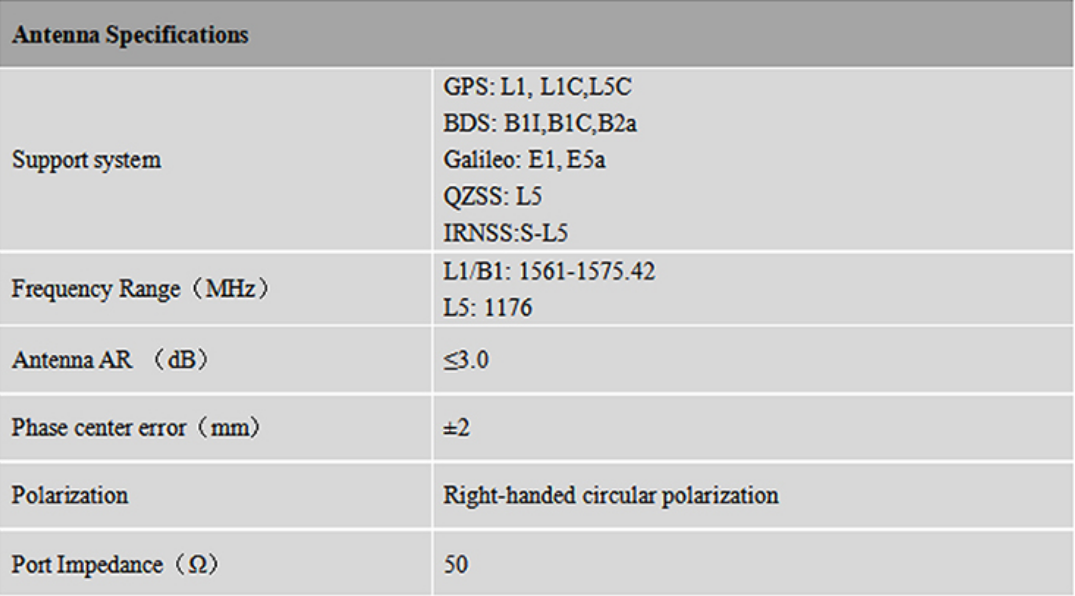

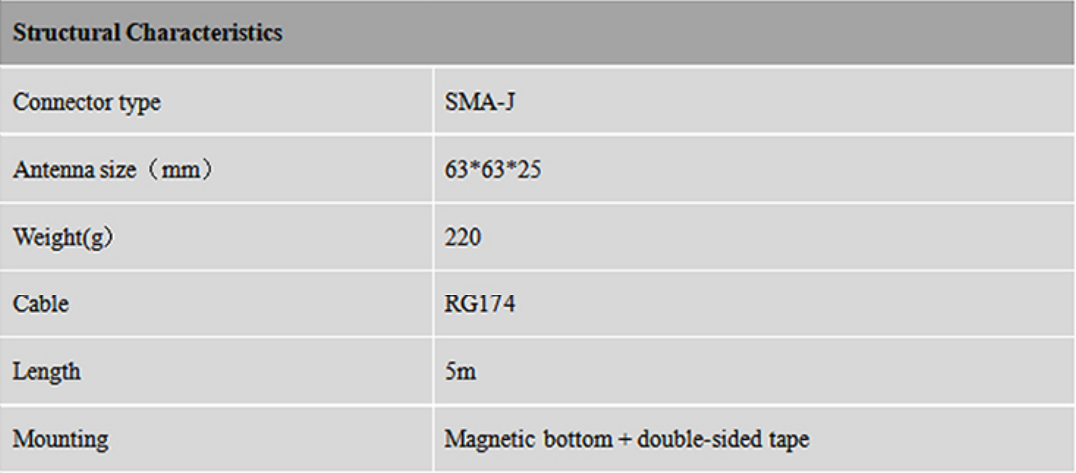

Specifications
