Product Introduction

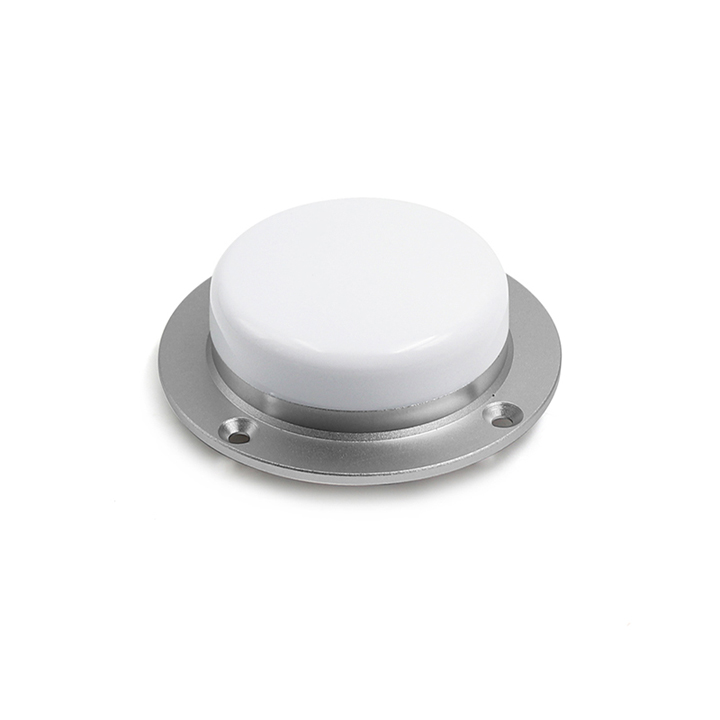

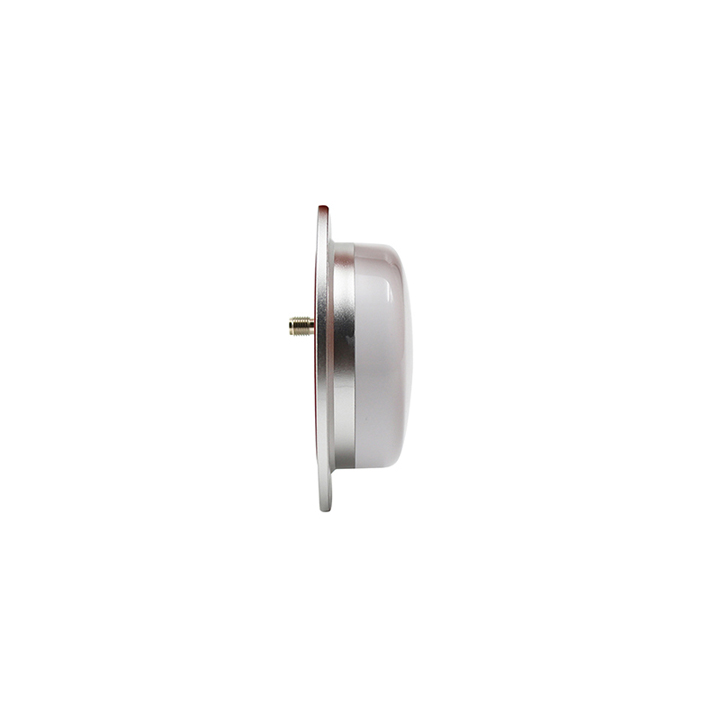

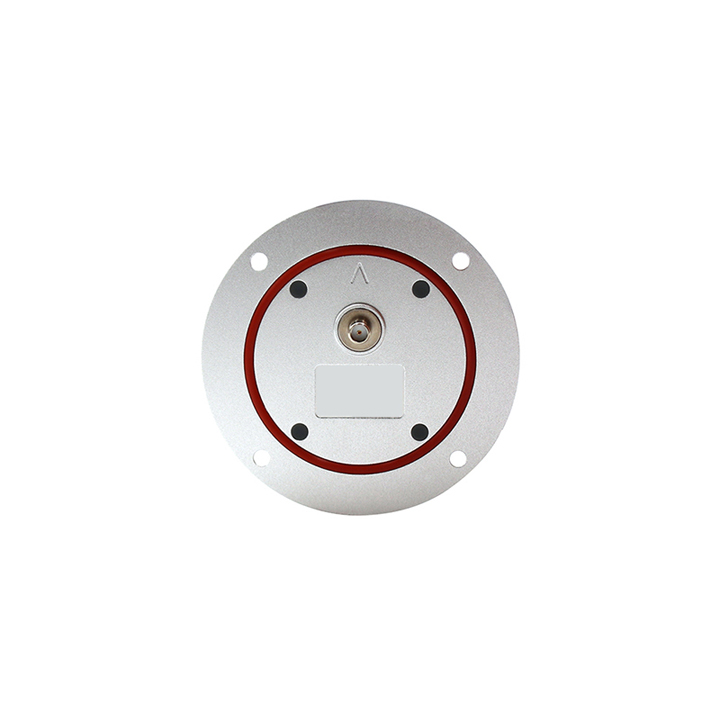

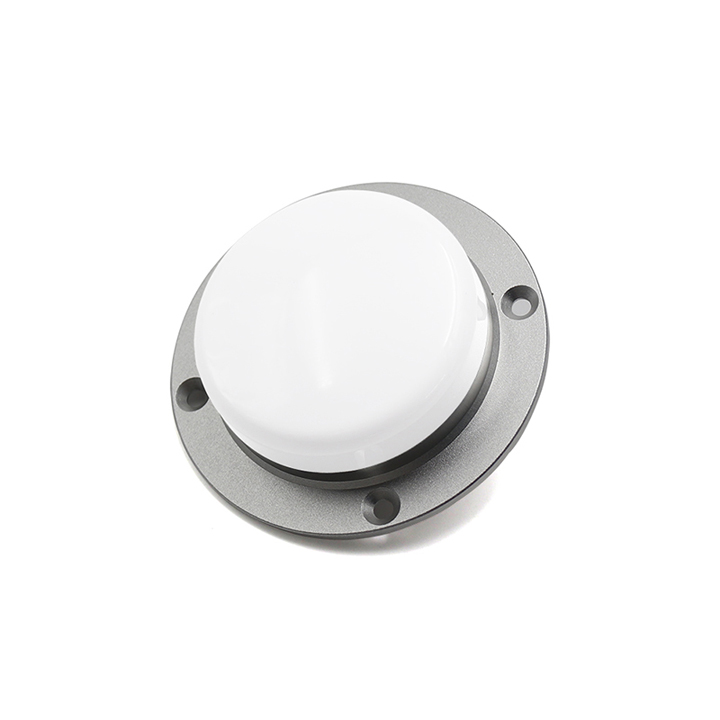

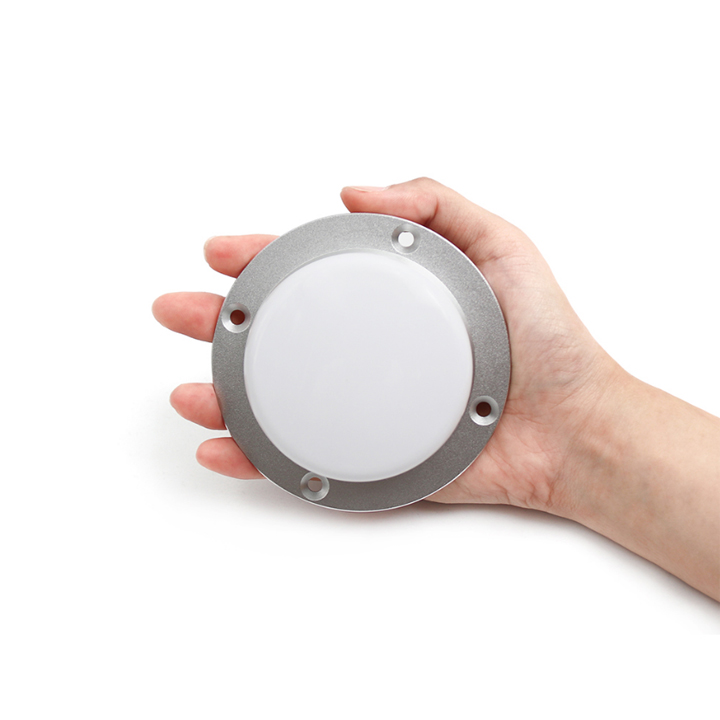

The MT-3707A is a full-band antenna compatible with four major satellite systems, specifically engineered for aviation use. Classified as a high-gain, low-drag antenna, it boasts compact dimensions, a sleek design, high sensitivity, and low power consumption—all of which significantly enhance the positioning accuracy and speed of high-speed moving carriers.
It offers broad compatibility with various receivers and finds wide application in navigation scheduling, tracking and monitoring, as well as measurement and control. Notably, it is particularly well-suited for high-speed mobile systems and scenarios, including civil drones and vehicle-mounted high-precision applications.
Application Area
This antenna is compatible with a range of satellite navigation receivers, meeting the positioning and velocity measurement needs of moving carriers in high-dynamic environments. It is widely applied in navigation scheduling, tracking and monitoring, measurement and control, as well as military fields.
Its key features include:
- A low-noise amplifier with high gain, enabling connection to longer cables.
- A housing made of high-temperature-resistant plastic, plus a thermal insulation design to protect the internal circuit.
- An integrated waterproof design, achieving an IP67 waterproof rating.

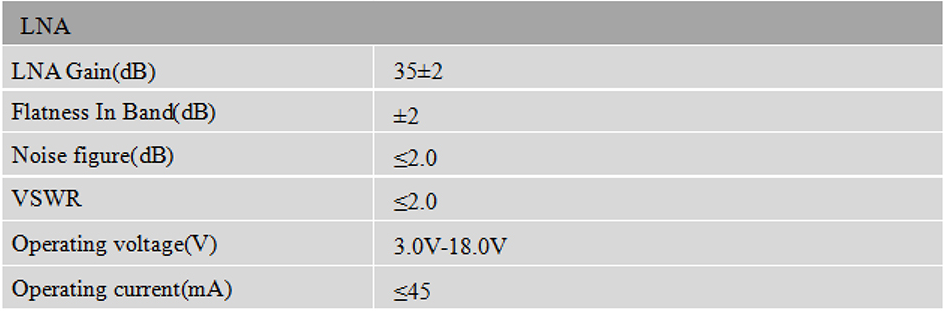

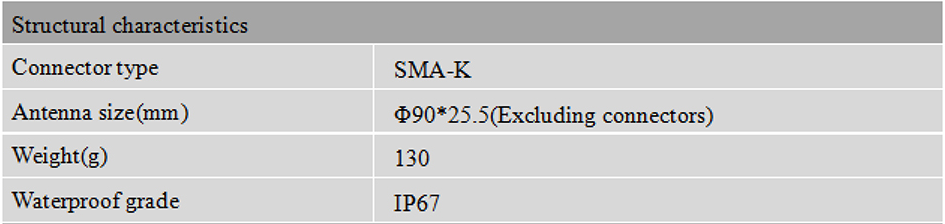

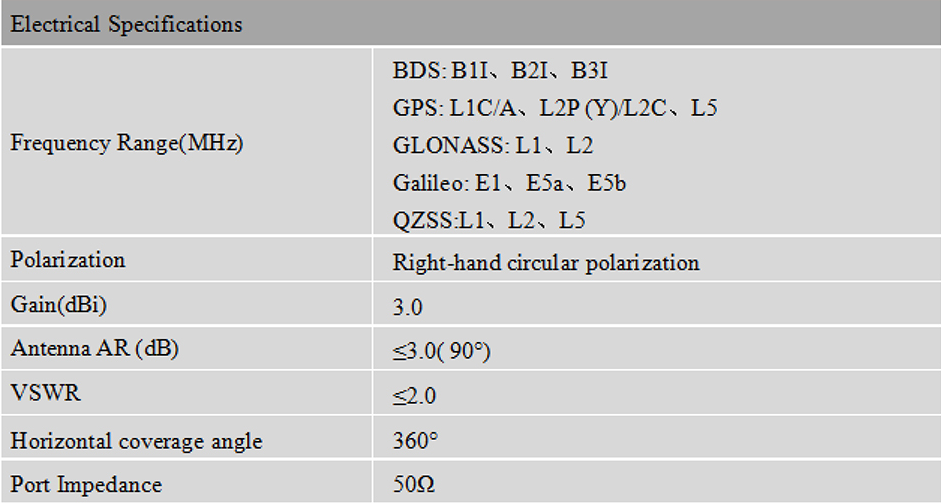

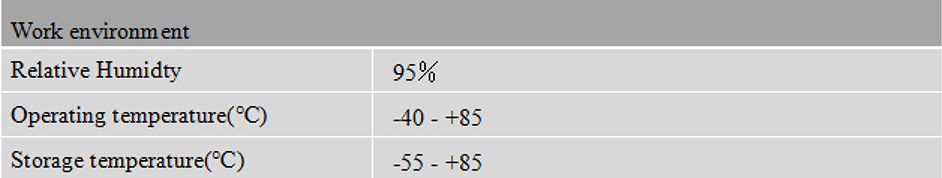

Specifications

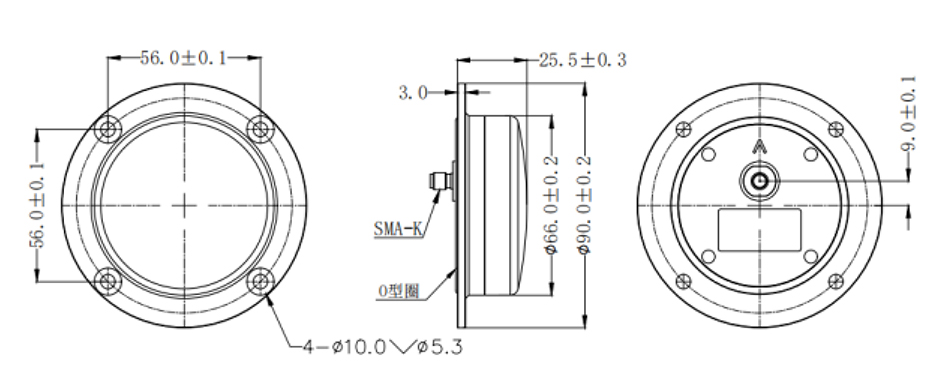

Product Dimension (MM)
