Home » Unmanned System Products » RTK GNSS Antenna MT-3B45AJL2
RTK GNSS Antenna MMW-5620C
Back to products
RTK GNSS Antenna MT-3B45AJL2B

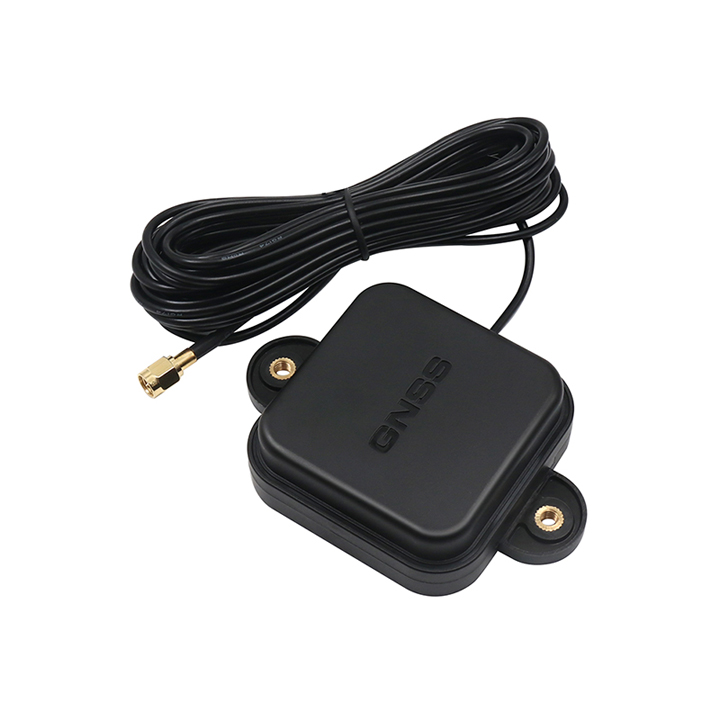

RTK GNSS Antenna MT-3B45AJL2

The MT-3B45AJL2 is a high-performance, multi-band RTK (Real-Time Kinematic) GNSS (Global Navigation Satellite System) antenna engineered for professional positioning scenarios that demand exceptional signal stability, broad frequency coverage, and seamless integration with industrial-grade receivers. Designed to excel in both outdoor and semi-enclosed environments—from construction sites to geospatial monitoring stations—it combines advanced signal processing, ruggedized hardware, and flexible mounting to deliver consistent centimeter-level accuracy for mission-critical applications.

Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Details

RTK GNSS Antenna MT-3B45AJL2

Application Area

This antenna boasts broad compatibility with a wide range of satellite navigation receivers, enabling its versatile deployment across multiple professional domains. It is extensively utilized in geodetic surveying, channel surveying, precision agriculture, and marine surveying—delivering reliable centimeter-level positioning to support critical workflows in these fields. Additionally, under appropriate application conditions and compliance with relevant regulations, it can be adapted for use in military scenarios, further expanding its utility across both civilian and specialized sectors.

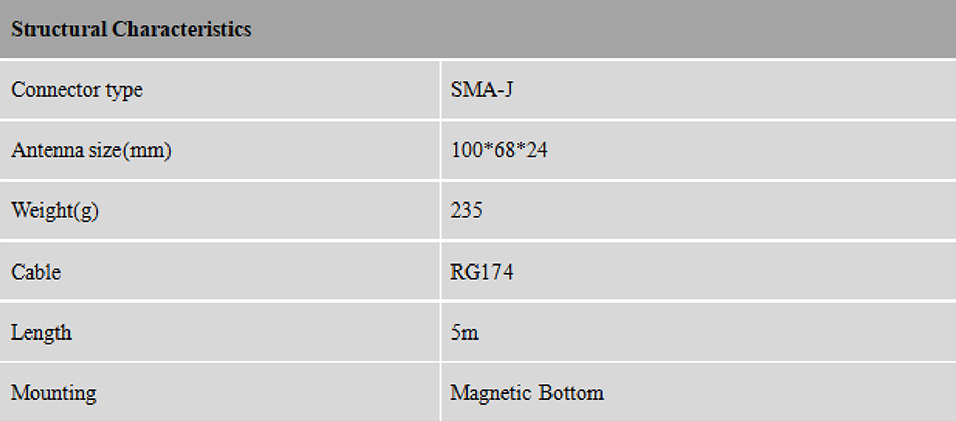

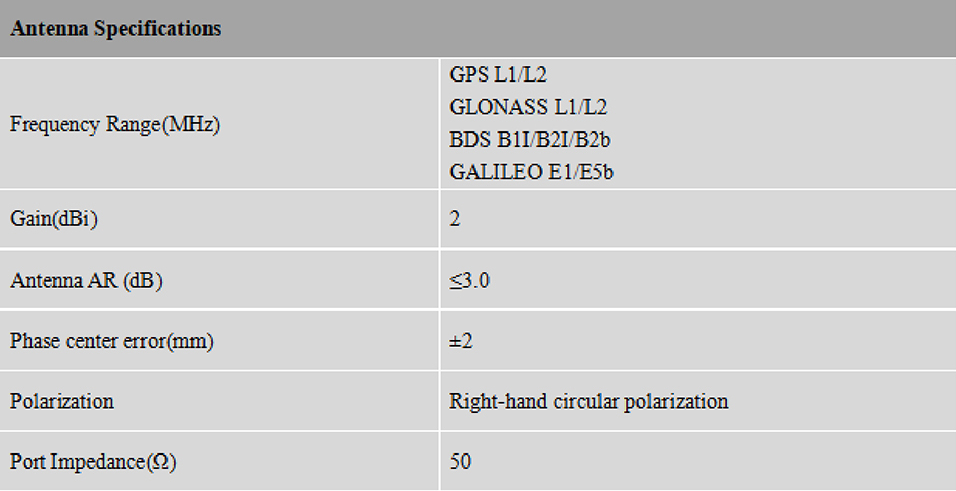

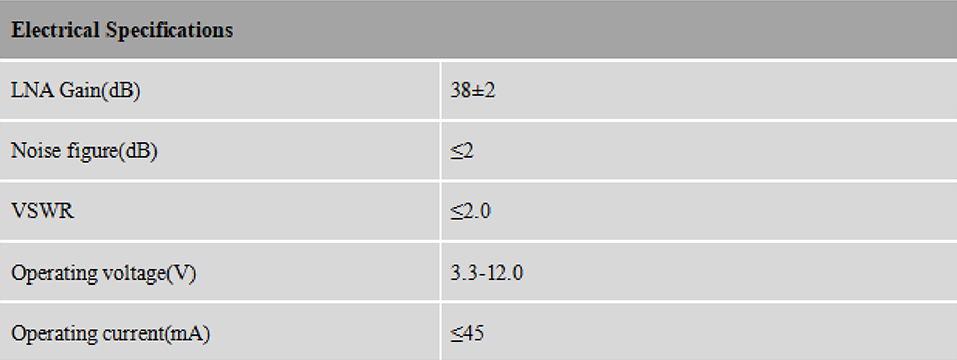

Specifications

RTK GNSS Antenna MT-3B45AJL2 RTK GNSS Antenna MT-3B45AJL2 RTK GNSS Antenna MT-3B45AJL2 RTK GNSS Antenna MT-3B45AJL2

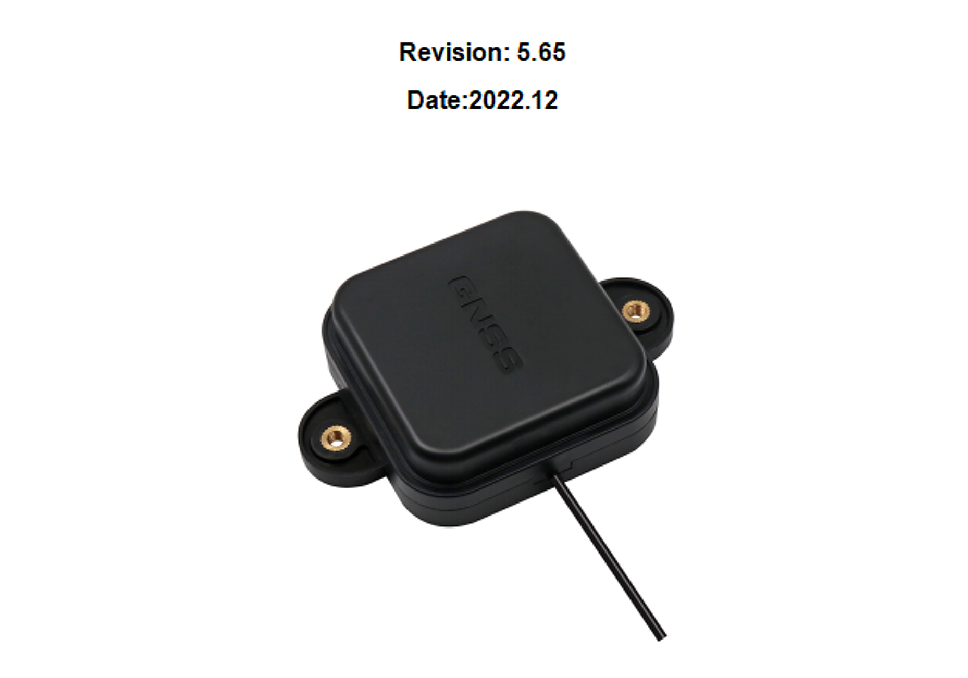

Product Dimension

RTK GNSS Antenna MT-3B45AJL2
