RTK GNSS Antenna MT-3G43AJL5

The MT-3G43AJL5 is a high-performance, professional-grade RTK (Real-Time Kinematic) GNSS (Global Navigation Satellite System) antenna engineered to deliver centimeter-level to sub-centimeter-level positioning accuracy—catering to the most demanding precision-dependent scenarios. By integrating advanced multi-constellation signal reception technology, industrial-grade ruggedization, and flexible compatibility, it maintains stable performance in complex and harsh environments, serving as a core positioning component across geospatial, agricultural, maritime, and specialized defense applications.

Categories: , , , , , , , ,
Description

Product Details

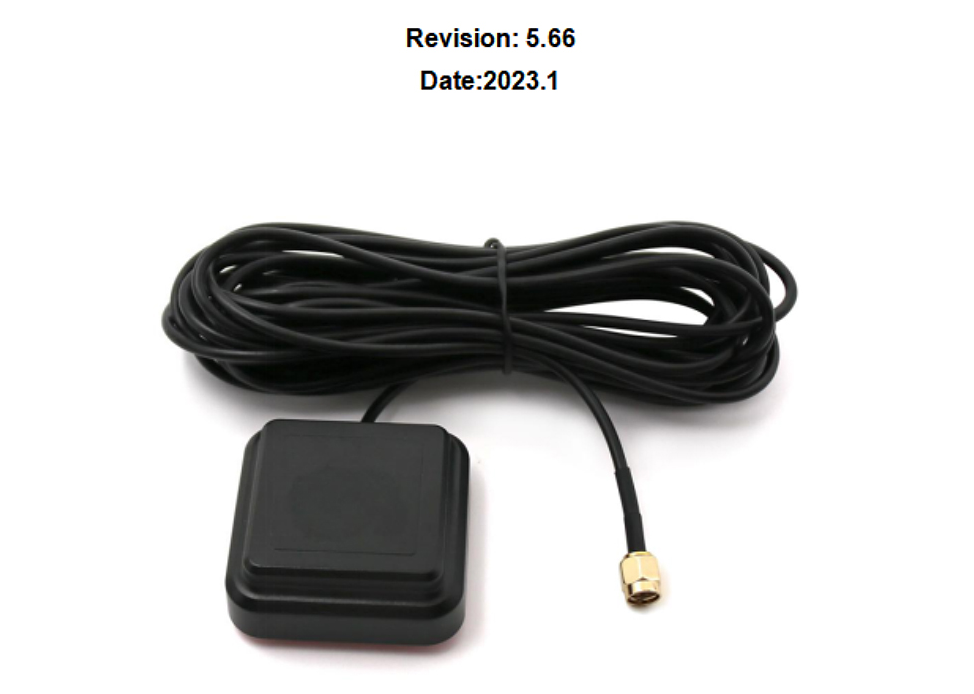

RTK GNSS Antenna MT-3G43AJL5



Application Area

  1. The antenna offers broad compatibility with a wide range of satellite navigation receivers, enabling its extensive application across multiple professional fields—including geodetic surveying and mapping, channel surveying and mapping, precision agriculture, and marine surveying. Additionally, it can be optionally deployed in the military sector, subject to specific application requirements and conditions.
  2. Boasting versatile compatibility with various satellite navigation receivers, this antenna finds wide use in domains such as geodetic surveying and mapping, channel surveying and mapping, precision agriculture, and marine surveying. It also supports optional adoption in military scenarios, provided that it meets the relevant application criteria.

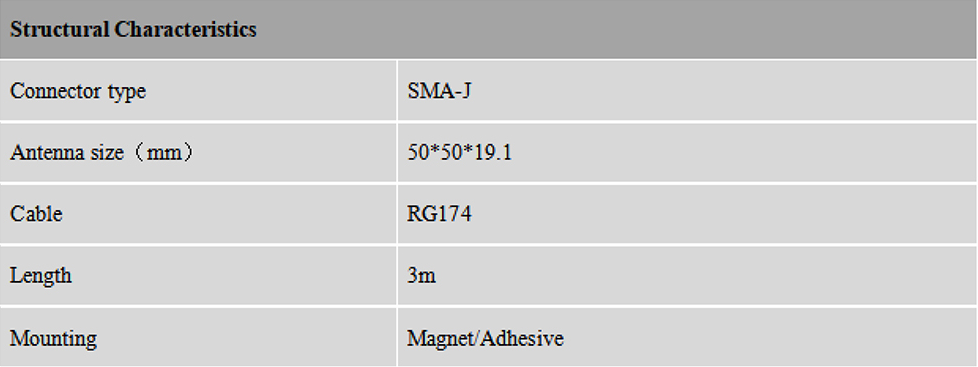

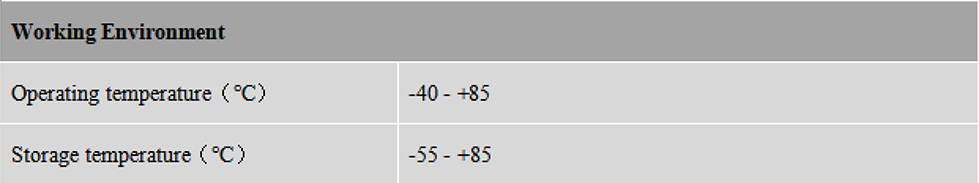

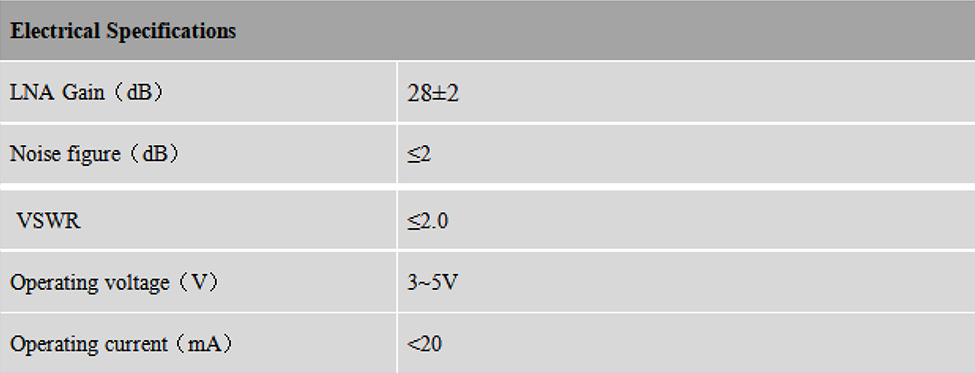

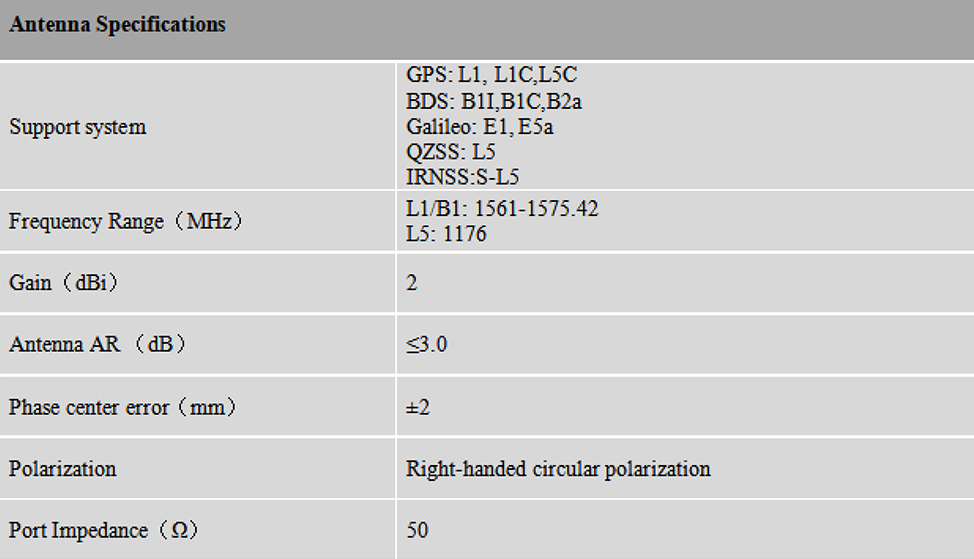

Specifications

RTK GNSS Antenna MT-3G43AJL5 RTK GNSS Antenna MT-3G43AJL5 RTK GNSS Antenna MT-3G43AJL5 RTK GNSS Antenna MT-3G43AJL5

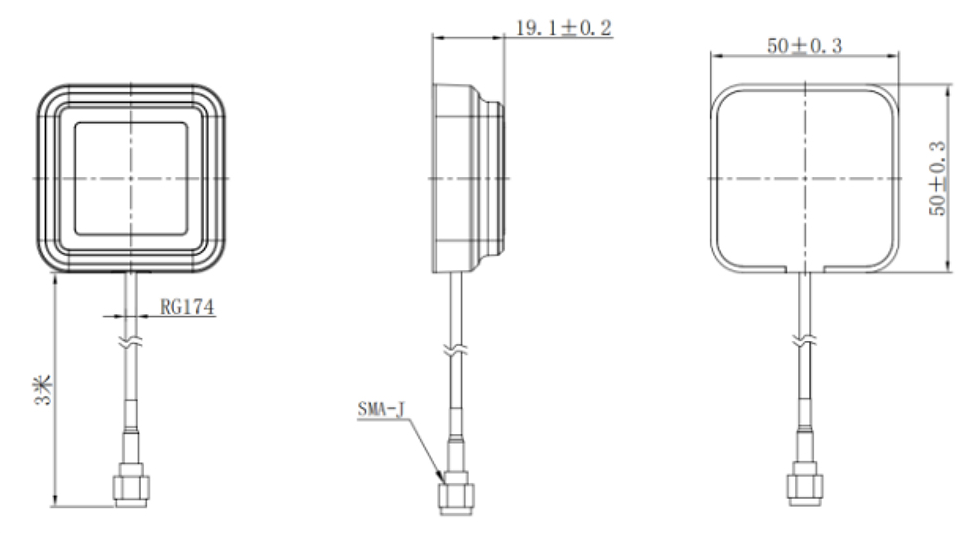

Product Size Chart

RTK GNSS Antenna MT-3G43AJL5

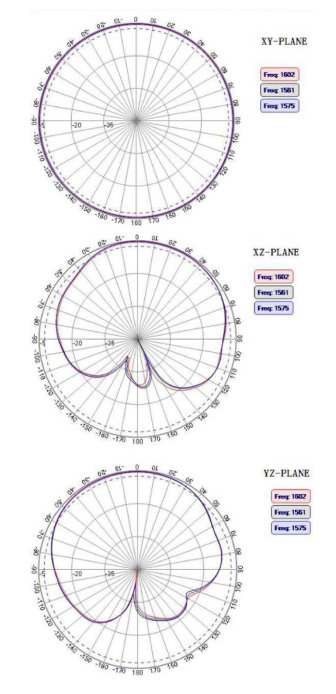

Radiation Pattern

RTK GNSS Antenna MT-3G43AJL5
