Home » Unmanned System Products » RTK GNSS Antenna MT-410
RTK GNSS Antenna MT-380B
Back to products
RTK GNSS Antenna MT-460/L/L2/L5/D/S/B3

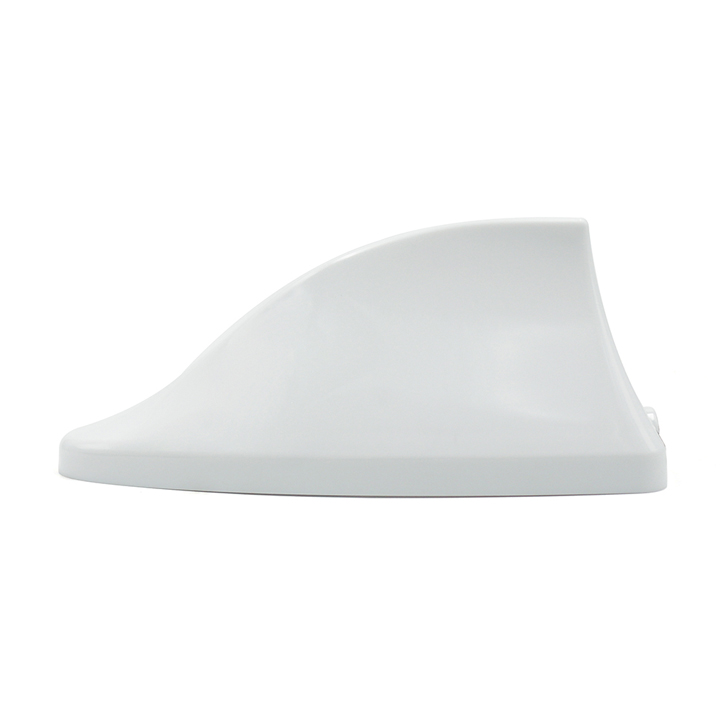

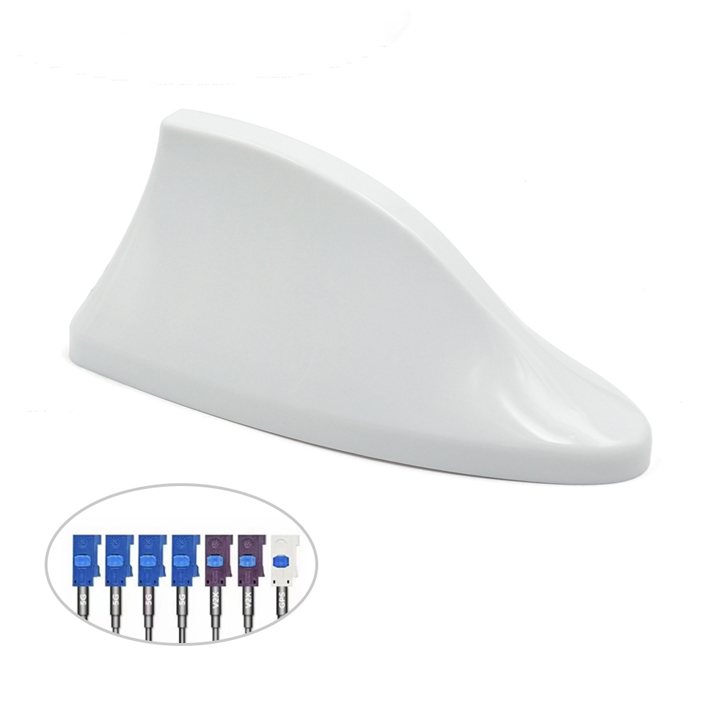

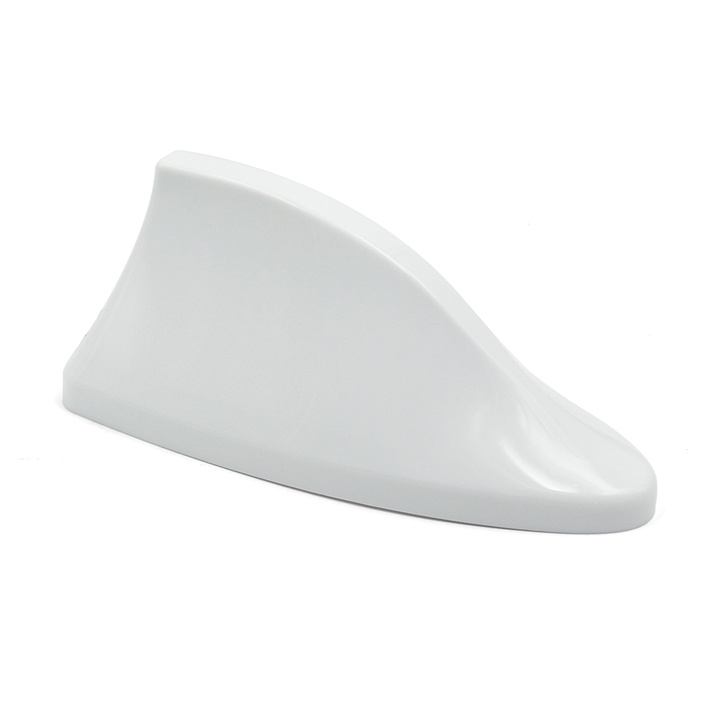

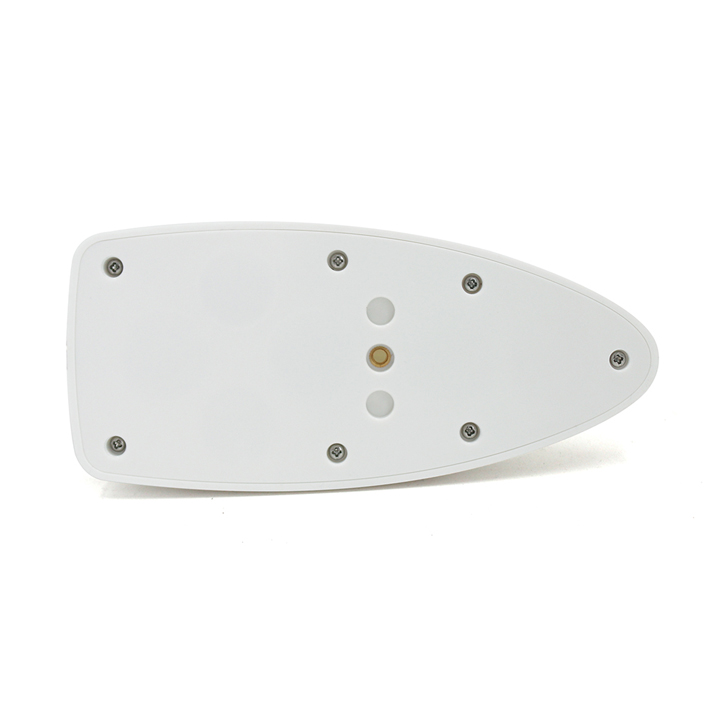

RTK GNSS Antenna MT-410

The RTK GNSS Antenna MT-410 is a professional-grade positioning component engineered for high-precision satellite navigation scenarios. It supports multi-constellation GNSS reception (covering GPS, BeiDou, GLONASS, and Galileo) to capture stable signals even in signal-challenged environments like urban canyons or rural woodlands, while integrating RTK (Real-Time Kinematic) technology to deliver centimeter-level positioning accuracy—critical for tasks requiring strict precision.
With a rugged, weather-resistant design, this antenna adapts to harsh outdoor conditions such as extreme temperatures, heavy rain, and strong winds, making it ideal for fields including geodetic surveying, precision agriculture, deformation monitoring, and waterway mapping. It is also fully compatible with most mainstream satellite navigation receivers, enabling flexible integration for professional users, and can be customized with anti-interference modules based on specific project needs.
Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Introduction

The MT-410 is a three-constellation, six-band shark-fin antenna. It features high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability—all of which enable it to effectively meet user needs.

Application Area

The antenna is compatible with a wide range of satellite navigation receivers, and is extensively applied in fields like geodetic surveying and mapping, channel surveying and mapping, precision agriculture, and marine surveying. It can also be chosen for military field use based on specific application conditions.

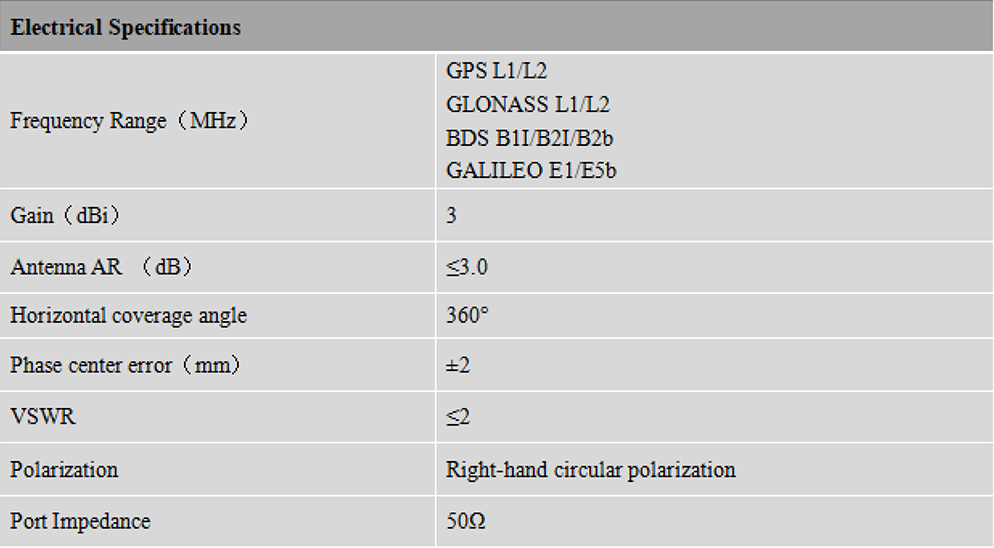

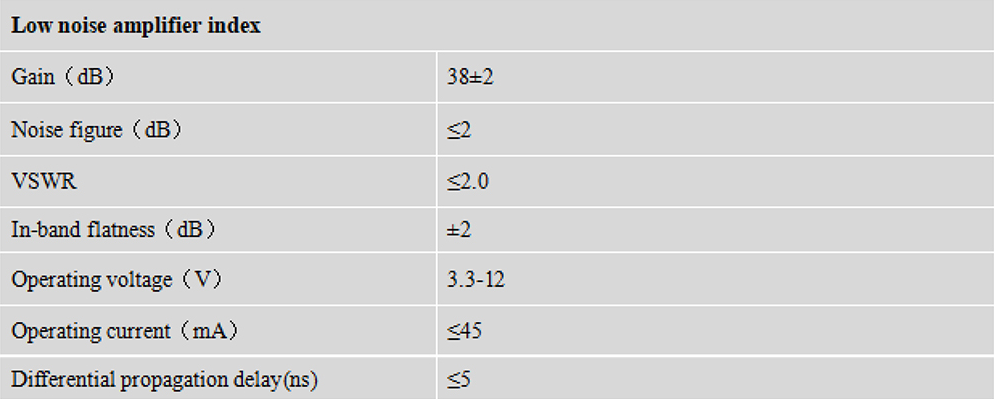

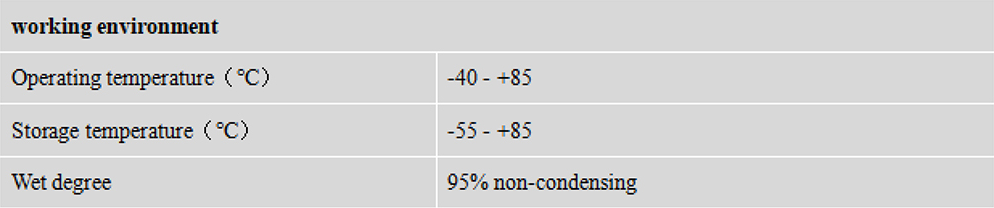

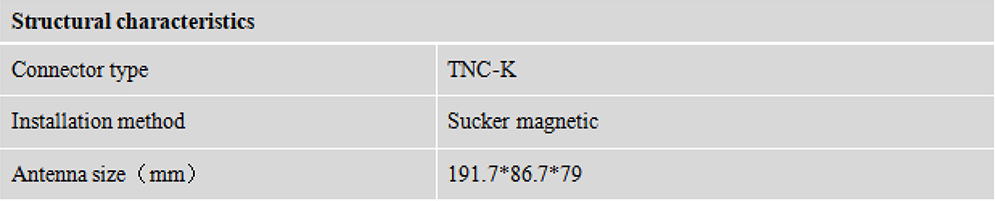

Specifications

RTK GNSS Antenna MT-410 RTK GNSS Antenna MT-410 RTK GNSS Antenna MT-410 RTK GNSS Antenna MT-410

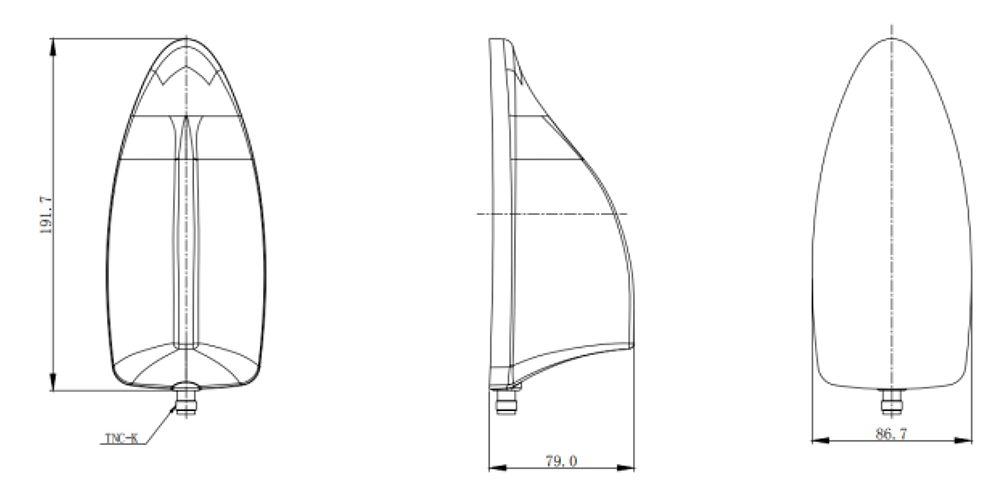

Product Dimension

RTK GNSS Antenna MT-410
