Home » Unmanned System Products » RTK GNSS Antenna MT-460L2
RTK GNSS Antenna MT-460L
Back to products
RTK GNSS Antenna MT-460L5

RTK GNSS Antenna MT-460L2

The RTK GNSS Antenna MT-460L2 is a high-performance positioning solution engineered for precision-driven applications. Designed to support multi-constellation GNSS signals (including GPS, GLONASS, Beidou, and Galileo), it delivers centimeter-level accuracy for tasks such as surveying, mapping, precision agriculture, and construction. Equipped with advanced anti-interference technology, the antenna minimizes signal disruption from nearby electronics and environmental noise, ensuring stable performance even in harsh operating conditions. Its rugged, weatherproof housing (IP67-rated) enables reliable operation in extreme temperatures, humidity, and precipitation, while the compact, low-profile design allows for easy integration with various RTK receivers and mobile devices. With optimized signal reception and fast convergence times, the MT-460L2 stands as a trusted choice for professionals requiring consistent, high-precision positioning capabilities.​
Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Introduction

The MT-460L2 is a multi-satellite, multi-band helical antenna that boasts key attributes of compact size, high positioning accuracy, and light weight—all of which enable it to effectively fulfill user requirements across diverse application scenarios.​
Alternatively, for a more concise tone: As a multi-satellite and multi-band helical antenna, the MT-460L2 features a small form factor, high positioning precision, and lightweight design, making it well-suited to meet users’ practical needs reliably.​

Application Area

The MT-460L2 is compatible with a wide range of receivers, ensuring flexible integration across different systems. It finds extensive application in key fields such as unmanned aerial vehicles (UAVs), handheld terminal devices, and small RTK equipment. Additionally, under appropriate application conditions, it can also be deployed in military-related scenarios.​
For a more concise and connected version: Compatible with various receivers, the MT-460L2 is widely used in sectors including UAVs, handheld terminals, and small RTK devices. It further supports deployment in the military field, provided that the application conditions are met.

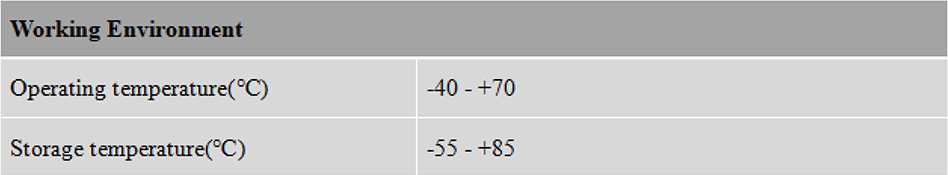

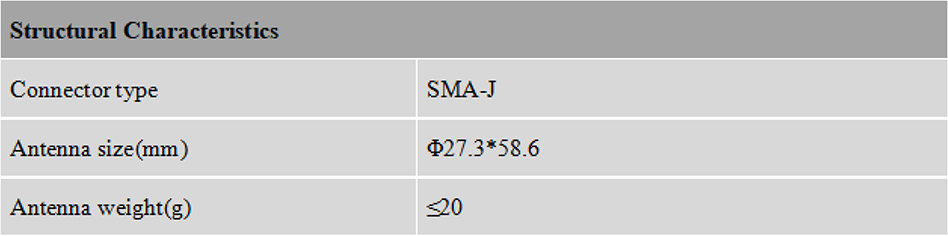

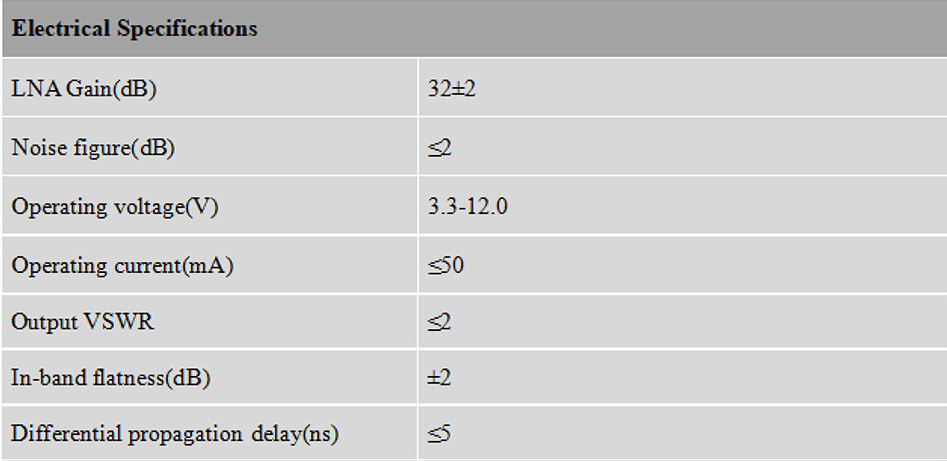

Specifications

RTK GNSS Antenna MT-460L2RTK GNSS Antenna MT-460L2 RTK GNSS Antenna MT-460L2 RTK GNSS Antenna MT-460L2

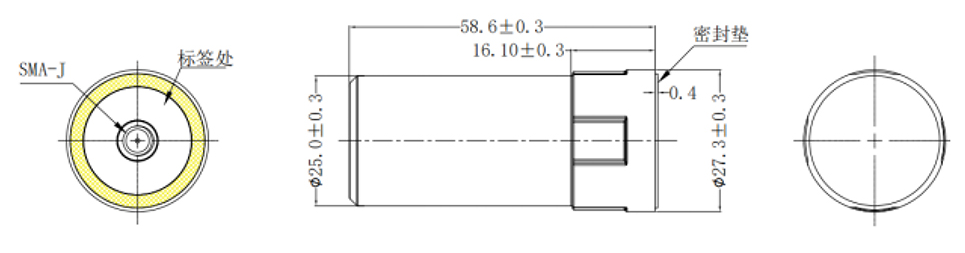

Product Dimension (MM)

RTK GNSS Antenna MT-460L2
