Home » Unmanned System Products » RTK GNSS Antenna MT-560
RTK GNSS Antenna MT-502
Back to products
RTK GNSS Antenna MT-560A

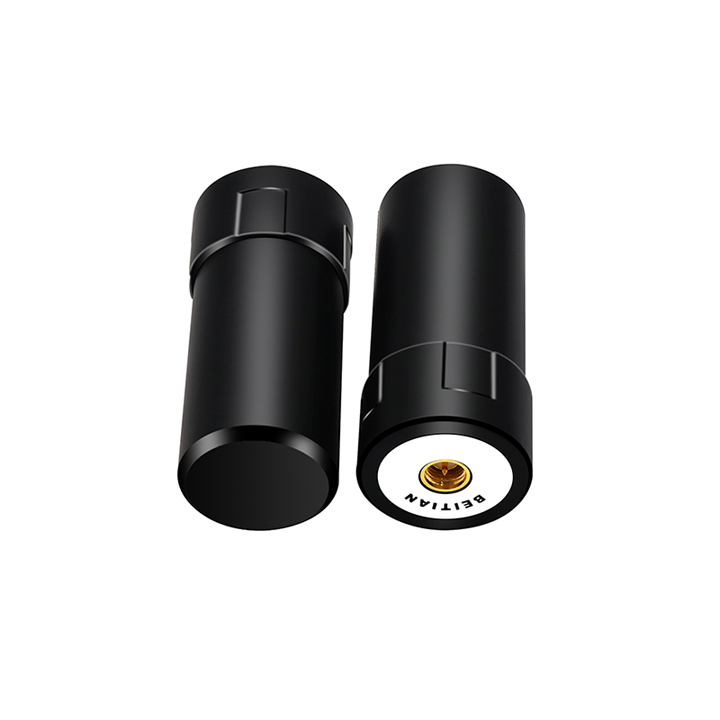

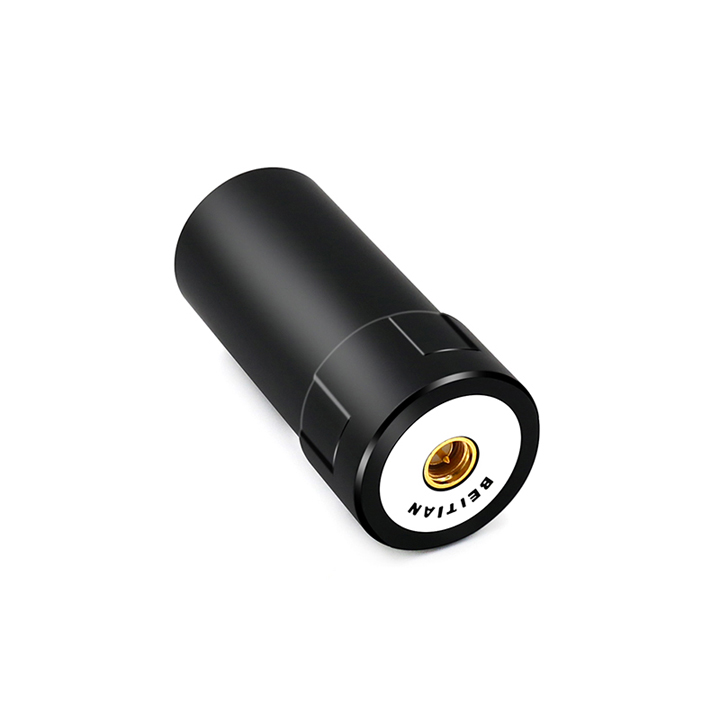

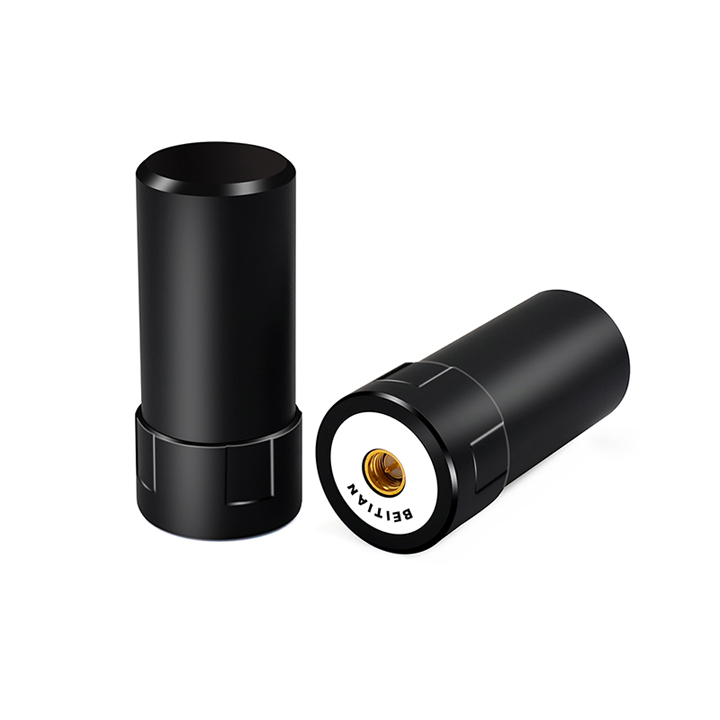

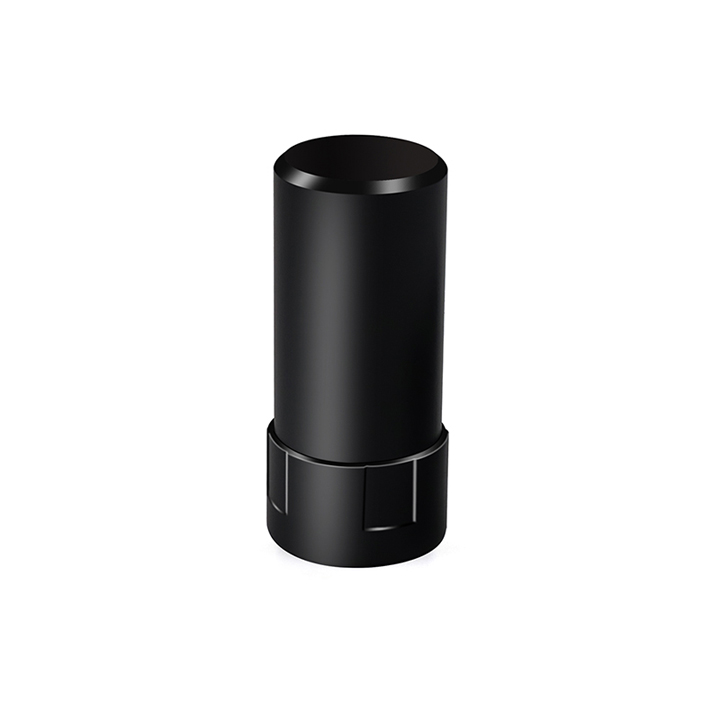

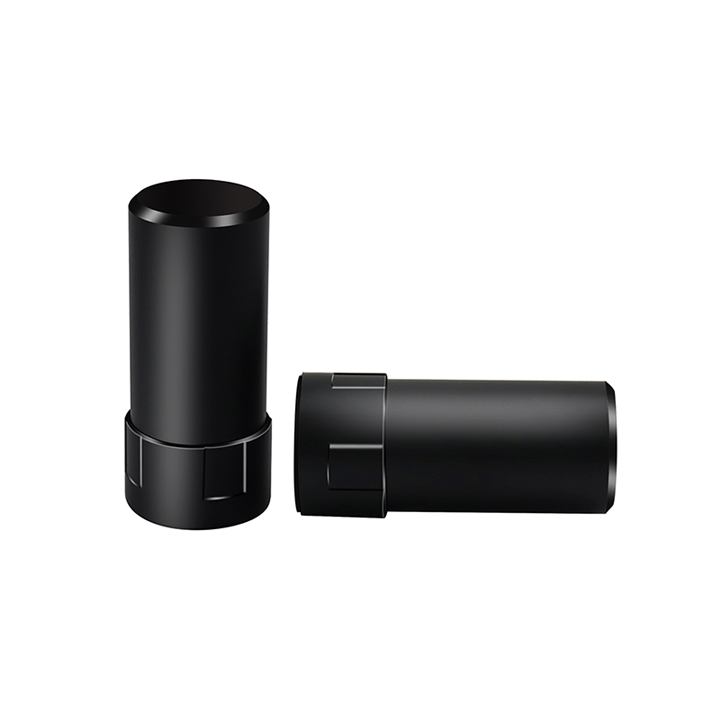

RTK GNSS Antenna MT-560

The RTK GNSS Antenna MT-560 is a high-performance precision positioning component engineered for professional navigation and surveying scenarios. Adopting advanced design, it delivers exceptional signal stability and high positioning accuracy, while boasting broad compatibility with various receivers. Widely applicable to UAVs, handheld terminal devices, and small RTK equipment, it can also be deployed in military applications when meeting specific operational requirements, effectively catering to diverse high-precision positioning needs.

Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Introduction

The MT-560 is a four-star, nine-band helical antenna. With its compact size, high positioning accuracy, and lightweight construction, it effectively fulfills diverse user requirements.

Application Area

Boasting broad compatibility with diverse receivers, the MT-560 is extensively utilized in UAVs, handheld terminal devices, and small RTK equipment. It also supports deployment in the military sector when adhering to specific application criteria.

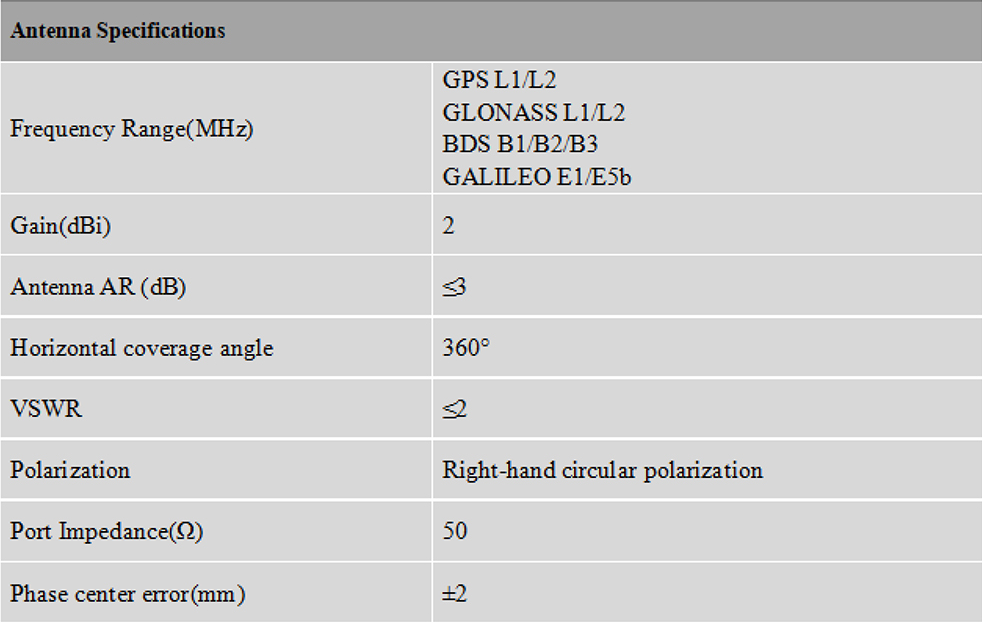

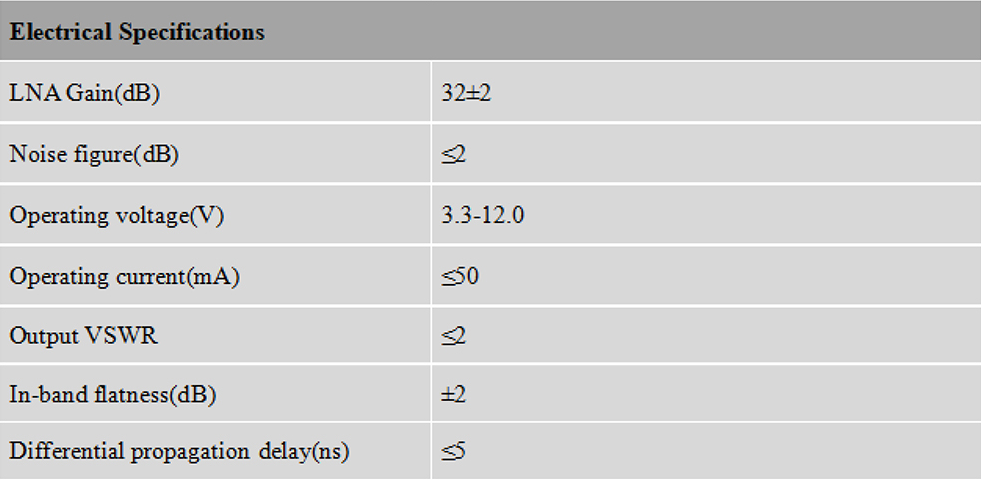

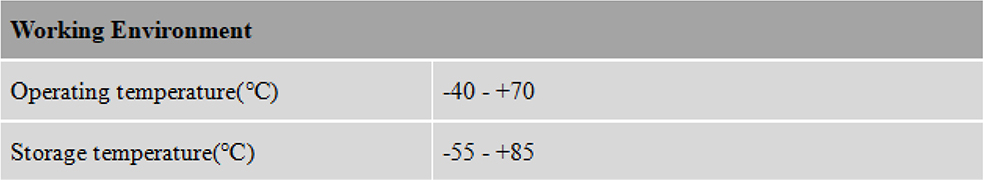

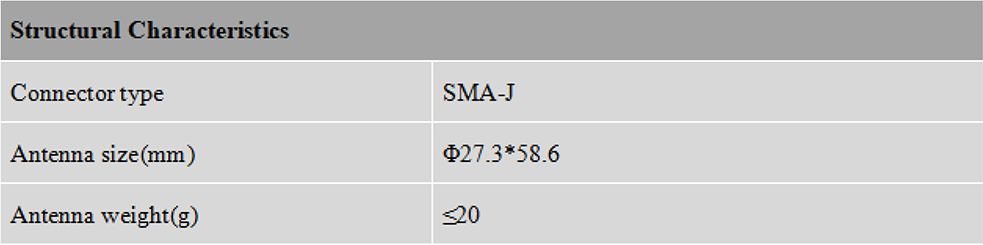

Specifications

RTK GNSS Antenna MT-560 RTK GNSS Antenna MT-560 RTK GNSS Antenna MT-560 RTK GNSS Antenna MT-560

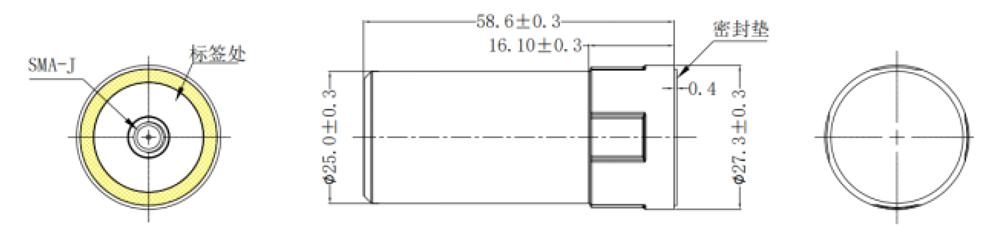

Product Dimension (MM)

RTK GNSS Antenna MT-560
