Home » Unmanned System Products » RTK GNSS Antenna MT-600
RTK GNSS Antenna MT-564
Back to products
RTK GNSS Antenna MT-602

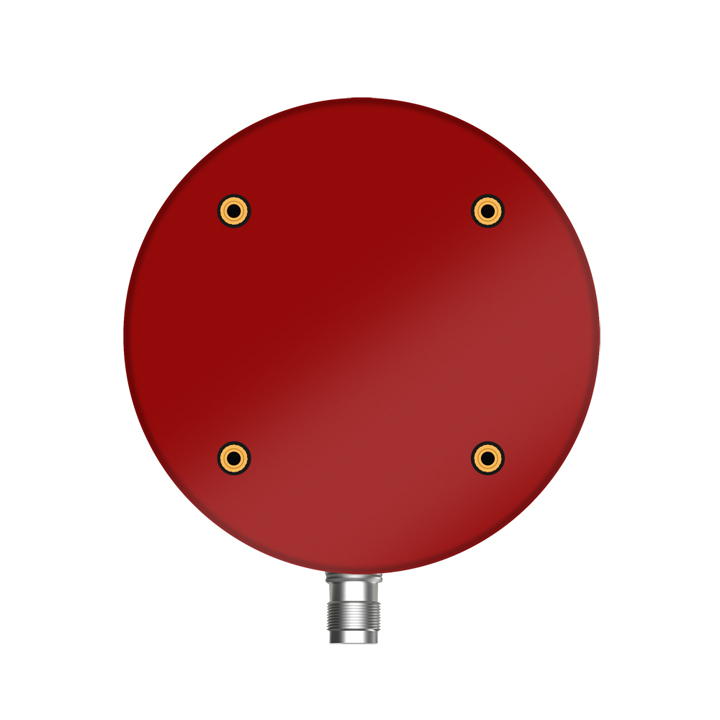

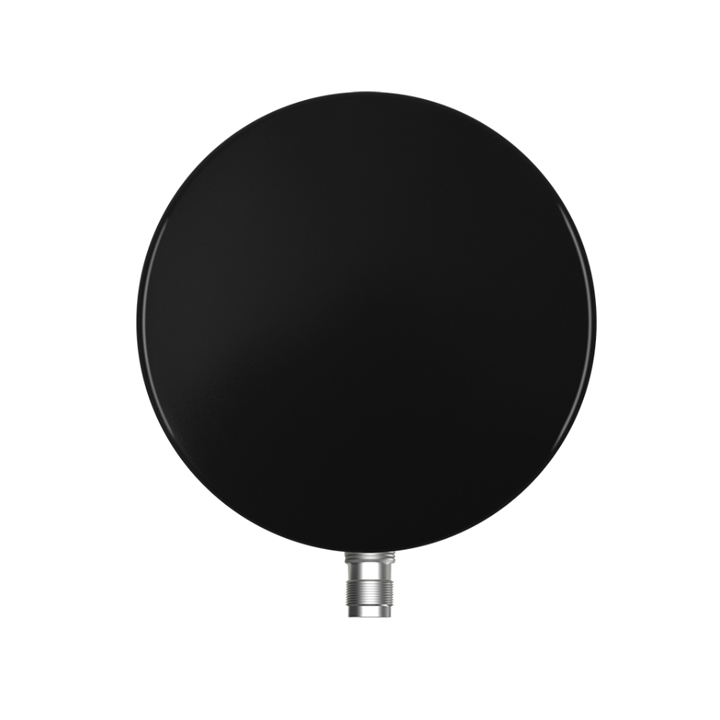

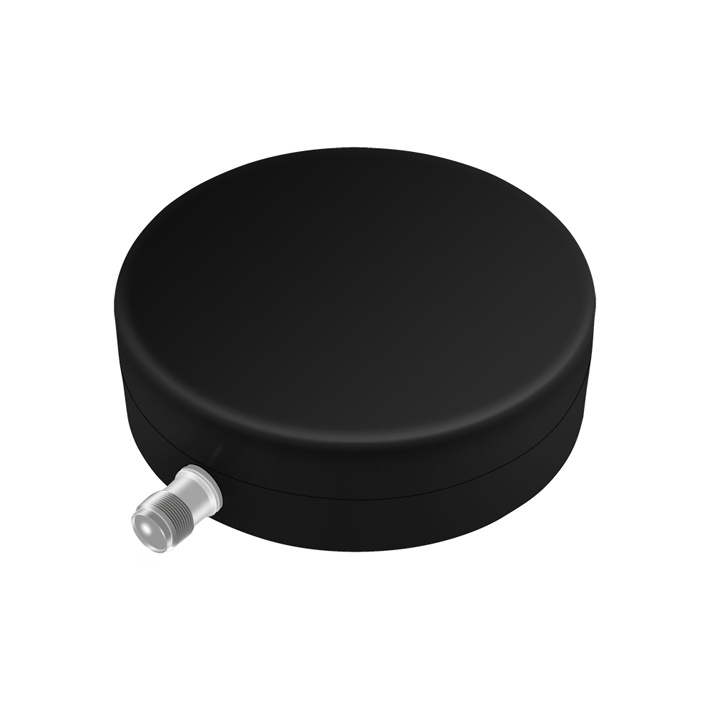

RTK GNSS Antenna MT-600

​The RTK GNSS Antenna MT-600 is a high-performance precision positioning antenna designed to deliver reliable and accurate signal reception for professional applications. Supporting multi-constellation (including GPS, BDS, Galileo, GLONASS) and multi-frequency coverage, it ensures stable connectivity even in complex environments, laying a solid foundation for centimeter-level positioning accuracy. Featuring a compact and lightweight design, the MT-600 offers excellent portability and easy integration, making it highly compatible with a wide range of receivers. It is widely utilized in key fields such as UAV surveying and mapping, handheld positioning terminals, and small RTK measurement equipment, effectively meeting the high-precision needs of civilian professional tasks. Additionally, when compliant with specific application standards, this antenna can also be adapted for military-related positioning scenarios, showcasing strong versatility to cope with both civilian and specialized usage demands.
Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Introduction

The MT-600 is a four-star full-frequency measurement antenna tailored for precision positioning scenarios. Endowed with key characteristics including high gain, miniaturization, high sensitivity, multi-system compatibility and high reliability, this antenna delivers consistent and stable performance that effectively caters to diverse user needs. Whether applied in civilian professional fields like UAV surveying, handheld positioning terminals or small RTK measurement equipment, or adapted for military-related positioning scenarios (when compliant with specific application standards), it maintains strong adaptability to meet rigorous precision and reliability requirements.
​

Application Area

​This antenna is compatible with a variety of satellite navigation receivers, finding extensive application in geodetic surveying, channel surveying, precision agriculture and marine surveying. Additionally, it can be deployed in the military sector subject to specific application requirements.

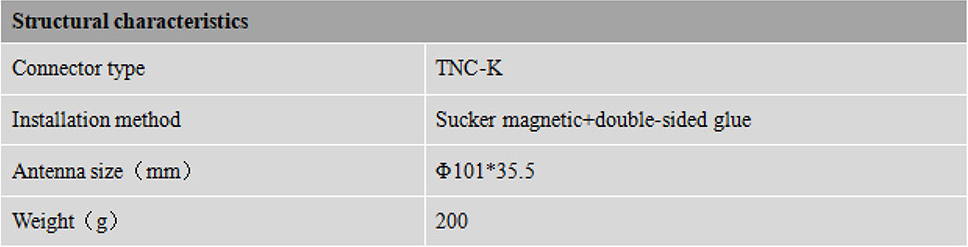

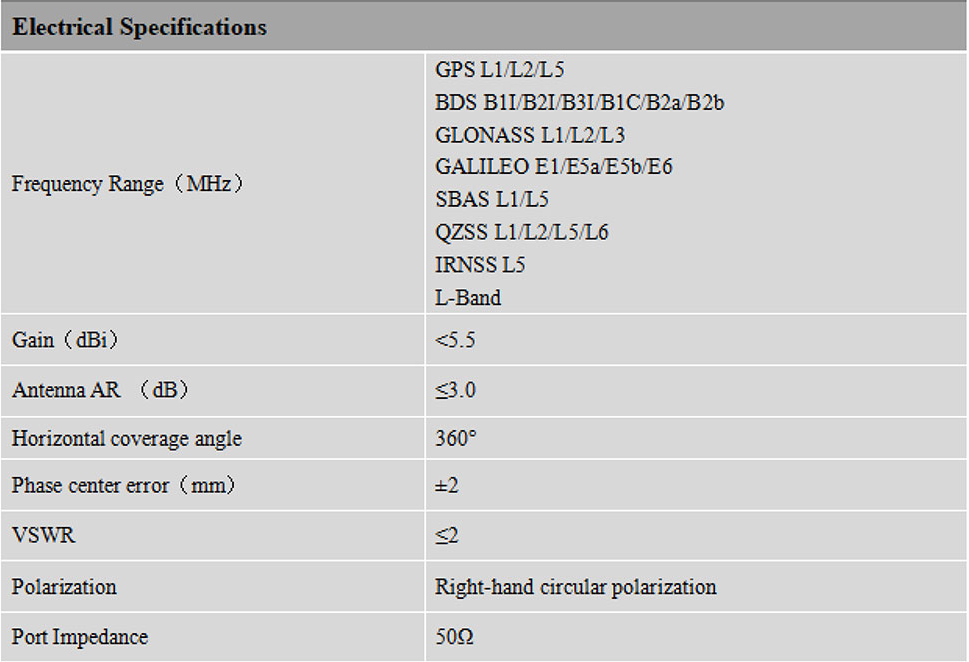

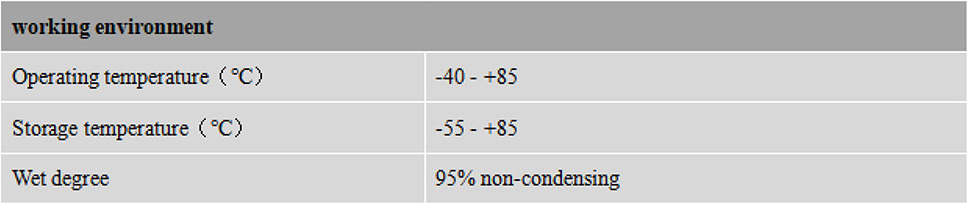

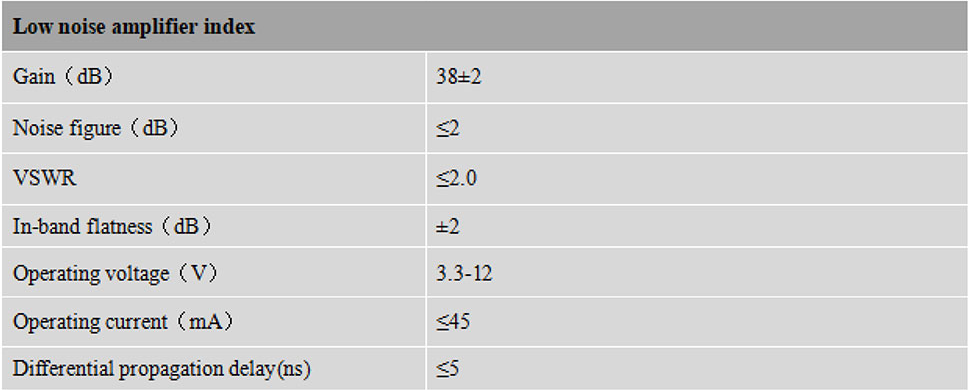

Specifications

RTK GNSS Antenna MT-600 RTK GNSS Antenna MT-600 RTK GNSS Antenna MT-600 RTK GNSS Antenna MT-600

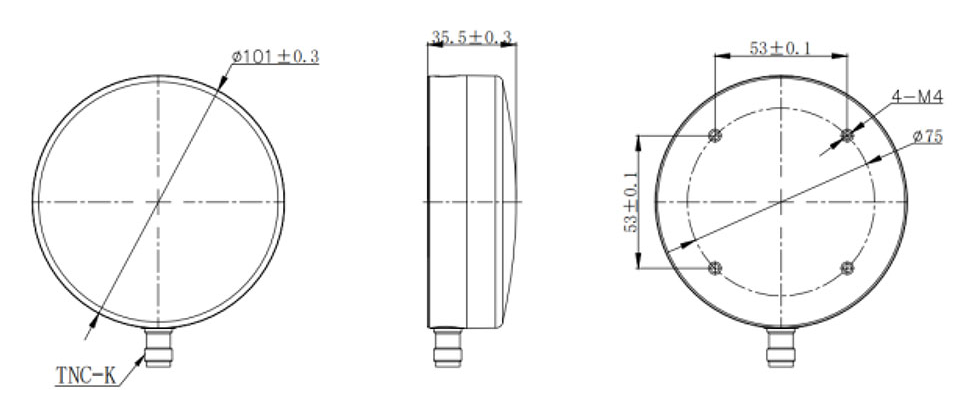

Product Dimension (MM)

RTK GNSS Antenna MT-600
