Home » Unmanned System Products » RTK GNSS Antenna MT-603
RTK GNSS Antenna MT-602
Back to products
RTK GNSS Antenna MT-700

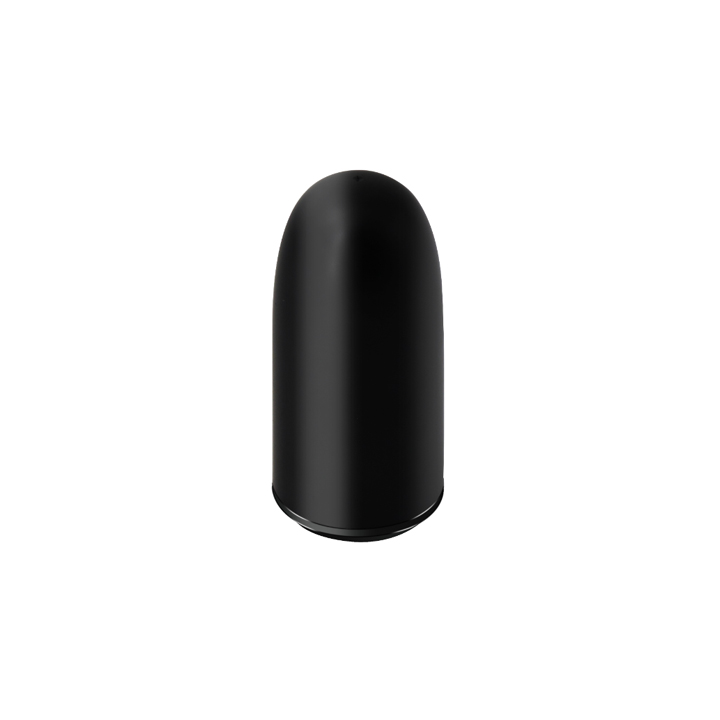

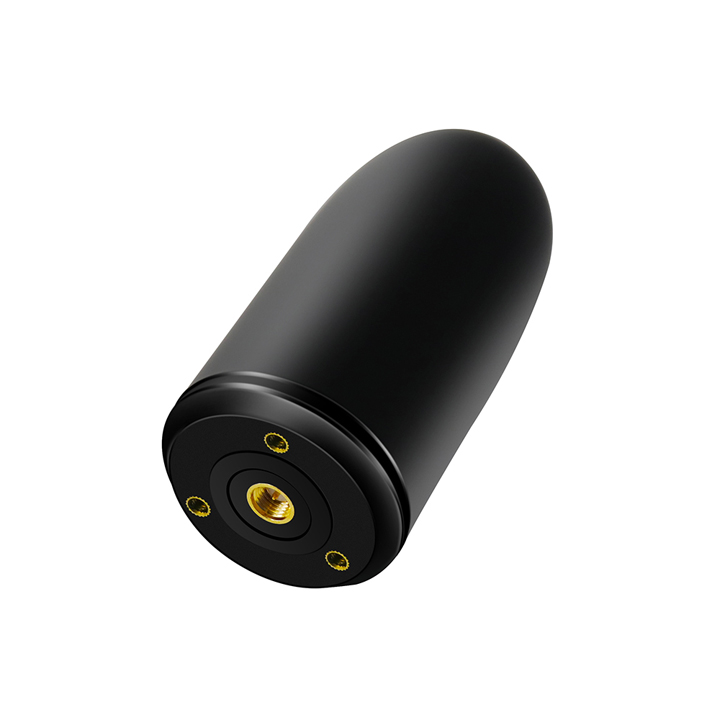

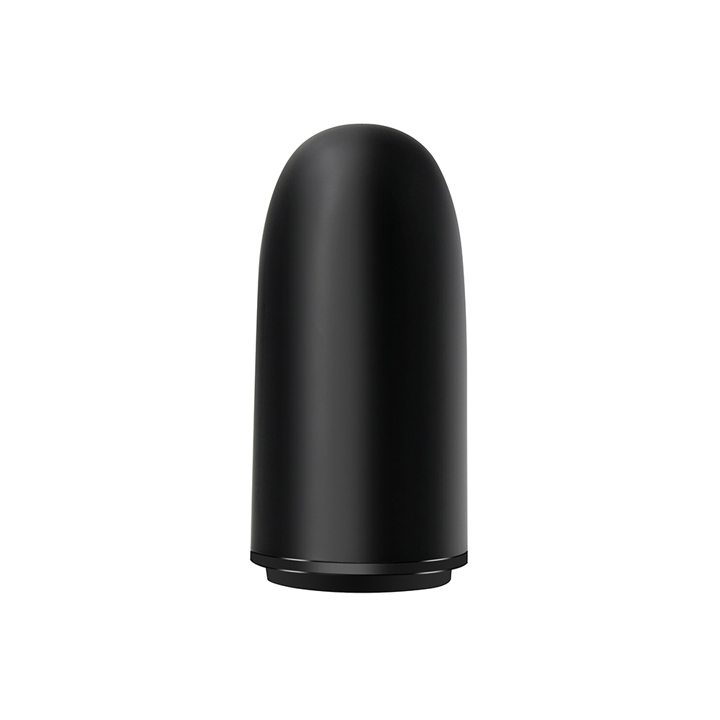

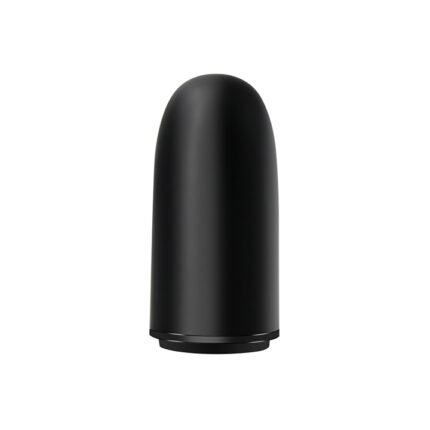

RTK GNSS Antenna MT-603

The RTK GNSS Antenna MT-603 is a high-performance positioning solution engineered for precision-driven satellite navigation applications. As a advanced multi-constellation, multi-frequency antenna, it delivers exceptional signal sensitivity and stability, enabling centimeter-level positioning accuracy that meets the rigorous demands of professional users. Compatible with a wide range of RTK receivers, the MT-603 features a compact, lightweight design that facilitates seamless integration into diverse devices—including UAVs, handheld terminals, and small-scale surveying equipment. Its robust construction ensures reliable operation in harsh environmental conditions, while its versatile compatibility extends its utility across civilian fields such as geodetic surveying, precision agriculture, and marine navigation, as well as specialized military scenarios when meeting specific application criteria.

Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Introduction

The MT-603 is a four-constellation full-band spiral antenna, featuring a compact size, high positioning accuracy, and lightweight design—all of which enable it to effectively meet the diverse needs of users.

​Application Area

The MT-603 is compatible with a wide range of receivers, and finds extensive use across fields including UAVs, handheld terminal devices, and small-scale RTK equipment. Additionally, it can be applied in the military sector, provided that specific application conditions are met.​

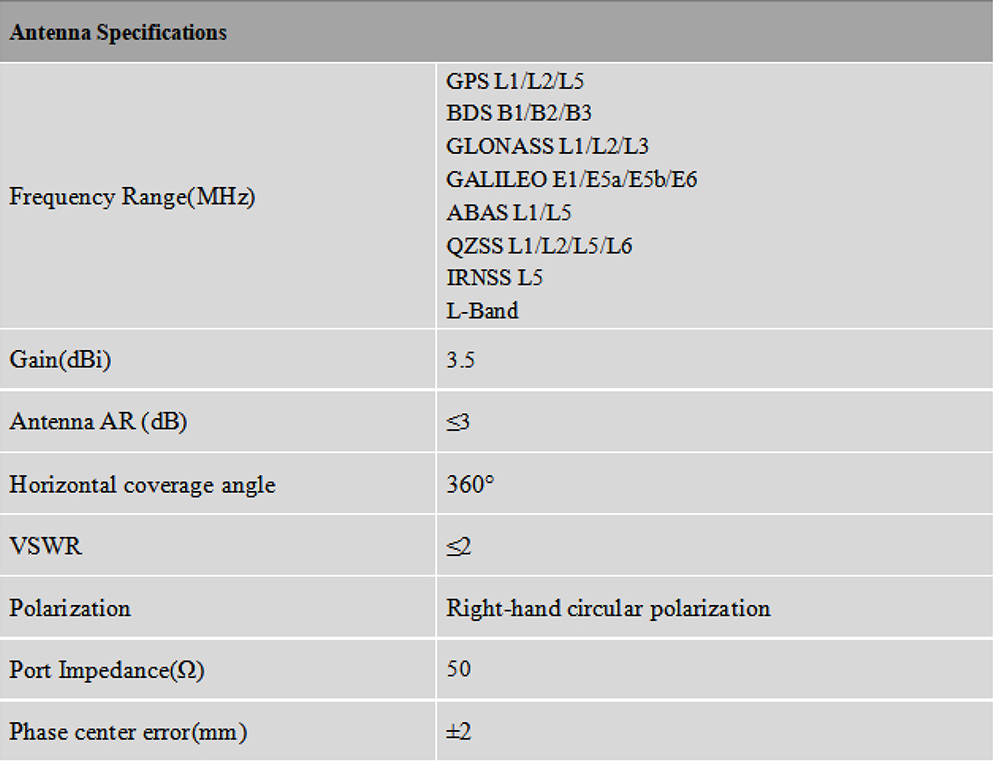

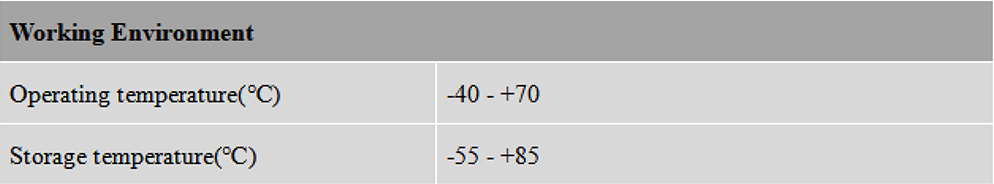

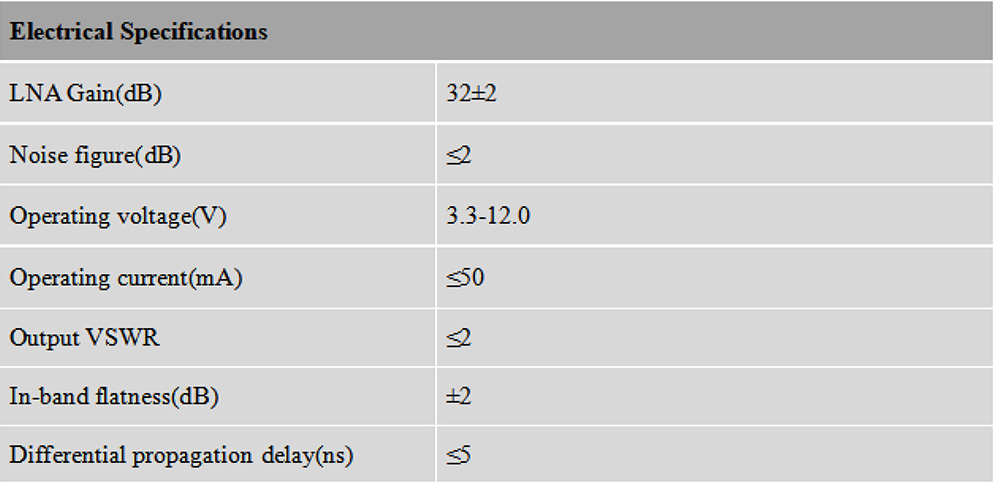

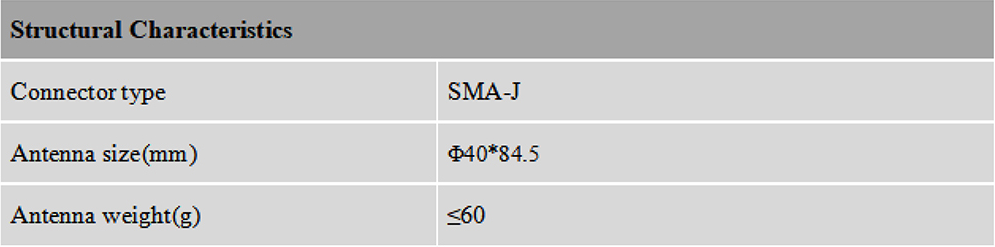

Specifications

RTK GNSS Antenna MT-603 RTK GNSS Antenna MT-603 RTK GNSS Antenna MT-603 RTK GNSS Antenna MT-603

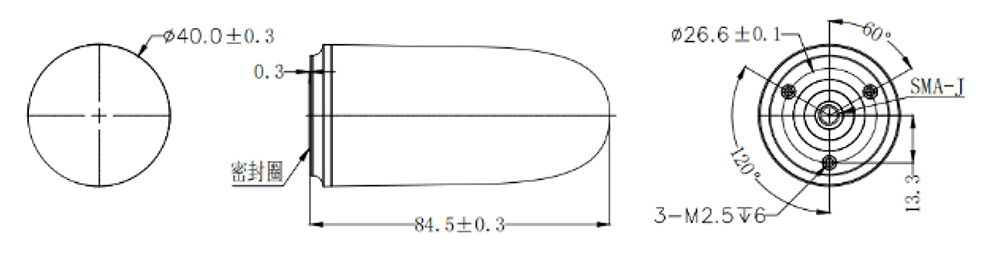

Product Dimension (MM)

RTK GNSS Antenna MT-603
