Product Introduction

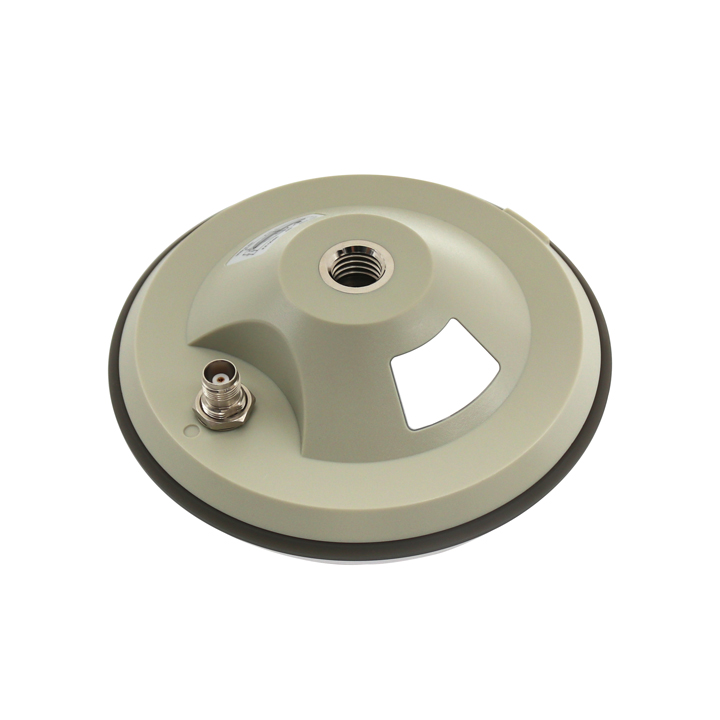

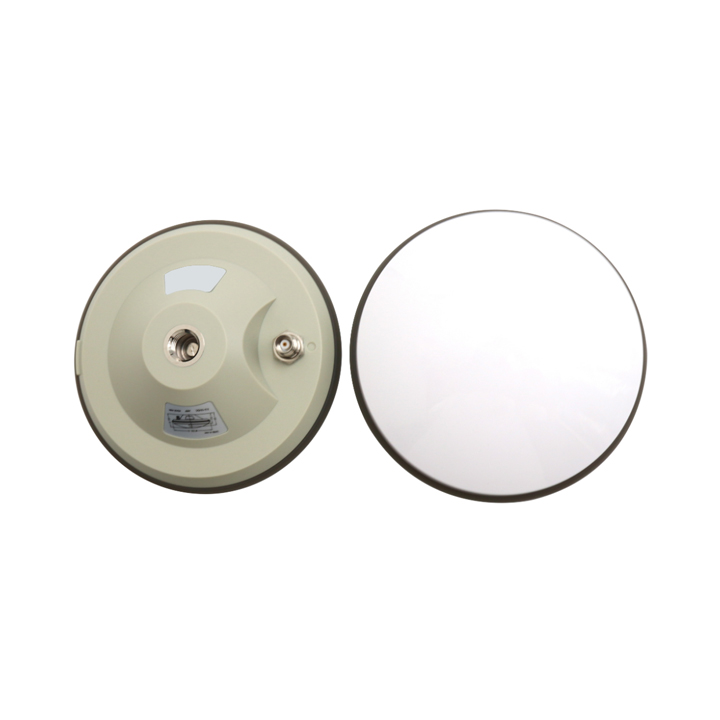

The MT-760 is a four-constellation, multi-band satellite navigation antenna. Featuring high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability, it effectively meets diverse user requirements.
- It adopts a multi-feed design and a fully symmetrical antenna structure, which provides an extremely stable phase center and reduces measurement errors of antenna pairs.
- With high gain and low VSWR, it delivers a significant effect on receiving low-elevation signals and maintains normal satellite acquisition even in heavily occluded scenarios.
- Equipped with an anti-multipath choke and an anti-surge design, it can effectively suppress strong out-of-band interference signals and ensure the antenna’s reliable operation.
- It uses UV-resistant PC material for its housing—this not only ensures an attractive appearance but also prevents discoloration during long-term outdoor use, while providing high-temperature resistance, sun protection, and UV protection.
Application Area
This antenna is a four-constellation, multi-frequency external UFO-type GNSS antenna that supports an extensive range of signal bands. These include GPS (L1/L2/L5), BDS (B1I/B2I/B3I/B1C/B2a/B2b), GLONASS (L1/L2/L3), GALILEO (E1/E5a/E5b/E6), SBAS (L1/L5), QZSS (L1/L2/L5/L6), and IRNSS (L5).
It effectively meets the demands of current GNSS measurement equipment for multi-system compatibility and addresses the needs of high-precision users. The antenna is compatible with various satellite navigation receivers, finding wide application in fields such as land surveying, waterway mapping, precision agriculture, and marine surveying. Additionally, it can be optionally deployed in military scenarios based on specific application requirements.

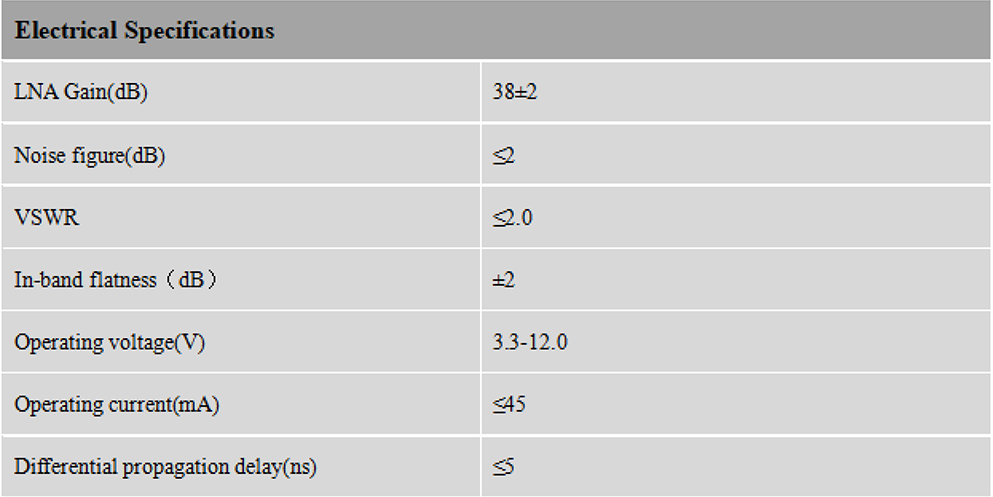

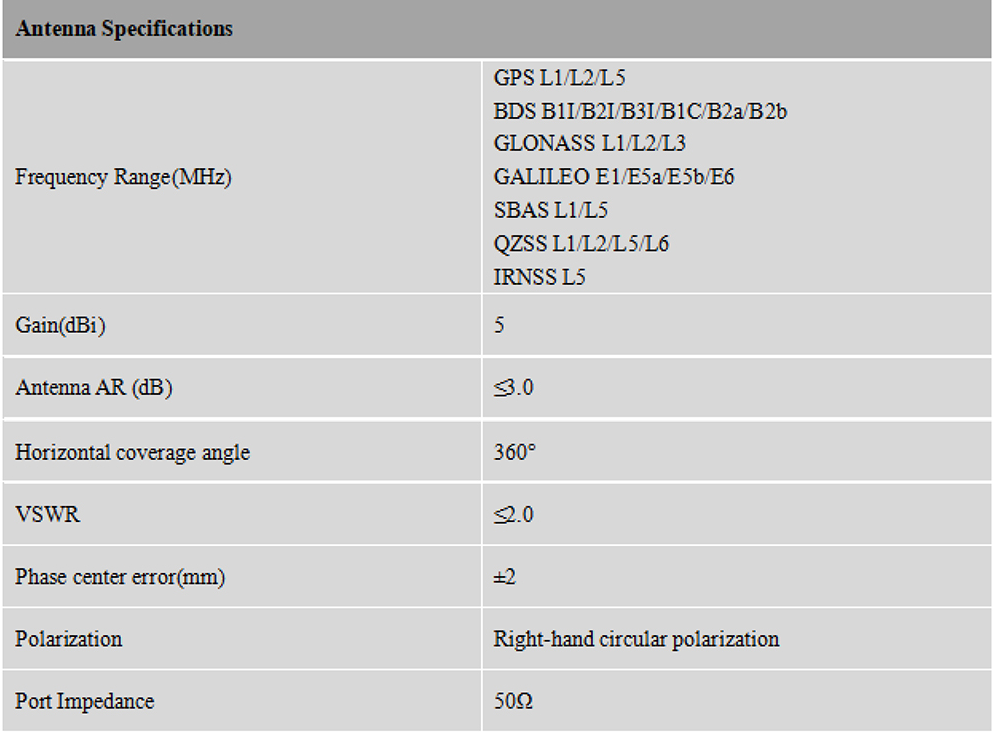

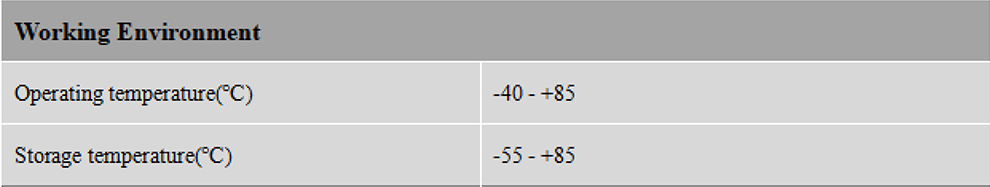

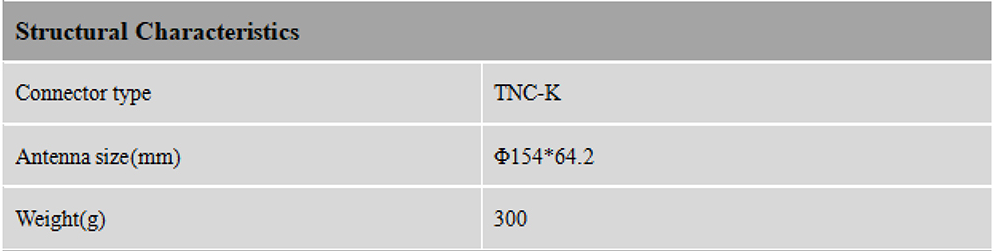

Specifications
