RTK GNSS Antenna MT-800FA2

The RTK GNSS Antenna MT-800FA2 is a specialized high-precision positioning component tailored for advanced real-time kinematic (RTK) applications. Building on the reliability of the MT-800 series, it supports full-frequency signal reception across four key GNSS constellations—GPS, BDS, GLONASS, and Galileo—while optimizing adaptive performance for diverse working environments.​
Featuring high gain, ultra-low standing wave ratio, and enhanced anti-multipath interference (via a dedicated choke plate design), the MT-800FA2 ensures stable satellite acquisition even in challenging conditions such as low-elevation signal areas, dense urban canyons, or heavily occluded rural regions. Its compact, durable housing is crafted from UV-resistant PC material, paired with an IP67 waterproof rating, enabling long-term outdoor use with resistance to high temperatures, sunlight, and ultraviolet rays.
Categories: , , , , , , , ,
Description

Introduce

The MT-800FA2 is capable of transmitting signals across the frequency bands of GPS, GLONASS, GALILEO, and BDS. It boasts key characteristics including high gain, excellent low-elevation gain, wide-angle circular polarization, and a stable phase center—all of which make it well-suited for multi-system and high-precision surveying and mapping tasks. Additionally, it can be paired with satellite signal forwarding equipment to facilitate satellite signal transmission.
​

Characteristic

The antenna unit adopts a multi-feed point design scheme, which ensures the coincidence of the phase center and the geometric center.​
With high gain, a wide-pattern beam, and excellent beam coverage over the hemisphere, the antenna element delivers reliable signal reception performance.​
In terms of environmental protection, the antenna features high and low temperature impact resistance, and is equipped with a waterproof and anti-UV cover. This configuration provides effective protection for the antenna, enabling it to work stably in field environments for an extended period.

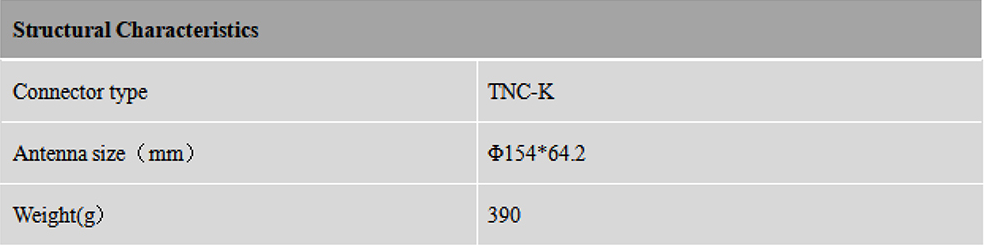

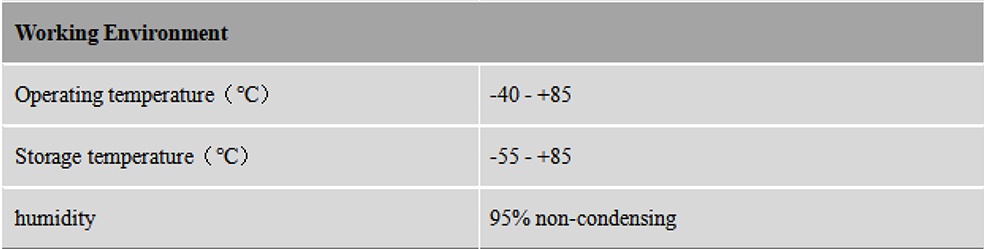

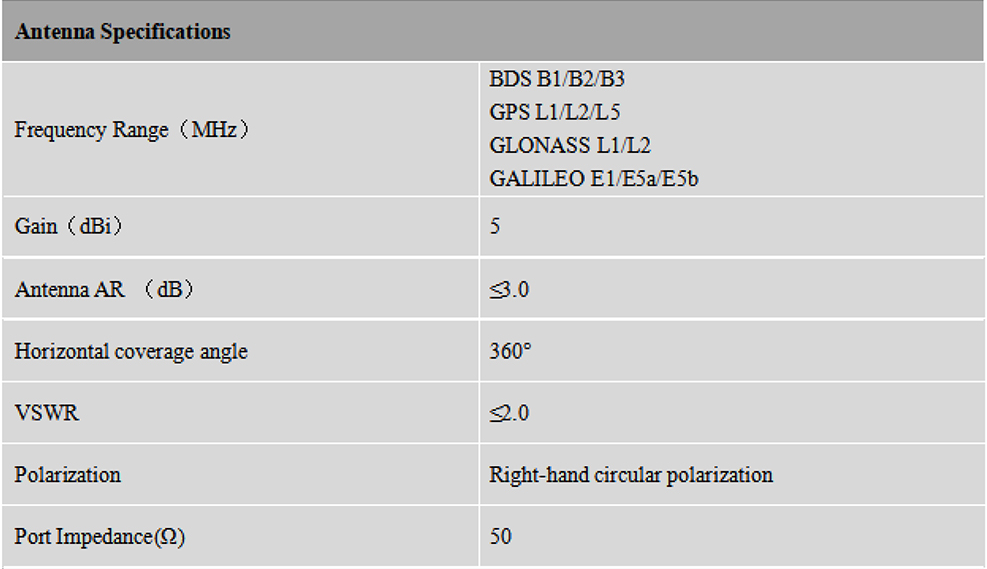

Main Technical Parameters

RTK GNSS Antenna MT-800FA2 RTK GNSS Antenna MT-800FA2 RTK GNSS Antenna MT-800FA2

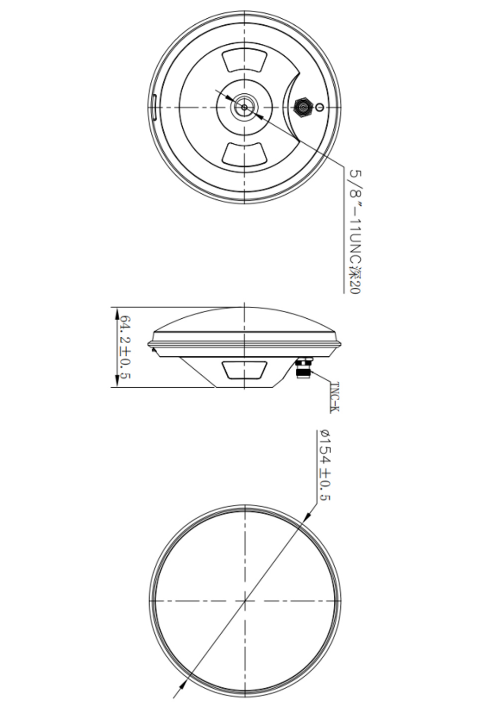

Dimension

RTK GNSS Antenna MT-800FA2
