Product Introduction

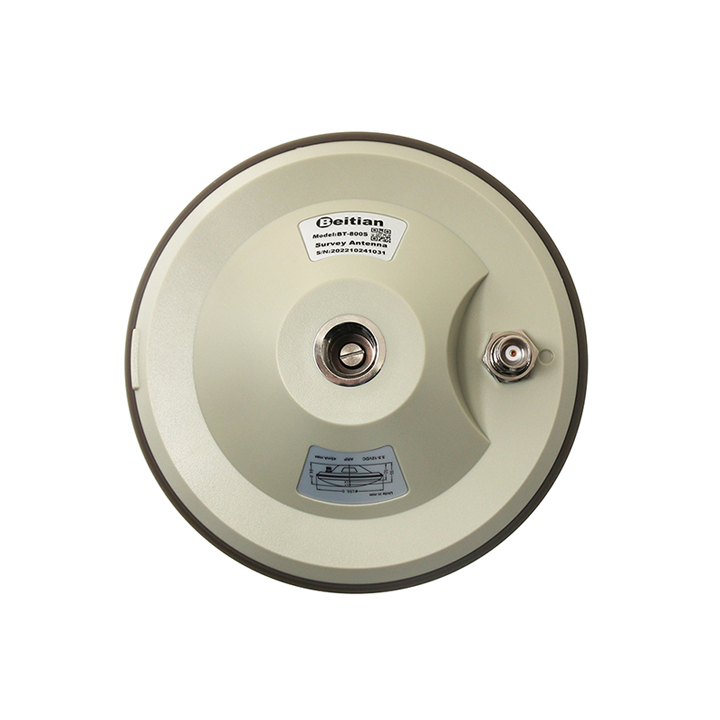

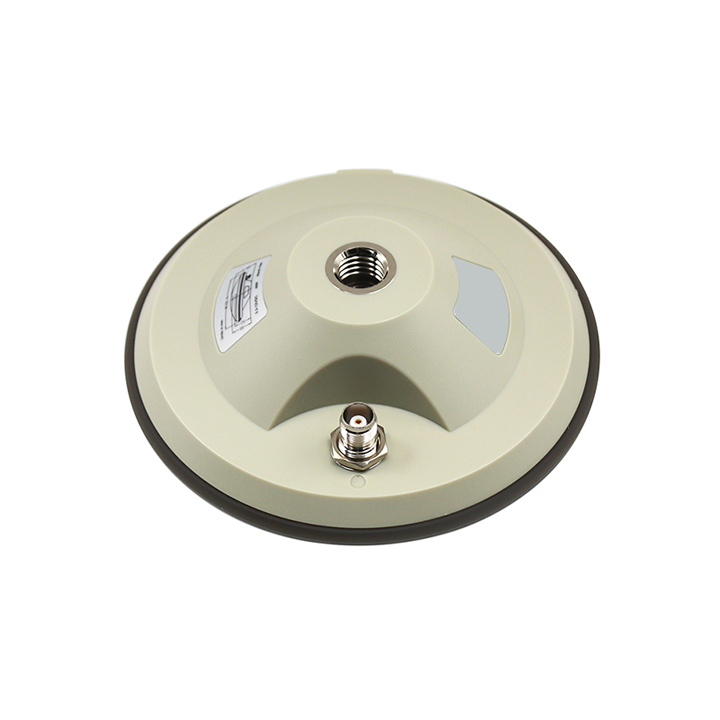

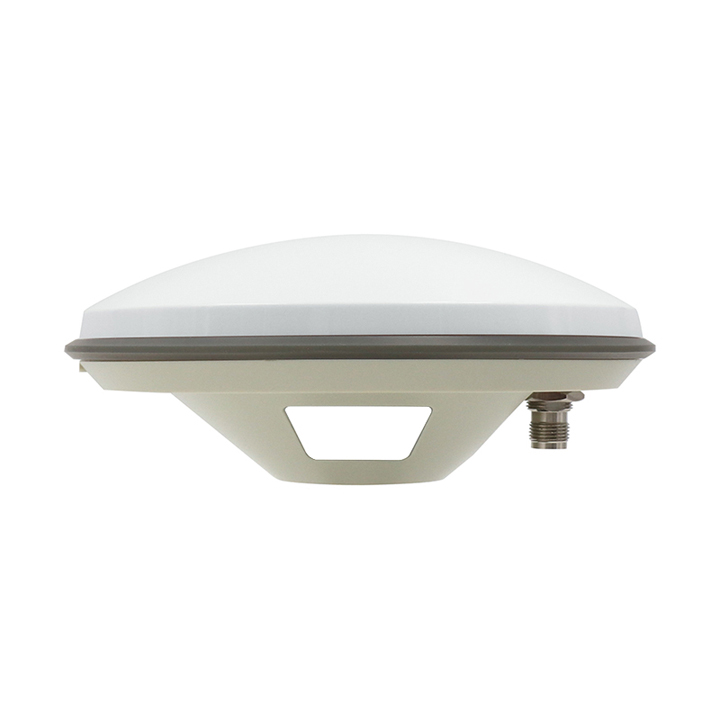

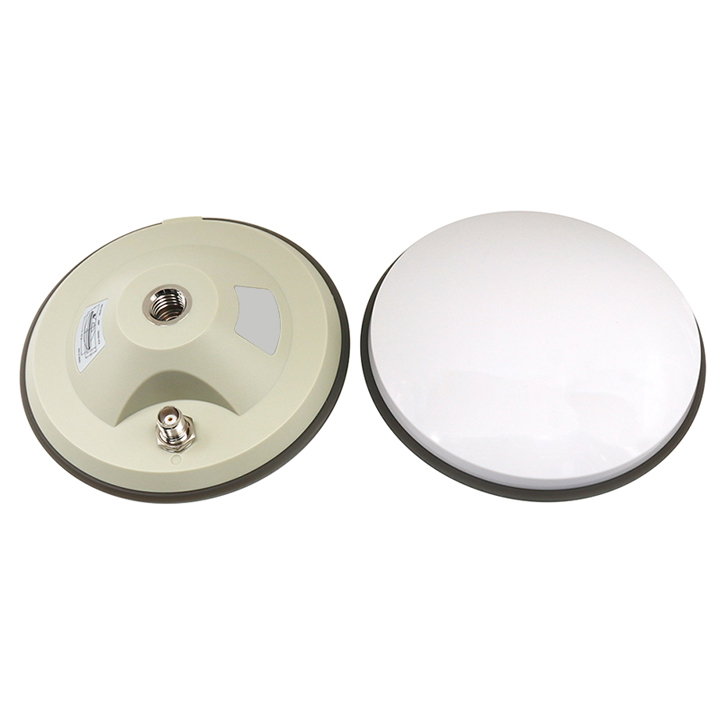

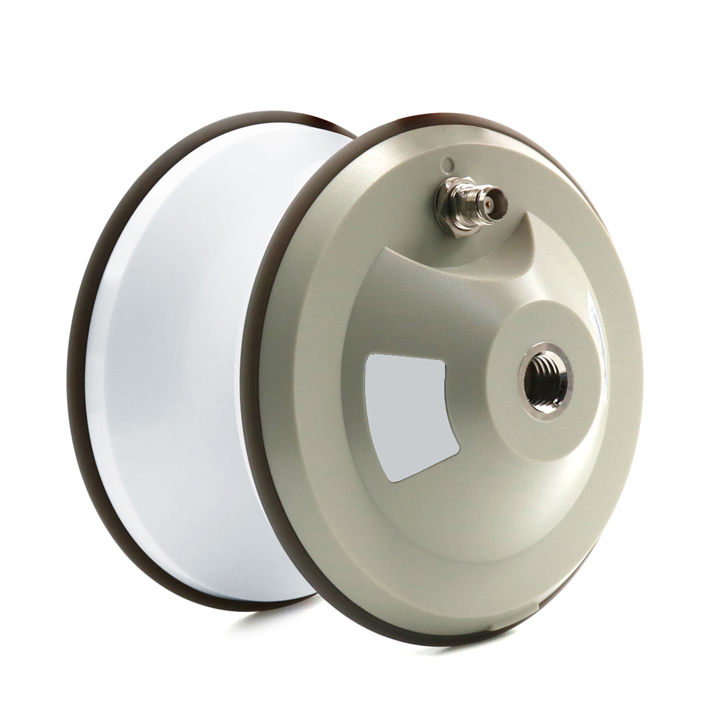

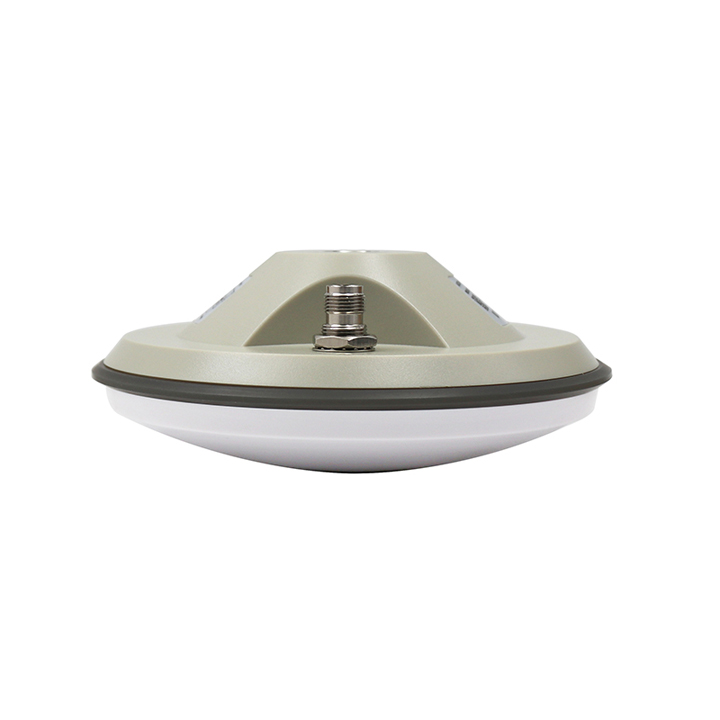

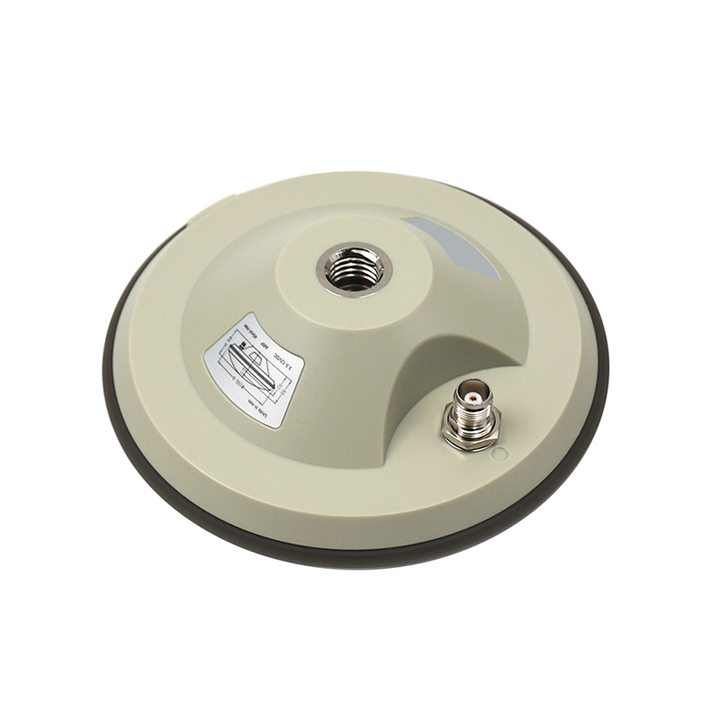

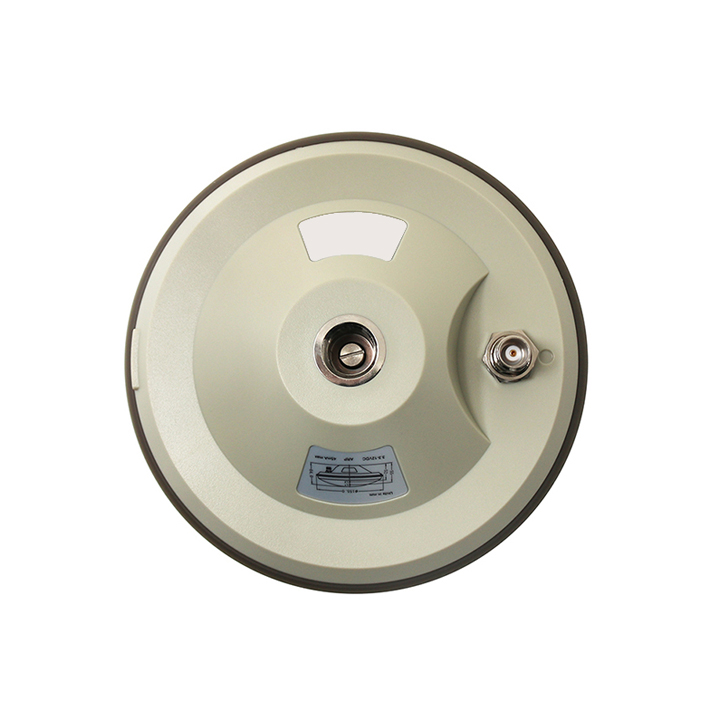

The MT-800S is a four-constellation, full-frequency satellite navigation antenna. It features high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability—all of which enable it to effectively meet user needs.
- It adopts a multi-feedpoint design and a fully symmetrical antenna structure, which provides an extremely stable phase center and reduces measurement errors of antenna pairs.

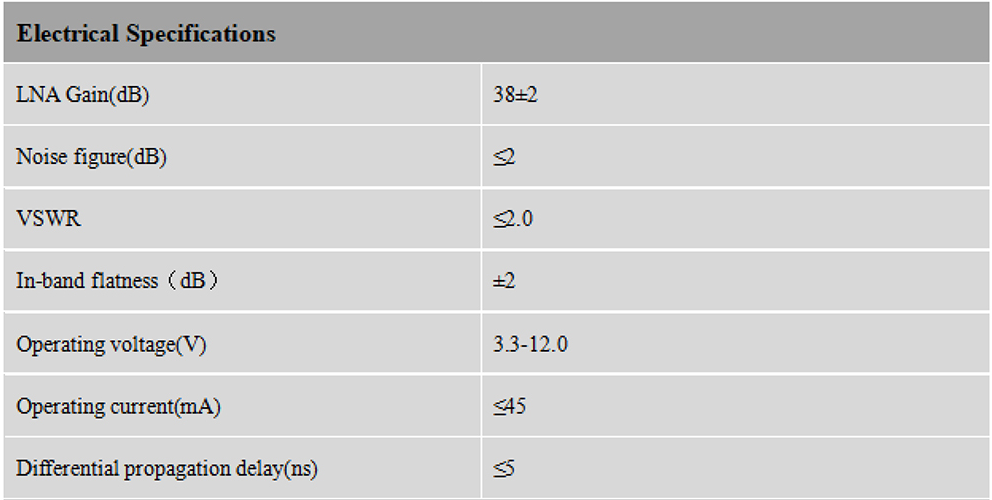

- With high gain and a low standing wave ratio, it delivers a notable effect on receiving low-elevation signals and can normally acquire satellites even in scenarios with severe occlusion.
- Equipped with an anti-multipath choke plate and an anti-surge design, it can effectively suppress strong out-of-band interference signals, thus ensuring the antenna’s reliability.

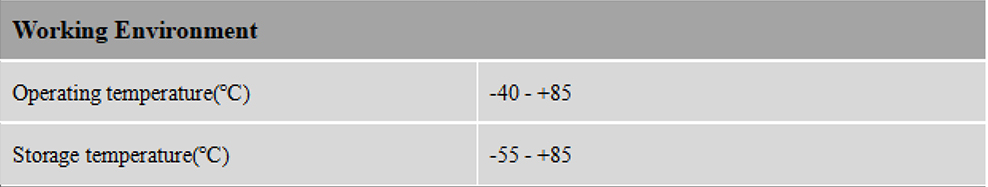

- It is designed with anti-ultraviolet PC material: this not only gives it an attractive appearance but also prevents the antenna shell from discoloring during long-term outdoor use. Additionally, it has an IP67 waterproof rating, along with high-temperature resistance, sun protection, and UV protection.
