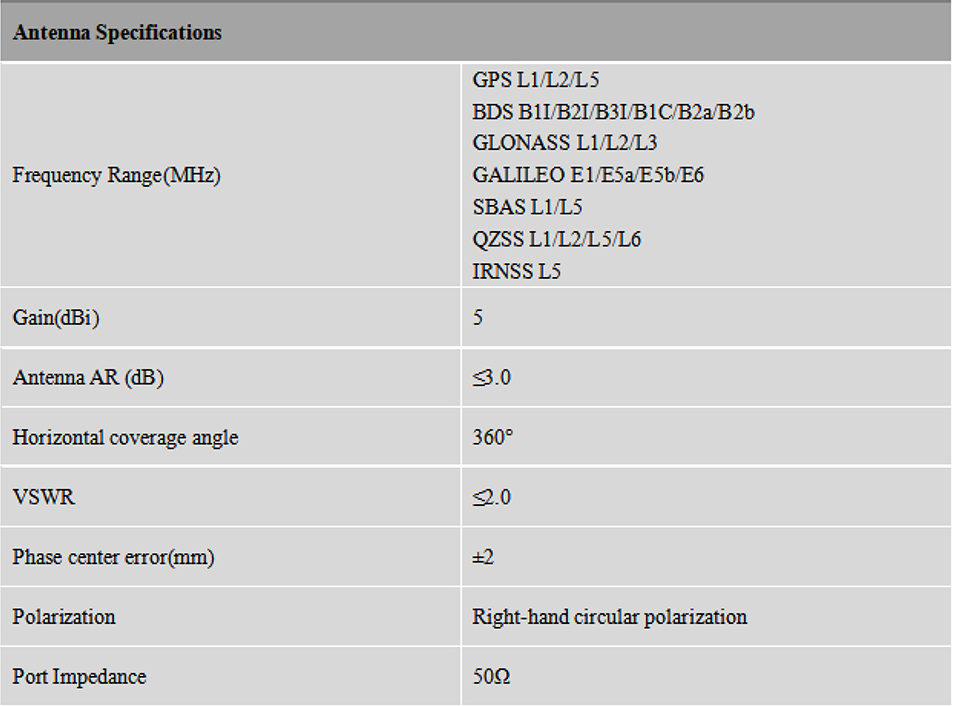

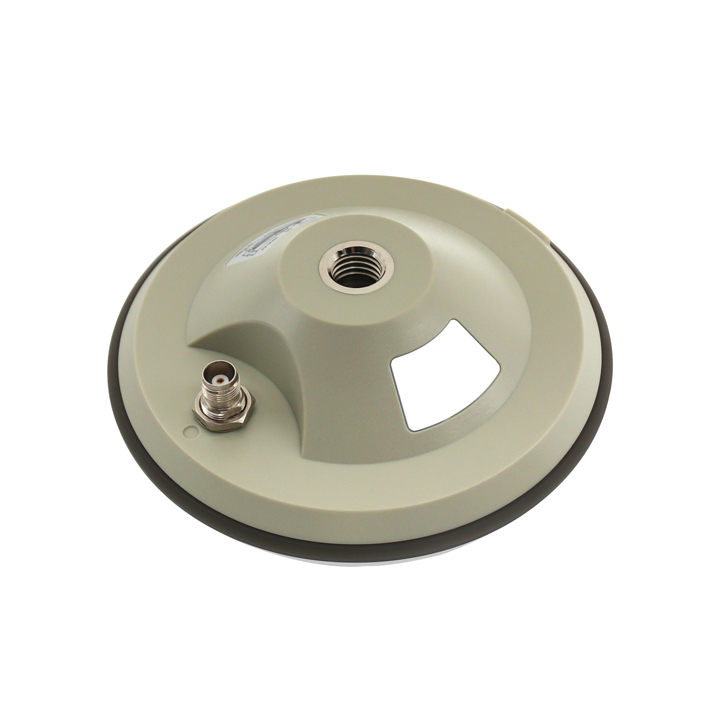

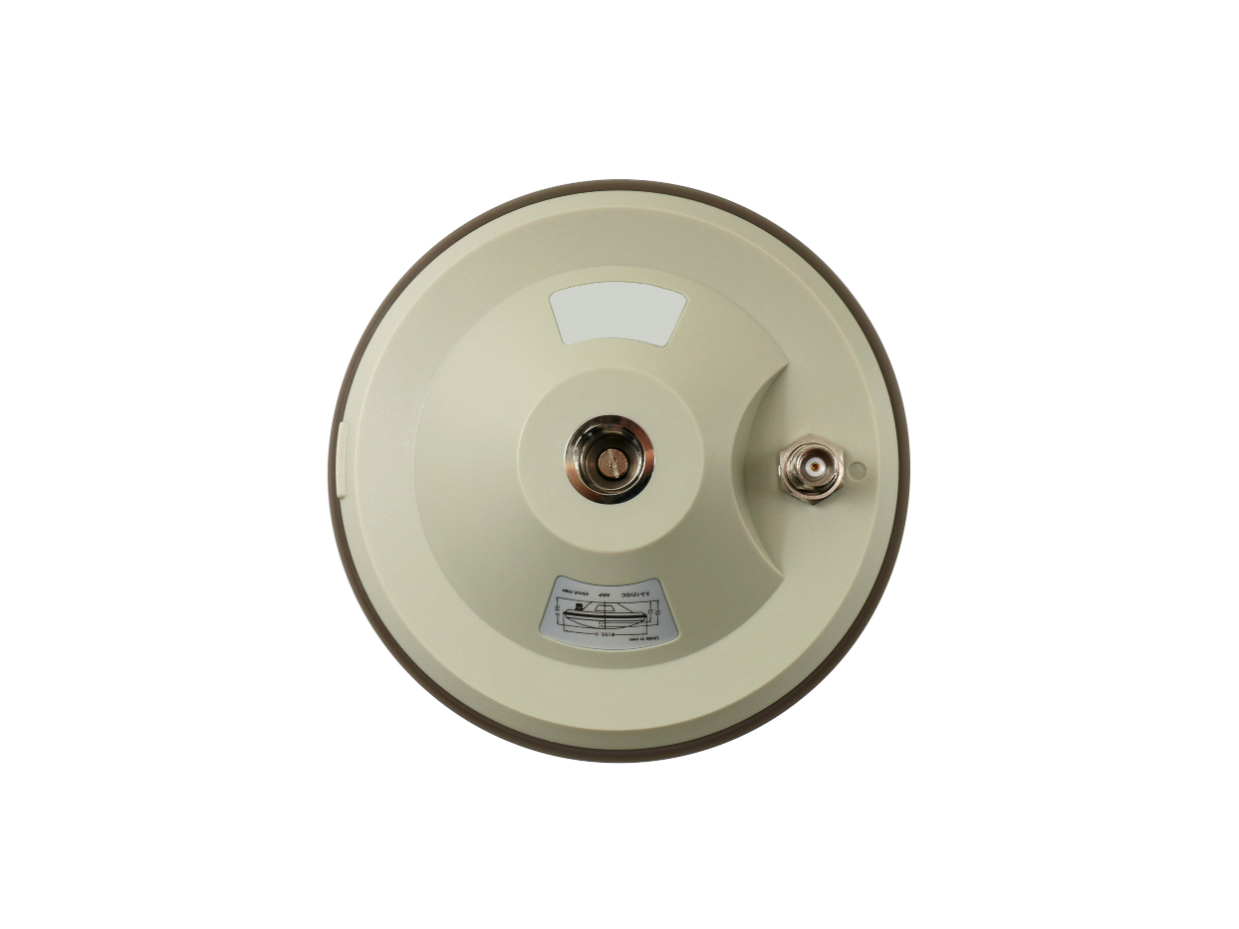

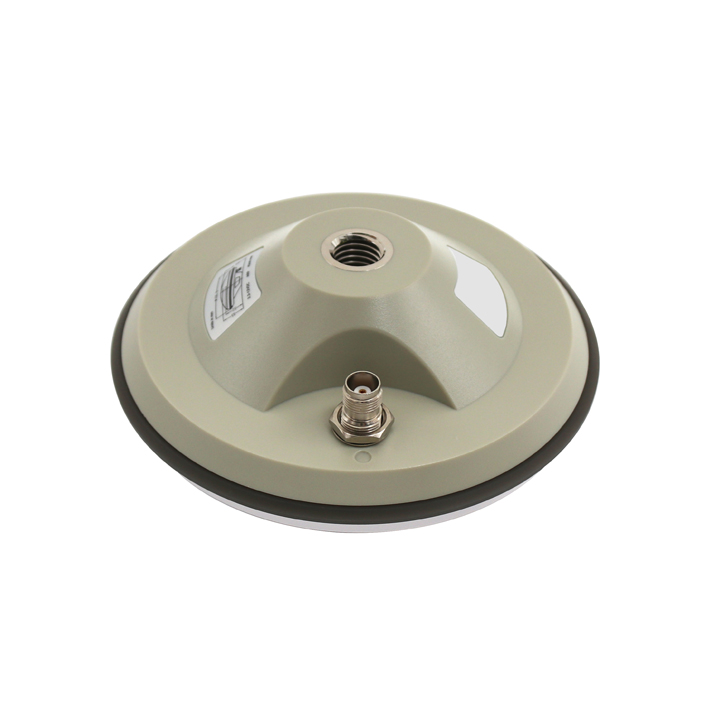

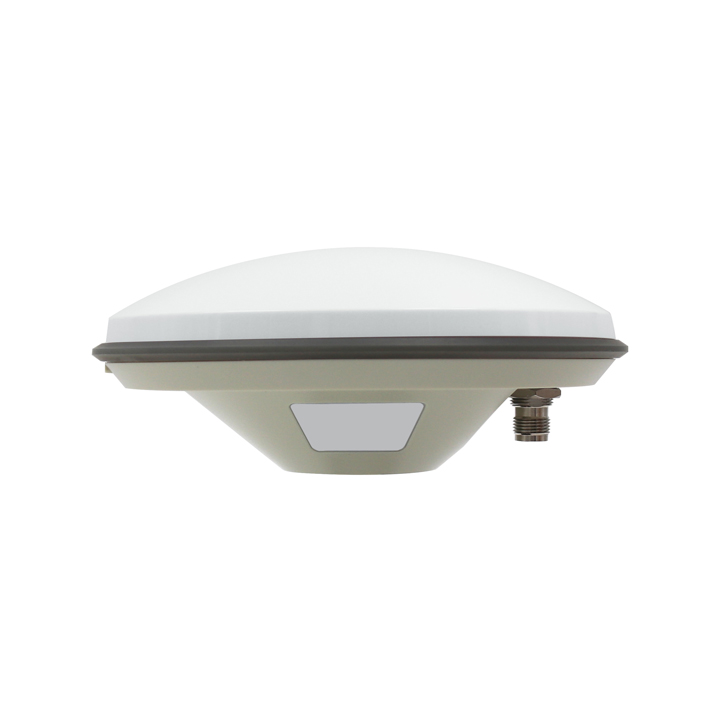

Product Introduction
The MT-890 is a four-satellite multi-band satellite navigation antenna, boasting key features such as high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability. These attributes enable it to effectively meet diverse user requirements across professional scenarios.
- It adopts a multi-feed design and a fully symmetrical antenna structure, which provides an extremely stable phase center. This design significantly reduces measurement errors associated with antenna pairs, enhancing overall positioning accuracy.
- With high gain and low Voltage Standing Wave Ratio (VSWR), the antenna delivers remarkable performance in receiving signals from low elevation angles. Even in scenarios with severe signal obstruction, it maintains normal satellite acquisition capabilities, ensuring uninterrupted operation.
- Equipped with an anti-multipath choke and an anti-surge design, the MT-890 can effectively suppress strong out-of-band interference signals. This not only safeguards the antenna’s internal components but also guarantees long-term operational reliability.
- The antenna housing is constructed from anti-ultraviolet PC material, combining aesthetic appeal with practical durability. For long-term outdoor use, this material prevents discoloration of the housing while providing excellent resistance to high temperatures, sunlight, and ultraviolet radiation.

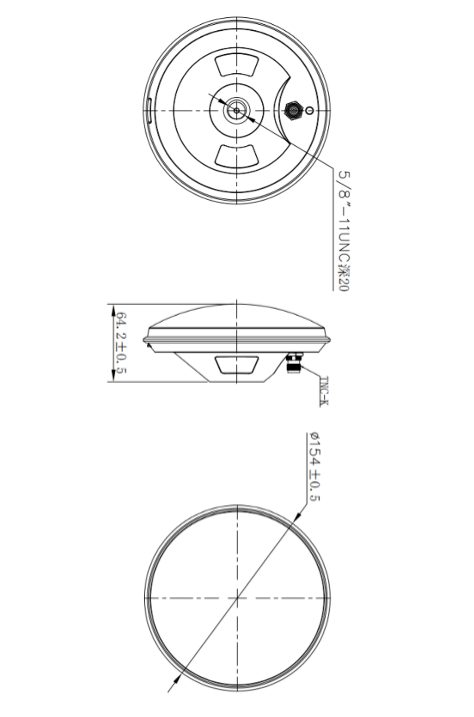

Product Dimension

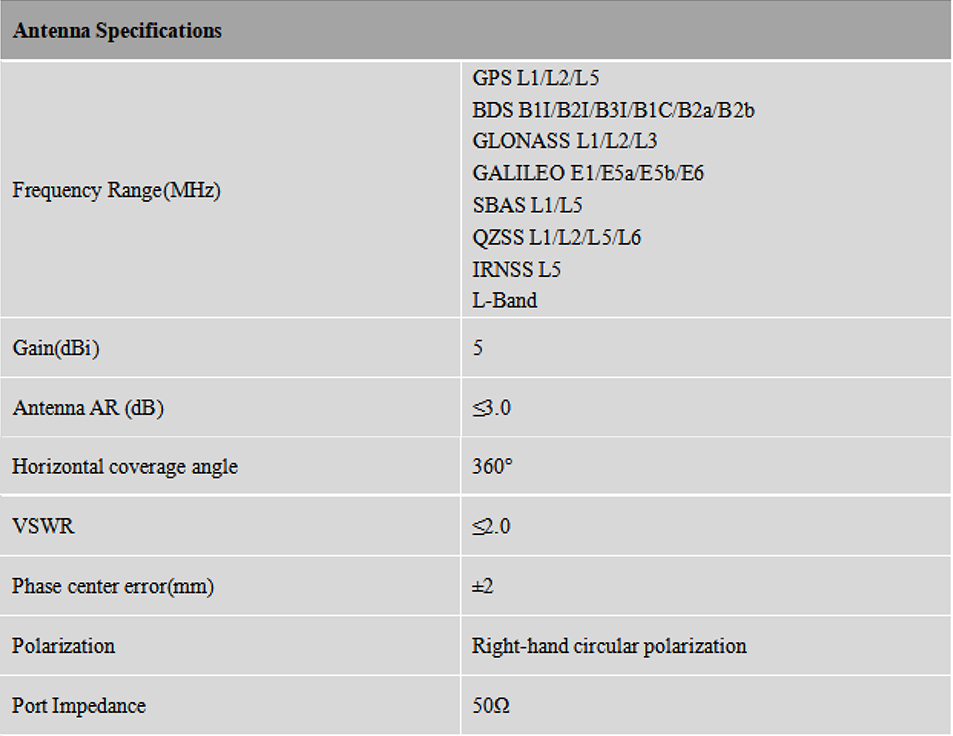

Product Introduction
The MT-890S is a four-satellite multi-band satellite navigation antenna, featuring high gain, miniaturization, high sensitivity, multi-system compatibility, and high reliability. These key characteristics enable it to effectively fulfill the diverse needs of users across professional application scenarios.
- It adopts a multi-feed point design and a fully symmetrical antenna structure, which ensures an extremely stable phase center. This structural advantage helps reduce measurement errors of antenna pairs, further improving the accuracy of positioning results.
- With high gain and low Voltage Standing Wave Ratio (VSWR), the antenna exhibits outstanding performance in receiving signals from low elevation angles. Even in situations with severe signal occlusion, it can still maintain normal satellite collection capabilities, ensuring continuous and stable operation.
- Equipped with an anti-multipath choke and integrated with an anti-surge design, the MT-890S can effectively suppress strong out-of-band interference signals. This dual protection mechanism not only shields the antenna’s internal components but also guarantees its long-term operational reliability.
- The antenna shell is made of anti-ultraviolet PC material, which combines elegant appearance with practical durability. For long-term outdoor use, this material prevents the shell from discoloring while providing excellent resistance to high temperatures, sunlight, and ultraviolet radiation.

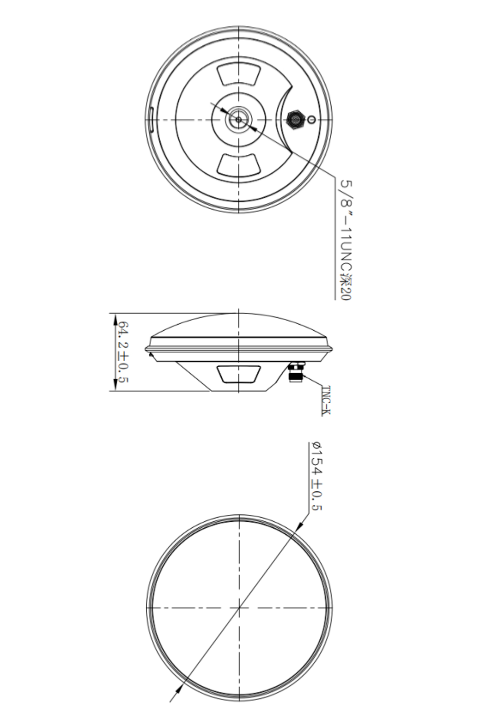

Product Dimension
