Home » Unmanned System Products » RTK GNSS Antenna MT-T009
RTK GNSS Antenna MT-M61AJ3
Back to products
RTK GNSS Antenna MT-T042(L1+L5)

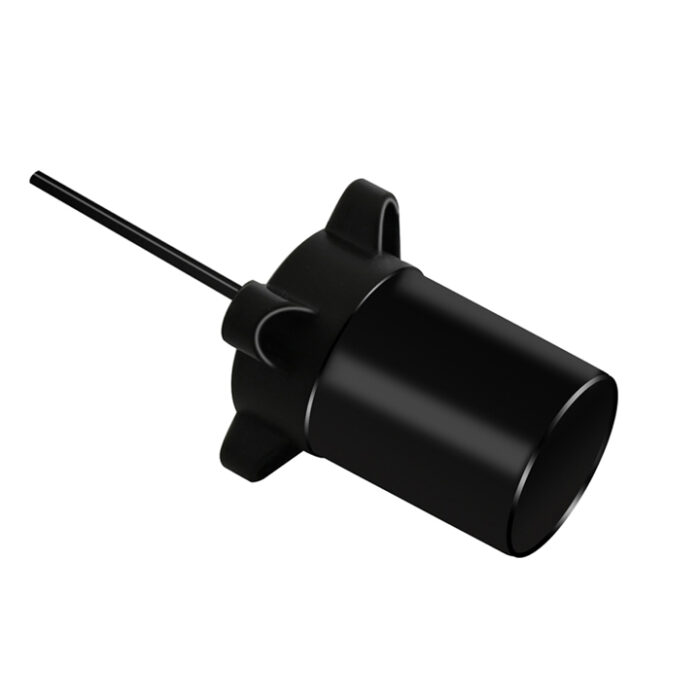

RTK GNSS Antenna MT-T009

The RTK GNSS Antenna MT-T009 is a cutting-edge high-precision positioning solution tailored for professional applications requiring reliable and accurate location data. It boasts broad multi-constellation support, efficiently capturing signals from GPS, GLONASS, BeiDou, Galileo, and SBAS, which ensures strong signal reception and stable positioning performance even in complex environments like urban canyons, remote rural areas, or regions with intermittent signal coverage.​​
Categories: Anti Jamming Antenna, Anti Jamming Sensor, Digital Communication Modules, GNSS Antenna, GNSS Module, GNSS Receiver, RTK GNSS Antenna, RTK GNSS Board, RTK GNSS Receiver
Share:
  • Description
Description

Product Introduction

The MT-T009 is a four-star full-frequency spiral antenna that boasts the characteristics of small size, high positioning accuracy and light weight, enabling it to effectively meet user needs.
Alternatively, you could use this version for a slightly more streamlined flow: The four-star full-frequency spiral antenna MT-T009 features a compact size, high positioning accuracy and light weight, all of which allow it to effectively satisfy user requirements.

Application Area

It is compatible with a range of receivers, finding wide application in fields like UAVs, handheld terminal devices and small RTK equipment; it can also be used in the military sector depending on specific application conditions.
Another polished version for better flow: Compatible with various receivers, it is widely utilized in UAVs, handheld terminal devices and small RTK equipment, while also supporting military field use when application conditions allow.

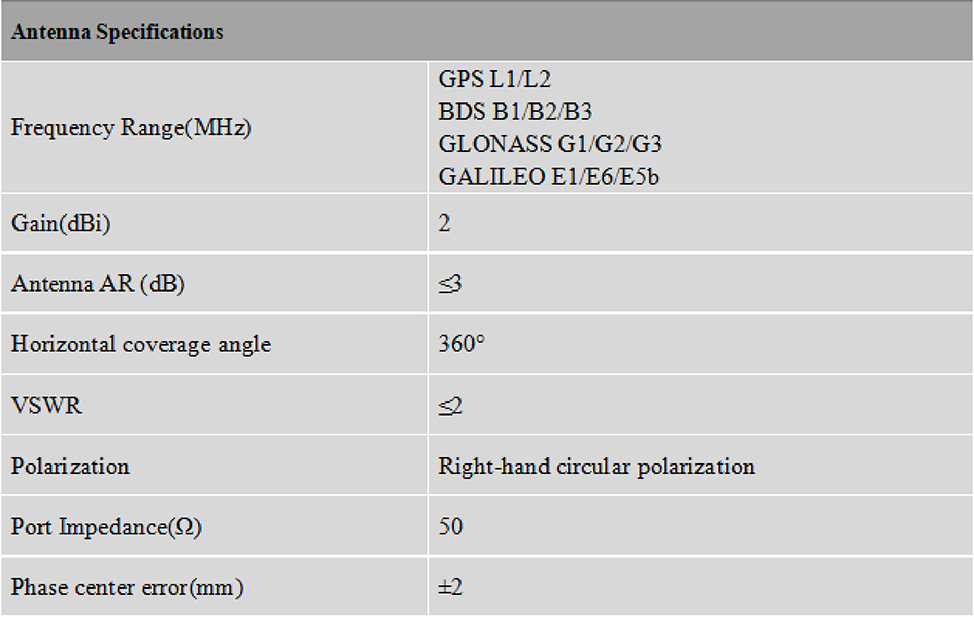

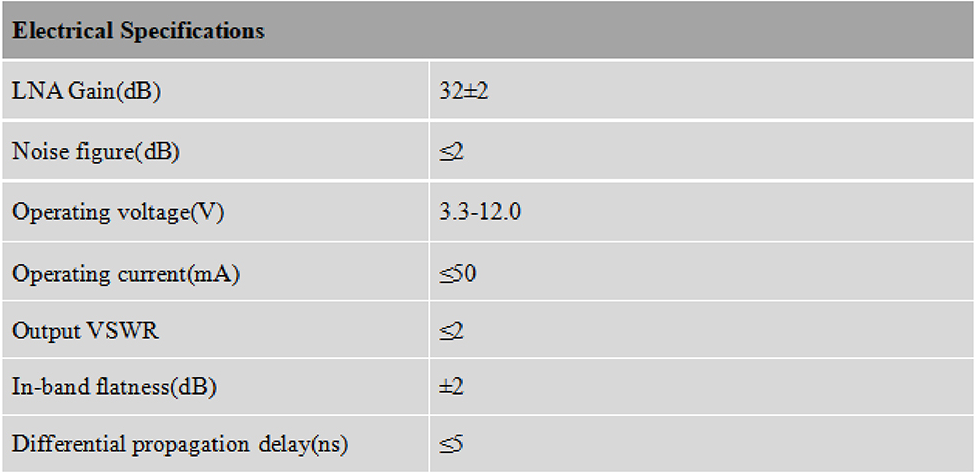

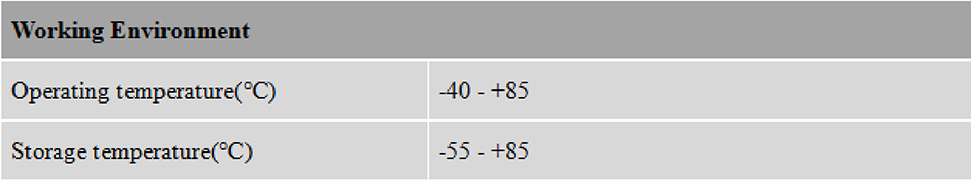

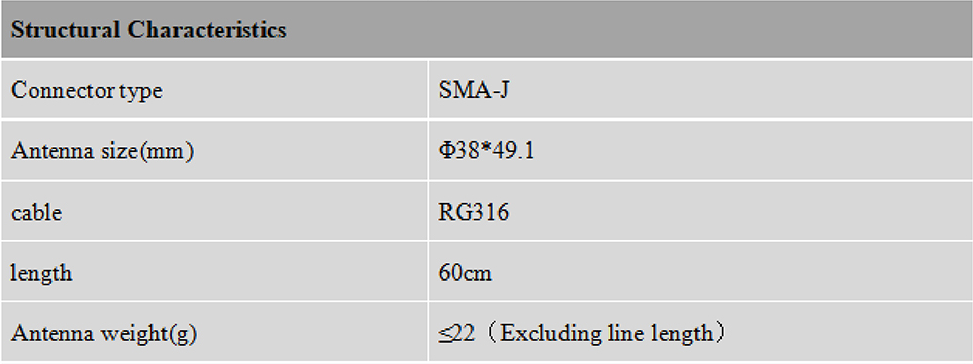

Specifications

RTK GNSS Antenna MT-T009 RTK GNSS Antenna MT-T009 RTK GNSS Antenna MT-T009 RTK GNSS Antenna MT-T009

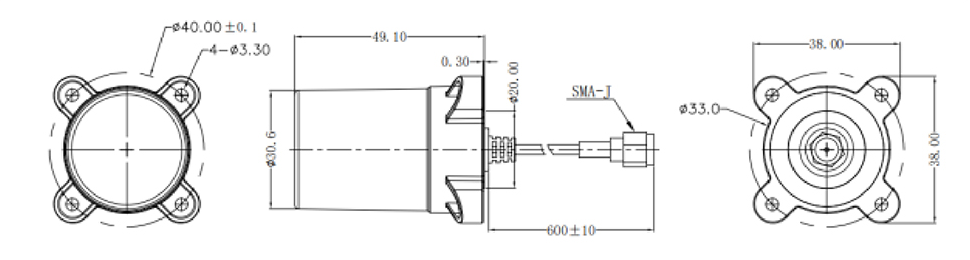

Product Dimension(mm)

RTK GNSS Antenna MT-T009
